52-PV3H2H0SS: DescriptionHARDWARE SUPPLIED: O-RING AND HEXNUT; File Size159KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

52-PV3H2H0SS Overview

HARDWARE SUPPLIED: O-RING AND HEXNUT

Preview

Download Datasheet

View All

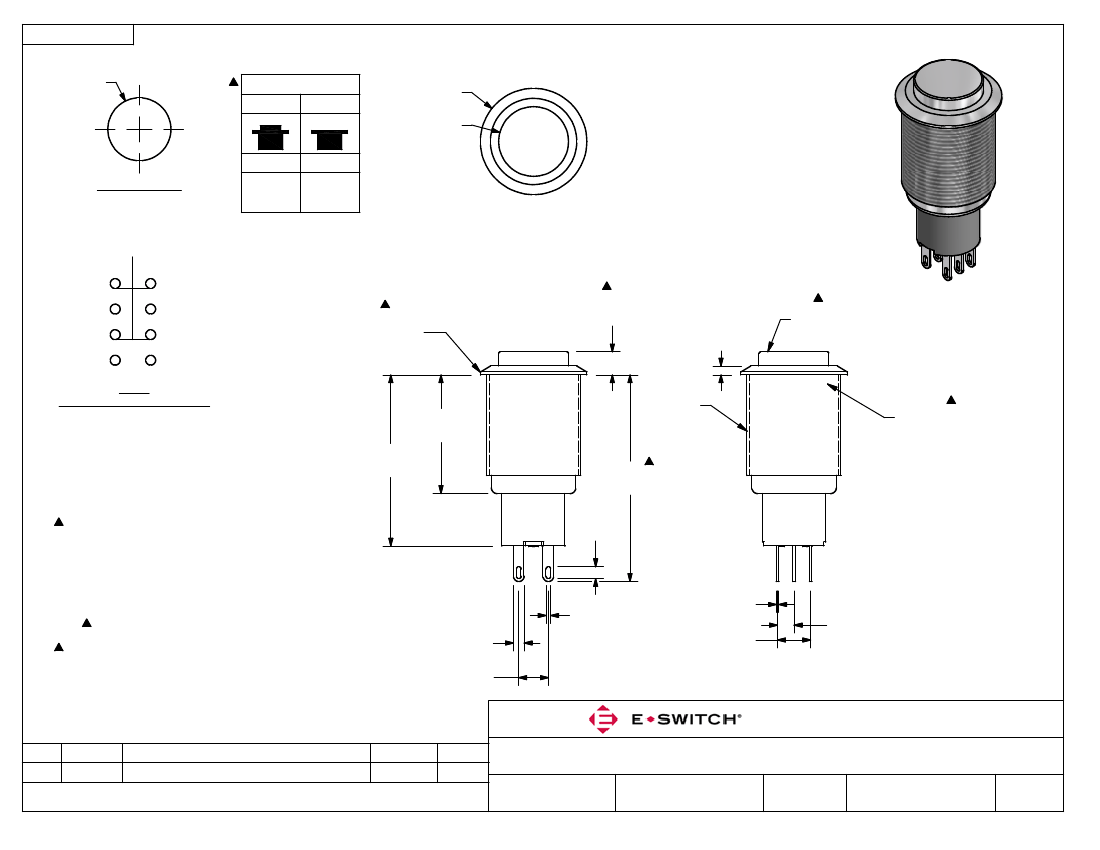

SHEET 1 OF 1

16.00

18.00

[.709 in]

11.80

[.465 in]

[.630 in]

SWITCH FUNCTION

POS. 1

POS. 2

PANEL CUTOUT

MAX. PANEL THICKNESS

14.0mm [.551]

1-3, 4-6

(ON)

1-2, 4-5

(ON) = MOMENTARY

BODY FINISH

POLISHED STAINLESS

3.90

.50

[.154

.020

in]

1.50

[.059 in]

ACTUATOR FINISH

POLISHED STAINLESS

DPDT

CONTACT CONFIGURATION

20.10

1.00

[.791

.039

in]

29.00

1.00

NOTE:

[1.142

.039

in]

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. CONTACT MATERIAL: SILVER

5. RATING: 2A 48VDC

6. ELECTRIC LIFE: 50,000 MAKE-AND-BREAK CYCLES

AT FULL LOAD.

7. INSULATION RESISTANCE: 1,000 M MIN.

8. DIELECTRIC STRENGTH: 2,000 VAC MIN. FOR 1 MINUTE

9. CONTACT RESISTANCE: 50m MAX. @ 1A 12VDC

10. OPERATING TEMP.: -20°C to 55°C

11. DENOTES CRITICAL PARAMETER.

12. HARDWARE SUPPLIED: O-RING AND HEXNUT

1.80

13. INGRESS RATING: IP40

[.071 in]

14. 2002/95/EC (ROHS) COMPLIANT

5.00

[.197 in]

M16x1.0

NOTE 12

HARDWARE SUPPLIED

35.00

1.00

[1.378

.039

in]

2.00

[.079 in]

.40

[.016 in]

5.60

[.220 in]

.80

[.031 in]

2.80

[.110 in]

REV

20944

PCR NO

RELEASE FOR PRODUCTION

DESCRIPTION

12/27/12

DATE

EBP

TITLE

SCALE

PV3H2H0SS

DATE

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

12/27/2012

EBP

DWG

52-PV3H2H0SS
