EURO
QUARTZ
Sinewave output TCXO 50 Ohms
Wide frequency range 9.6MHz to 360.0MHz
Supply Voltage from 3.0 to 15.0 Volts
Output 50 Ohm load, power <13dBm
Produced as TCXO or VCTCXO with EFC
EM15E SINEWAVE TCXO
50 Ohm TCXO 14 pin Dual-in-Line

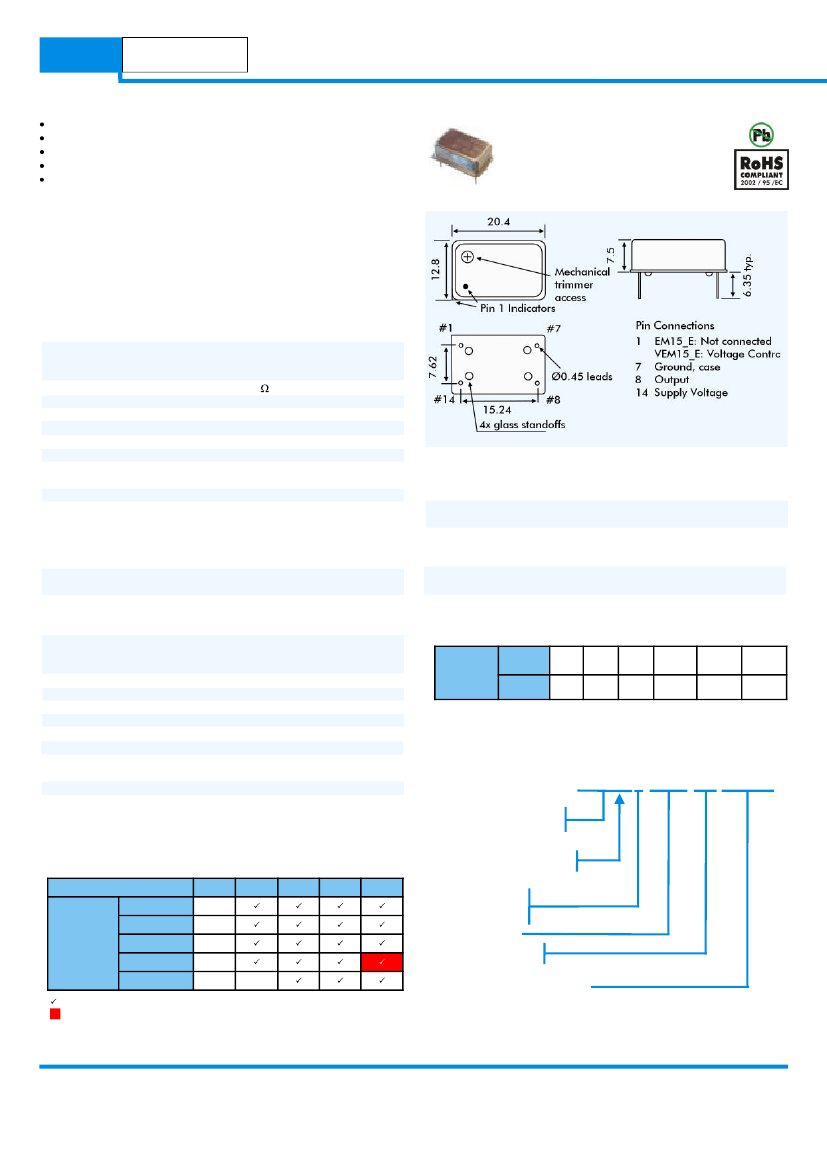

EM15E - OUTLINES AND DIMENSIONS
DESCRIPTION
EM15E series TCXOs are packaged in an industry-standard, 14 pin
dual-in-line package with mechanical trimmer. The TCXO may be
specified to operate at any supply voltage from 3.0 to 15.0 Volts.
Close tolerances from ±1ppm over -40° to +85°C are available. With
true sine wave output, the part can be produced as either a standard
TCXO or a voltage-controlled TCXO (VCTCXO).
SPECIFICATION
Product Series Code
TCXO:
VCTCXO:
Load:
Frequency Range:
Output Waveform:
Initial Calibration Tolerance*:
Operating Temperature Range:
Output Voltage Level:
Input Voltage Range:
Mechanical Frequency Tuning:
Frequency Stability
vs. Temperature:
vs. Ageing:
vs. Voltage Change:
vs. Load Change:
Supply Voltage:
Output Power
Supply +3.0 and +3.3V:
Supply +5.0 V and above:
Current Consumption**
At 30.0MHz:
At 310MHz:
Start-up Time:
Harmonic Distortion:
Spurious:
SSB Phase Noise:
Output Format:
Vibration:
Shock:
Storage Temperature:
EM15_E
VEM15_E
50
9.6MHz to 320.0MHz
True Sinewave
±2ppm at 25°C
See table
0.8V p-p min., 1.0V p-p typ.
+15.0, 12.0, 10.0, 9.0, 5.0
3.30 or 3.0 Volts DC±5%
±3ppm min.
See table
±1.0 ppm max. first year
±0.3 ppm max. ±5% change
±0.3 ppm max. ±10% change
+3.0V to +15.0V
(Specify
when ordering)
+5dBm (0.4V rms, 3.2mW)
+13dBm (1.0V rms 20mW)
20mA max for 5.0 V supply
75mA max. for 3.3 V supply
5ms typical, 10ms max.
-20dBc max.
-60dBc
See table
DC block, AC coupled
6g rms, 10~200Hz
15g 11ms, ½ sinewave
3 shocks in each plane
-55° to +125°C
VEM15E VOLTAGE CONTROL SPECIFICATION
Control Voltage:
Frequency Deviation Range:
Options:
Slope Polarity = Positive:
Linearity:
SSB PHASE NOISE
EM15E
310MHz
Offset
(Hz)
(dBc/Hz)
10
-60
100
-90
1k
-120
10k
-125
100k
-130
1MHz
-140
+1.5V±1.0V, +2.5V±2.0V
(or custom)
±8.0ppm min. for +1.5Volts Vcont.
Narrow: ±1ppm max. (or custom)
Wide: ±35ppm min. (or custom)
Increase of control voltage
increases output frequency.
10% max.
PART NUMBERING
Example:
EM15GE5-310.0-2.5/-30+75
* Stability over temperature is measured from this initial tolerance.
** Current consumption depends upon frequency, supply voltage and
output power required. Figures given are examples.
FREQUENCY STABILITY
Frequency Stability (ppm)
0 ~ +50
-10 ~ +60
Temperature
Range (°C)
-20 ~ +70
-30 ~ +75
-40 ~ +85
±0.5
ASK
x
x
x
x
ASK
±1.0
±1.5
±2.0
±2.5
Series Description
TCXO = EM15_E
VCTCXO = VEM15_E
RoHS Status
G = RoHS compliant
Blank = Non-compliant
Supply Voltage*
3 = 3.0Volts
33 = 3.3 Volts
5 = 5.0 Volts
Frequency (MHz)
Temperature Stability
±ppm, see table
Temperature Range
°C, lower and upper limits
* Insert the voltage here; e.g. for 12.0 Volts supply
package code = EM15_E12
= available, x = not available, ASK = call Technical Sales
= standard specification
