Oscilent Corporation
PRODUCT SPECIFICATION
REV A January 2011
Oscilent Controlled Document
Ordering Code / Part Number
Product Description
809-SL62.9M-20E
62.5 MHz IF SAW Filter 21.2 MHz Bandwidth
Specification Contents
o
o
o
o
o
Mechanical Dimensions
Test Circuit
Maximum Ratings
Electrical Specification
Frequency Response
Notes
o
o
o
o
Electrostatic Sensitive Device (ESD)
Avoid excessive ultrasonic exposure
Solderability compatible with JEDEC J-STD-020C Pb-free process, 260°C peak reflow temperature
This product complies with EU directive 2002/95/EC (RoHS compliance)
Oscilent Corporation
Telephone: 1.949.252.0522
Fax: 1.949.252.0522
Email: sales@oscilent.com
Product Specification
www.oscilent.com
Oscilent Part Number
809-SL62.9M-20E
January 2011 Rev A
62.5 MHz IF SAW Filter 21.2 MHz Bandwidth
Mechanical Dimensions
(mm)
Pin Description
A, B, C, E, F, G, H, J Ground
I Input
D Output
Test Circuit
Test Fixture & Values
Input L1 = 180 nH, C1 = 22 pF
Output L2 = 180 nH, C2 = 22 pF
Source/Load Impedance 50
Ω
Product Specification
P. 1
www.oscilent.com
Oscilent Part Number
809-SL62.9M-20E
January 2011 Rev A
62.5 MHz IF SAW Filter 21.2 MHz Bandwidth
Maximum Ratings
Parameters Description
Operating Temperature Range
Storage Temperature Range
Maximum DC Voltage
Maximum Input Power
Source Impedance (single ended)
(1)
Load Impedance (single ended)
(1)
Unit
°C
°C
V
dBm
Ω
Ω
Minimum
-30
-40
-
-
-
-
Typical
-
-
-
-
50
50
Maximum
80
85
10
10
-
-
Notes: With Matching Network (Ref. Testing Environment Circuit as shown above).
Those impedances could be modified with different impedance values and/or structures, if necessary.
Electrical Specification
Parameters Description
Center Frequency (Fo)
Insertion Loss at Fo
Group Delay Variation at 62.5MHz ±9.75MHz
Absolute Delay at Fo
Passband Ripple at 62.5MHz ±9.75MHz
Bandwidth at -1dB
Bandwidth at -3dB
Bandwidth at -20dB
Bandwidth at -30dB
Bandwidth at -40dB
Relative Attenuation:
Unit
MHz
dB
nsec
usec
dB
MHz
MHz
MHz
MHz
MHz
Minimum
-
-
-
-
-
20.7
21.8
-
-
-
Typical
62.9
18.0
20
0.91
0.30
21.2
22.2
24.9
25.6
26.9
Maximum
-
20.5
40
-
1.0
-
-
-
26.5
28.0
62.5MHz
-
12.5MHz
Lower sidelobe
Upper sidelobe
dB
dB
dB
35
40
40
40
45
45
-
-
-
Product Specification
P. 2
www.oscilent.com
Oscilent Part Number
809-SL62.9M-20E
January 2011 Rev A
62.5 MHz IF SAW Filter 21.2 MHz Bandwidth

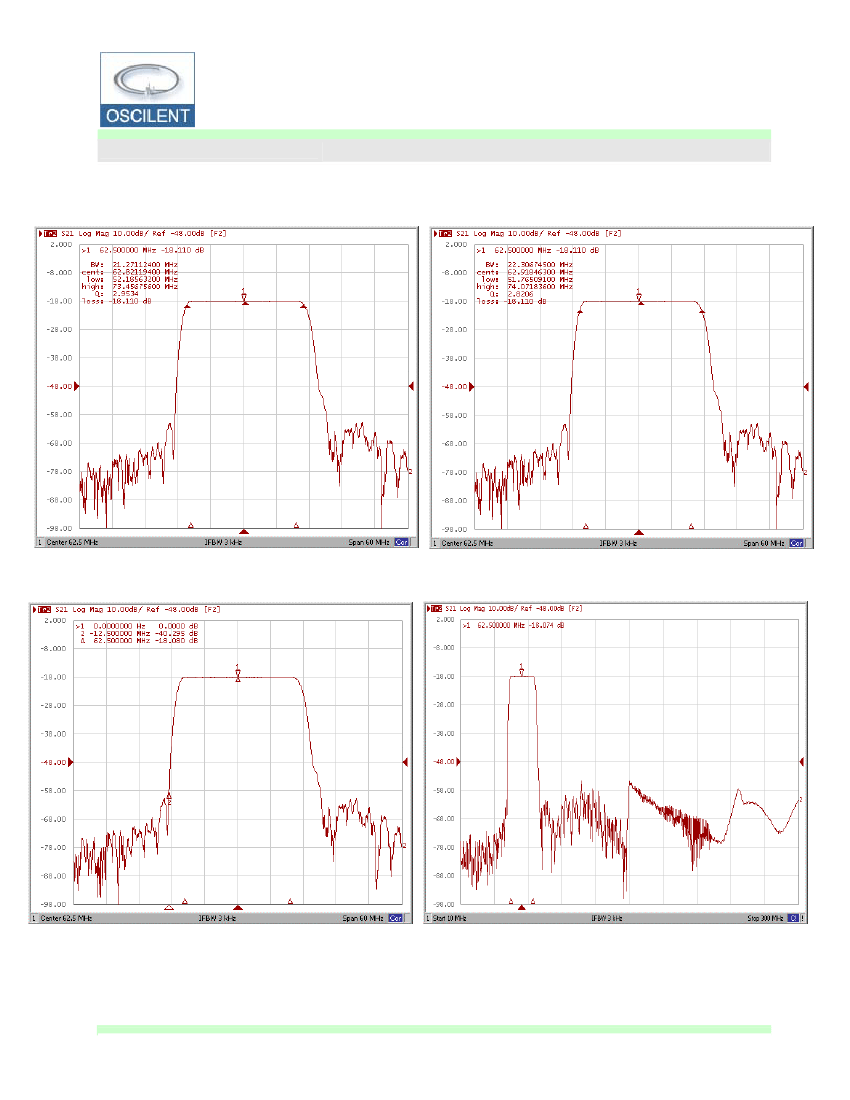

Frequency Response
Bandwidth at –1.0 dB
Bandwidth at –3.0 dB
Attenuation 62.5MHz –12.5MHz
Wide-Band
Product Specification
P. 3
www.oscilent.com
Oscilent Part Number
809-SL62.9M-20E
January 2011 Rev A
62.5 MHz IF SAW Filter 21.2 MHz Bandwidth

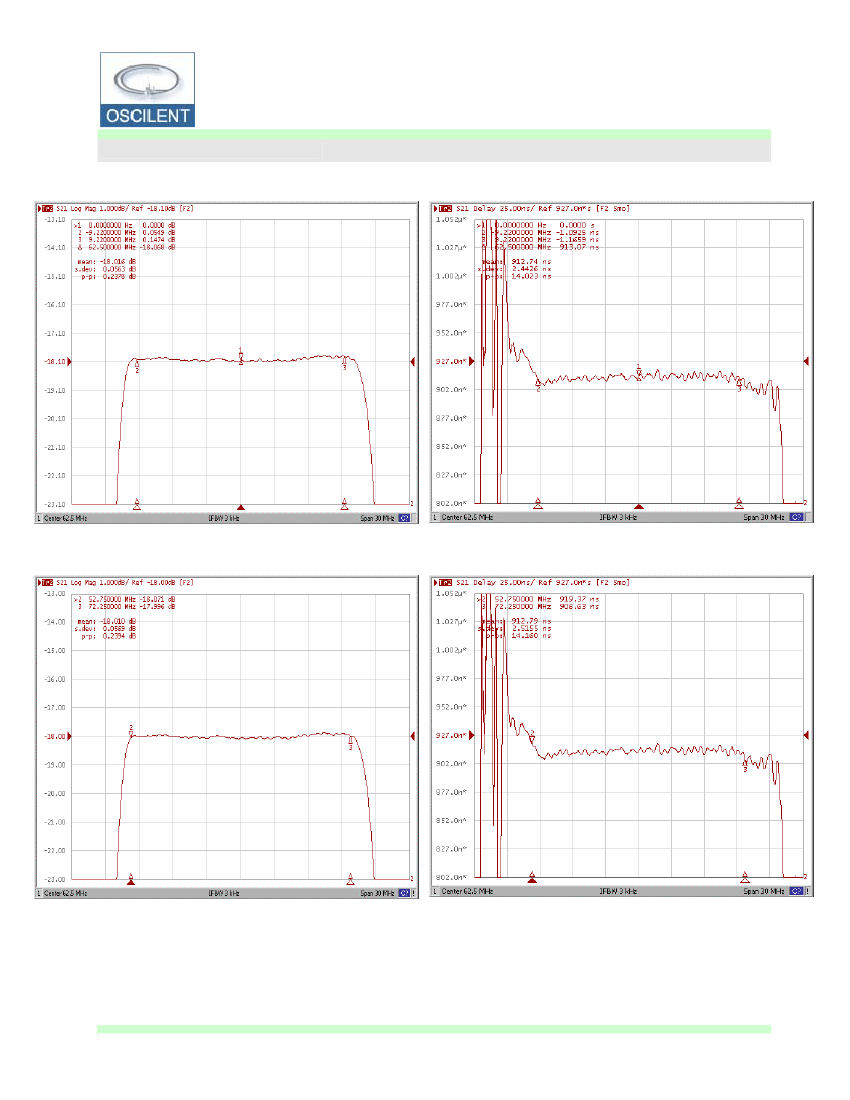

Group Delay Variation 62.5MHz ±9.22MHz
Ripple Variation 62.5MHz ±9.22MHz
Ripple Variation 62.5MHz ±9.75MHz
Group Delay Variation 62.5MHz ±9.75MHz
Product Specification
P. 4
www.oscilent.com
