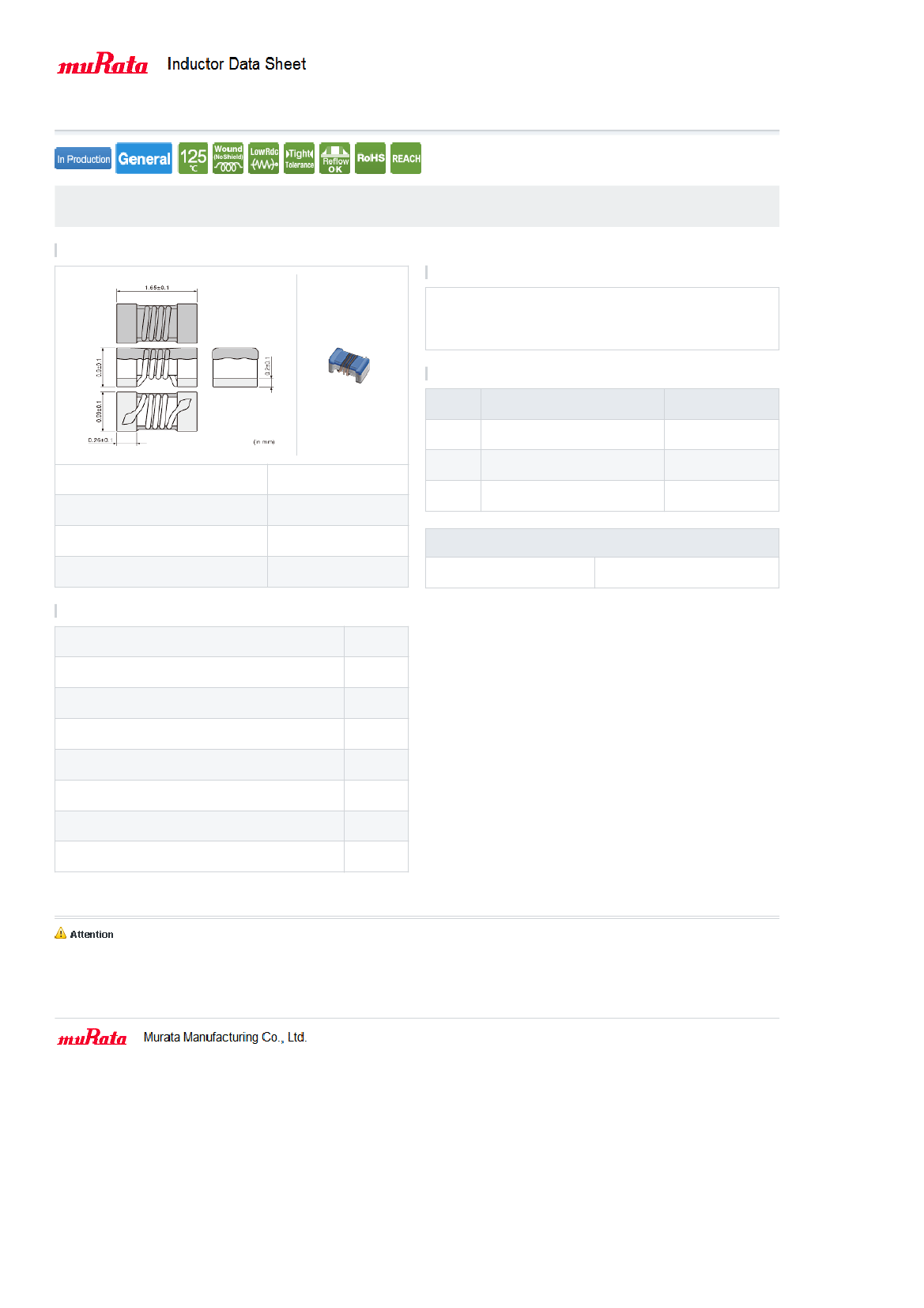

LQW18AN69NG80#
# indicates a package specification code.
< List of part numbers with package codes >
LQW18AN69NG80D , LQW18AN69NG80J , LQW18AN69NG80B
Shape
Notes
In operating temperature exceeding +85℃, derating of current is necessary for
LQW18AN_80 series.
Please apply the derating curve shown in chart according to the operating
temperature.
Please confirm the below "Notice (Rating)".
References
Packaging
code
Specifications
φ180mm Paper taping
φ330mm Paper taping
L size
W size
T size
Size code in inch (mm)
1.65 ±0.1mm
Packing in bulk
0.99 ±0.1mm
0.90 ±0.1mm
0603 (1608)
500
Minimum quantity
4000
10000
Mass (Typ.)
1 piece
0.0034g
Specifications
Inductance
Inductance test frequency
Rated current (Itemp) (Based on Temperature rise)
Max. of DC resistance
Q (min.)
Q test frequency
Self resonance frequency (min.)
Operating temperature range (Self-temperature rise is not included)
69nH ±2%
100MHz
630mA
0.38Ω
37
200MHz
2380MHz
-55∼125℃
1 of 2
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : http://www.murata.com/
Last updated: 2016/01/11

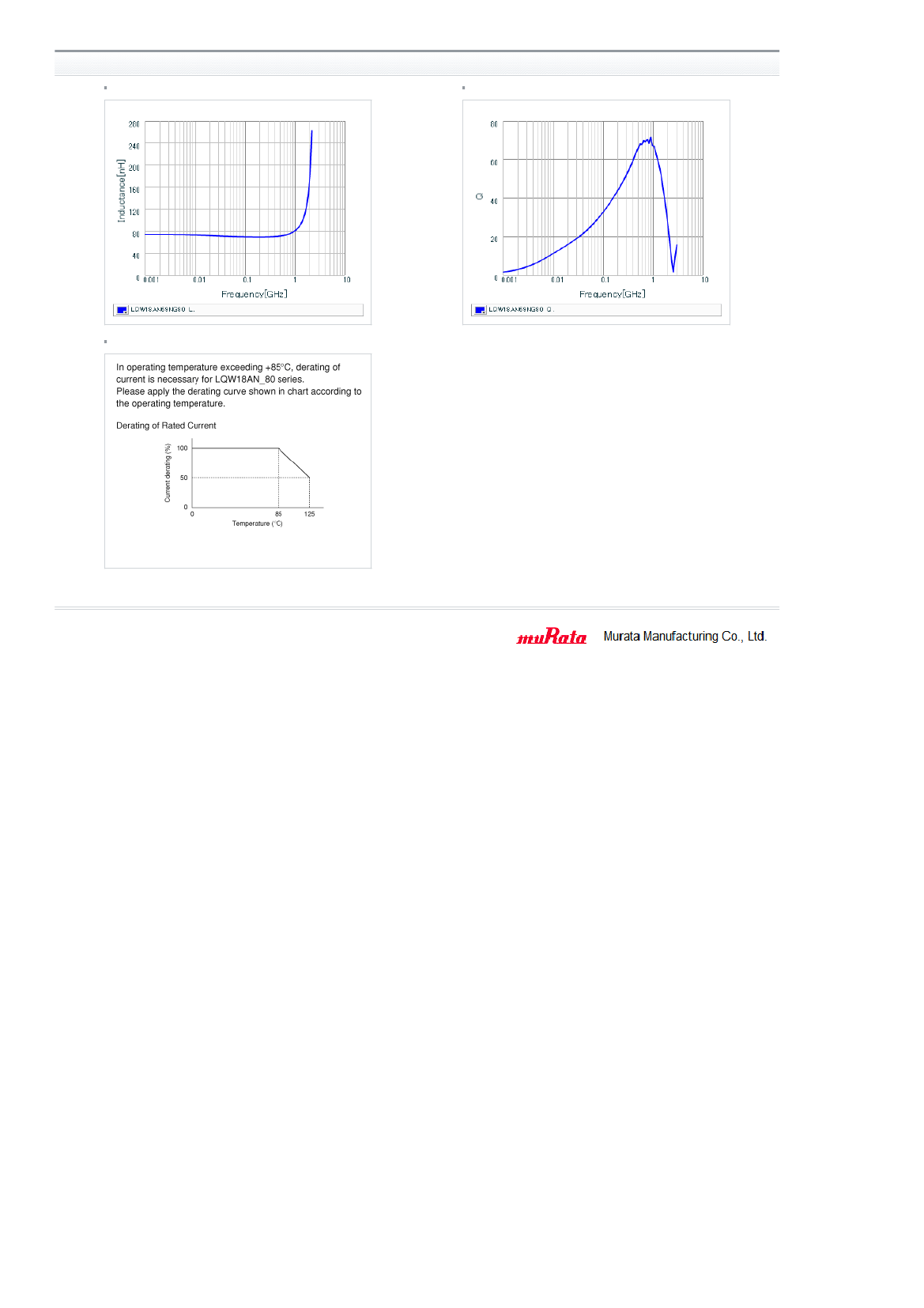

Chart of characteristic data (The charts below may show another part number which shares its characteristics.)
Inductance-Frequency characteristics (Typ.)
Q-Frequency characteristics (Typ.)
Notice (Rating)
2 of 2
This PDF data has only typical specifications because there is no space
for detailed specifications.
Therefore, please reviewour product specifications or consult the
approval sheet for product specifications before ordering.
Last updated: 2016/01/11
