GL-S-248DMP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> GL-S-248DMP

GL-S-248DMP: DescriptionElectromechanical Relay, DPST, 52.8VDC (Coil), Random, AC Output; CategoryMechanical and electronic products relay; File Size236KB，2 Pages; ManufacturerGood Sky Electric Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

GL-S-248DMP Overview

Electromechanical Relay, DPST, 52.8VDC (Coil), Random, AC Output

GL-S-248DMP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	406139844
Reach Compliance Code	unknown
ECCN code	EAR99
body width	33 mm
body height	35 mm
Body length or diameter	67 mm
Coil operating voltage (DC)	36 V
Coil release voltage (DC)	4.8 V
Coil resistance	1220 Ω
Maximum coil voltage (DC)	52.8 V
Nominal coil voltage	48 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	6900VA@277VAC
Contact (AC) maximum rated R load	30A@277VAC
Maximum contact current (AC)	30 A
Contact resistance	100 mΩ
Maximum contact voltage (AC)	277 V
Contact/Output Power Type	AC
Dielectric strength between coil and contacts	4000 Vrms
Dielectric strength between breaking contacts	2000 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Alloy
Input switching control type	Random
Insulation resistance	100000000 Ω
Number of terminals	6
operating hours	30 ms
Maximum operating temperature	60 °C
Minimum operating temperature	-25 °C
physical size	67mm x 33mm x 35mm
Guideline	TUV; UL
Relay style	2 FORM A
Relay function	DPST
release time	30 ms
Termination type	QUICK CONNECT
weight	90 g

Preview

Download Datasheet

View All

Main Feature

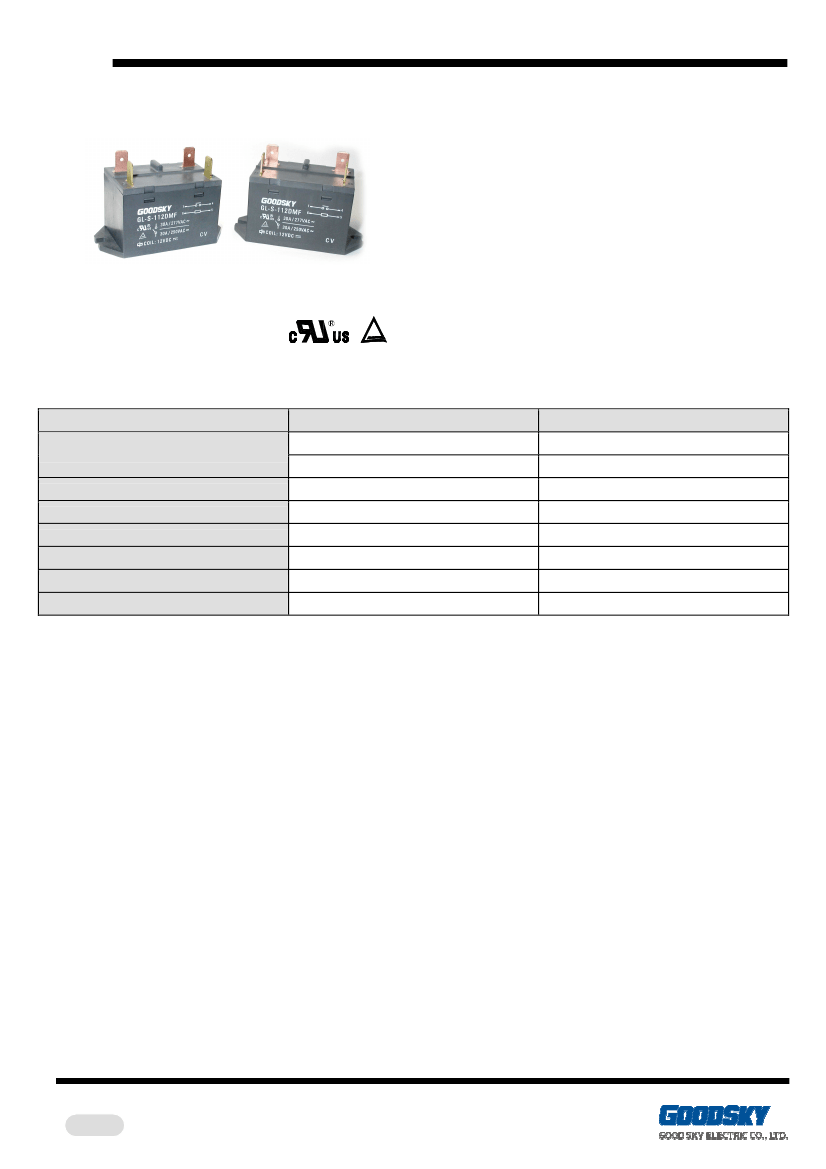

1. High switching current at 30A (1 Pole) and 25A (2

Poles).

2. Plug-in terminal is available.

3. Both AC and DC coil available.

4. High Dielectric Strength 4,000VAC.

5. Comply with RoHS and REACH regulations

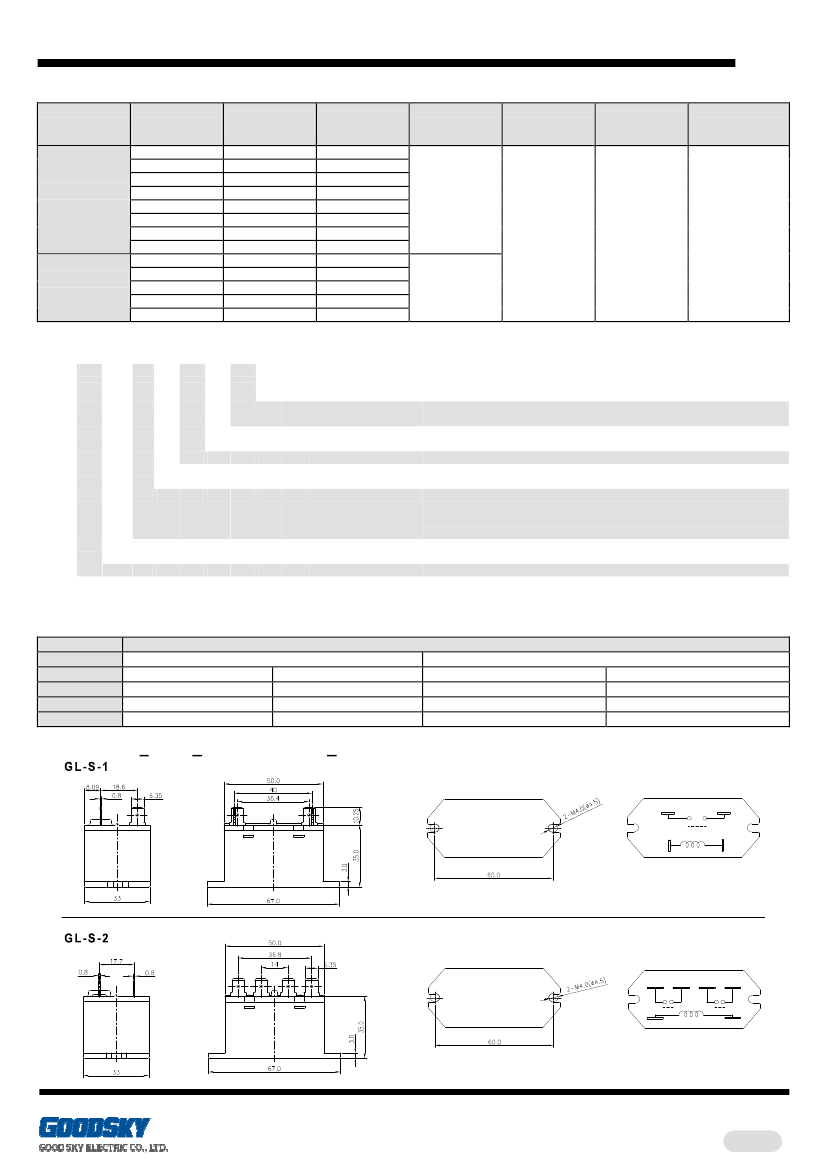

Contact Rating

Load Type

Rated Load (Resistive)

Rated Carrying Current

Max. Allowable Voltage

Max. Allowable Current

Max. Allowable Power Force

Contact Material

Contact Form

GL-1P (DM/AM)

30A 250VAC

30A 277VAC

30A

AC 277V

30A

8,300VA

Ag Alloy

SPST

GL-2P (DM/AM)

25A 250VAC

25A 277VAC

25A

AC 277V

30A

6,900VA

Ag Alloy

DPST

Temperature Range............. -25½+60°C

Humidity Range ................... 45½85% RH.

Coil Temperature Rise ......... 55°C Max.

Vibration:

Endurance ........................... 10 to 55 Hz dual

amplitude width 1.5mm

Error Operation.................... 10 to 55 Hz dual

amplitude width 1.5mm

Shock:

Endurance ......................... 1,000 m/S

Error Operation.................... 100 m/S

Life Expectancy:

Mechanical ......................... 10 Operations at No

Load condition

Electrical ............................ 10 Operations at Rated

Resistive Load

Weight ................................. About 90 g

Application

Home Appliance, Air Conditioner, Audio Equipment,

Domestic Appliances, Controlling Equipment…etc…

Performance (at Initial Value)

Contact Resistance ............. 100mΩ Max.@1A,6VDC

Operate Time....................... 30 mSec. Max.

Release Time ...................... 30 mSec. Max.

Dielectric Strength:

Between Coil & Contact....... 4,000VAC at 50/60 Hz

for one minute

Between Contacts ............... 2,000VAC at 50/60 Hz

for one minute

Different Polarity…………….3,000VAC at 50/60 Hz

for one minute

Surge Strength..................... 10,000V (between Coil

& Contact 1.2x50µSec.)

Insulation Resistance ........... 100 MegaΩ Min. at

500VDC

Max. On/Off Switching:

Electrical .............................. 15 Cycles per Minute

Mechanical .......................... 300 Cycles per Minute

■

Safety Standard & File Number

UL & C-UL …..………………..E141060 & E175730

TÜV ………..………………….R50144363
