P6SMB6.8CA
THRU
P6SMB250CA
SURFACE MOUNT
BI-DIRECTIONAL
GLASS PASSIVATED JUNCTION
SILICON TRANSIENT
VOLTAGE SUPPRESSOR
600 WATTS, 6.8 THRU 250 VOLTS
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR P6SMB6.8CA
Series types are Surface Mount Bi-Directional Glass
Passivated Junction Transient Voltage Suppressors
designed to protect voltage sensitive components from
high voltage transients.
THIS DEVICE IS MANUFACTURED WITH A GLASS
PASSIVATED CHIP FOR OPTIMUM RELIABILITY.
Note: For Uni-directional devices, please refer to the
P6SMB6.8A Series data sheet.
SMB CASE
• This series is UL listed, UL file number E130224
MARKING CODE: SEE ELECTRICAL
CHARACTERISTICS TABLE
SYMBOL
PPK
TJ, Tstg
UNITS
W
°C
MAXIMUM RATINGS:
(TA=25°C unless otherwise noted)
Peak Power Dissipation (Note 1)
Operating and Storage Junction Temperature
600
-65 to +150
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
BREAKDOWN
VOLTAGE
TYPE
VBR @ IT
MIN
NOM
MAX
V
V
V
6.45
7.13
7.79
8.65
9.5
10.5
11.4
12.4
14.3
15.2
17.1
19
20.9
22.8
25.7
28.5
31.4
34.2
37.1
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
7.14
7.88
8.61
9.55
10.5
11.6
12.6
13.7
15.8
16.8
18.9
21.0
23.1
25.2
28.4
31.5
34.7
37.8
41
TEST
CURRENT
IT
mA
10
10
10
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
WORKING
PEAK
REVERSE
VOLTAGE
VRWM
V
5.8
6.4
7.02
7.78
8.55
9.4
10.2
11.1
12.8
13.6
15.3
17.1
18.8
20.5
23.1
25.6
28.2
30.8
33.3
MAXIMUM
REVERSE
LEAKAGE
CURRENT
IR @ VRWM
µA
2000
1000
400
100
20
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
MAXIMUM
CLAMPING
VOLTAGE
VC @ IPP
V
10.5
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
22.5
25.2
27.7
30.6
33.2
37.5
41.4
45.7
49.9
53.9
PEAK
PULSE
CURRENT
(Note 1)
IPP
A
57
53
50
45
41
38
36
33
28
27
24
22
20
18
16
14.4
13.2
12
11.2
MAXIMUM
TEMPERATURE
COEFFICIENT
ΘV
BR
% / °C
0.057
0.061
0.065
0.068
0.073
0.075
0.078
0.081
0.084
0.086
0.088
0.090
0.092
0.094
0.096
0.097
0.098
0.099
0.100
C6V8C
C7V5C
C8V2C
C9V1C
C10C
C11C
C12C
C13C
C15C
C16C
C18C
C20C
C22C
C24C
C27C
C30C
C33C
C36C
C39C
MARKING
CODE
P6SMB6.8CA
P6SMB7.5CA
P6SMB8.2CA
P6SMB9.1CA
P6SMB10CA
P6SMB11CA
P6SMB12CA
P6SMB13CA
P6SMB15CA
P6SMB16CA
P6SMB18CA
P6SMB20CA
P6SMB22CA
P6SMB24CA
P6SMB27CA
P6SMB30CA
P6SMB33CA
P6SMB36CA
P6SMB39CA
Notes: (1) Non-repetitive 10x1,000µs pulse.
R7 (8-September 2011)
P6SMB6.8CA
THRU
P6SMB250CA
SURFACE MOUNT
BI-DIRECTIONAL
GLASS PASSIVATED JUNCTION
SILICON TRANSIENT
VOLTAGE SUPPRESSOR
600 WATTS, 6.8 THRU 250 VOLTS
ELECTRICAL CHARACTERISTICS - Continued:
(TA=25°C unless otherwise noted)
BREAKDOWN
VOLTAGE
TYPE
VBR @ IT
MIN
NOM
MAX
V
V
V
40.9
44.7
48.5
53.2
58.9
64.6
71.3
77.9
86.5
95
104.5
114
123.5
142.5
152
161.5
171
190
209
237.5
43
47
51
56
62
68
75
82
91
100
110
120
130
150
160
170
180
200
220
250
45.2
49.4
53.6
58.8
65.1
71.4
78.8
86.1
95.5
105
115.5
126
136.5
157.5
168
178.5
189
210
231
262.5
TEST
CURRENT
IT
mA
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
WORKING
PEAK
REVERSE
VOLTAGE
VRWM
V
36.8
40.2
43.6
47.8
53
58.1
64.1
70.1
77.8
85.5
94
102
111
128
136
145
154
171
185
214
MAXIMUM
REVERSE
LEAKAGE
CURRENT
IR @ VRWM
µA
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
MAXIMUM
CLAMPING
VOLTAGE
VC @ IPP
V
59.3
64.8
70.1
77
85
92
103
113
125
137
152
165
179
207
219
234
246
274
328
344
PEAK
PULSE
CURRENT
(Note 1)
IPP
A
10.1
9.3
8.6
7.8
7.1
6.5
5.8
5.3
4.8
4.4
4.0
3.6
3.3
2.9
2.7
2.6
2.4
2.2
1.8
1.7
MAXIMUM
TEMPERATURE
COEFFICIENT
ΘV
BR
% / °C
0.101
0.101
0.102
0.103
0.104
0.104
0.105
0.105
0.106
0.106
0.107
0.107
0.107
0.108
0.108
0.108
0.108
0.108
0.108
0.110
C43C
C47C
C51C
C56C
C62C
C68C
C75C
C82C
C91C
C100C
C110C
C120C
C130C
C150C
C160C
C170C
C180C
C200C
C220C
C250C
MARKING
CODE
P6SMB43CA
P6SMB47CA
P6SMB51CA
P6SMB56CA
P6SMB62CA
P6SMB68CA
P6SMB75CA
P6SMB82CA
P6SMB91CA
P6SMB100CA
P6SMB110CA
P6SMB120CA
P6SMB130CA
P6SMB150CA
P6SMB160CA
P6SMB170CA
P6SMB180CA
P6SMB200CA
P6SMB220CA
P6SMB250CA
SMB CASE - MECHANICAL OUTLINE
R7 (8-September 2011)
w w w. c e n t r a l s e m i . c o m
P6SMB6.8CA
THRU
P6SMB250CA
SURFACE MOUNT
BI-DIRECTIONAL
GLASS PASSIVATED JUNCTION
SILICON TRANSIENT
VOLTAGE SUPPRESSOR
600 WATTS, 6.8 THRU 250 VOLTS

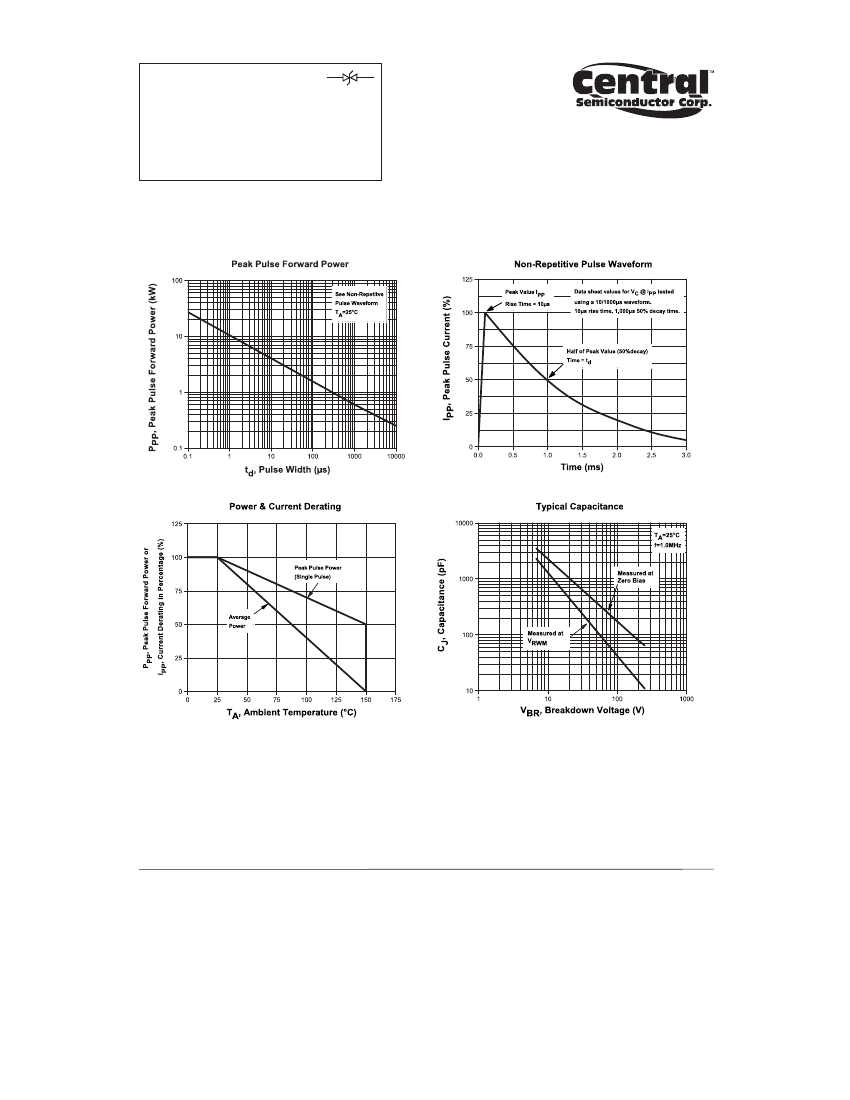

TYPICAL ELECTRICAL CHARACTERISTICS
R7 (8-September 2011)
w w w. c e n t r a l s e m i . c o m
