MS12 15102

Description
inrush current limiters 12mm 150ohms 2A inrsh curr limiter
CategoryCircuit protection
File Size23KB,1 Pages
ManufacturerAmetherm
Websitehttp://www.ametherm.com/
Environmental Compliance
Download Datasheet Parametric View All

MS12 15102 Overview

inrush current limiters 12mm 150ohms 2A inrsh curr limiter

MS12 15102 Parametric

Parameter NameAttribute value
ManufactureAmetherm
Product CategoryInrush Current Limiters
RoHSYes
Current Rating2 A
Voltage120 VAC, 240 VAC, 480 VAC, 680 VAC
Resistance150 Ohms
Tolerance25 %
Case Diamete13.5 mm
Case Width8.7 mm
Dimensions13.5 mm Dia. x 8.7 mm W
Lead Diamete1 mm
Lead Spacing7.8 mm
PackagingBulk
Pitch Spacing7.4 mm
Factory Pack Quantity50
TypeInrush Current Limiter Thermistors
Data Sheet
MS12 15102
ISO9001:2008 Certified

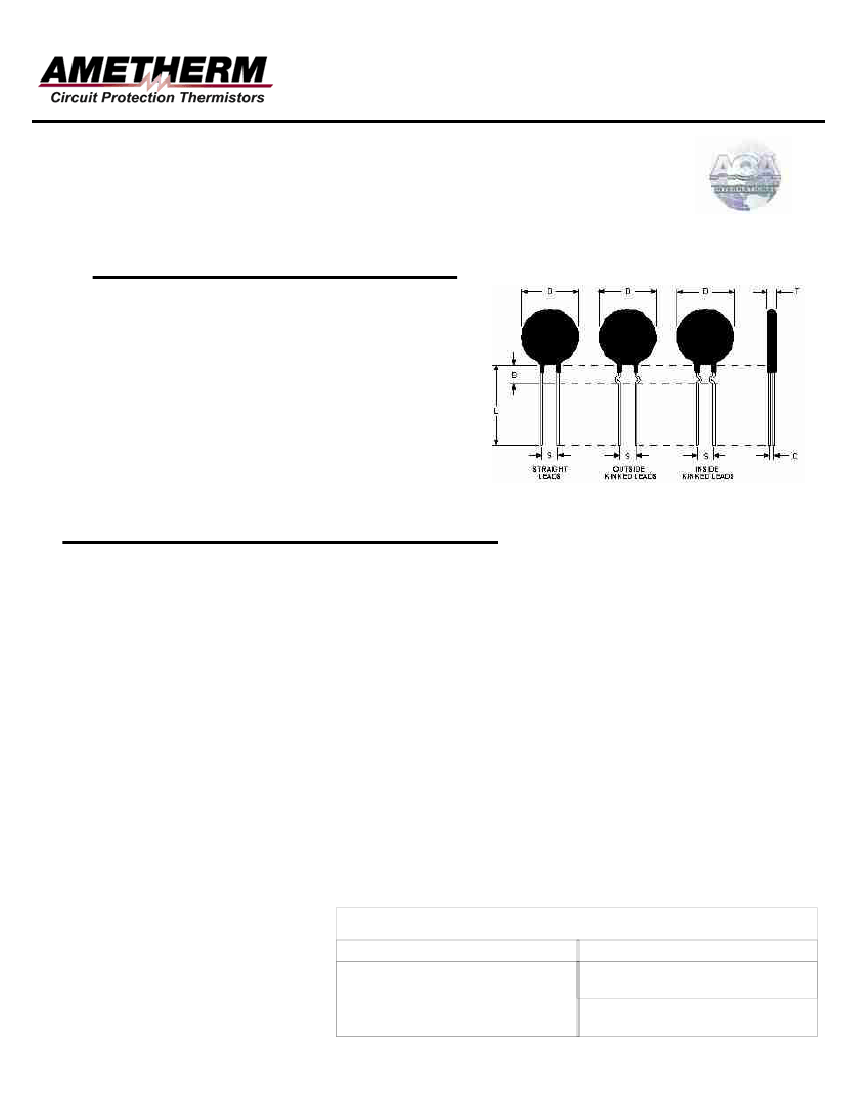

Mechanical Specifications (mm)
D:
T:
Lead Diameter
S:
L:
Coating Lead Run Down
(straight Leads)
B:
C:
13.5
±
max
8.7 ± max
1.0
±
nom
7.8
38.0
4.0
7.00
7.40
±
±
±
nom
nom
max
nom
nom
±
±
Electrical Specifications
Resistance: 150.0Ω
Max Steady State Current upto 65°c:
Max Rec. Energy Rating:
Actual Failure Instantaneous Energy:
Maximum Capacitance @ 120 VAC:
Maximum Capacitance @ 240 VAC:
Maximum Capacitance @ 440 VAC:
Maximum Capacitance @ 680 VAC:
Resistance @ 100% Max Current:
Resistance @ 50% Max Current:
Body Temperature at 100% Max Current:
Dissipation Constant:
Thermal Time Constant:
Material Type (for Beta and Curve):
2.00
110
231
7,500
1,910
441
220
1.04
2.70
172.00
12.7
71
I
±
25 %
A
J
J
µf
µf
µf
µf
°c
mw/°c
Sec.
MS12 15102
Date: 11/11/2008
Ametherm, Inc.
3111 N. Deer Run Road
Carson City, Nevada USA 89701
www.ametherm.com
Drawn by: Erin Landis
Approved By: Mehdi Samii
Revison: a
