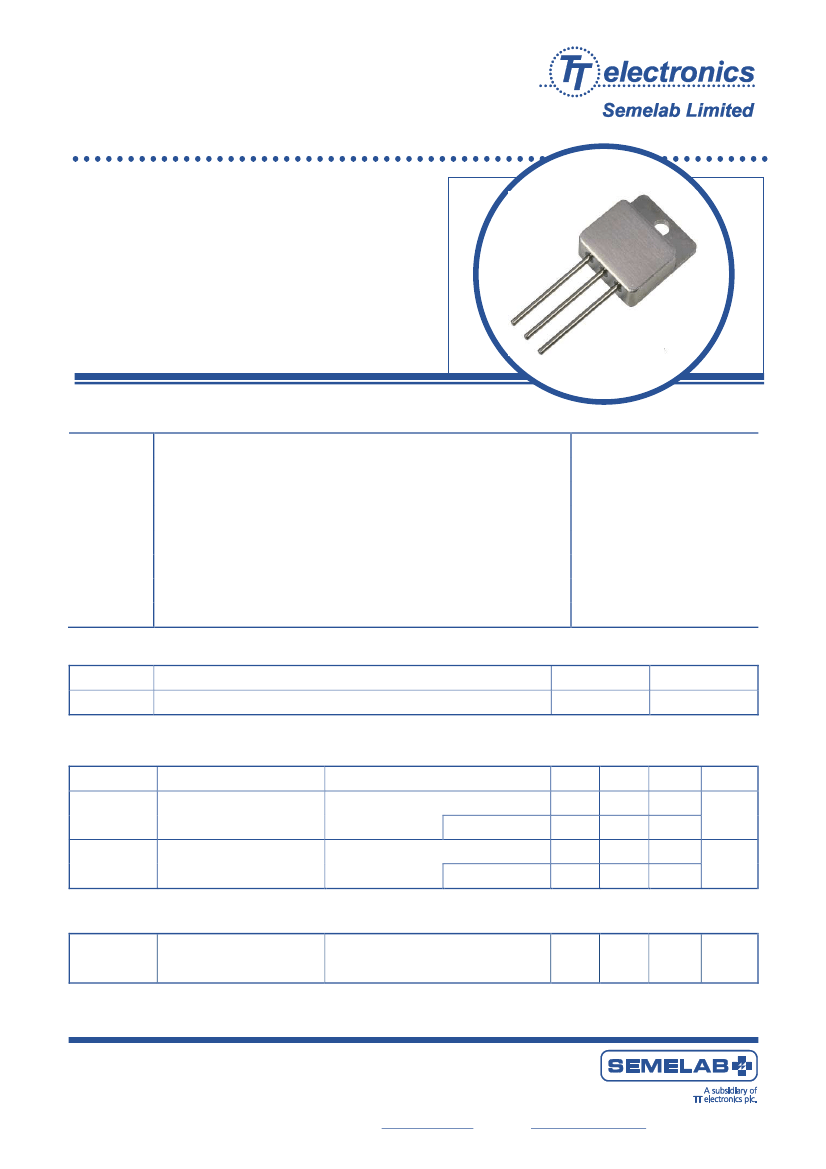

SILICON CARBIDE POWER
SCHOTTKY RECTIFIER DIODE
SML020DH12
•
•
•
•
•
•
1200V, 20A (2x10A) Rectifier Diodes
High Temperature Operation Tj = 200°C
Effective Zero Reverse and Forward Recovery
High Frequency Operation
High Speed Low Loss Switching
High-Reliability Screening Options Available
ABSOLUTE MAXIMUM RATINGS
(Tc = 25°C unless otherwise stated)
VRRM
VRSM
VDC
IF(AVG)
IF(PEAK)
PD
TJ
Tstg
Repetitive Peak Reverse Breakdown Voltage
Surge Peak Reverse Voltage
DC Blocking Voltage
Average Forward Current
Peak Forward Surge Current, Tc = 125°C
Power Dissipation (per leg)
Junction Temperature Range
Storage Temperature Range
1200V
1200V
1200V
20A
50A
116W
-55 to +200°C
-55 to +225°C
THERMAL PROPERTIES
Symbols
R
θJC
Parameters
Thermal Resistance, Junction To Case
Max.
1.5
Units
°C/W
ELECTRICAL CHARACTERISTICS
(Per Die, Tc = 25°C unless otherwise stated)
Symbols
VF
IR
(1)
Parameters
Forward Voltage
Test Conditions
IF = 10A
Tc = 175°C
VR = VRRM
Tc = 175°C
Min.
Typ.
1.6
2.5
10
20
Max.
1.8
3.0
200
1000
Units
V
Reverse Current
µA
DYNAMIC CHARACTERISTICS
(TC = 25°C unless otherwise stated)
IF = 10A
VR = 1200V
Total Capacitative
QC
Charge
di/dt = 500A/µs
TJ = 25°C
Notes
(1) Pulse Width
≤
300us,
δ ≤
2%
61
nC
Semelab Limited reserves the right to change test conditions, parameter limits and package dimensions without notice.
Information furnished by Semelab is believed to be both accurate and reliable at the time of going to press. However
Semelab assumes no responsibility for any errors or omissions discovered in its use. Semelab encourages customers to
verify that datasheets are current before placing orders.
Semelab Limited
Coventry Road, Lutterworth, Leicestershire, LE17 4JB
Telephone +44 (0) 1455 556565
Fax +44 (0) 1455 552612
Email:
sales@semelab-tt.com
Document Number 8960
Issue 1
Page 1 of 2
Website:
http://www.semelab-tt.com
SILICON CARBIDE POWER
SCHOTTKY RECTIFIER DIODE
SML020DH12
MECHANICAL DATA
Dimensions in mm (Inches)
17.65 (0.695)
17.39 (0.685)
6.86 (0.270)
6.09 (0.240)
1.14 (0.707)
0.88 (0.035)
17.96 (0.707)
17.70 (0.697)
13.84 (0.545)
13.58 (0.535)
1 2 3
4.19 (0.165)
3.94 (0.155)
Dia.
19.05 (0.750)
12.70 (0.500)
5.08 (0.200)
BSC
1.65 (0.065)
1.39 (0.055)
Typ.
21.21 (0.835)
20.70 (0.815)
3.56 (0.140)
BSC
TO258 (TO-258AA)
Pin 1 – Anode
Pin 2 - Cathode
Pin 3 – Anode
Semelab Limited
Coventry Road, Lutterworth, Leicestershire, LE17 4JB
Telephone +44 (0) 1455 556565
Fax +44 (0) 1455 552612
Email:
sales@semelab-tt.com
Website:
http://www.semelab-tt.com
Document Number 8960
Issue 1
Page 2 of 2
