B0520LW,B0530W,B0540W
410mW, Low V
F
SMD Schottky Barrier Diode
Small Signal Diode
SOD-123
Features
Low power loss, high current capability, low V
F
Surface device type mounting
Moisture sensitivity level 1
Matte Tin(Sn) lead finish with Nickel(Ni) underplate
Pb free version and RoHS compliant
Green compound (Halogen free) with suffix "G" on
packing code and prefix "G" on date code
Mechanical Data
Case : SOD-123 small outline plastic package
Terminal: Matte tin plated, lead free., solderable
per MIL-STD-202, Method 208 guaranteed
High temperature soldering guaranteed: 260°C/10s
Polarity : Indicated by cathode band
Weight :0.01 gram (approximately)
Marking Code : SD, SE, SF
Dimensions
A
B
C
D
E
F
G
Unit (mm)
Min
1.50
3.55
0.45
2.60
1.05
Max
1.70
3.85
0.65
2.80
1.25
Unit (inch)
Min
0.059
0.140
0.018
0.102
0.041
Max
0.067
0.152
0.026
0.11
0.049
0.08
0.15
0.02
REF
0.003 0.006
0.50
REF
Applications
0.5A surface mount schottky barrier rectifier
Pin Configuration
Ordering Information
Package
Part No.
Packing
3K / 7" Reel
3K / 7" Reel
3K / 7" Reel
3K / 7" Reel
3K / 7" Reel
3K / 7" Reel
Marking
SD
SE
SF
SD
SE
SF
4.19
0.165
2.36
0.093
Suggested PAD Layout
0.91
0.036
1.22
0.048
SOD123 B0520LW RH
SOD123 B0530W RH
SOD123 B0540W RH
SOD123 B0520LW RHG
SOD123 B0530W RHG
SOD123 B0540W RHG
Maximum Ratings and Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified.
Maximum Ratings
Type Number
Power Dissipation
Repetitive Peak Reverse Voltage
Reverse Voltage
Mean Forward Current @ T
L
=100°C (Lead Temperature)
Non-Repetitive Peak Forward Surge Current (Note 1)
Thermal Resistance (Junction to Ambient) (Note 2)
Junction and Storage Temperature Range
Symbol
P
D
V
RRM
V
R
I
O
I
FSM
RθJA
T
J
, T
STG
20
14
B0520LW
B0530W
410
30
21
500
5.5
244
-65 to + 125
40
28
B0540W
Units
mW
V
V
mA
A
°C/W
°C
Notes:1. Test Condition : 8.3ms Single half Sine-Wave Superimposed on Rated Load (JEDEC Method)
Notes:2. Valid provided that electrodes are kept at ambient temperature
Version : D10
B0520LW,B0530W,B0540W
410mW, Low V
F
SMD Schottky Barrier Diode
Small Signal Diode
Electrical Characteristics
Type Number
Reverse Breakdown Voltage
(Minimum value)
I
R
= 250μA
I
R
= 130μA
I
R
= 20μA
I
F
= 100mA
I
F
= 500mA
Forward Voltage
(Maximum value)
I
F
= 1000mA
I
F
= 100mA
I
F
= 500mA
I
F
= 1000mA
V
R
= 10V
V
R
= 15V
V
R
= 20V
Reverse Leakage Current
(Maximum value)
V
R
= 30V
V
R
= 40V
V
R
= 10V
V
R
= 20V
V
R
= 40V
Junction Capacitance
Tj=25°C
Tj=25°C
Tj=25°C
Tj=100°C
Tj=100°C
Tj=100°C
Tj=25°C
Tj=25°C
Tj=25°C
Tj=25°C
Tj=25°C
Tj=100°C
Tj=100°C
Tj=100°C
C
J
I
R
V
F
V(
BR
)
Symbol
B0520LW
20
-
-
0.300
0.385
-
0.220
0.330
-
75
-
250
-
-
5
8
-
B0530W
-
30
-
0.375
0.430
-
-
-
-
-
20
-
130
-
-
-
-
170
B0540W
-
-
40
-
0.510
0.620
-
0.460
0.610
-
-
10
-
20
-
5
13
pF
μA
V
V
Units
V
R
=0V, f=1.0MHz

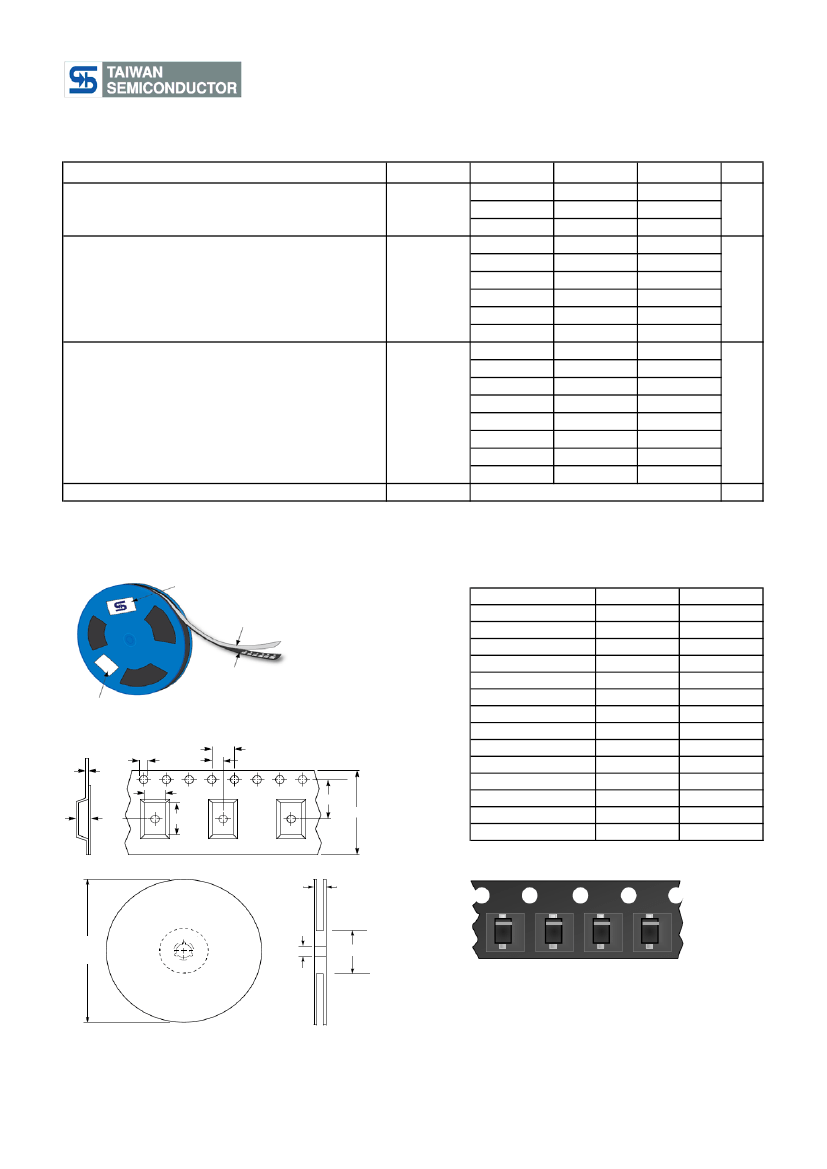

Tape & Reel specification
TSC label
Top Cover Tape
Carieer Tape
Any Additional Label (If Required)
d
T
A
C
B
P
1
P
0
F
W
Item
Carrier width
Carrier length
Carrier depth
Sprocket hole
Reel outside diameter
Reel inner diameter
Feed hole width
Sprocke hole position
Punch hole position
Sprocke hole pitch
Embossment center
Overall tape thickness
Tape width
Reel width
Symbol
A
B
C
d
D
D1
D2
E
F
P0
P1
T
W
W1
Dimension
1.85 ± 0.10
3.94 ± 0.10
1.50 ±0.10
1.5 ± 0.1
178 ± 1
55 Min
13.0 ± 0.20
1.75 ±0.10
3.50 ±0.05
4.00 ±0.10
2.00 ±0.05
0.23 ± 0.05
8.00 ±0.20
14.4 Max
W1
D
D
2
D
1
Version : D10
B0520LW,B0530W,B0540W
410mW, Low VF SMD Schottky Barrier Diode
Small Signal Diode
Rating and Sharacteristic Curves
FIG 1 Typical Forward Characteristics
10
1
FIG 2 Forward Current Derating Curve
Io mean forward current (A)
1
I
F
Forward Current (A)
0.75
1
B0520LW
B0530W
B0540W
0.5
0.1
0.25
0.01
0
0.2
0.4
0.6
0.8
0
0
25
50
75
100
125
150
V
F
Forward Voltage (V)
TL, lead temperature (°C)
FIG 3 Admissible Power Dissipation Curve
450
400
1000
FIG 4 Typical Junction Capacitance
Power Dissipation (mW)
300
250
200
150
100
50
0
0
20
40
60
80
100
120
140
Junction Capacitance(pF)
350
100
10
1
0
5
10
15
20
25
Ambient Tempeatature
(
o
C)
Reverse Voltage (V)
