ATMEGA169PV-8MUR datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> ATMEGA169PV-8MUR

ATMEGA169PV-8MUR: Description8-bit microcontrollers - mcu avr lcd 16kb flsh EE 512b 1kb sram-8mhz; CategoryThe embedded processor and controller Microcontrollers and processors; File Size6MB，396 Pages; ManufacturerAtmel (Microchip); Environmental Compliance

Download Datasheet Parametric Compare View All

ATMEGA169PV-8MUR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ATMEGA169PV-8MUR	-	-	View	Buy Now

ATMEGA169PV-8MUR Overview

8-bit microcontrollers - mcu avr lcd 16kb flsh EE 512b 1kb sram-8mhz

ATMEGA169PV-8MUR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	QFN
package instruction	HVQCCN, LCC64,.35SQ,20
Contacts	64
Reach Compliance Code	compli
ECCN code	EAR99
Has ADC	YES
Other features	ALSO OPERATES AT 1.8V SUPPLY AT 4 MHZ
Address bus width
bit size	8
CPU series	AVR RISC
maximum clock frequency	8 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-XQCC-N64
JESD-609 code	e3
length	9 mm
Number of I/O lines	54
Number of terminals	64
On-chip program ROM width	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	UNSPECIFIED
encapsulated code	HVQCCN
Encapsulate equivalent code	LCC64,.35SQ,20
Package shape	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	260
power supply	2/5 V
Certification status	Not Qualified
RAM (bytes)	1024
rom(word)	8192
ROM programmability	FLASH
Maximum seat height	1 mm
speed	8 MHz
Maximum slew rate	9.5 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	1.8 V
Nominal supply voltage	2.4 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	NO LEAD
Terminal pitch	0.5 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	40
width	9 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC
Base Number Matches	1

Preview

Download Datasheet

View All

Features

•

High Performance, Low Power Atmel

AVR

8-Bit Microcontroller

•

Advanced RISC Architecture

– 130 Powerful Instructions – Most Single Clock Cycle Execution

– 32 × 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16 MIPS Throughput at 16 MHz

– On-Chip 2-cycle Multiplier

High Endurance Non-volatile Memory segments

– 16 Kbytes of In-System Self-programmable Flash program memory

– 512 Bytes EEPROM

– 1 Kbytes Internal SRAM

– Write/Erase cycles: 10,000 Flash/100,000 EEPROM

– Data retention: 20 years at 85°C/100 years at 25°C

(1)

– Optional Boot Code Section with Independent Lock Bits

In-System Programming by On-chip Boot Program

True Read-While-Write Operation

– Programming Lock for Software Security

JTAG (IEEE std. 1149.1 compliant) Interface

– Boundary-scan Capabilities According to the JTAG Standard

– Extensive On-chip Debug Support

– Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface

Peripheral Features

– 4 × 25 Segment LCD Driver

– Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode

– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture

Mode

– Real Time Counter with Separate Oscillator

– Four PWM Channels

– 8-channel, 10-bit ADC

– Programmable Serial USART

– Master/Slave SPI Serial Interface

– Universal Serial Interface with Start Condition Detector

– Programmable Watchdog Timer with Separate On-chip Oscillator

– On-chip Analog Comparator

– Interrupt and Wake-up on Pin Change

Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated Oscillator

– External and Internal Interrupt Sources

– Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and

Standby

I/O and Packages

– 54 Programmable I/O Lines

– 64-lead TQFP, 64-pad QFN/MLF and 64-pad DRQFN

Speed Grade:

– ATmega169PV: 0 - 4 MHz @ 1.8V - 5.5V, 0 - 8 MHz @ 2.7V - 5.5V

– ATmega169P: 0 - 8 MHz @ 2.7V - 5.5V, 0 - 16 MHz @ 4.5V - 5.5V

Temperature range:

– -40°C to 85°C Industrial

Ultra-Low Power Consumption

– Active Mode:

1 MHz, 1.8V: 330 µA

32 kHz, 1.8V: 10 µA (including Oscillator)

32 kHz, 1.8V: 25 µA (including Oscillator and LCD)

– Power-down Mode:

0.1 µA at 1.8V

– Power-save Mode:

0.6 µA at 1.8V (Including 32 kHz RTC)

•

8-bit

Microcontroller

with 16K Bytes

In-System

Programmable

Flash

ATmega169P

ATmega169PV

•

Preliminary

•

Rev. 8018P–AVR–08/10

ATmega169P

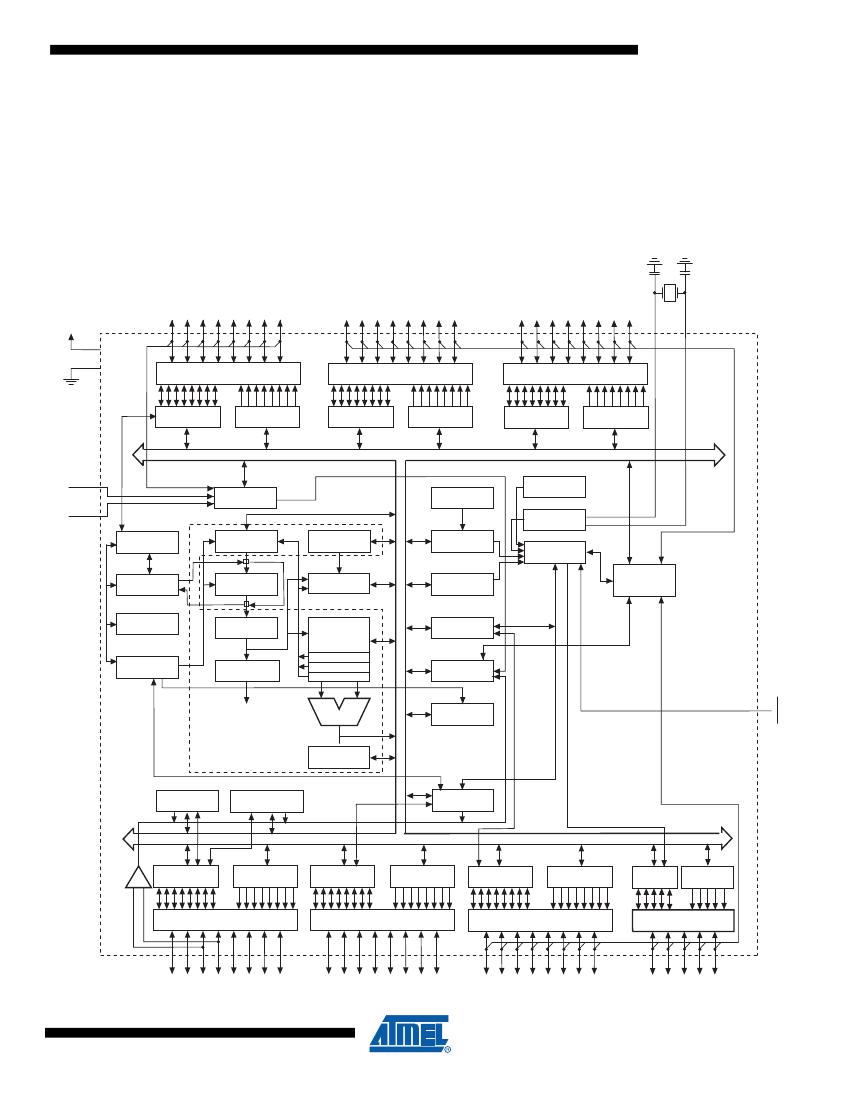

The AVR core combines a rich instruction set with 32 general purpose working registers. All the

32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent

registers to be accessed in one single instruction executed in one clock cycle. The resulting

architecture is more code efficient while achieving throughputs up to ten times faster than con-

ventional CISC microcontrollers.

The ATmega169P provides the following features: 16 Kbytes of In-System Programmable Flash

with Read-While-Write capabilities, 512 bytes EEPROM, 1 Kbyte SRAM, 53 general purpose I/O

lines, 32 general purpose working registers, a JTAG interface for Boundary-scan, On-chip

Debugging support and programming, a complete On-chip LCD controller with internal step-up

voltage, three flexible Timer/Counters with compare modes, internal and external interrupts, a

serial programmable USART, Universal Serial Interface with Start Condition Detector, an 8-

channel, 10-bit ADC, a programmable Watchdog Timer with internal Oscillator, an SPI serial

port, and five software selectable power saving modes. The Idle mode stops the CPU while

allowing the SRAM, Timer/Counters, SPI port, and interrupt system to continue functioning. The

Power-down mode saves the register contents but freezes the Oscillator, disabling all other chip

functions until the next interrupt or hardware reset. In Power-save mode, the asynchronous

timer and the LCD controller continues to run, allowing the user to maintain a timer base and

operate the LCD display while the rest of the device is sleeping. The ADC Noise Reduction

mode stops the CPU and all I/O modules except asynchronous timer, LCD controller and ADC,

to minimize switching noise during ADC conversions. In Standby mode, the crystal/resonator

Oscillator is running while the rest of the device is sleeping. This allows very fast start-up com-

bined with low-power consumption.

The device is manufactured using Atmel’s high density non-volatile memory technology. The

On-chip ISP Flash allows the program memory to be reprogrammed In-System through an SPI

serial interface, by a conventional non-volatile memory programmer, or by an On-chip Boot pro-

gram running on the AVR core. The Boot program can use any interface to download the

application program in the Application Flash memory. Software in the Boot Flash section will

continue to run while the Application Flash section is updated, providing true Read-While-Write

operation. By combining an 8-bit RISC CPU with In-System Self-Programmable Flash on a

monolithic chip, the Atmel ATmega169P is a powerful microcontroller that provides a highly flex-

ible and cost effective solution to many embedded control applications.

The ATmega169P AVR is supported with a full suite of program and system development tools

including: C Compilers, Macro Assemblers, Program Debugger/Simulators, In-Circuit Emulators,

and Evaluation kits.

8018P–AVR–08/10

ATMEGA169PV-8MUR Related Products

	ATMEGA169PV-8MUR	ATMEGA169PV-8MCHR	ATMEGA169P-16AUR
Description	8-bit microcontrollers - mcu avr lcd 16kb flsh EE 512b 1kb sram-8mhz	8-bit microcontrollers - mcu avr lcd 16kb flsh EE 512b 1kb sram-8mhz	8-bit microcontrollers - mcu avr,16kb flash,20mhz ind temp 5V
Is it Rohs certified?	conform to	conform to	conform to
package instruction	HVQCCN, LCC64,.35SQ,20	LGA, SLGA64,11X12,25	TQFP, TQFP64,.63SQ,32
Reach Compliance Code	compli	compli	compli
bit size	8	8	8
CPU series	AVR RISC	AVR RISC	AVR RISC
JESD-30 code	S-XQCC-N64	R-PBGA-N64	S-PQFP-G64
Number of terminals	64	64	64
On-chip program ROM width	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	HVQCCN	LGA	TQFP
Encapsulate equivalent code	LCC64,.35SQ,20	SLGA64,11X12,25	TQFP64,.63SQ,32
Package shape	SQUARE	RECTANGULAR	SQUARE
Package form	CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE	GRID ARRAY	FLATPACK, THIN PROFILE
power supply	2/5 V	2/5 V	3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	1024	1024	1024
rom(word)	8192	8192	8192
ROM programmability	FLASH	FLASH	FLASH
speed	8 MHz	8 MHz	16 MHz
Maximum slew rate	9.5 mA	9.5 mA	9.5 mA
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	NO LEAD	NO LEAD	GULL WING
Terminal pitch	0.5 mm	0.635 mm	0.8 mm
Terminal location	QUAD	BOTTOM	QUAD
Is it lead-free?	Lead free	-	Lead free
Parts packaging code	QFN	-	QFP
Contacts	64	-	64
ECCN code	EAR99	-	EAR99
Has ADC	YES	-	YES
Other features	ALSO OPERATES AT 1.8V SUPPLY AT 4 MHZ	-	ALSO OPERATES AT 2.7V SUPPLY AT 8 MHZ
maximum clock frequency	8 MHz	-	16 MHz
DAC channel	NO	-	NO
DMA channel	NO	-	NO
JESD-609 code	e3	-	e3
length	9 mm	-	14 mm
Number of I/O lines	54	-	54
PWM channel	YES	-	YES
Peak Reflow Temperature (Celsius)	260	-	260
Maximum seat height	1 mm	-	1.2 mm
Maximum supply voltage	5.5 V	-	5.5 V
Minimum supply voltage	1.8 V	-	2.7 V
Nominal supply voltage	2.4 V	-	3 V
Terminal surface	MATTE TIN	-	Matte Tin (Sn)
Maximum time at peak reflow temperature	40	-	40
width	9 mm	-	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER, RISC	-	MICROCONTROLLER, RISC
Maker	-	Atmel (Microchip)	Atmel (Microchip)
Factory Lead Time	-	1 week	1 week
