DS1816R-5+T&R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> DS1816R-5+T&R

DS1816R-5+T&R: Descriptionsupervisory circuits 3.3V econoreset w/ open drain output; CategoryPower/power management The power supply circuit; File Size521KB，1 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html; Environmental Compliance

Download Datasheet Parametric Compare View All

DS1816R-5+T&R Overview

supervisory circuits 3.3V econoreset w/ open drain output

DS1816R-5+T&R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Maxim
Parts packaging code	SOT-23
package instruction	TSSOP, TO-236
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
Samacsys Confidence
Samacsys Status	Released
Samacsys PartID	599446
Samacsys Pin Count	3
Samacsys Part Category	Integrated Circuit
Samacsys Package Category	Other
Samacsys Footprint Name	SOT95P235X112-3N
Samacsys Released Date	2017-01-11 21:24:41
Is Samacsys	N
Adjustable threshold	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
length	2.92 mm
Humidity sensitivity level	1
Number of channels	1
Number of functions	1
Number of terminals	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TO-236
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	260
power supply	1.2/5.5 V
Certification status	Not Qualified
Maximum seat height	1.12 mm
Maximum supply current (Isup)	0.035 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Threshold voltage nominal	+3.06V
Maximum time at peak reflow temperature	30
width	1.3 mm
Base Number Matches	1

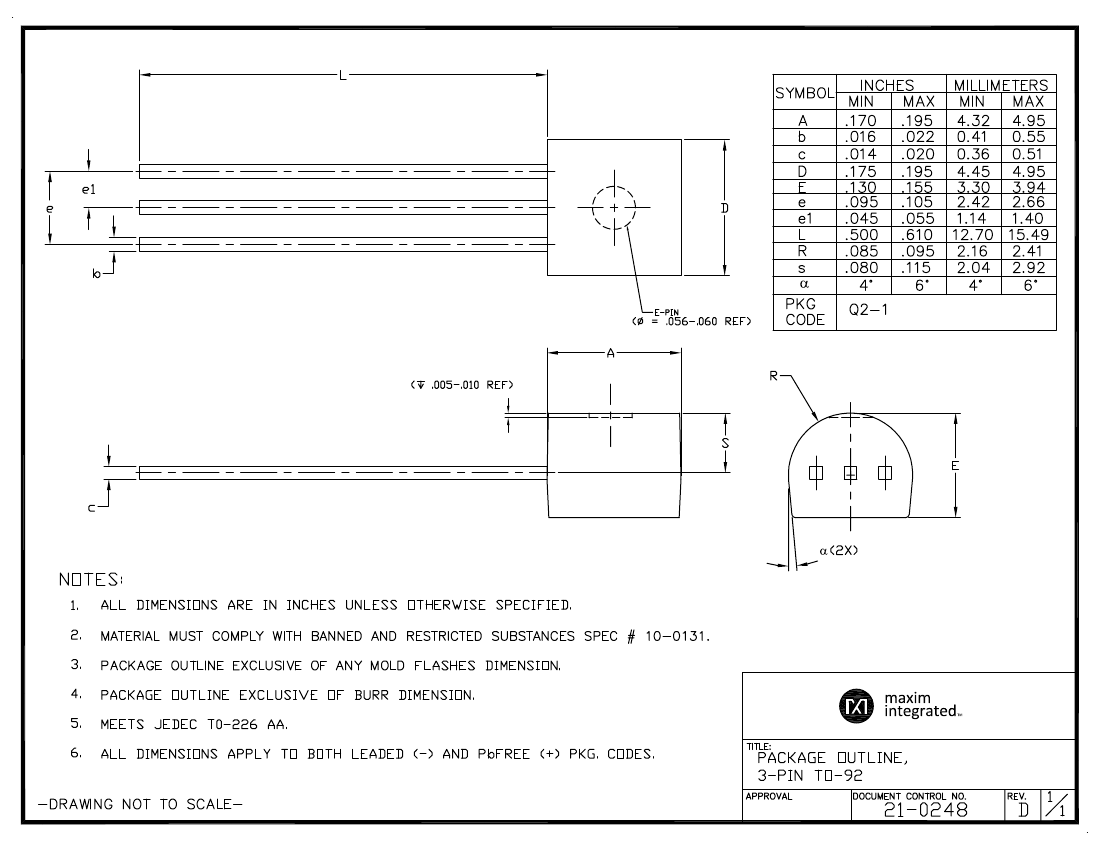

Preview

Download Datasheet

View All

JEROLD LEE 03/27/14

DS1816R-5+T&R Related Products

	DS1816R-5+T&R	DS1816R-5/T&R	DS1816-5+	DS1816-5+T&R	DS1816-10+	DS1816-20+	DS1816R-5-U+W	DS1816R-10+T&R
Description	supervisory circuits 3.3V econoreset w/ open drain output	supervisory circuits 3.3V econoreset w/ open drain output	supervisory circuits 3.3V econoreset w/ open drain output	supervisory circuits 3.3V econoreset w/ open drain output	supervisory circuits 3.3V econoreset w/ open drain output	supervisory circuits 3.3V econoreset w/ open drain output	supervisory circuits 3.3V econoreset w/ open drain output	supervisory circuits 3.3V econoreset w/ open drain output
Is it lead-free?	Lead free	Contains lead	Lead free	Lead free	Lead free	Lead free	-	Lead free
Is it Rohs certified?	conform to	incompatible	conform to	conform to	conform to	conform to	-	conform to
Maker	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	-	Maxim
Parts packaging code	SOT-23	SOT-23	TO-92	TO-92	TO-92	TO-92	-	SOT-23
package instruction	TSSOP, TO-236	SOT-23, 3 PIN	TO-92, SIP3,.1,50	TO-92, SIP3,.1,50	TO-92, SIP3,.1,50	TO-92, SIP3,.1,50	-	TSSOP, TO-236
Contacts	3	3	3	3	3	3	-	3
Reach Compliance Code	compliant	not_compliant	compli	compli	compliant	compli	-	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99
Factory Lead Time	6 weeks	-	6 weeks	12 weeks	6 weeks	-	-	6 weeks
Adjustable threshold	NO	NO	NO	NO	NO	NO	-	NO
Analog Integrated Circuits - Other Types	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	POWER SUPPLY SUPPORT CIRCUIT	-	POWER SUPPLY SUPPORT CIRCUIT
JESD-30 code	R-PDSO-G3	R-PDSO-G3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	-	R-PDSO-G3
JESD-609 code	e3	e0	e3	e3	e3	e3	-	e3
Number of channels	1	1	1	1	1	1	-	1
Number of functions	1	1	1	1	1	1	-	1
Number of terminals	3	3	3	3	3	3	-	3
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	-	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	TSSOP	TSOP	TO-92	TO-92	TO-92	TO-92	-	TSSOP
Encapsulate equivalent code	TO-236	TO-236	SIP3,.1,50	SIP3,.1,50	SIP3,.1,50	SIP3,.1,50	-	TO-236
Package shape	RECTANGULAR	RECTANGULAR	ROUND	ROUND	ROUND	ROUND	-	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, THIN PROFILE	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	-	SMALL OUTLINE, THIN PROFILE
Peak Reflow Temperature (Celsius)	260	240	260	260	260	260	-	260
power supply	1.2/5.5 V	1.2/5.5 V	1.2/5.5 V	1.2/5.5 V	1.2/5.5 V	1.2/5.5 V	-	1.2/5.5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Maximum supply current (Isup)	0.035 mA	0.035 mA	0.035 mA	0.035 mA	0.035 mA	0.035 mA	-	0.035 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	-	5.5 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	-	3.3 V
surface mount	YES	YES	NO	NO	NO	NO	-	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	-	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL
Terminal surface	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	-	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	GULL WING
Terminal pitch	0.95 mm	0.95 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	-	0.95 mm
Terminal location	DUAL	DUAL	BOTTOM	BOTTOM	BOTTOM	BOTTOM	-	DUAL
Threshold voltage nominal	+3.06V	+3.06V	+3.06V	+3.06V	+2.88V	+2.55V	-	+2.88V
Maximum time at peak reflow temperature	30	20	30	30	30	30	-	30
