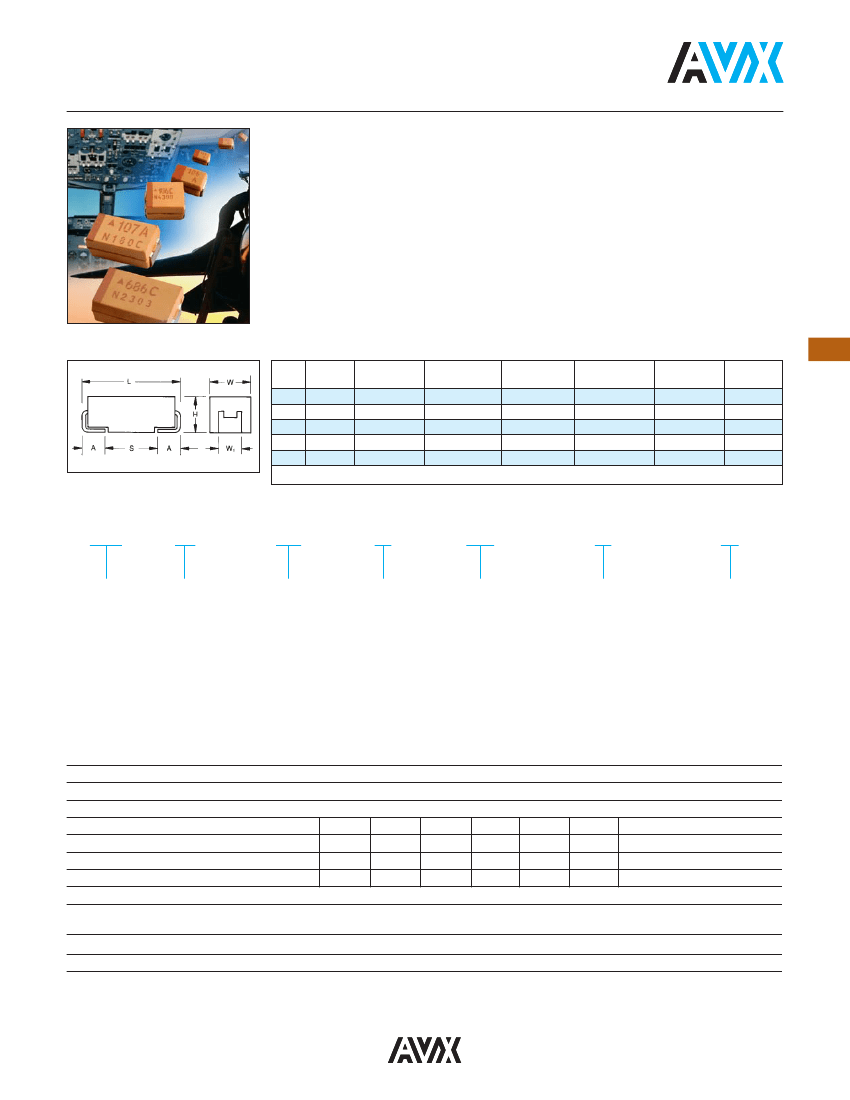

TRJ Series
Professional Tantalum Chip Capacitor
The TRJ surface mount series employs
established Tantalum technology together
with new process improvements and
advanced manufacturing techniques. This
robust series enables extension of the
guaranteed 0.5% reliability level to 1000
hours at rated voltage, rated temperature
and 0.1Ω/volt circuit impedance. The
moisture penetration barrier, thicker external
dielectric layer and modified manganising
process make the capacitor more robust
against higher thermo-mechanical stresses
during assembly process (“lead-free”
soldering) and also more robust against
more severe working conditions in
Automotive, Medical, Aerospace, Military
and other applications. The temperature
range is -55°C to 125°C and voltage range
is 6.3V to 50V.
These components do not contain any
lead either in the internal structure or in the
termination plating. They are compatible
with all SnPb and “lead-free” solders and
are qualified for higher reflow temperature
necessary for new lead-free assembly
process.
CASE DIMENSIONS:
millimeters (inches)
Code
A
B
C
D
E
For part marking see page 164
EIA
Code
3216-18
3528-21
6032-28
7343-31
7343-43
L±0.20 (0.008)
3.20 (0.126)
3.50 (0.138)
6.00 (0.236)
7.30 (0.287)
7.30 (0.287)
W+0.20 (0.008) H+0.20 (0.008)
A+0.30 (0.012)
W
1
±0.20 (0.008)
-0.10 (0.004)
-0.10 (0.004)
-0.20 (0.008)
1.60 (0.063)
2.80 (0.110)
3.20 (0.126)
4.30 (0.169)
4.30 (0.169)
1.60 (0.063)
1.90 (0.075)
2.60 (0.102)
2.90 (0.114)
4.10 (0.162)
1.20 (0.047)
2.20 (0.087)
2.20 (0.087)
2.40 (0.094)
2.40 (0.094)
0.80 (0.031)
0.80 (0.031)
1.30 (0.051)
1.30 (0.051)
1.30 (0.051)
S Min.
1.80 (0.071)
1.40 (0.055)
2.90 (0.114)
4.40 (0.173)
4.40 (0.173)
W
1
dimension applies to the termination width for A dimensional area only.
HOW TO ORDER
TRJ
B
105
*
035
R
RJ
Type
Case Size
See table
above
Capacitor Code
pF code: 1st two
digits represent
significant figures,
3rd digit represents
multiplier (number of
zeros to follow)
Tolerance
K=±10%
M=±20%
Rated DC Voltage
006 = 6.3V
010 = 10V
016 = 16V
020 = 20V
025 = 25V
035 = 35V
050 = 50V
Packaging/
Termination Plating
R = 7" T/R Lead Free
S = 13" T/R Lead Free
A = Gold Plating 7" Reel
B = Gold Plating 13" Reel
H = Tin Lead 7" Reel
K = Tin Lead 13" Reel
Additional
characters may be
added for special
requirements
TECHNICAL SPECIFICATIONS
Technical Data:
Capacitance Range:
Capacitance Tolerance:
Leakage Current DCL:
Rated Voltage (V
R
)
Category Voltage (V
C
)
Surge Voltage (V
S
)
Surge Voltage (V
S
)
Temperature Range:
Reliability:
Termination Plating:
All technical data relate to an ambient temperature of +25°C
0.1 µF to 470 µF
±10%; ±20%
0.0075CV
6.3
10
16
20
25
35
50
4
7
10
13
17
23
33
8
13
20
26
32
46
65
5
8
13
16
20
28
40
-55°C to +125°C
0.5% per 1000 hours at 85°C, V
R
with 0.1Ω/V series impedance,
60% confidence level
Sn Plating (standard), Gold and SnPb Plating upon request
Meets requirements of AEC-Q200
+85°C:
+125°C:
+85°C:
+125°C:
47
TRJ Series
Professional Tantalum Chip Capacitor
CAPACITANCE AND RATED VOLTAGE, V
R
(VOLTAGE CODE) RANGE
LETTER DENOTES CASE SIZE
Capacitance
µF
Code
0.10
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
104
154
224
334
474
684
105
155
225
335
475
685
106
156
226
336
476
686
107
157
227
337
477
6.3V (J)
Rated Voltage DC (V
R
) to 85°C
10V (A)
16V (C)
20V (D)
25V (E)
35V (V)
A
A
A
A
A
A
A/B
A/B
B
B/C
B/C
C
C/D
C/D
D
D/E
50V (T)
A
A
B
B
B
C
C
C/D
D
D
E
A
A/B
A/B
B
B/C
C
C
C/D
D
E
E
A
A
A/B
A/B
B
B/C
C
C
C/D
D/E
D/E
E
A
A
A/B
A/B
B
B
B/C
C
C/D
D
D/E
E
A
A
A
A/B
A/B
B
B/C
B/C
C/D
C/D
D
D/E
D/E
A
A
A
A
A/B
B
B
B/C
C
C/D
C/D
D
D/E
Note: Voltage ratings are minimum values. AVX reserves the right to supply
higher ratings in the same reliability standards.
Developmental Ratings - subject to change
HOW TO ORDER – FOR COTS-Plus PRODUCTS
TRJ
B
105
M
035
E
C000
Type
Case Size
Capacitance Code
pF code: 1st two
digits represent
significant figures
3rd digit represents
multiplier (number of
zeros to follow)
Tolerance
K=±10%
M=±20%
Rated DC Voltage
006=6.3Vdc
010=10Vdc
016=16Vdc
020=20Vdc
025=25Vdc
035=35Vdc
Packaging/
Termination Plating
E = non modular
quantity tin/lead
termination finish
Additional
characters may be
added for special
requirements
(see below)
Suffix details
First digit
C = for COTS-Plus
Second digit
0 (zero) = for no surge requirement
S = for 10 cycles, 25°C surge
T = for 10 cycles, -55 and 85°C surge
Third digit
0 (zero) = standard ESR
L = for low ESR
Fourth digit
0 (zero) = standard M/L level reliability
B = for Weibull grade “B”
C = for Weibull grade “C”
Z = for non ER
48
TRJ Series
Professional Tantalum Chip Capacitor
RATINGS & PART NUMBER REFERENCE
AVX
Part No.
Case
Size
Capacitance
(µF)
DCL
(µA)
Max.
DF
%
Max.
ESR
Max. (Ω)
@ 100 kHz
AVX
Part No.
Case
Size
Capacitance
(µF)
DCL
(µA)
Max.
DF
%
Max.
ESR
Max. (Ω)
@ 100 kHz
Voltage Rating
TRJA106*006#
TRJA156*006#
TRJB156*006#
TRJA226*006#
TRJB226*006#
TRJB336*006#
TRJB476*006#
TRJC476*006#
TRJC686*006#
TRJC107*006#
TRJC157*006#
TRJD157*006#
TRJD227*006#
TRJE337*006#
TRJE477*006#
A
A
B
A
B
B
B
C
C
C
C
D
D
E
E
A
A
A
B
A
B
B
B
C
C
C
C
D
D
E
E
E
A
A
A
B
A
B
B
B
B
C
C
C
D
D
D
E
E
6.3 v @ 85°C (4 v @ 125°C)
10
15
15
22
22
33
47
47
68
100
150
150
220
330
470
4.7
6.8
10
10
15
15
22
33
33
47
68
100
100
150
150
220
330
2.2
3.3
4.7
4.7
6.8
6.8
10
15
22
22
33
47
47
68
100
100
150
0.45
0.68
0.68
0.99
0.99
1.5
2.1
2.1
3.1
4.5
6.8
6.8
9.9
14
20.8
0.35
0.51
0.75
0.75
1.1
1.1
1.7
2.5
2.5
3.5
5.1
7.5
7.5
11
11
17
24.8
0.30
0.40
0.56
0.56
0.82
0.82
1.2
1.8
2.6
2.6
4.0
5.6
5.6
8.2
12
12
16
6
6
6
6
6
6
6
6
6
6
8
6
8
8
8
6
6
6
6
6
6
6
6
6
6
6
8
6
8
8
8
8
6
6
6
6
4
6
6
6
6
6
6
6
6
6
6
6
6
2.2
2.0
2.0
1.7
1.9
1.7
1.6
0.5
0.5
0.4
0.5
0.4
0.4
0.3
0.2
3.2
2.6
2.2
2.2
1.8
2.0
1.9
1.0
0.6
0.5
0.5
0.5
0.4
0.4
0.4
0.4
0.3
4.5
3.7
3.2
3.2
2.0
2.6
2.2
2.0
1.1
0.7
0.6
0.5
0.5
0.5
0.4
0.4
0.3
Voltage Rating
TRJA105*020#
TRJA155*020#
TRJA225*020#
TRJA335*020#
TRJB335*020#
TRJA475*020#
TRJB475*020#
TRJB685*020#
TRJB106*020#
TRJC106*020#
TRJB156*020#
TRJC156*020#
TRJC226*020#
TRJD226*020#
TRJC336*020#
TRJD336*020#
TRJD476*020#
TRJD686*020#
TRJE686*020#
TRJE107*020#
A
A
A
A
B
A
B
B
B
C
B
C
C
D
C
D
D
D
E
E
A
A
A
A
A
B
B
B
B
C
C
C
D
D
D
E
A
A
A
A
A
A
A
B
A
B
B
B
C
B
C
C
C
D
D
D
E
A
A
B
B
B
C
C
C
D
D
D
E
20 v @ 85°C (13 v @ 125°C)
1
1.5
2.2
3.3
3.3
4.7
4.7
6.8
10
10
15
15
22
22
33
33
47
68
68
100
0.47
0.68
1
1.5
2.2
2.2
3.3
4.7
6.8
6.8
10
15
15
22
33
47
0.1
0.15
0.22
0.33
0.47
0.68
1
1
1.5
1.5
2.2
3.3
3.3
4.7
4.7
6.8
10
10
15
22
33
0.22
0.33
0.47
0.68
1.0
1.5
2.2
3.3
3.3
4.7
6.8
10
0.30
0.30
0.33
0.50
0.50
0.71
0.71
1.0
1.5
1.5
2.3
2.3
3.3
3.3
5.0
5.0
7.1
10
10
15
0.30
0.30
0.30
0.30
0.41
0.41
0.62
0.88
1.3
1.3
1.9
2.8
2.8
4.1
6.2
8.8
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.39
0.39
0.58
0.87
0.87
1.2
1.2
1.8
2.6
2.6
3.9
5.8
8.7
0.30
0.30
0.30
0.30
0.40
0.60
0.80
1.20
1.20
1.80
2.60
3.80
4
6
6
6
6
5
6
6
6
6
6
6
6
6
6
6
6
6
6
6
4
4
4
6
6
6
6
6
6
6
6
6
6
6
6
6
4
4
4
4
4
4
4
4
6
6
6
6
6
6
6
6
6
6
6
6
6
4
4
4
4
4
6
6
6
4.5
4.5
4.5
4.5
6.6
5.5
4.5
3.7
3.7
2.5
3.2
2.6
2.2
0.8
1.4
0.7
0.7
0.7
0.6
0.6
0.5
0.5
0.5
0.3
9.5
8.0
6.6
5.5
2.9
4.5
3.7
3.2
1.5
1.1
0.8
0.7
0.7
0.7
0.6
0.5
20
16
14
11
9.5
8.0
6.6
3.4
3.1
5.5
4.5
3.7
1.8
2.2
1.4
1.1
0.8
0.8
0.7
0.7
0.6
7.5
7.0
5.0
4.0
3.4
2.5
1.7
1.4
1.1
0.9
0.7
0.7
Voltage Rating
TRJA475*010#
TRJA685*010#
TRJA106*010#
TRJB106*010#
TRJA156*010#
TRJB156*010#
TRJB226*010#
TRJB336*010#
TRJC336*010#
TRJC476*010#
TRJC686*010#
TRJC107*010#
TRJD107*010#
TRJD157*010#
TRJE157*010#
TRJE227*010#
TRJE337*010#
10 v @ 85°C (7 v @ 125°C)
Voltage Rating
TRJA474*025#
TRJA684*025#
TRJA105*025#
TRJA155*025#
TRJA225*025#
TRJB225*025#
TRJB335*025#
TRJB475*025#
TRJB685*025#
TRJC685*025#
TRJC106*025#
TRJC156*025#
TRJD156*025#
TRJD226*025#
TRJD336*025#
TRJE476*025#
25 v @ 85°C (17 v @ 125°C)
Voltage Rating
TRJA225*016#
TRJA335*016#
TRJA475*016#
TRJB475*016#
TRJA685*016#
TRJB685*016#
TRJB106*016#
TRJB156*016#
TRJB226*016#
TRJC226*016#
TRJC336*016#
TRJC476*016#
TRJD476*016#
TRJD686*016#
TRJD107*016#
TRJE107*016#
TRJE157*016#
16 v @ 85°C (10 v @ 125°C)
Voltage Rating
TRJA104*035#
TRJA154*035#
TRJA224*035#
TRJA334*035#
TRJA474*035#
TRJA684*035#
TRJA105*035#
TRJB105*035#
TRJA155*035#
TRJB155*035#
TRJB225*035#
TRJB335*035#
TRJC335*035#
TRJB475*035#
TRJC475*035#
TRJC685*035#
TRJC106*035#
TRJD106*035#
TRJD156*035#
TRJD226*035#
TRJE336*035#
35 v @ 85°C (23 v @ 125°C)
All technical data relates to an ambient temperature of +25°C. Capacitance and
DF are measured at 120Hz, 0.5V RMS with a maximum DC bias of 2.2 volts.
DCL is measured at rated voltage after 5 minutes.
* Insert K for ±10% and M for ±20%
# Termination finished and packaging reel size
NOTE: AVX reserves the right to supply higher specification parts in the
same case size, to the same reliability standards.
Voltage Rating
TRJA224*050#
TRJA334*050#
TRJB474*050#
TRJB684*050#
TRJB105*050#
TRJC155*050#
TRJC225*050#
TRJC335*050#
TRJD335*050#
TRJD475*050#
TRJD685*050#
TRJE106*050#
50 v @ 85°C (33 v @ 125°C)
49
FPGA/CPLD
京公网安备 11010802033920号
EEWORLD
