Module no:2284099 LabelId:2284099 Operator:Phoenix

17:02:12, Donnerstag, 28. Juni 2001

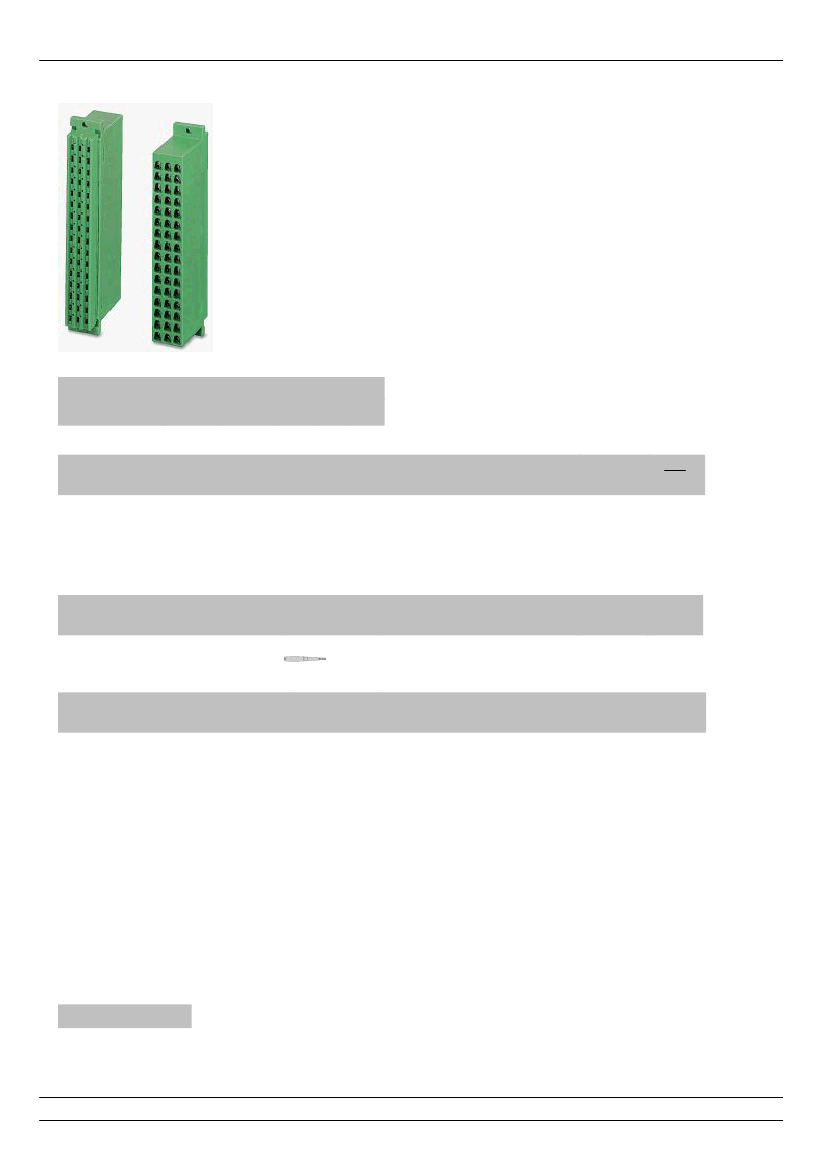

SFL 0,5/F 48

48-position with 0.5 mm 2 screw connection

(IEC)

[mm ]

Connection data

Description

Screw socket strip, design F,

48-position, fully equipped in rowsz,

b + d,

32-position, partially equipped in rowsz

+ b,

32-position, partially equipped in rowsz

+ d,

2

two 0.5 mm screw connections per position

2

rigid

solid

flexible

stranded AWG

I

[A]

4

U

[V]

250

Type

SFL 0,5/F 48

SFL 0,5/F 32/ZB

SFL 0,5/F 32/ZD

Order No.

22 84 09 9

22 85 09 8

22 85 10 8

Pcs.

Pkt.

10

0.14-0.5 0.14-0.5 26-20

Accessories

Screwdriver,

blade dimension: 0.6 x 2.5 x 75 mm,

length: 150 mm

Technical data

Dimensions

Rated surge voltage / contamination

class

Surge voltage category / insulation

material group

Stripping length

Thread

Torque

Insulation material

Inflammability class acc. to UL 94

Temperature indices RTI/Ti

Note:

Ferrules must

not

be used.

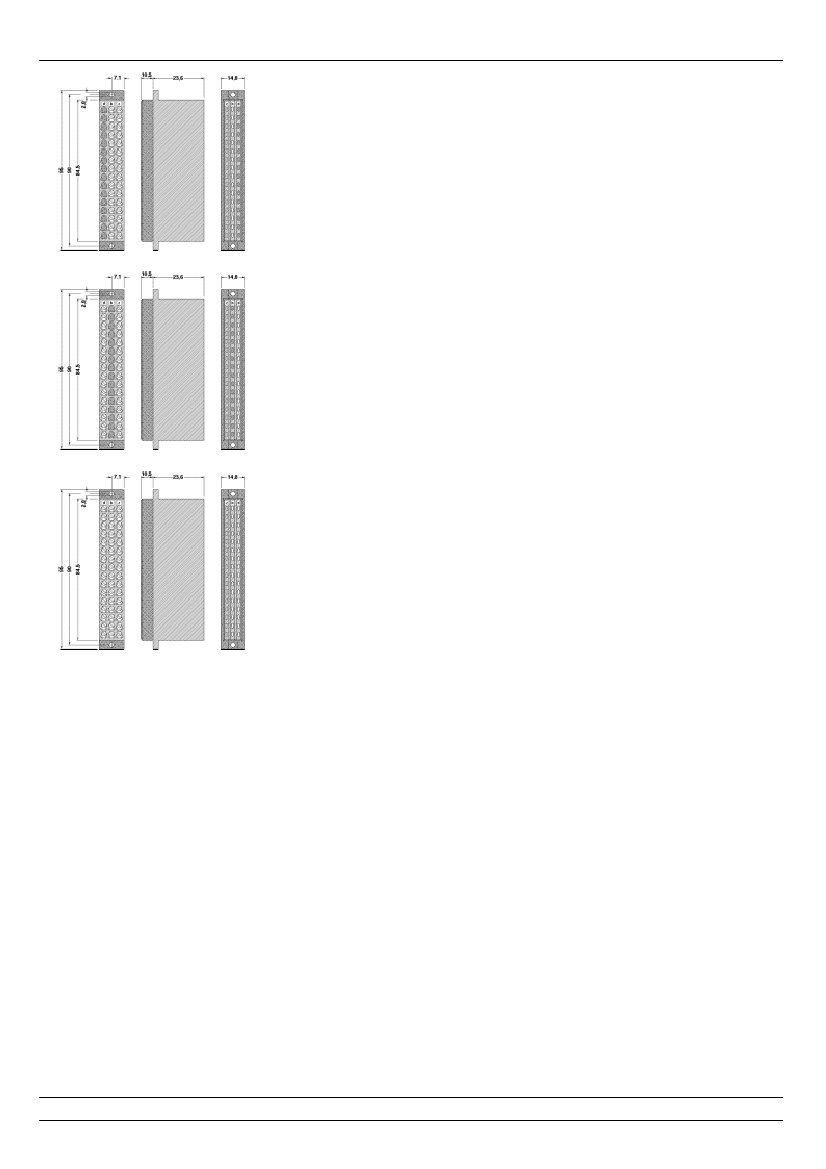

Dimensional drawing

[Nm]

[kV]/ –

–/–

[mm]

see description

4/3

III / II

10

M 2,6

0.3 - 0.4

PA-F

HB

120/145

SZS 0,6 x 2,5

12 05 04 0

10

Phoenix Contact Elektronischer Katalog

Page 1 / 2
