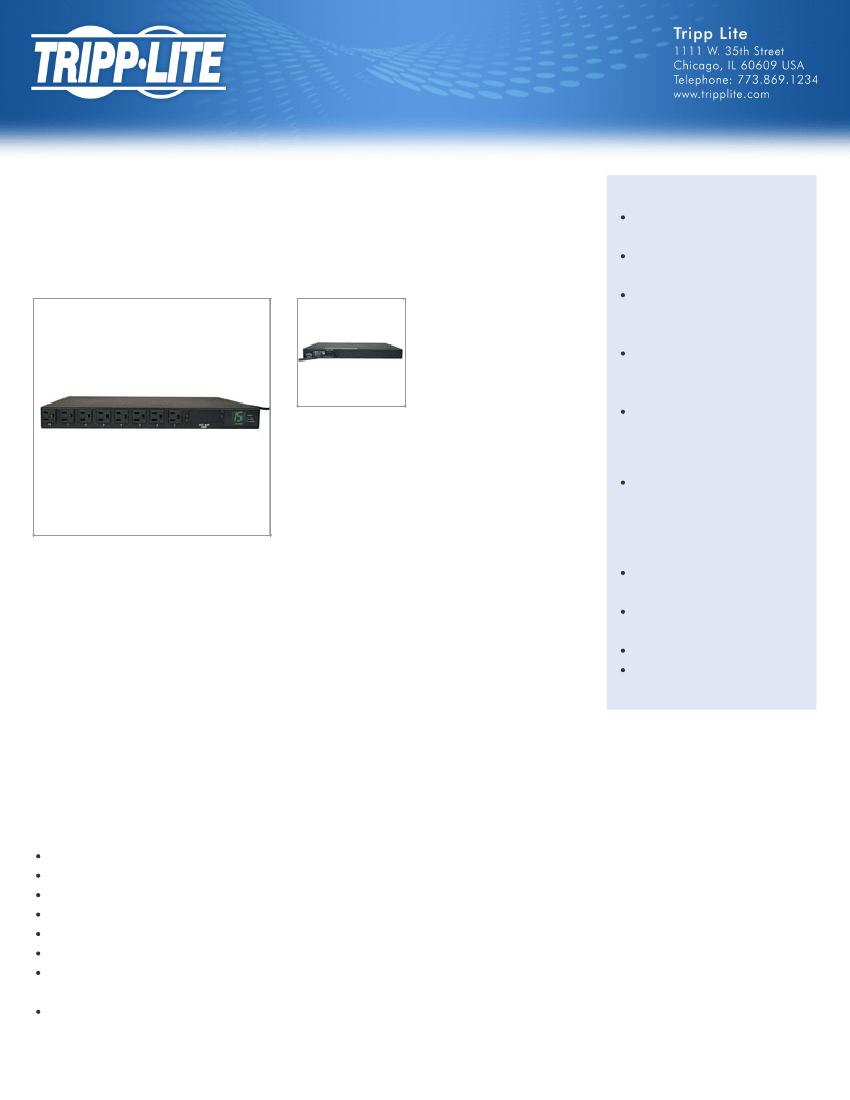

Single-Phase Auto Transfer Switch / Metered PDU,
1.4kW 15A 120V, 1U Horizontal Rackmount, 8 NEMA
5-15R outlets, 2 NEMA 5-15P inputs
MODEL NUMBER:
PDUMH15AT
Highlights
Single phase 15A 120V Auto
Transfer Switch / ATS PDU
Enables redundant-power option
for single-corded network devices
Separate primary & secondary
inputs connect to any two
compatible power sources
1U horizontal rackmount; 2
NEMA 5-15P inputs; 8 NEMA
5-15R outlets
Two digit visual current meter;
Upgrade options available
Applications
Ideal means to provide
single-corded network gear a
redundant power option
Package Includes
Description
Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network
devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The
ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary
power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until
the primary input is restored and stable. Super-fast switchover between primary and secondary power sources
occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless
of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant
hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a
two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly
recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even
separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to
the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.
PDU with attached 5-15P primary
input cord
Detachable C13 to NEMA 5-15P
12 ft / 3.6m secondary input cord
1U mounting brackets
User manual with warranty
information
Features
120V 15A Automatic Transfer Switch (ATS) / Metered PDU (Agency de-rated to 12A continuous)
Provides a redundant power option for critical networking equipment with a single input power cord
2 digit display reports output power consumption in amps
1U horizontal rackmount form factor; 14.5 in. / 36.8 cm depth
8 built-in NEMA 5-15R outlets
Set of two 12 ft. / 3.6m NEMA 5-15P input cables support connection to separate PRIMARY and SECONDARY power sources
ATS circuits normally maintain output sourced from the primary input cable; As primary input power fails or becomes unstable, the ATS will switch to
maintain output sourced from the secondary input cable until power on the primary input is restored and stable
ATS configurations enable fault-tolerant, hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord
is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported by an online UPS with zero transfer time
1/3
similar to Tripp Lite SmartOnline series)
Advanced ATS configurations utilizing separate mains circuits, backup generators and even separate out of phase utility power grid feeds are fully
supported
On-board ATS processor constantly evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower
quality than the primary source
Super-fast switchover between primary and secondary power sources occurs in 2-7 milliseconds
Built-in card slot supports optional SNMPWEBCARD for permanent upgrade to a switched & monitored PDU system
Outlets are factory programmed for sequential turn-on at 250 milliscond intervals when the PDU is first energized to prevent inrush-related equipment
interaction on startup
Front panel LEDs confirm power availability on both input lines
TAA Compliant Version Available - Order Tripp Lite PDUMH15ATAA
Specifications
OVERVIEW
PDU Type
Auto-Transfer Switch; Metered
OUTPUT
Output Capacity Details
Frequency compatibility
Output VA
Output nominal voltage
Outlet quantity / type
Outlet Type
1.4kW (120V input), 1.5kW (127V input), 1.2kW (100V input); 15A maximum (Agency de-rated to 12A continuous)
60 Hz
1800
100-127V nominal, single phase
8 NEMA 5-15R
NEMA 5-15R
INPUT
PDU Input Voltage
Maximum Input Amps (A)
Maximum Input Amps (A) Details
PDU Plug Type
Input cord length (ft.)
Input cord length (m)
Phase
100; 120; 127
15
Agency de-rated to 12A continuous
NEMA 5-15P
12
3.66
Single-Phase
LEDS ALARMS & SWITCHES
Front panel LEDs
10 front panel LEDs display power on - off status for each outlet, plus 3 LEDs for power status on each input line
cord. Digital Current Meter displays output power consumption in amps.
PHYSICAL
2/3
Shipping Dimensions (HWD/in)
Shipping Dimensions (HWD/cm)
Shipping weight (lbs)
Shipping weight (kg)
Unit Dimensions (HWD/in)
Unit Dimensions (HWD/cm)
Unit weight (lbs)
Unit weight (kg)
Material of construction
Style
Form factors supported
PDU Form Factor
6.25 x 22.5 x 23.5
15.9 x 57.2 x 59.7
15.2
6.9
1.75 (1U) x 17.5 x 14.5
4.44 x 44.4 x 36.8
11
5
Steel
Rackmount
1U rackmount
Horizontal (1U, 2U, etc)
ENVIRONMENTAL
Relative Humidity
Up to 95% (non-condensing)
COMMUNICATIONS
SNMP compatibility
Includes slot for optional
SNMPWEBCARD
accessory to enable remote individual outlet control over IP
SPECIAL FEATURES
Appearance
Black 1U rackmount steel chassis
CERTIFICATIONS
TAA Compliant Option
Certifications
TAA Compliant Version Available - Order Tripp Lite PDUMH15ATAA
Tested to UL 60950-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico), RoHS compliant
WARRANTY
Product Warranty Period (Worldwide)
2-year limited warranty
© 2014 Tripp Lite. All rights reserved. All trademarks are the sole property of their respective owners. Tripp Lite has a policy of continuous improvement.
Specifications are subject to change without notice. Photos may differ slightly from final products.
3/3
