TR/3216LV-750MA datasheet, PDF

Datasheet> All Categories > Circuit protection> TR/3216LV-750MA

TR/3216LV-750MA: Descriptionsurface mount fuses 125vadc .75a fast acting chip fuse; CategoryCircuit protection; File Size103KB，2 Pages; ManufacturerBussmann (Eaton)

Download Datasheet Parametric Compare View All

TR/3216LV-750MA Overview

surface mount fuses 125vadc .75a fast acting chip fuse

TR/3216LV-750MA Parametric

Parameter Name	Attribute value
Manufacture	Cooper Bussm
Product Category	Surface Mount Fuses
RoHS	N
Current Rating	750 mA
Voltage Rating AC	125 V
Voltage Rating DC	125 V
Fuse Type	Fast Blow
Fuse Size / Grou	1206 (3216 metric)
Dimensions	3.2 mm L x 1.6 mm W
Case Heigh	0.9 mm
Case Length	3.2 mm
Case Width	1.6 mm
Interrupt Rating	50 Amps
Packaging	Reel
Produc	Surface Mount Fuses
Resistance	750 mOhms
Factory Pack Quantity	3000
Type	Chip Fuse Fast Acting Line Voltage
Unit Weigh	453.592 mg

Preview

Download Datasheet

View All

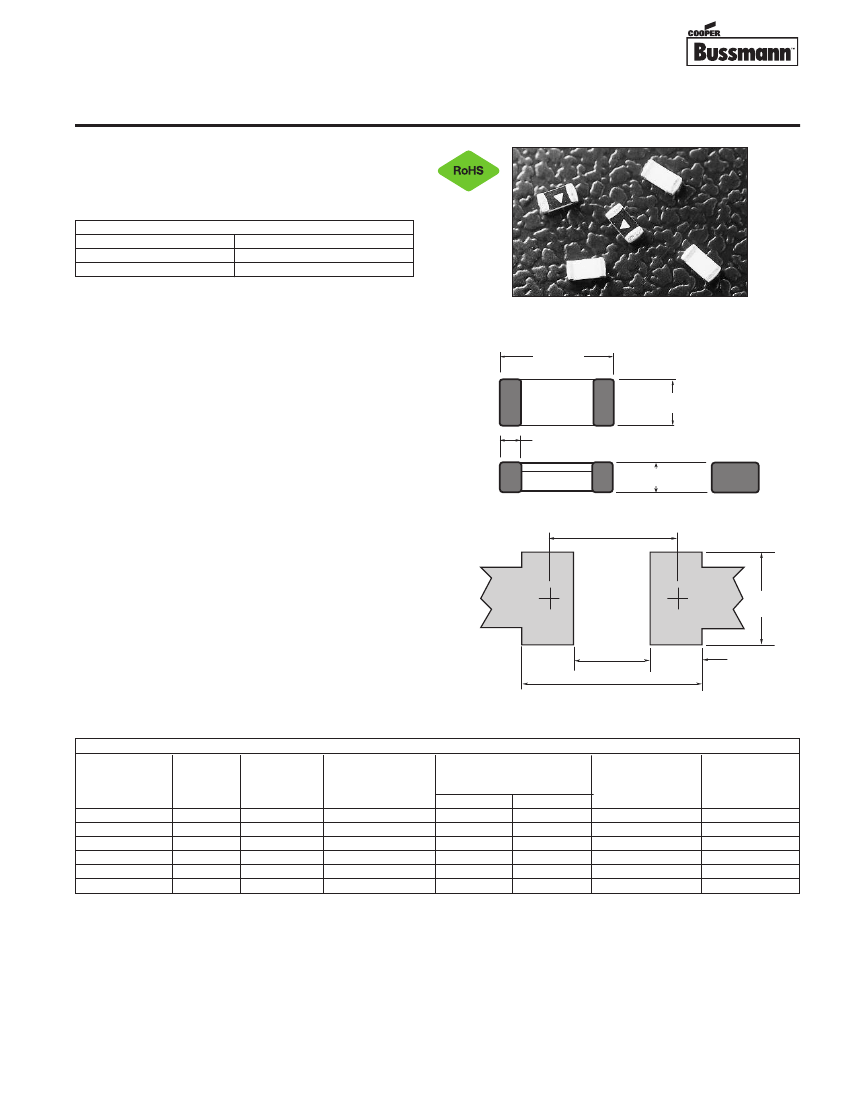

Description

• Surface mount fuse, fast acting, 125Vac

• Utilize thick and thin metal film technologies for

superior fusing action and enhanced reliability.

3216LV Series, Fast Acting, Line Voltage

Chip

™

Fuses

• UL Recognition Guide & File numbers:

JDYX2 & E19180.

• CSA Component Acceptance: 053787 C 000 &

Class No: 1422 30.

Environmental Data

• Operating Temperature Range: -65 to +125°C,

with proper derating

• Thermal Shock: MIL-STD-202, Method 107, Test

Condition B (-65 to 125°C), 1000 cycles, fuses soldered

to FR-4 glass-epoxy circuit board

• Vibration: MIL-STD-202, Method 204, Test Condition C

(55 to 2000 HZ, 10G)

• Solderability: Withstands 60 seconds above 200°C,

260°C maximum

• Moisture Resistance: MIL-STD-202, Method 106,

10 day cycle

• Solder Leach Resistance & Terminal Adhesion:

EIA-576 (30 seconds submersion in 260°C

tin-lead solder)

Ordering

• Specify packaging and product code

(i.e. TR/3216LV1-R)

Agency information

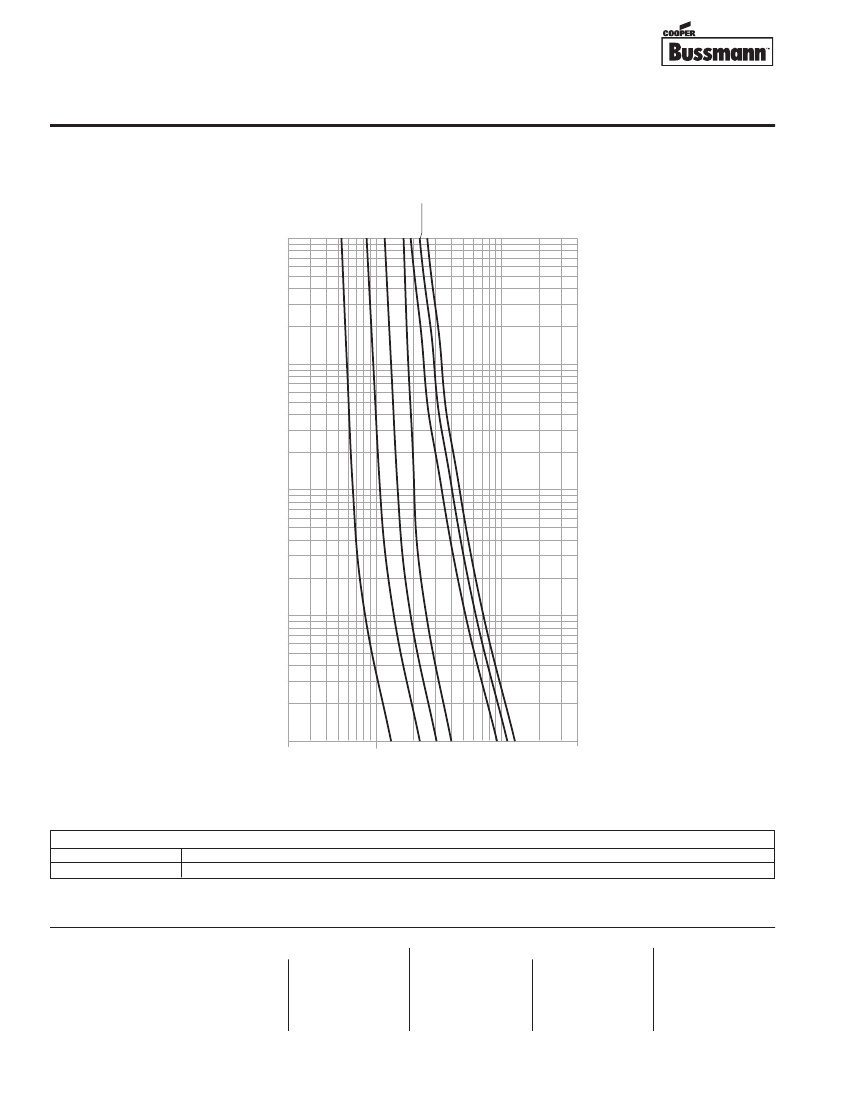

ELEctricAL chArActEriSticS

% of Amp rating

Opening time

100%

4 hours minimum

250%

5 seconds maximum

Dimensions

Drawing Not to Scale

.75

3.20

0.2

(0.126

0.008)

⁄

(inches)

1.60

0.2

(0.063

0.008)

0.50

0.25

(0.020

0.010)

Land Pattern

0.90 + 0.20, -0.15

(0.035 + 0.008, -0.006)

2.80

1.80 to

2.00

1.20 to 1.40

4.20 to 4.40

1.60

Part

Number

3216LV250-r

3216LV375-r

3216LV750-r

3216LV1-r

3216LV1.25-r

3216LV1.5-r

current

rating

(Amps)

250mA

375mA

750mA

1.25

1.5

Voltage

rating

Vac/dc

125

interrupting

rating

@125Vac/dc

(amps)

SPEciFicAtiONS

typical Melting

integral @ 10X rated

current (A

* sec)

0.00016

0.000084

0.001

0.0002

0.0033

0.00379

0.020

0.0084

0.035

0.021

0.038

0.024

typ. resistance

@ ≤ 10%

rated current

(Ω)

4.5

1.80

0.75

0.52

0.40

0.26

typ. Voltage

Drop @ rated

current (Volts)

1.4

0.73

0.63

0.62

0.49

Notes:

1. AC interrupting rating, melting integral and total clearing integral measured at 125V, unity power factor

2. DC interrupting rating, melting integral and total clearing integral measured at 125V with a battery source

3. Voltage drop measured at 23 ± 3°C ambient temperature with the device mounted on a suitable circuit board trace

4. It is recommended that fuses be mounted with ceramic (white) side facing up

5. Device designed to carry rated current for four hours minimum. An operating current of 80% or less of rated current is recommended,

with further derating required at elevated ambient temperatures
