DBCIDCC720BS1: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,20 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,BLACK; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerAlpha 3 Manufacturing; Environmental Compliance

Download Datasheet Parametric View All

DBCIDCC720BS1 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,20 CONTACTS,PIN,0.05 PITCH,PC TAIL TERMINAL,BLACK

DBCIDCC720BS1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304361678
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.319 inch
subject depth	0.207 inch
body length	0.799 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	C7
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	20

Preview

Download Datasheet

View All

IDC

Industry compatible

Competitively priced

Gold plated contacts

1.27mm pitch

2.54mm row spacing

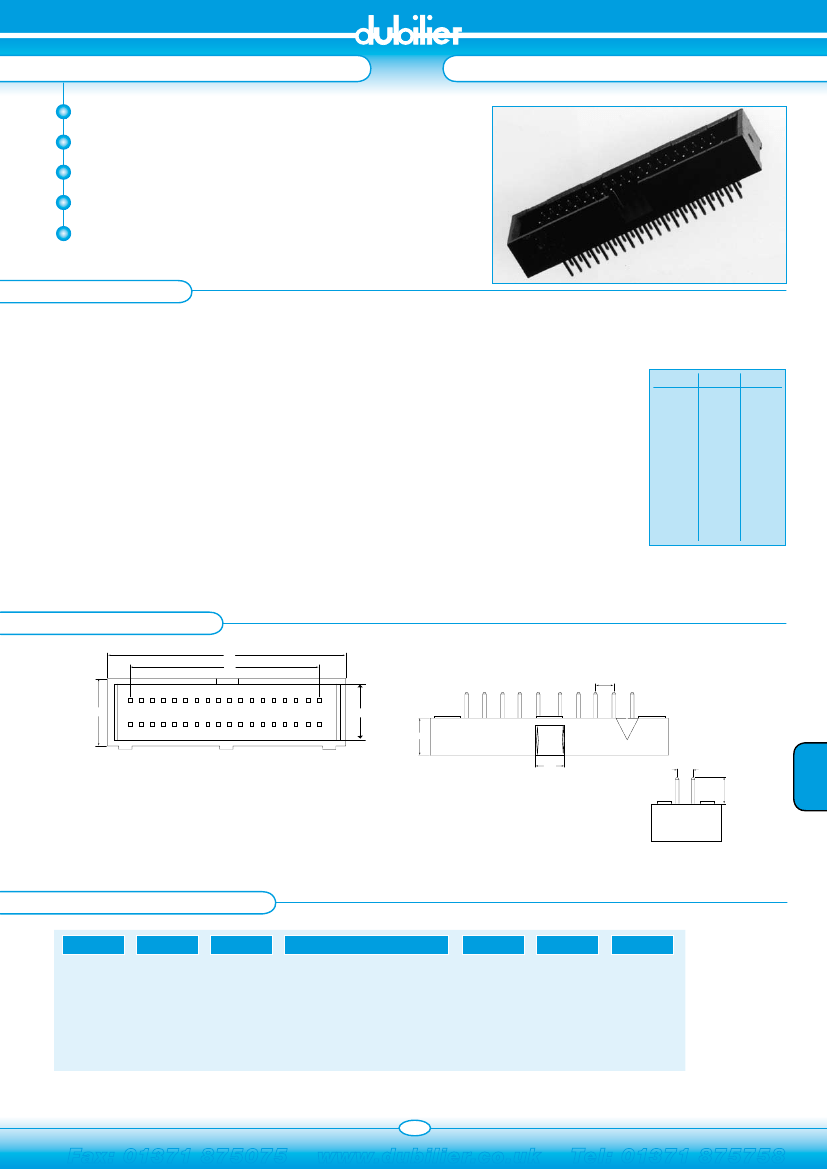

BOX HEADER STRAIGHT

SPECIFICATION

Material & Finish

Contact Material:

Insulator Material:

Current Rating:

Brass

PBT & Glass-Fibre Reinforced UL-94V-0

1 A DC

30M Ω Max

1000M Ω Min

A

B

Contact Resistance:

Insulator Resistance:

Dielectric Withstanding

Voltage:

6.32

Position

10

20

30

40

50

60

70

80

90

100

A

13.95

20.30

26.65

33.00

39.35

45.70

52.05

58.40

64.75

71.50

B

5.08

11.43

17.78

24.13

30.48

36.83

43.18

49.53

55.88

62.33

250V AC for One Minute

-40°C to + 105°C

Operating Temperature:

8.1

OUTLINE DRAWING

A

B

1.27

8.1

6.32

5.26

SECTION 15

4.1

2.54

1.27

3.2

8.1

ORDERING INFORMATION

DBC

Dubilier

5.26

Connectors

1.27

IDC

Connector

C7

Series

4.1

10

Nº of Ways

10=10way

20=20way

30=30way

40=40way

50=50way

1.27

B

Contact Material

60=60way

70=70way

3.2

80=80way

S

Contact Plating

S=Selective

Gold

1

Colour

1=Black

B=Brass

90=90way

100=100way

343

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758
