S-29L131ADFE-TBG datasheet, PDF

Datasheet> All Categories > storage> storage> S-29L131ADFE-TBG

S-29L131ADFE-TBG: DescriptionEEPROM, 64X16, Serial, CMOS, PDSO8, SOP-8; Categorystorage storage; File Size133KB，3 Pages; ManufacturerABLIC; Environmental Compliance

Download Datasheet Parametric Compare View All

S-29L131ADFE-TBG Overview

EEPROM, 64X16, Serial, CMOS, PDSO8, SOP-8

S-29L131ADFE-TBG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SOIC
package instruction	LSOP,
Contacts	8
Reach Compliance Code	compli
ECCN code	EAR99
JESD-30 code	R-PDSO-G8
JESD-609 code	e6/e2
length	5.2 mm
memory density	1024 bi
Memory IC Type	EEPROM
memory width	16
Number of functions	1
Number of terminals	8
word count	64 words
character code	64
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	64X16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	1.7 mm
Serial bus type	MICROWIRE
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.8 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN BISMUTH/TIN SILVER
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
width	4.4 mm
Base Number Matches	1

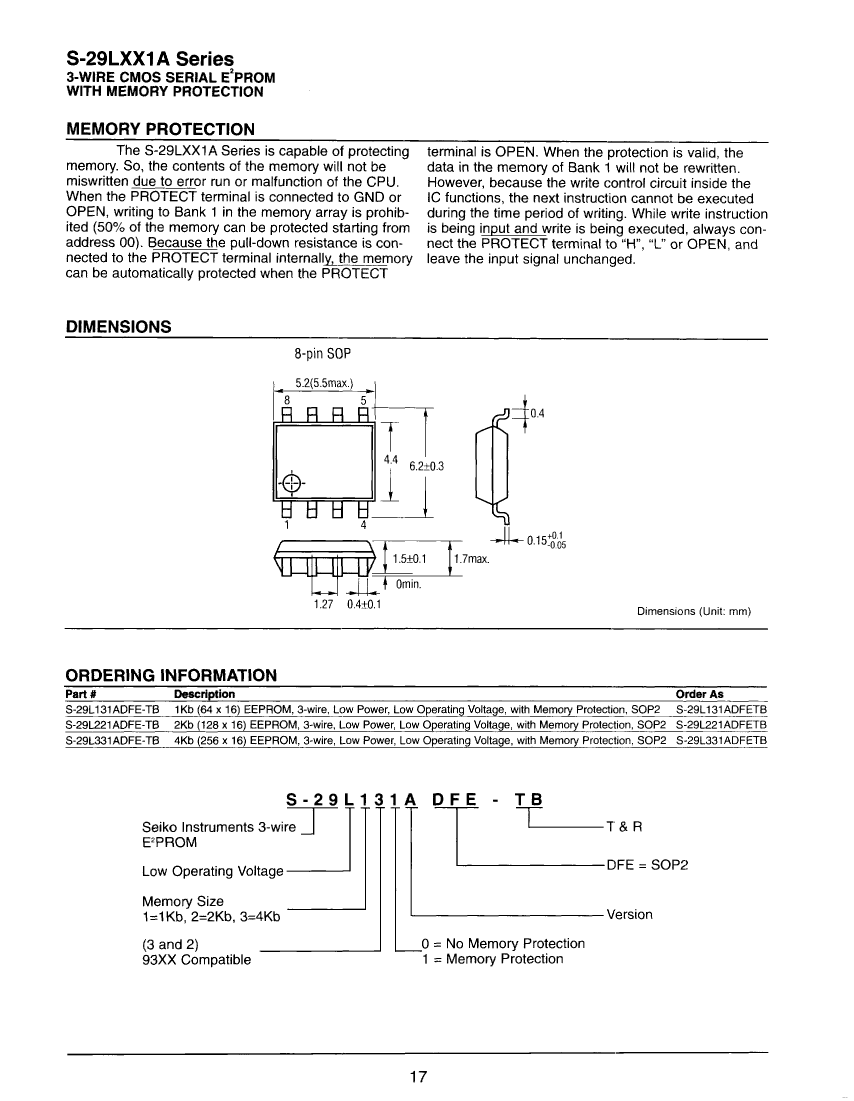

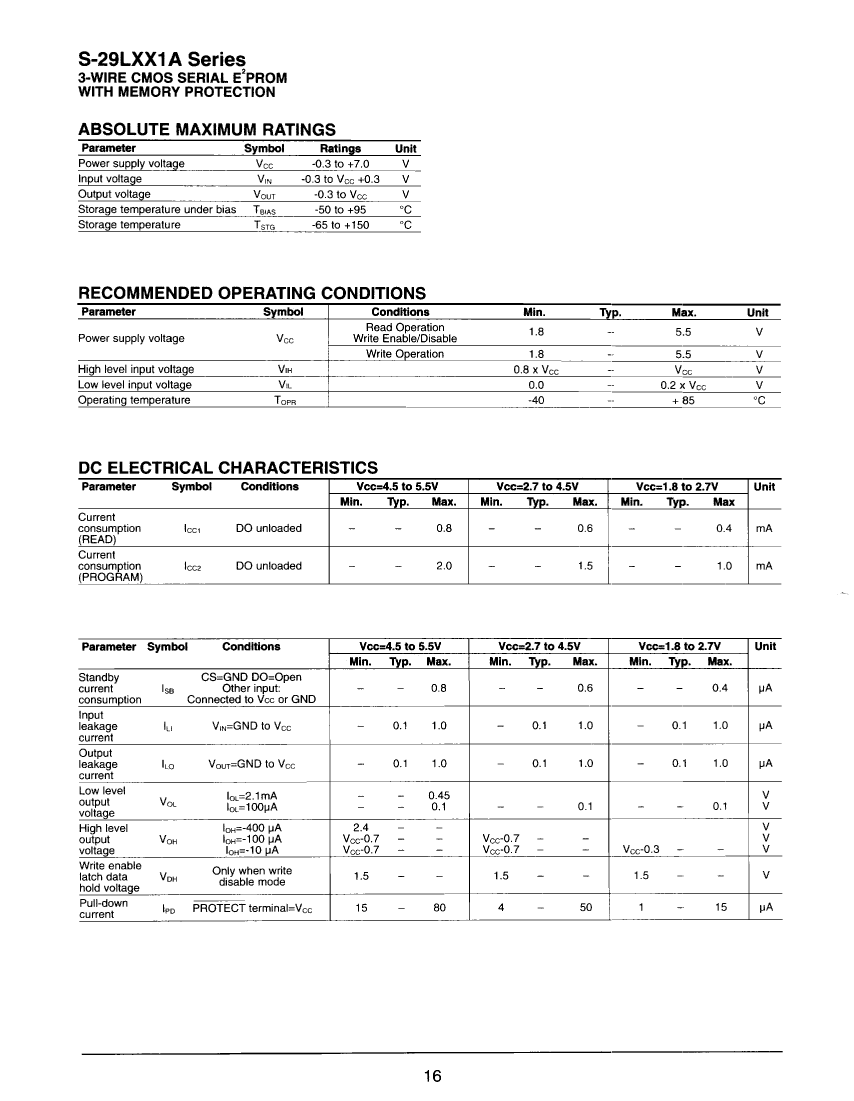

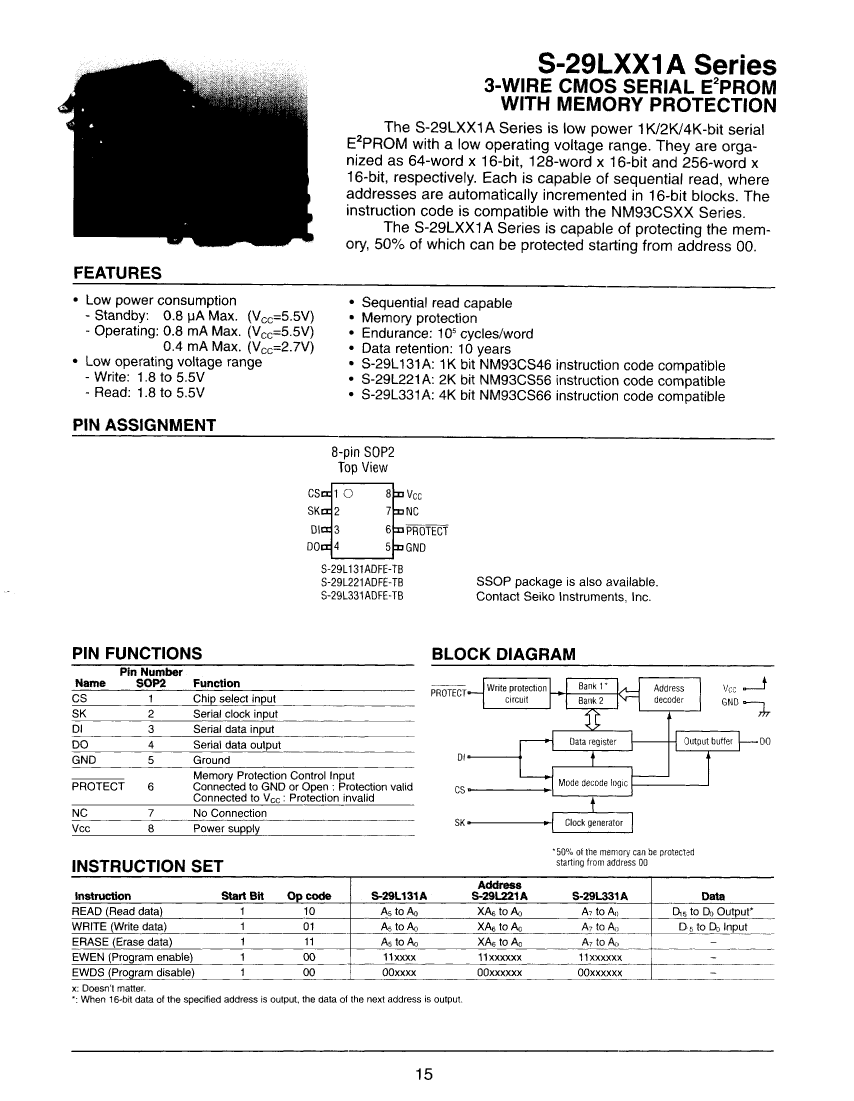

Preview

Download Datasheet

View All

S-29L131ADFE-TBG Related Products

	S-29L131ADFE-TBG	S-29L131ADFE-TB	S-29L221ADFE-TBG	S-29L221ADFE-TB	S-29L331ADFE-TB	S-29L331ADFE-TBG
Description	EEPROM, 64X16, Serial, CMOS, PDSO8, SOP-8	EEPROM, 64X16, Serial, CMOS, PDSO8, SOP-8	EEPROM, 128X16, Serial, CMOS, PDSO8, SOP-8	EEPROM, 128X16, Serial, CMOS, PDSO8, SOP-8	EEPROM, 256X16, Serial, CMOS, PDSO8, SOP-8	EEPROM, 256X16, Serial, CMOS, PDSO8, SOP-8
Is it lead-free?	Lead free	Contains lead	Lead free	Contains lead	Contains lead	Lead free
Is it Rohs certified?	conform to	incompatible	conform to	incompatible	incompatible	conform to
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	LSOP,	LSOP, SOP8,.25	LSOP,	LSOP, SOP8,.25	LSOP, SOP8,.25	LSOP,
Contacts	8	8	8	8	8	8
Reach Compliance Code	compli	compli	compli	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e6/e2	e0	e6/e2	e0	e0	e6/e2
length	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm	5.2 mm
memory density	1024 bi	1024 bi	2048 bi	2048 bi	4096 bit	4096 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	16	16	16	16	16	16
Number of functions	1	1	1	1	1	1
Number of terminals	8	8	8	8	8	8
word count	64 words	64 words	128 words	128 words	256 words	256 words
character code	64	64	128	128	256	256
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
organize	64X16	64X16	128X16	128X16	256X16	256X16
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	LSOP	LSOP	LSOP	LSOP	LSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE
Parallel/Serial	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
Peak Reflow Temperature (Celsius)	260	NOT SPECIFIED	260	NOT SPECIFIED	NOT SPECIFIED	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.7 mm	1.7 mm	1.7 mm	1.7 mm	1.7 mm	1.7 mm
Serial bus type	MICROWIRE	MICROWIRE	MICROWIRE	MICROWIRE	MICROWIRE	MICROWIRE
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V	1.8 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN BISMUTH/TIN SILVER	TIN LEAD	TIN BISMUTH/TIN SILVER	TIN LEAD	TIN LEAD	TIN BISMUTH/TIN SILVER
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	NOT SPECIFIED	10	NOT SPECIFIED	NOT SPECIFIED	10
width	4.4 mm	4.4 mm	4.4 mm	4.4 mm	4.4 mm	4.4 mm
Base Number Matches	1	1	1	1	1	1
Maker	-	-	ABLIC	ABLIC	ABLIC	ABLIC
