VHF low g-Sensitivity
Oven Controlled Crystal Oscillator
OX-046
OX-046
Features
•
•
•
•
•
•
Ultra Low G-Sensitivity
Low Phase Noise
Very High Frequency
Frequency Range: 50 MHZ to 250 MHZ
Standard Frequency: 100 MHz
Vibration Compensation
•
•
•
•
•
•
Applications
Military Avionics
Airborne Radar
Test Equipment
Frequency Synthesizers
Position Location
Satellite Communications
Performance Specifications
Parameter
Frequency Range
Min
50
Typ
Max
250
Units
MHz
Condition
Available Frequencies
G-Sensitivity Performance
standard crystal
g-Sensitivity w\ Low g-Crystal
g-Sensitivity w\ Low g-Crystal & Vibration
compensation
(No mechanical resonances out to 2KHz)
For oscillators with 0.2 ppb/g out to 2 KHz please contact factory.
1.5
0.5
0.05
ppb/g
ppb/g
ppb/g
Degrades to 0.5 ppb/g above 250 Hz
G sensitivity specified per axis
Frequency Stabilities
1
(Stabilities listed for 100 MHz. For Stabilities above 100 MHz values may degrade. Please contact factory.)
vs. Operating Temperature Range
(referenced to +25°C)
-200
-150
-100
-50
-500
-10
-10
-5
-200
-1.5
-200
+200
+150
+100
+50
+500
+10
+10
+5
+200
+1.5
+200
5
ppb
ppb
ppb
ppb
ppb
ppb
ppb
ppb
ppb
ppm
ppb
minutes
to ± 100ppb of final frequency
(2 hour reading) @ +25°C
-40… +85°C
-40… +70°C
-20… +70°C
0… +70°C
at time of shipment, nominal EFC
Vs ± 5%
Load ± 5%
after 30 days operation
after 30 days operarion
after 30 days operation
Initial Tolerance
vs. Supply Voltage Change
vs. Load Change
vs. Aging / Daily
vs. Aging / 1
st
Year
vs. Aging / 10 Year
Retrace
2
Warm-up Time
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Performance Specifications
Parameter
Supply voltage
Min
14.25
11.25
Typ
15.0
12.0
Max
15.75
12.75
10.0
3.0
7.0
1.0
Units
VDC
VDC
Watts
Watts
Watts
Watts
Condition
ordering code A
oredering code B
during warm-up all temperatures
steady state @ +25°C
steady state @ -40°C
steady state @ +70°C
Supply Voltage (Vs)
Oven Power Consumption
RF Output
Start Time
Signal
Load
Output Power
Harmonics
Subharmomics
Tuning Range
Linearity
Tuning Slope
Control Voltage Range
Input Impredance
Modulation Bandwidth
Tuning Range
0.0
20
150
±1.5
±3.0
+4.0
±1.5
+7.0
50
+10
+13
-30
-30
±3.0
20
Positive
+8.0
VDC
kOhm
Hz
1
2
Sinewave
Ohm
dBm
dBc
dBc
ppm
%
for oscillator with output frequency > 120 MHz
Electronic frequency control
s
time required to achieve 90% of amplitude
Frequency Tuning (EFC)
Mechanical Trim (Internal)
ppm
Internal Mechanical
Phase Noise
Phase Noise
3
(@ 100 MHZ)
(under static conditions - no vibration)
-100
-130
-150
-165
-175
-90
-120
-140
-155
-165
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
10 Hz
100 Hz
1 KHz
10 KHz
100 KHz
10 Hz
100 Hz
1 KHz
10 KHz
100 KHz
Phase Noise
3
(@ 200 MHZ)
(under static conditions - no vibration)
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Parameter
Weight
Supply voltage (Vs)
Output Load
Operable Temperature Range
Shock (Operating)
Shock (Endurance)
Sine Vibration (Operating)
Sine Vibration (Endurance)
Random Vibration (Operating)
Random Vibration (Endurance)
Seal
Humidity
Altitude
Resistance to Soldering Heat
RoHS
Terminal Strength
Moisture Sensitivity Level
Storage Temperature Range
Min
Typ
Max
150
28
Units
g
V
ohm
°C
Condition
Additional Parameters
1
Absolute Maximum Ratings
25
-55
open
+85
Environmental Specifications
MIL-STD-202, Method 213, Condition J, 30G, 11ms, half sine
Mil-STD-202, Method 213, Condition C, 100G, 6ms, half sine
Mil-STD-202, Method 204, Condition C, 10 G
Mil-STD-202, Method 204, Condition D, 20 G
Mil-STD-202, Method 214, Condition I-C, 9.26 Grms (without vibe comp)
Mil-STD-202, Method 214, Condition I-A, 5.35 Grms (with vibe comp)
Mil-STD-202, Method 214, Condition I-H, 29.28 Grms
Nonhermetic - Mil-STD-202, Method 112, Condition D available only as custom part
number - please contact factory
MIL-STD-202, Method 103, Condition B, 90% rh
MIL-STD-202, Method 105, sea level to 30,000 ft
MIL-STD-202, Method 210, Condition A,B,C
not RoHS compliant
MIL-STD-202, Method 211, Condition C (5 bends at 45
o
, 2 lbs)
1
-55
+125
°C

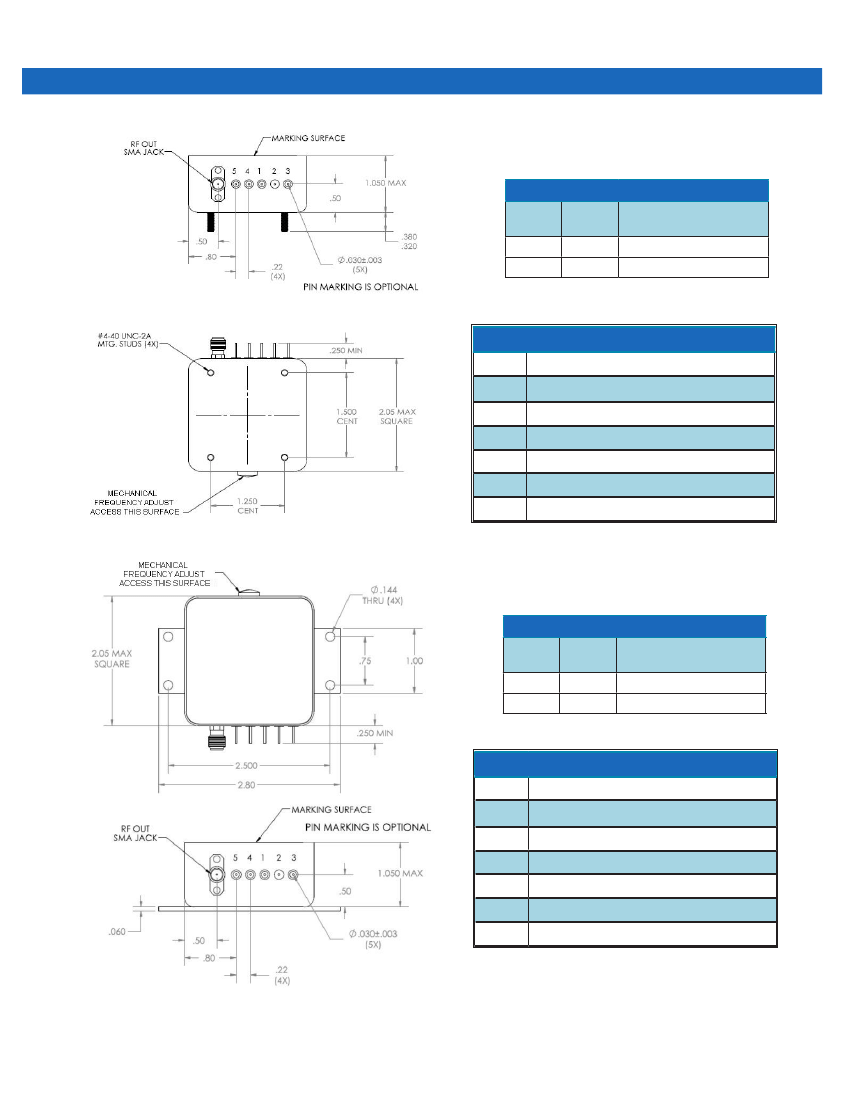

Outline Drawing / Enclosure
Dimensions in inches
Package configuration A
ordering
code
5
0
Height
“H”
0.80
1.05
Pin Connections
1
2
3
4
5
Electronic Frequency Control (EFC)
Ground (Case)
Supply Voltage
Vectron Internal Use Only / NC
Vectron Internal Use Only / NC
Package configuration C
ordering
code
7
2
Height
“H”
0.80
1.05
Pin Connections
1
2
3
4
5
Electronic Frequency Control (EFC)
Ground (Case)
Supply Voltage
Vectron Internal Use Only / NC
Vectron Internal Use Only / NC
Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
Ordering Information
4
OX - 046 0 - A E T-508
Product Family
OX: OCXO
Package
50 x 50 mm
Mounting Style
0: Type A, 1.05
2: Type C, 1.05
5; Type A, 0.80
7: Type C, 0.80
3 - 100M000000
Frequency
Platform Code
Low g, Compensation option
0:: Standard crystal
1: Low g Crystal
3: Low g Crystal, w\vibe comp
Supply Voltage
A: 15 Vdc
B: 12 Vdc
RF Output Code
E: Sinewave
Temperature Range / Stability Code
E-207: -40°C to +85°C, ± 200 ppb
D-157: -40°C to +70°C, ± 150 ppb
J-107: -20°C to +70°C, ±100 ppb
T-508: 0°C to +70°C, ±50 ppb
Additional Ordering Options
Additional ordering options available include custom temperature ranges, custom temperature stabilities, custom phase noise
requirements, low profile, custom supply voltage, hermetic option and improved g-sensitvity. These modifications require a
custom dash number - please contact the factory for additional information.
Design Tools
Vectron stocks the following items for small orders and prototype development:
OX-0467-AEE-2073-100M00000
Vectron stocks the following evaluation board for this product:
None
Application Notes:
None
Notes:
1. Unless otherwise stated, all values are valid after warm-up time and refer to typical conditions for supply voltage, frequency
control voltage, load, and temperature (25°C).
2. Retrace is defined as the frequency difference between the end of two 24 hour on power periods with a 24 hour off period in
between while at a constant temperature.
3. Phase noise degrades with increasing output frequency.
4. Not all options and codes avaialble at all frequencies.
For Additional Information, Please Contact
Vectron International
267 Lowell Road, Suite 102
Hudson, NH 03051
Tel: 1.888.328.7661
Fax: 1.888.329.8328
USA:
Vectron International
Landstrasse, D-74924
Neckarbischofsheim, Germany
Tel: +49 (0) 3328.4784.17
Fax: +49 (0) 3328.4784.30
Europe:
Vectron International
68 Yin Cheng Road(C), 22nd Floor
One LuJiaZui
Pudong, Shanghai 200120, China
Tel: +86 21 6194 6886
Fax: +86 21 6194 6699
Asia:
Disclaimer
Vectron International reserves the right to make changes to the product(s) and or information contained herein without notice. No liability is assumed as a result of their use or application.
No rights under any patent accompany the sale of any such product(s) or information.
Rev: 2/18/2014 jar
