FPC2BS6-22TBB-U datasheet, PDF

Datasheet> All Categories > The connector> The connector> FPC2BS6-22TBB-U

FPC2BS6-22TBB-U: DescriptionCard Edge Connector, 22 Contact(s), 1 Row(s), Straight, 0.049 inch Pitch, Solder Kinked Leads Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size216KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

FPC2BS6-22TBB-U Overview

Card Edge Connector, 22 Contact(s), 1 Row(s), Straight, 0.049 inch Pitch, Solder Kinked Leads Terminal, Locking, Black Insulator

FPC2BS6-22TBB-U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305192042
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.11 inch
subject depth	0.217 inch
body length	1.217 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Insulation resistance	50000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e3
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.4892 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	22

Preview

Download Datasheet

View All

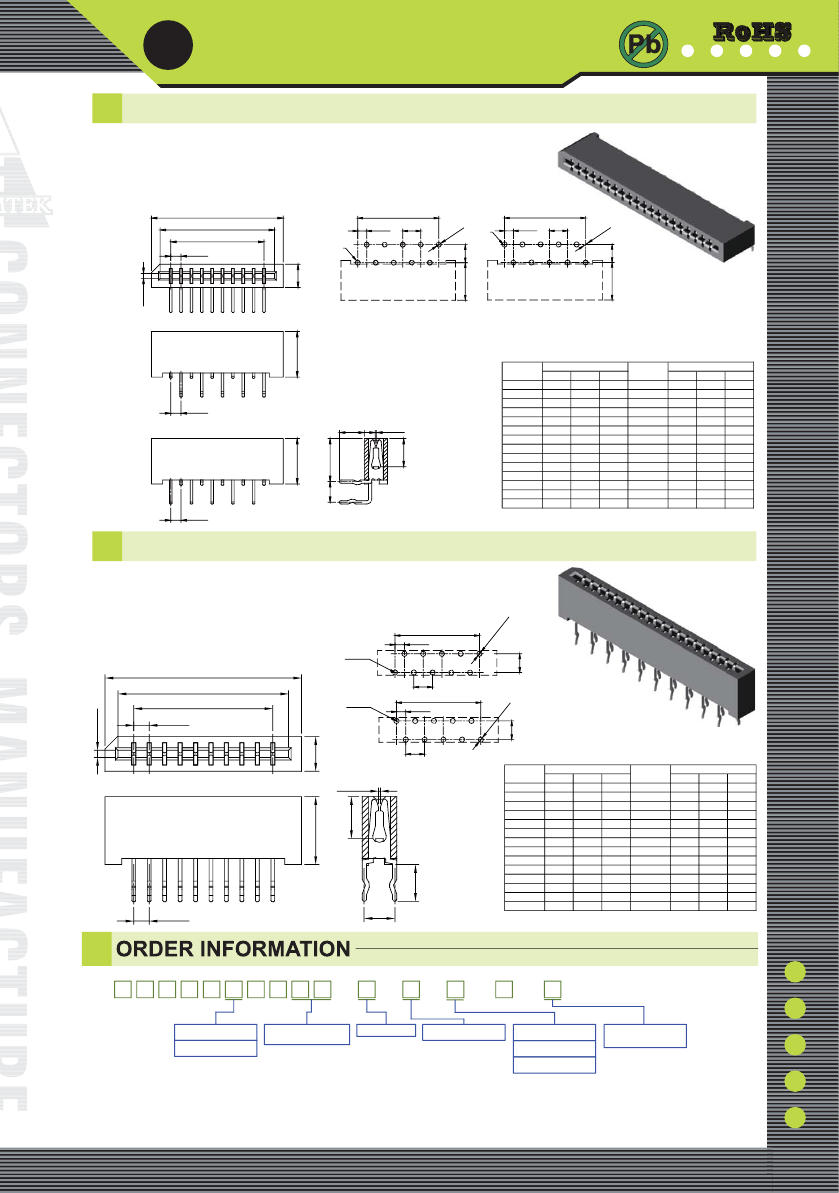

PC/FFC Conn.

Material

Insulator:Polyester,UL 94V-0

Standard:Nylon 6T

Terminal:Copper Alloy

Plated:Tin Plated

FPC/FFC 1.25mm Non ZIF Dip Type Side Entry

Specifications

Current Rate:0.5 AMP

Insulation Resistance:50MΩ Min.

Contact Resistance:30mΩ Max.

Dielectric Voltage:500V AC for one minute

Operation Temperature:-20°C to +85°C

No. of

Contacts

---

3.75

5.00

6.25

7.50

8.75

10.00

11.25

12.50

13.75

15.00

16.25

17.50

18.75

Dimensions

---

6.30

8.40

7.55

9.65

8.80

10.90

10.05

12.15

11.30

13.40

12.55

14.65

13.80

15.90

15.05

17.15

16.30

18.40

17.55

19.65

18.80

20.90

20.05

22.15

21.30

23.40

No. of

Contacts

20.00

21.25

22.50

23.75

25.00

26.25

27.50

28.75

30.00

31.25

32.50

33.75

35.00

36.25

Dimensions

22.55

24.65

23.80

25.90

25.05

27.15

26.30

28.40

27.55

29.65

28.80

30.90

30.05

32.15

31.30

33.40

32.55

34.65

33.80

35.90

35.05

37.15

36.30

38.40

37.55

39.65

38.80

40.90

Part No.:FPC2BR6-XX-U

FPC/FFC 1.25mm Non ZIF Dip Type Top Entry

Specifications

Current Rate:1.0 AMP

Insulation Resistance:50MΩ Min.

Contact Resistance:30mΩ Max.

Dielectric Voltage:500V AC for one minute

Operation Temperature:-20°C to +85°C

Material

Insulator:Polyester,UL 94V-0

Standard:Nylon 6T

Terminal:Copper Alloy

Plated:Tin Plated

A TYPE

B TYPE

No. of

Contacts

---

3.75

5.00

6.25

7.50

8.75

10.00

11.25

12.50

13.75

15.00

16.25

17.50

18.75

Dimensions

---

6.30

8.40

7.55

9.65

8.80

10.90

10.05

12.15

11.30

13.40

12.55

14.65

13.80

15.90

15.05

17.15

16.30

18.40

17.55

19.65

18.80

20.90

20.05

22.15

21.30

23.40

No. of

Contacts

20.00

21.25

22.50

23.75

25.00

26.25

27.50

28.75

30.00

31.25

32.50

33.75

35.00

36.25

Dimensions

22.55

24.65

23.80

25.90

25.05

27.15

26.30

28.40

27.55

29.65

28.80

30.90

30.05

32.15

31.30

33.40

32.55

34.65

33.80

35.90

35.05

37.15

36.30

38.40

37.55

39.65

38.80

40.90

Part No.:FPC2BS6-XX-U

F P C 2 B X 6

R:Right Angle

S:Straight

- X X

No. of Contacts

B:Black Insulator

P.C.B Layout

A:A Type

B:B Type

U:RoHS + Nylon 6T

T:Tin Plated

Standard Recommended

www.amtek-co.com.tw

4-24
