CRN16-4-3243FCT

Description
Array/Network Resistor, Isolated, Ruthenium Oxide, 0.063W, 324000ohm, 50V, 1% +/-Tol, -200,200ppm/Cel, 1206,
CategoryPassive components    The resistor
File Size2MB,3 Pages
ManufacturerVENKEL LTD
Environmental Compliance
Download Datasheet Parametric View All

CRN16-4-3243FCT Overview

Array/Network Resistor, Isolated, Ruthenium Oxide, 0.063W, 324000ohm, 50V, 1% +/-Tol, -200,200ppm/Cel, 1206,

CRN16-4-3243FCT Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Objectid941456512
Reach Compliance Codecompliant
ECCN codeEAR99
structureChip
JESD-609 codee3
Network TypeIsolated
Number of terminals8
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
Package height0.5 mm
Package length3.2 mm
Package formSMT
Package width1.6 mm
method of packingTR, Paper, 7 Inch
Rated power dissipation(P)0.063 W
resistance324000 Ω
Resistor typeARRAY/NETWORK RESISTOR
seriesCRN
size code1206
technologyRUTHENIUM OXIDE
Temperature Coefficient200 ppm/°C
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Tolerance1%
Operating Voltage50 V

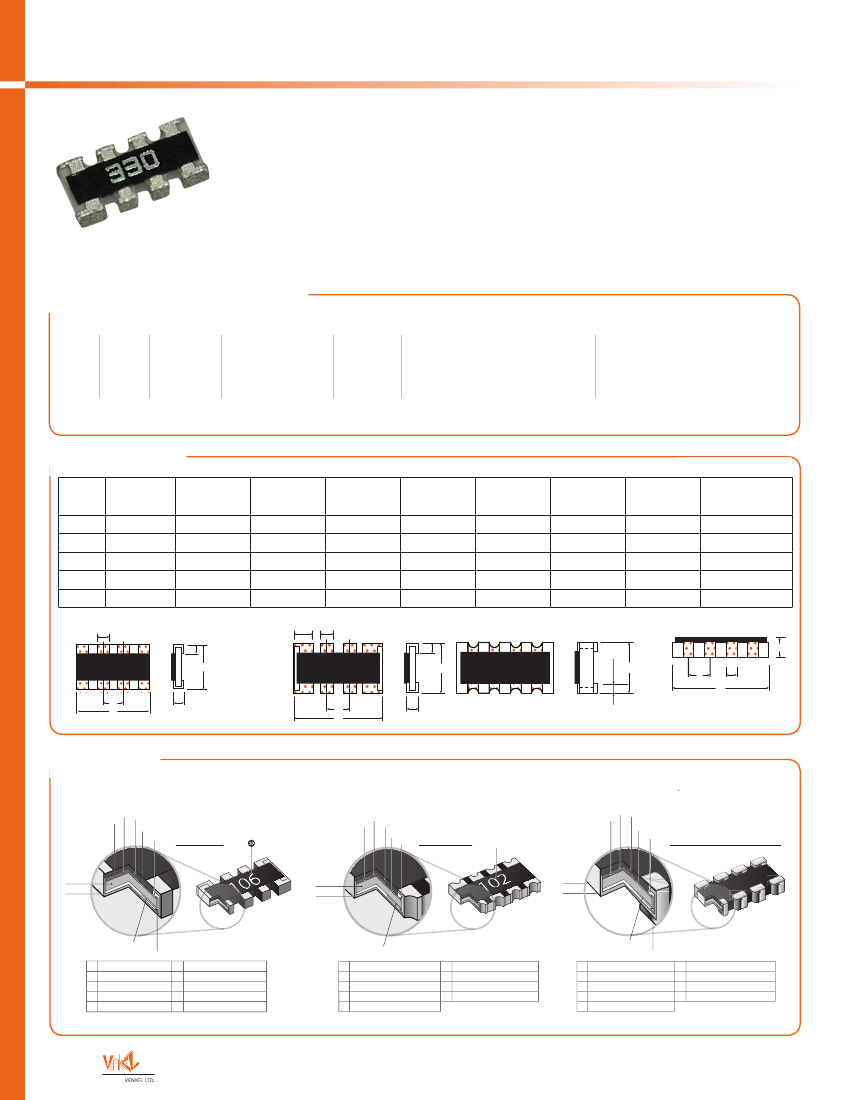

CRN16-4-3243FCT Preview

Arrays/ Networks
(CRN Series)
Features:
RoHS Compliant (5/6) and Halogen Free
RuO
2
resistive material for good reliability
Tolerance as low as 1%
Available in concave, convex and block type
Part Number Structure
CRN
Series
10
Size
06
10
16
- 4
Number of
Elements
(2 or 4)
-
102
Resistance Code
Resistance
Value Code
(can be 3-digit
or 4-digit marking.
J
Tolerance
F = ±1%
J = ±5%
M
Terminal Type
Convex = leave blank
Concave = C
Block type (CRN06 only) = leave blank
T
Packaging
T = Tape & Reel
Example P/N:
CRN10-4-102JT
Standard temination finish is 100% matte Tin (Sn) over Nickel.
Dimensions
Size
06
10
10
16
16
Unit: mm
Number of
Elements
4
2
4
2
4
L
1.4 ± 0.1
1.0 ± 0.05
2.0 ± 0.05
1.6 ± 0.1
3.2 ± 0.1
W
0.6 ± 0.1
1.0 ± 0.05
1.0 ± 0.05
1.6 ± 0.1
1.6 ± 0.1
Q2
Q1
T
0.35 ± 0.1
0.35 ± 0.05
0.35 ± 0.05
0.5 ± 0.1
0.5 ± 0.1
P (Ref.)
0.4 ± 0.1
0.5 ± 0.15
0.5 ± 0.15
0.8 ± 0.2
0.8 ± 0.2
Q1
0.2 ± 0.1
0.3 ± 0.1
0.3 ± 0.1
0.5 ± 0.15
0.5 ± 0.15
Q2
(-)
0.4 ± 0.1
0.4 ± 0.1
0.6 ± 0.15
0.6 ± 0.15
C
0.15 ± 0.05
0.25 ± 0.05
0.25 ± 0.05
0.25 ± 0.15
0.25 ± 0.15
Terminal Type
Block
Convex
Convex/Concave
Convex/Concave
Convex/Concave
n = number of resistive elements.
Q1
C
W
Convex Terminal
C
W
Concave Terminal
Side View (Concave)
T
C
W
P
L
Note:
Drawings shown
to the right are for
CRN10 and CRN16
only.
100
P
L
T
101
Q1
P
L
T
CRN06 (Block Type)
Structure
7
8 9
3
5
Convex
7
6 7 8
8
6
7
7
8 9
8 9
3
3
5
5
3
3 4
4
ConCave
9
9
CRn06 BLoCK TYPe
1
6
1
1
5
5
1
1
6
6
2
4
1
Alumina Substrate
2
Bottom Electrode (Ag)
3
Top Electrode (Ag-Pd)
4
Edge Electrode (Ag)
5
Barrier Layer (Ni)
6
External Electrode (Sn)
7
Resistor Layer (RuO
2
/Ag)
8
Primary Overcoat (Glass)
9
Secondary Overcoat (Epoxy)
10
Marking
1
1
2
2
3
3
4
4
5
5
2
2
Alumina Substrate
Alumina Substrate
Bottom Electrode (Ag)
Bottom Electrode (Ag)
Top Electrode (Ag-Pd)
Top Electrode (Ag-Pd)
Barrier Layer (Ni)
Barrier Layer (Ni)
External Electrode (Sn)
External Electrode (Sn)
2
2
6
6
7
7
8
8
9
9
4
4
Resistor Layer (RuO
2
/Ag)
Resistor Layer (RuO
2
/Ag)
Primary Overcoat (Glass)
Primary Overcoat (Glass)
Secondary Overcoat (Epoxy)
Secondary Overcoat (Epoxy)
Marking
Marking
1
Alumina Substrate
1
Alumina Substrate
2
Bottom Electrode (Ag)
2
Bottom Electrode (Ag)
3
Top Electrode (Ag-Pd)
3
Top Electrode (Ag-Pd)
4
Edge Electrode (Ag)
4
Edge Electrode (Ag)
5
Barrier Layer (Ni)
5
Barrier Layer (Ni)
6
External Electrode (Sn)
6
External Electrode (Sn)
7
Resistor Layer (RuO
2
/Ag)
7
Resistor Layer (RuO
2
/Ag)
8
Primary Overcoat (Glass)
8
Primary Overcoat (Glass)
9
Secondary Overcoat (Epoxy)
9
Secondary Overcoat (Epoxy)
86
Email:
sales@venkel.com
|
Phone:
512.794.0081
|
Toll Free:
800.950.8365
|
Web:
www.venkel.com
Arrays/ Networks
(CRN Series)
Element Count
Isolated Arrays: CRN 06, 10 &16
Isolated Arrays: CRN 06, 10 &16
2 Element
4 Element
6
R
1
R
2
R
3
R
4 1
R
R
2
R
3
R
4
R
1 =
R
2 =
R
3 =
R
4
5
R
1 =
R
2 =
R
3 =
R
4
CRN35 – 8
Electrical Specifications and Range
Size
Power Rating at 70°C (W)
Max. Working Voltage
TCR
Individual Resistor Size
Operating Temperature Range
Tolerance
±1% (F)
±5% (J)
NOTE:
Overload Voltage=2.5*√(P*R).
6
0.03W (1/33W)
12.5V
±200PPM/°C
0201
-55˚C to +125˚C
10
0.063W (1/16W)
25V
±200PPM/°C
0402
-55˚C to +155˚C
16
0.063W (1/16W)
50V
±200PPM/°C
0603
-55˚C to +155˚C
Number of Resistors
2
4
2
4
Resistance Range
-
-
50Ω - 33KΩ
1, 10Ω - 1MΩ
Resistance Range
0, 10Ω - 1MΩ
0, 10Ω - 1MΩ
0, 1Ω - 10MΩ
0, 1Ω - 10MΩ
Resistance Range
0, 1Ω - 10MΩ
0, 10Ω - 1MΩ
0, 1Ω - 10MΩ
0, 1Ω - 10MΩ
Derating
DERATING CURVE
(CRN Only)
Curve
120
Rated power (%)
100
80
60
40
20
0
-50
-55
-25
CRN06
75 100
70
Ambient temperature (˚C)
0
25
50
125 150 175
CRN10 & CRN16 Size
Email:
sales@venkel.com
|
Phone:
512.794.0081
|
Toll Free:
800.950.8365
|
Web:
www.venkel.com
87
Arrays/ Networks
(CRN Series)
Reel Specifications
F
Label
H
Unit: mm (inch)
C
E
6.0 ± .5
(0.24 ± 0.02)
F
11.4 ± 1.0
(0.45 ± 0.04)
G
9.0 ± .3
(0.35 ± 0.012)
H
1.5 ± .3
(0.06 ± 0.012)
M
180 ± 2.0
(7.09 ± 0.08)
M C
E
13.0 ± 0.2
(0.51 ± 0.008)
Minimum of 30 empty pockets at the beginning of reel, 65 minimum empty pockets at the end.
G
Tape Specifications
A
A
B
B
G
G
T
T
F
W
F
W
T
J
H
J
H E
E
T
Embossed Embossed
Paper
Paper
All dimensions in mm.
Tape
Size
06
10-2
Paper
10-4
16-2
16-4
A
1.57 ±0.05
1.57 ±0.05
2.20 ±0.10
3.50 ±0.10
3.50 ±0.10
B
0.77 ±0.05
0.77 ±0.05
1.20 ±0.10
1.95 ±0.1
1.95 ±0.1
W
8.0 ±0.10
8.0 ±0.10
8.0 ±0.10
8.0 ±0.10
8.0 ±0.10
E
1.75 ±0.05
1.75 ±0.05
1.75 ±0.05
1.75 ±0.05
1.75 ±0.05
F
3.50 ±0.05
3.50 ±0.05
3.50 ±0.05
3.50 ±0.05
3.50 ±0.05
T
0.50 ±0.10
0.50 ±0.10
0.70 ±0.10
0.85 ±0.10
0.85 ±0.10
G
2.00 ±0.05
2.00 ±0.05
2.00 ±0.05
4.00 ±0.10
4.00 ±0.10
H
4.00 ±0.10
4.00 ±0.10
4.00 ±0.10
4.00 ±0.10
4.00 ±0.10
J
2.00 ±0.05
2.00 ±0.05
2.00 ±0.05
2.00 ±0.05
2.00 ±0.05
1.50
+0.1, -0
1.50
+0.1, -0
1.50 ±0.05
1.50 ±0.05
1.50 ±0.05
Peel Back Force and Direction Diagram
Direction of pull
Top cover tape
Carrier tape
165 ~ 180˚
Direction of unreeling
Bottom cover tape
Peel back force and direction of peel back angle should follow
EIA481-1-A. Peel back force should be between 0.1N – 1.3N
and peel back angle of 165˚ – 180˚.
88
Email:
sales@venkel.com
|
Phone:
512.794.0081
|
Toll Free:
800.950.8365
|
Web:
www.venkel.com
