301LS2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 301LS2

301LS2: DescriptionSnap Acting/Limit Switch, SPDT, Momentary, 0.8A, 115VDC, Screw Terminal, Shaft Type Actuator, Panel Mount,; CategoryMechanical and electronic products switch; File Size985KB，9 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/; Environmental Compliance

Download Datasheet Parametric View All

301LS2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	301LS2	-	-	View	Buy Now

301LS2 Overview

Snap Acting/Limit Switch, SPDT, Momentary, 0.8A, 115VDC, Screw Terminal, Shaft Type Actuator, Panel Mount,

301LS2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N

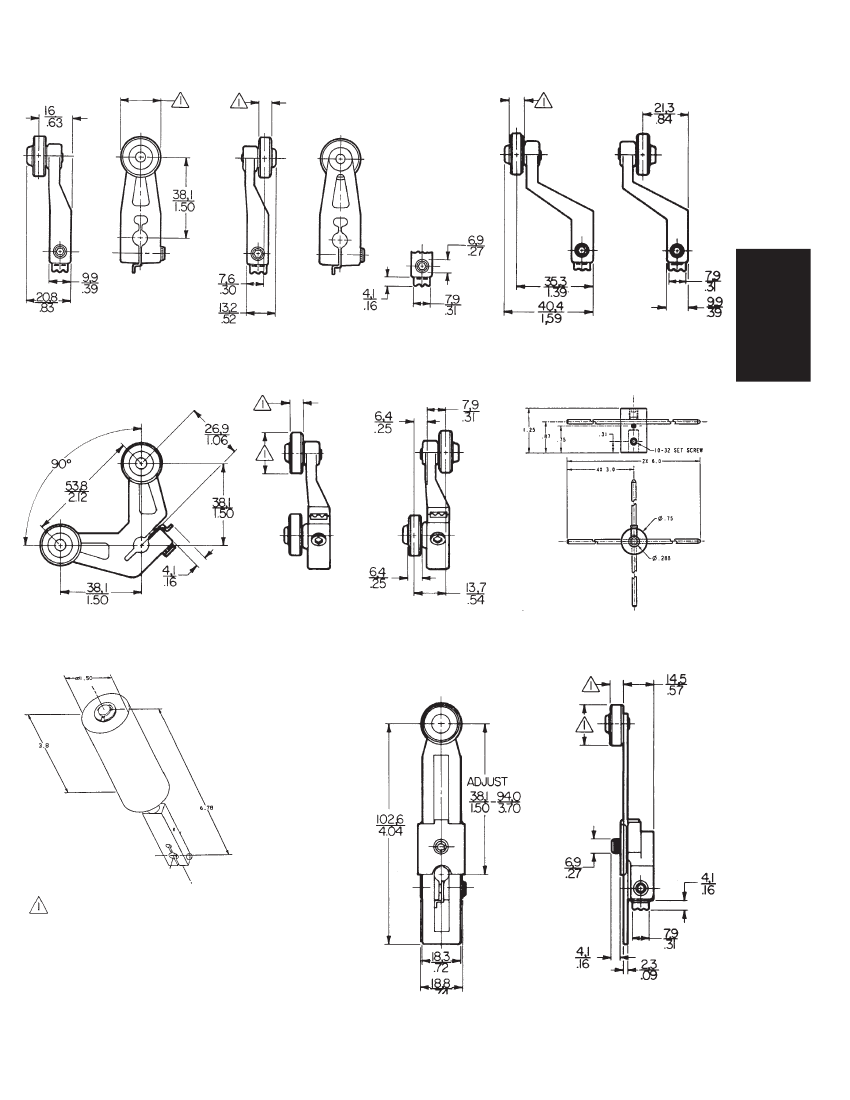

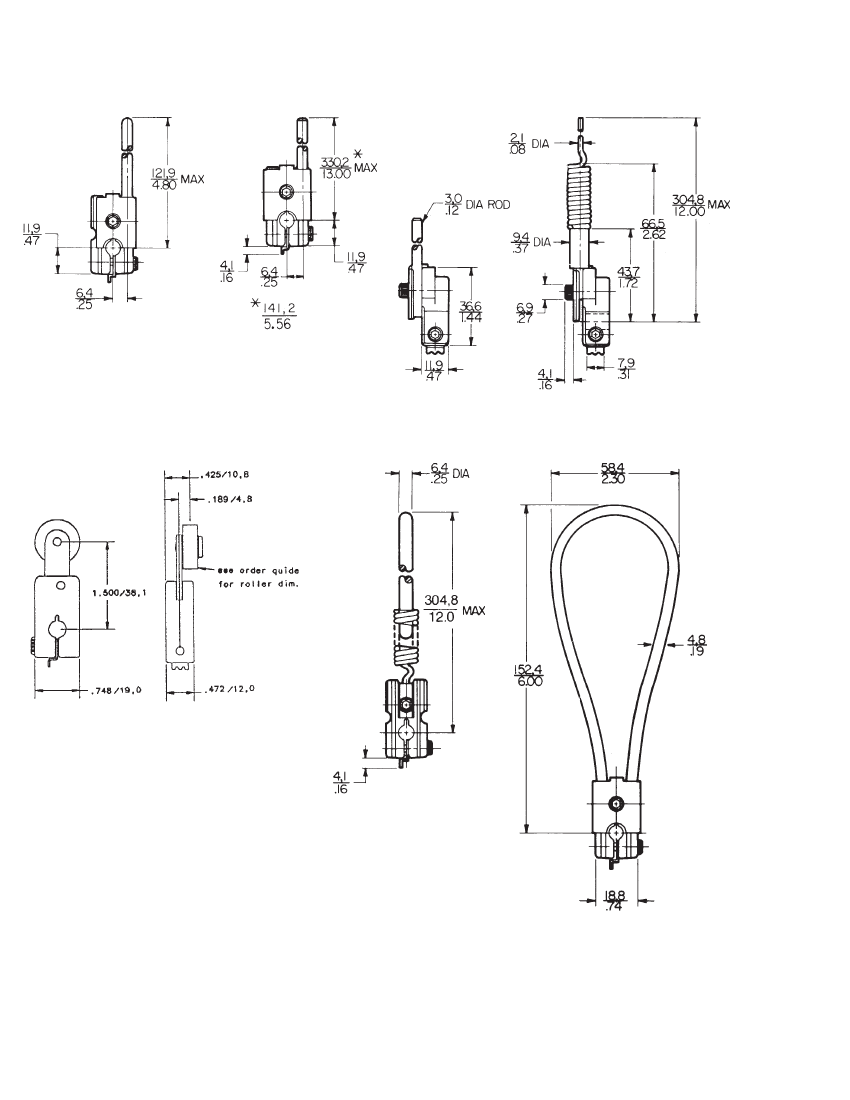

Actuator type	SHAFT TYPE
Other features	P.T. = 15 DEG, T.T. = 45 DEG, 2 SWITCHES ARE AVAILABLE

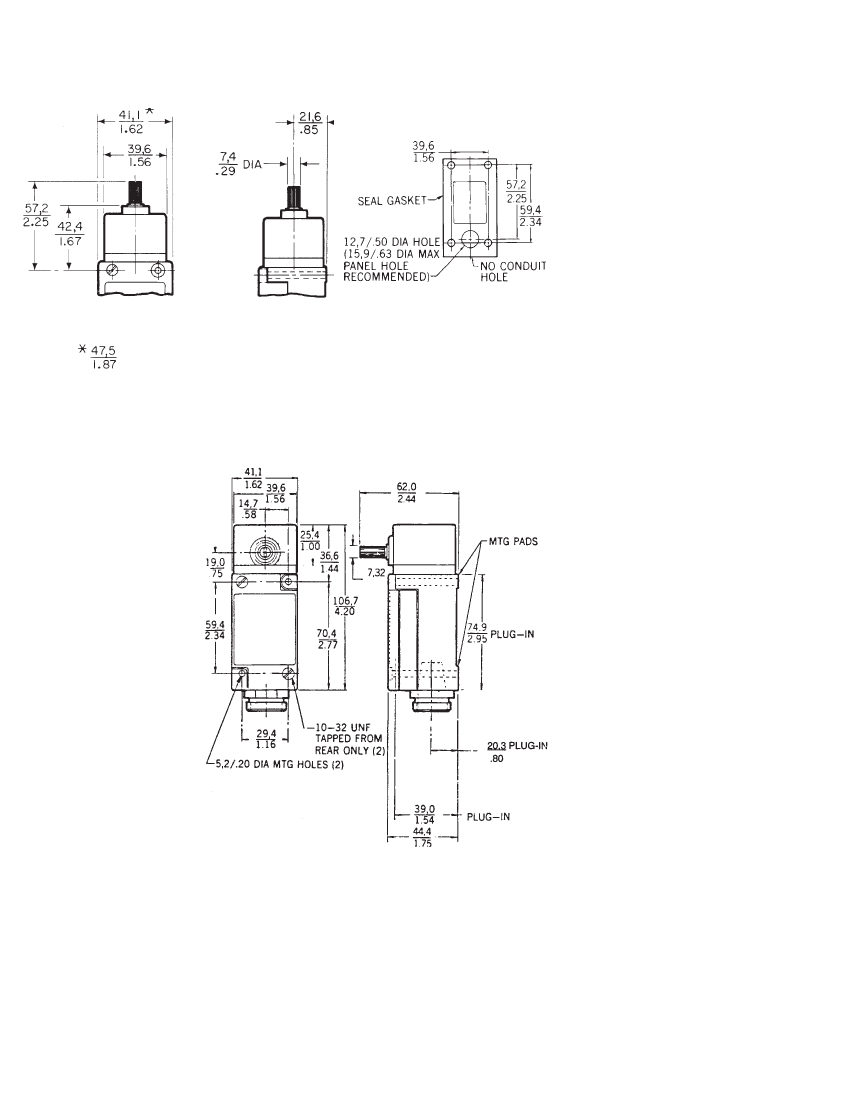

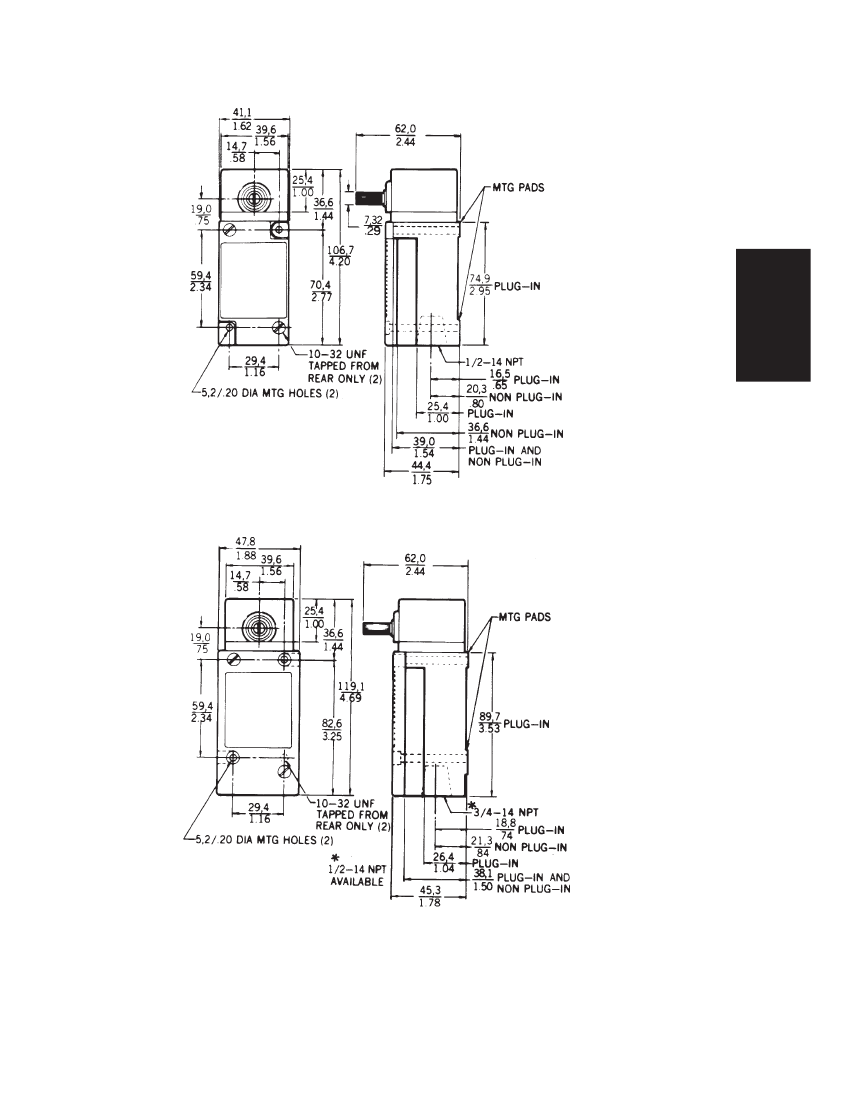

body width	79.5 mm
body height	30.73 mm
Body length or diameter	103.12 mm
Contact (AC) maximum rated R load	10A@480VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	0.8 A
Contact (DC) maximum rated R load	.8A@115VDC
Maximum contact voltage (AC)	480 V
Maximum contact voltage (DC)	115 V
Manufacturer's serial number	301LS2
Installation features	PANEL MOUNT
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

Interactive Catalog Supplements Catalog PDFs

If you need detailed product information, or help choosing the right

product for your application, see our

Interactive Catalog.

Use the

Interactive Catalog

to access the most complete and up-to-date

information available.

The

Interactive Catalog

provides an extensive collection of product

specifications, application data, and technical literature that can be

searched based on criteria you select.

This PDF catalog information was published in November 2000.

Sensing and Control

Interactive

Catalog...

Click this icon to try

the Interactive Catalog.

Sensing and Control

Honeywell Inc.

11 West Spring Street

Freeport, IL 61032

www.honeywell.com/sensing
