0446-0400-02 datasheet, PDF - EEWORLD Datasheet

0446-0400-02: DescriptionPassive Delay Line, 1-Func, 10-Tap, True Output, PDIP14; Categorylogic logic; File Size52KB，1 Pages; ManufacturerBel Fuse

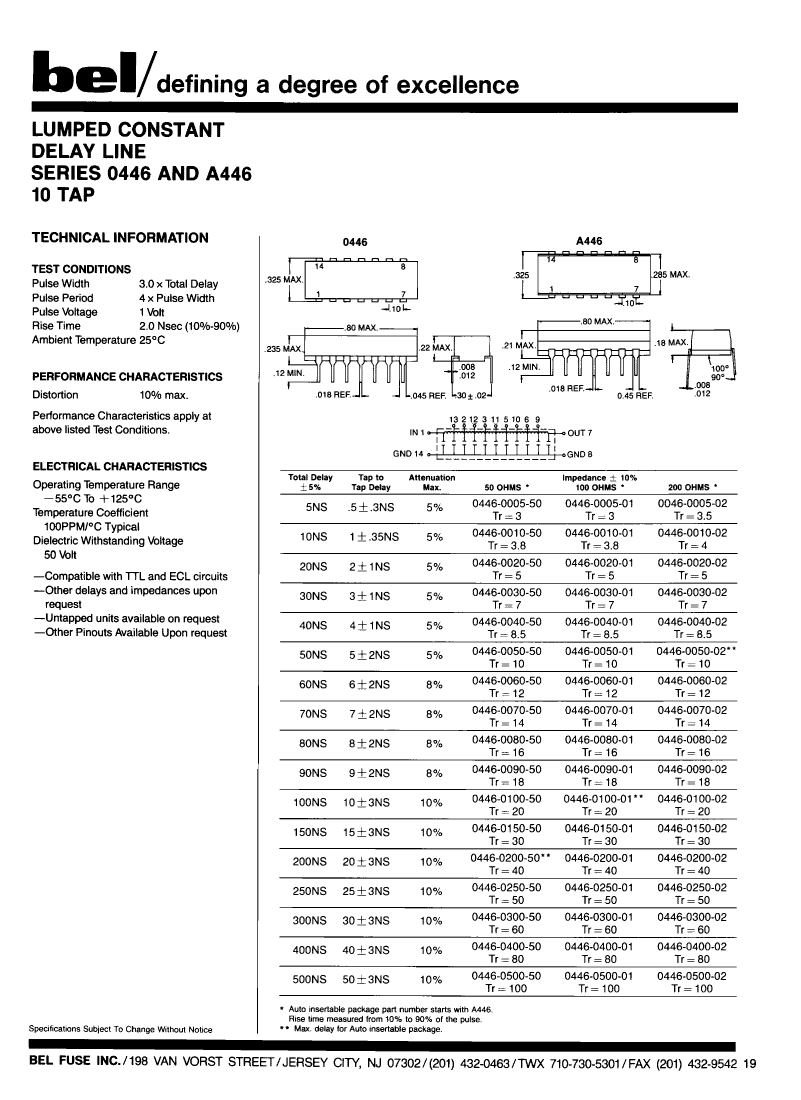

Download Datasheet Parametric View All

0446-0400-02 Overview

Passive Delay Line, 1-Func, 10-Tap, True Output, PDIP14

Parameter Name	Attribute value
Maker	Bel Fuse
package instruction	DIP,
Reach Compliance Code	compliant
Is Samacsys	N
Other features	DIELECTRIC STRENGTH 50VDC; IMPEDANCE TOL. 10%; INPUT RISE TIME 2NS; MAX DISTORTION 10%
JESD-30 code	R-PDIP-T14
Logic integrated circuit type	PASSIVE DELAY LINE
Number of functions	1
Number of taps/steps	10
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance nominal value (Z0)	200 Ω
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	5.969 mm
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	400 ns
width	7.62 mm
Base Number Matches	1
