Ordering number : EN3906A
1SV246
SANYO Semiconductors
DATA SHEET
1SV246
Features
•
Silicon Epitaxial Type
PIN Diode for VHF, UHF, AGC Applications
•
•
Series connection of 2 elements in a very small-sized package facilitates high-density mounting and permits
1SV246-applied equipment to be made smaller
Small interterminal capacitance (C=0.23pF typ)
Small forward series resistance (rs=5
Ω
typ)
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Reverse Voltage
Forward Current
Allowable Power Dissipation
Junction Temperature
Storage Temperature
Symbol
VR
IF
P
Tj
Tstg
Conditions
Ratings
50
50
100
125
-
-55 to +125
Unit
V
mA
mW
°C
°C
Package Dimensions
unit : mm (typ)
7023A-007
1SV246-TL-E
0.2
Product & Package Information
• Package
: MCP
• JEITA, JEDEC
: SC-70, SOT-323
• Minimum Packing Quantity : 3,000 pcs./reel
0.425
2.0
3
0.15

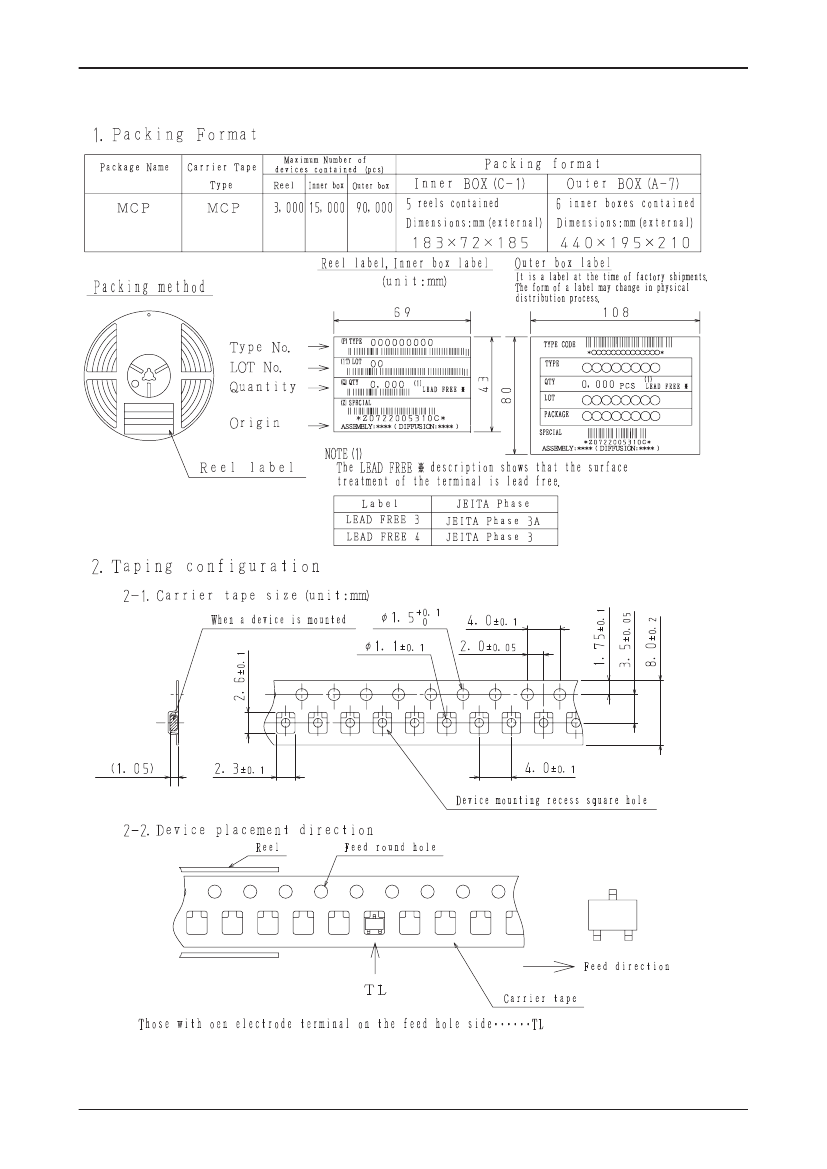

Packing Type: TL
Marking
LOT No.
1.25
2.1
0 to 0.08
CV
0.425
1
0.65
2
0.3
TL
LOT No.
Electrical Connection
1 : Anode
2 : Cathode
3 : Cathode / Anode
SANYO : MCP
1
2
3
0.9
0.3
http://semicon.sanyo.com/en/network
72512 TKIM/41098HA (KT)/42294YH (KOTO) 8-7296 No.3906-1/6
1SV246
Electrical Characteristics
at Ta=25°C
Parameter
Reverse Voltage
Reverse Current
Forward Voltage
Interterminal Capacitance
Series Resistance
Symbol
VR
IR
VF
C
rs
IR=10μA
VR=50V
IF=50mA
VR=50V, f=1MHz
IF=10mA, f=100MHz
Conditions
Ratings
min
50
0.1
0.95
0.23
5.0
typ
max
Unit
V
μA
V
pF
Ω
Note : The specifications shown above are for each individual diode.
Ordering Information
Device
1SV246-TL-E
Package
MCP
Shipping
3,000pcs./reel
memo
Pb Free
No.3906-2/6

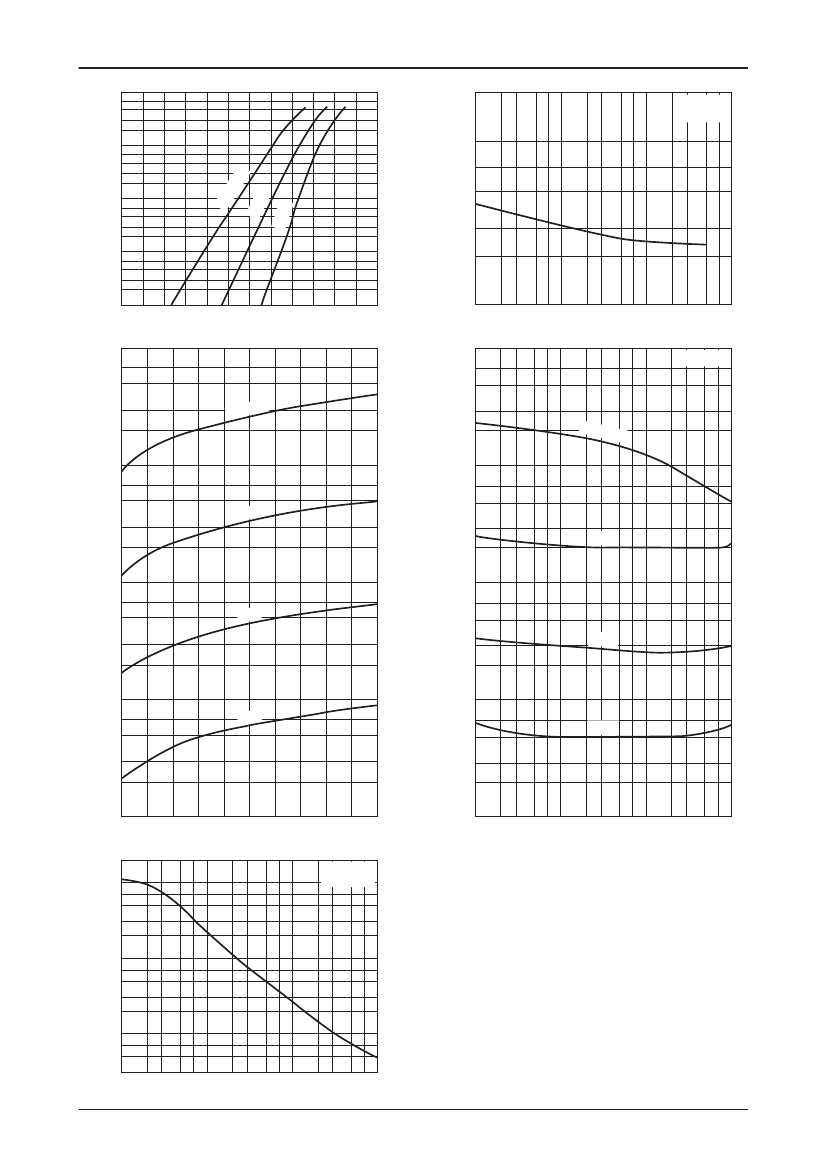

1SV246
100
7
5
3
2
IF -- VF
Interterminal Capacitance, C -- pF
2
C -- VR
Ta=25°C
f=1MHz
Forward Current, IF -- mA
12
5
°
C
10
7
5
3
2
1.0
7
5
3
2
0.1
7
5
3
2
0.01
0
0.2
0.4
1.0
7
5
Ta
=
25
°
C
--55
°
C
3
2
0.6
0.8
1.0
1.2
ID00037
0.1
0.1
2
3
5 7 1.0
2
3
5 7 10
2
3
Forward Voltage, VF -- V
100
7
5
3
2
IR -- VR
Reverse Voltage, VR -- V
10k
7
5
5 7 100
ID00038
rs -- f
Ta=25°C
0
°
C
Ta=10
3
2
IF =10
μ
A
10
7
5
1k
7
75
°
C
5
3
2
Reverse Current, IR -- nA
3
2
Series Resistance, rs --
Ω
100
μA
1.0
7
5
3
2
100
7
5
3
2
50
°
C
1mA
0.1
7
5
3
2
10
25
°
C
7
5
3
2
10mA
0.01
0
10
20
30
40
50
ID00039
1.0
1.0
2
3
5
7 10
2
3
5
7 100
2
3
Reverse Voltage, VR -- V
2
1k
7
5
3
2
100
7
5
3
2
10
7
5
3
0.01
2
3
5 7 0.1
2
3
5 7 1.0
2
3
Frequency, f -- MHz
5 7 1G
ID00040
rs -- IF
Ta=25
°
C
f=100MHz
Series Resistance, rs --
Ω
Forward Current, IF -- mA
5 7 10
ID00041
No.3906-3/6
