5VT3.15-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 5VT3.15-R

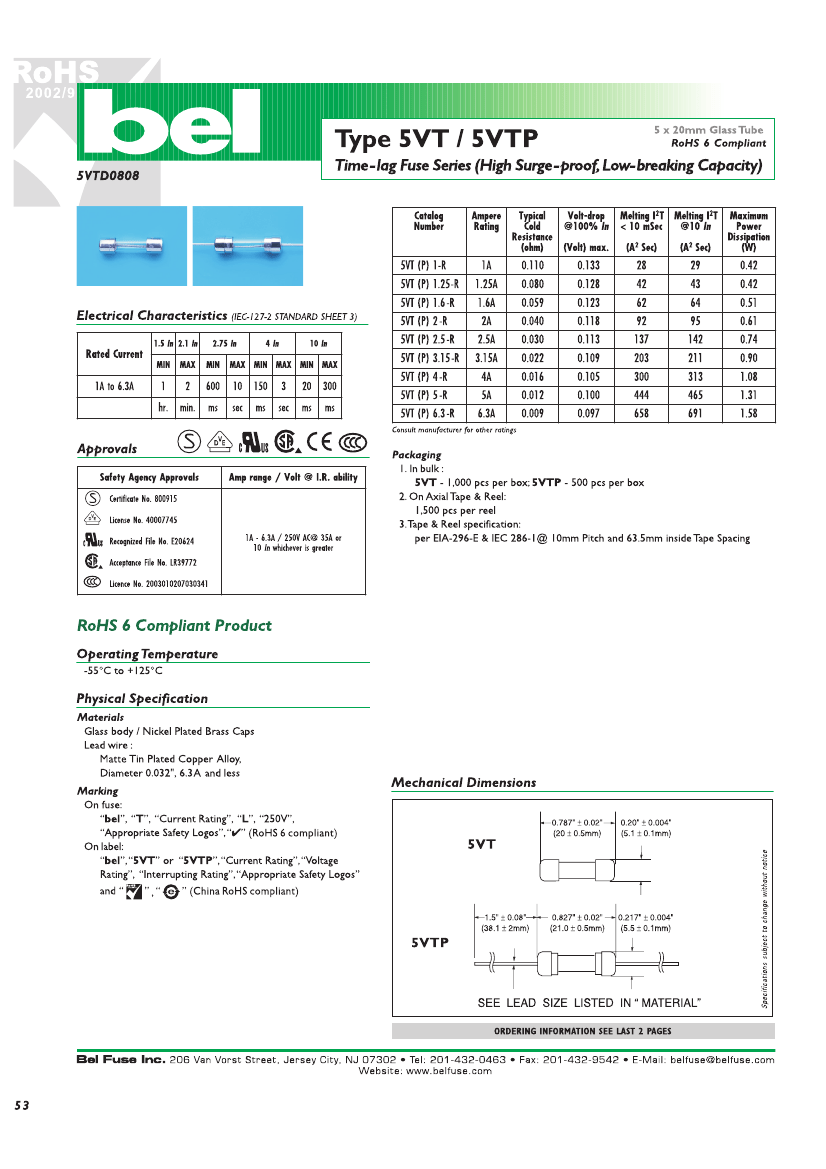

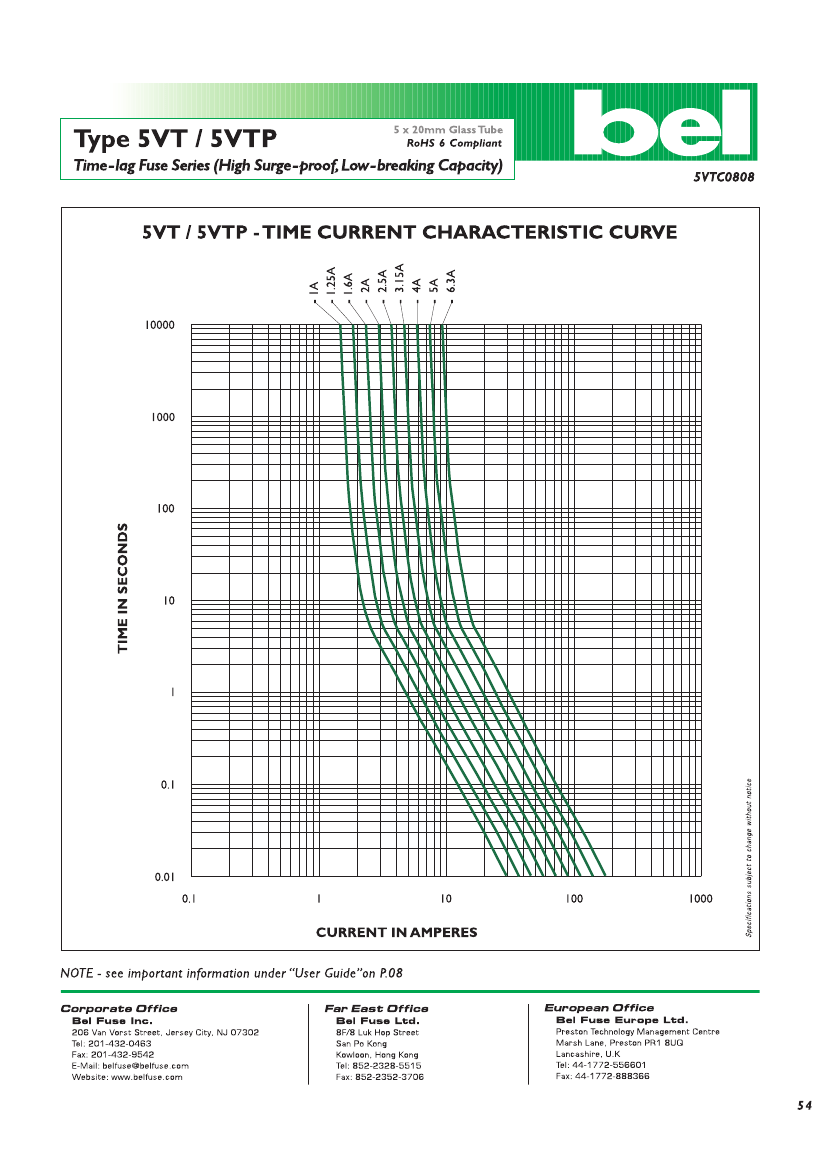

5VT3.15-R: DescriptionElectric Fuse, Time Lag Blow, 3.15A, 250VAC, 35A (IR), Inline/holder, 5x20mm, ROHS COMPLIANT; CategoryCircuit protection Circuit protection; File Size330KB，2 Pages; ManufacturerBel Fuse; Environmental Compliance

Download Datasheet Parametric Compare View All

5VT3.15-R Overview

Electric Fuse, Time Lag Blow, 3.15A, 250VAC, 35A (IR), Inline/holder, 5x20mm, ROHS COMPLIANT

5VT3.15-R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Fusing characteristics	TIME LAG
body height	20 mm
Body length or diameter	5.1 mm
Circuit protection type	ELECTRIC FUSE
Fuse size	5x20mm
JESD-609 code	e3
Joule integral nominal	203 J
Installation features	INLINE/HOLDER
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BULK
physical size	5.1mm x 20mm
Rated breaking capacity	35 A
Rated current	3.15 A
Rated voltage	250 V
Rated voltage (AC)	250 V
Guideline	CCC; CE; CSA; SEMKO; UL; VDE
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	END CAP
Base Number Matches	1

Preview

Download Datasheet

View All

5VT3.15-R Related Products

	5VT3.15-R	5VT1.6-R	5VT4-R	5VT2-R	5VT5-R	5VT1-R	5VT1.25-R	5VT6.3-R	5VT2.5-R	5VT2
Description	Electric Fuse, Time Lag Blow, 3.15A, 250VAC, 35A (IR), Inline/holder, 5x20mm, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 1.6A, 250VAC, 35A (IR), Inline/holder, 5x20mm, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 4A, 250VAC, 35A (IR), Inline/holder, 5x20mm, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 2A, 250VAC, 35A (IR), Inline/holder, 5x20mm, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 5A, 250VAC, 35A (IR), Inline/holder, 5x20mm, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 1A, 250VAC, 35A (IR), Inline/holder, 5x20mm, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 1.25A, 250VAC, 35A (IR), Inline/holder, 5x20mm, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 6.3A, 250VAC, 35A (IR), Inline/holder, 5x20mm, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 2.5A, 250VAC, 35A (IR), Inline/holder, 5x20mm, ROHS COMPLIANT	Electric Fuse, Time Lag Blow, 2A, 250VAC, 35A (IR), Inline/holder,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Fusing characteristics	TIME LAG	TIME LAG	TIME LAG	TIME LAG	TIME LAG	TIME LAG	TIME LAG	TIME LAG	TIME LAG	TIME LAG
body height	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
Body length or diameter	5.1 mm	5.1 mm	5.1 mm	5.1 mm	5.1 mm	5.1 mm	5.1 mm	5.1 mm	5.1 mm	5.1 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE	ELECTRIC FUSE
Joule integral nominal	203 J	62 J	300 J	92 J	444 J	28 J	42 J	658 J	142 J	95 J
Installation features	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER	INLINE/HOLDER
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
physical size	5.1mm x 20mm	5.1mm x 20mm	5.1mm x 20mm	5.1mm x 20mm	5.1mm x 20mm	5.1mm x 20mm	5.1mm x 20mm	5.1mm x 20mm	5.1mm x 20mm	5.1mm x 20mm
Rated breaking capacity	35 A	35 A	35 A	35 A	35 A	35 A	35 A	35 A	35 A	35 A
Rated current	3.15 A	1.6 A	4 A	2 A	5 A	1 A	1.25 A	6.3 A	2.5 A	2 A
Rated voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V
Guideline	CCC; CE; CSA; SEMKO; UL; VDE	CCC; CE; CSA; SEMKO; UL; VDE	CCC; CE; CSA; SEMKO; UL; VDE	CCC; CE; CSA; SEMKO; UL; VDE	CCC; CE; CSA; SEMKO; UL; VDE	CCC; CE; CSA; SEMKO; UL; VDE	CCC; CE; CSA; SEMKO; UL; VDE	CCC; CE; CSA; SEMKO; UL; VDE	CCC; CE; CSA; IEC; SEMKO; UL; VDE	CCC; CE; CSA; IEC; SEMKO; UL; VDE
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	NICKEL
Terminal shape	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP	END CAP
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	-
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-
Fuse size	5x20mm	5x20mm	5x20mm	5x20mm	5x20mm	5x20mm	5x20mm	5x20mm	5x20mm	-
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3	-
Rated voltage	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	250 V	-
Base Number Matches	1	1	1	1	1	1	1	1	1	-
