RMCS0402DG4K48 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RMCS0402DG4K48

RMCS0402DG4K48: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.063W, 4480ohm, 50V, 0.5% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size106KB，3 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

RMCS0402DG4K48 Overview

Fixed Resistor, Metal Glaze/thick Film, 0.063W, 4480ohm, 50V, 0.5% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, ROHS COMPLIANT

RMCS0402DG4K48 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEI(Stackpole Electronics Inc.)
package instruction	SMT, 0402
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	ANTI-SULFUR
structure	Chip
JESD-609 code	e3
Manufacturer's serial number	RMCS
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.35 mm
Package length	1 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	0.5 mm
method of packing	TR, PAPER, 10 INCH
Rated power dissipation(P)	0.063 W
Rated temperature	70 °C
resistance	4480 Ω
Resistor type	FIXED RESISTOR
series	RMCS
size code	0402
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Matte Tin (Sn) - reflowed over Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	0.5%
Operating Voltage	50 V
Base Number Matches	1

Preview

Download Datasheet

View All

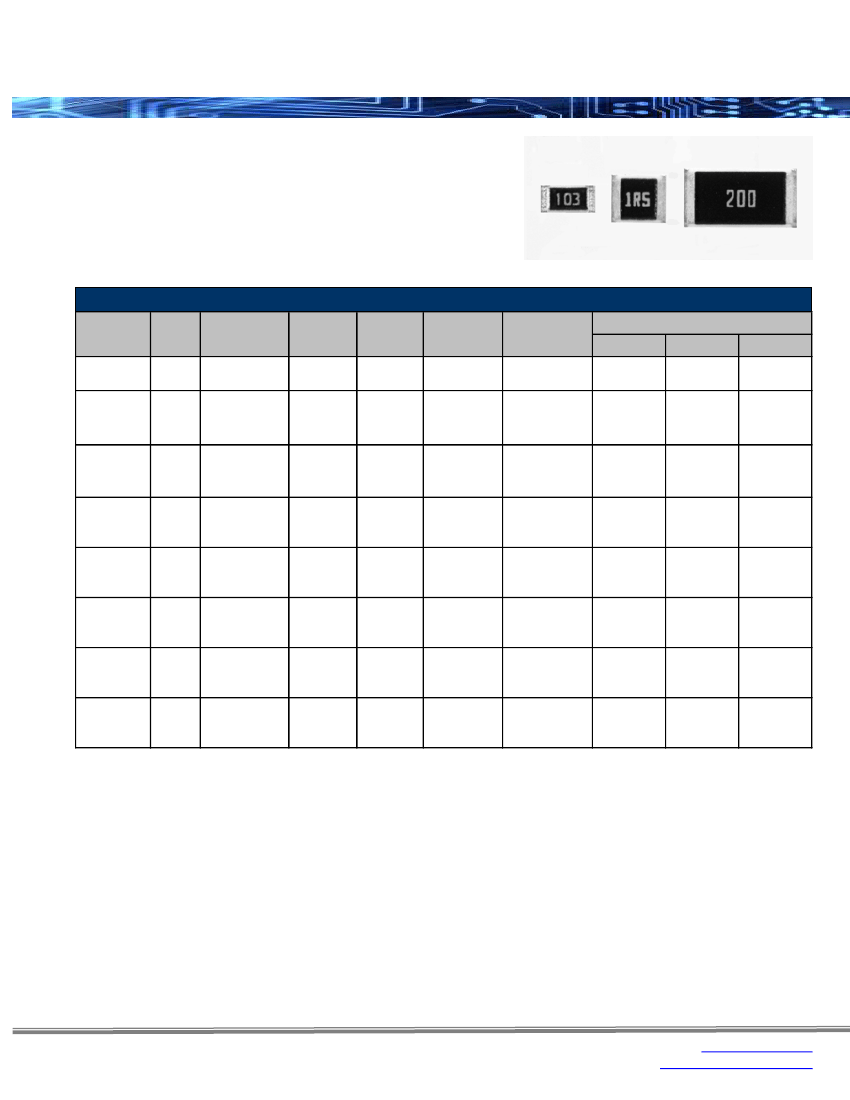

RMCS Series

Sulfur Resistant Thick Film Chip Resistor

Features:

•

Barrier terminations engineered to deter sulfur

contamination

Non-standard resistance values available

Operating temp range from -55ºC to +155ºC

Zero ohm available (max resistance 0.05Ω)

RoHS compliant / lead-free

Stackpole Electronics, Inc.

Resistive Product Solutions

Electrical Specifications

Type / Code

RMCS0201

Old Pkg

Power Rating

Code

(Watts) @ 70ºC

1/20

0.05W

Maximum

Operating

Voltage(1)

25V

Maximum

Overload

Voltage(2)

50V

Maximum

Current

Jumper (Amp)

1 amp

Resistance

Temperature

Coefficient

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

± 100 ppm/ºC

± 200 ppm/ºC

Ohmic Range (Ω) and Tolerance

0.5%

1 - 9.76

10 - 1M

1.02M - 10M

1 - 9.76

10 - 1M

1.02M - 10M

1 - 9.76

10 - 1M

1.02M - 10M

1 - 9.76

10 - 1M

1.02M - 10M

1 - 9.76

10 - 1M

1.02M - 10M

1 - 9.76

10 - 1M

1.02M - 10M

1 - 9.76

10 - 1M

1.02M - 10M

1 - 10M

1 - 9.76

10 - 1M

1.02M - 10M

1 - 9.76

10 - 1M

1.02M - 10M

1 - 9.76

10 - 1M

1.02M - 10M

1 - 9.76

10 - 1M

1.02M - 10M

1 - 9.76

10 - 1M

1.02M - 10M

1 - 9.76

10 - 1M

1.02M - 10M

1 - 9.76

10 - 1M

1.02M - 10M

1 - 10M

1 - 9.76

10 - 1M

1.02M - 10M

1 - 9.76

10 - 1M

1.02M - 10M

1 - 9.76

10 - 1M

1.02M - 10M

1 - 9.76

10 - 1M

1.02M - 10M

1 - 9.76

10 - 1M

1.02M - 10M

1 - 9.76

10 - 1M

1.02M - 10M

1 - 9.76

10 - 1M

1.02M - 10M

RMCS0402

1/16S

0.063W

50V

100V

1 amp

RMCS0603

1/16

0.1W

50V

100V

1 amp

RMCS0805

1/10

0.125W

150V

300V

2 amps

RMCS1206

1/8

0.25W

200V

400V

2 amps

RMCS1210

1/4

0.33W

200V

400V

2.5 amps

RMCS2010

1/2

0.75W

200V

400V

3.5 amps

RMCS2512

250V

500V

4 amps

(1) Operating Voltage =

√

(P*R) or Max Operating Voltage listed above, whichever is lower.

(2) Overload Voltage = 2.5*

√

(P*R) or Max Overload Voltage listed above, whichever is lower.

Rev Date: 01/25/2012

This specification may be changed at any time without prior notice

Please confirm technical specifications before you order and/or use.

www.seielect.com
