006224017005800: DescriptionCard Edge Connector, 17 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,; CategoryThe connector The connector; File Size199KB，2 Pages; ManufacturerKyocera

Download Datasheet Parametric View All

006224017005800 Overview

Card Edge Connector, 17 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,

006224017005800 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Kyocera
Reach Compliance Code	compliant
Is Samacsys	N
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	TIN LEAD
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	17
Base Number Matches	1

Preview

Download Datasheet

View All

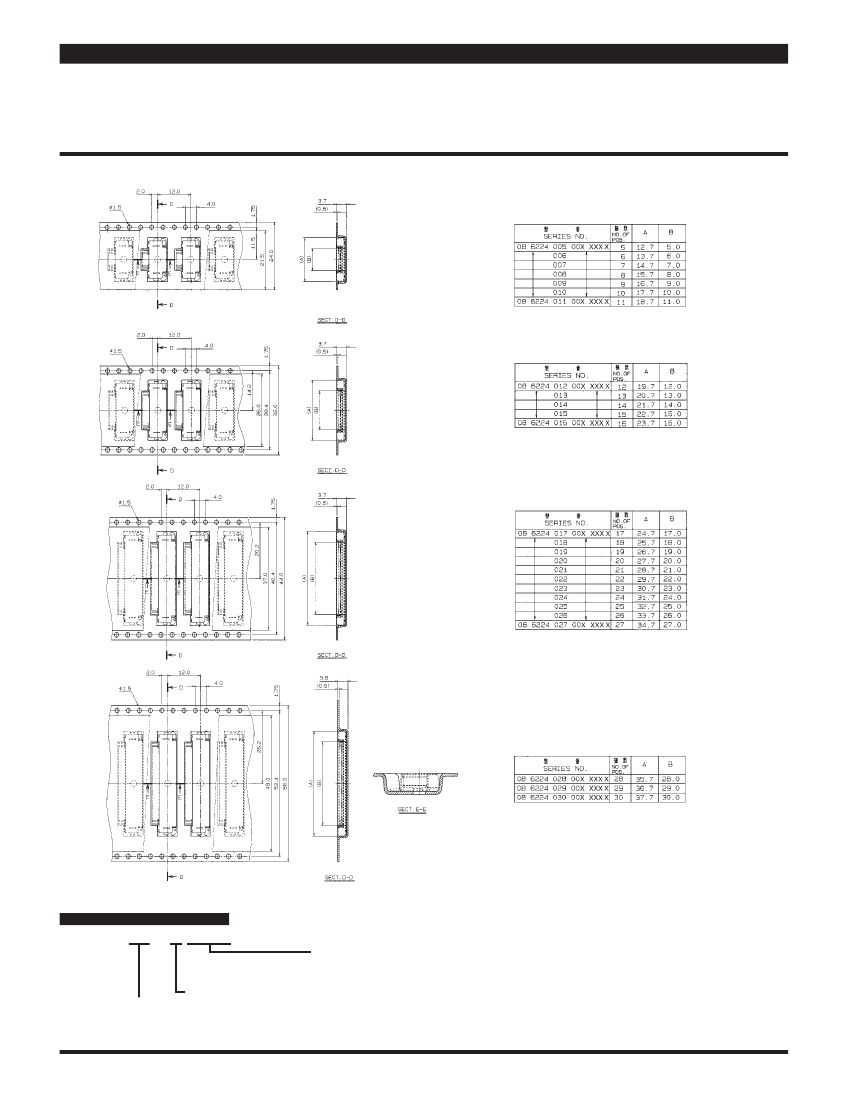

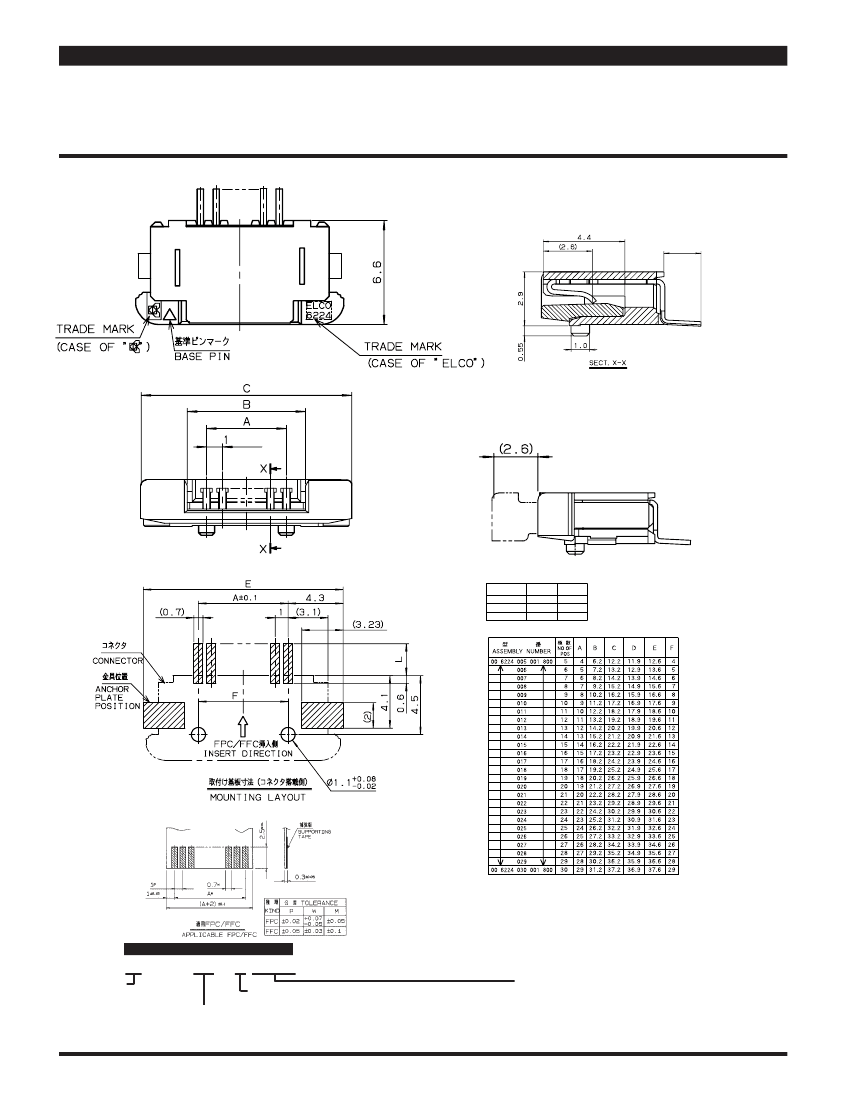

1.0mm Pitch

SERIES

6224

1.0mmピッチ RA SMT

上接点スライドロック

1.0mmPitch RA SMT Top contact Slide lock

T

Pitch

VARIATION

002

003

005

T

2

±

0.3

2

±

0.3

1

±

0.3

L

2.5

1.5

生産対応可½極数については、営業部にご確認願います。

Feel free to contact our sales department for available numbers of positions.

注文コード

ORDERING CODE

00 6224 0XX 00X XXX X

00：トレー梱包

TRAY PACKAGE

極数

NUMBER OF POSITIONS

800＋：スズ銅めっき Sn-Cu Plated（RoHS対応品 RoHS Compliant Product）

1：ボス無 Without Bosses

800：スズ鉛めっき Sn-Pb Plated

2：カーボンフレキ対応 C/Ag type

ボス無

Without Bosses

883＋：金めっき Au Plated（RoHS対応品 RoHS Compliant Product）

3：ボス付 With Bosses

883：金めっき Au Plated

4：カーボンフレキ対応 C/Ag type

ボス付

With Bosses

5：ボス無 Without Bosses

ショートテールタイプ

Short Tail type
