31-5607 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 31-5607

31-5607: DescriptionRF connectors / coaxial connectors tnc RA jck pcb; CategoryThe connector; File Size168KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

31-5607 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-5607	-	-	View	Buy Now

31-5607 Overview

RF connectors / coaxial connectors tnc RA jck pcb

31-5607 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Connectors / Coaxial Connectors
RoHS	Yes
Produc	PCB Connectors
RF Series	TNC
Gende	Jack
Polarity	Standard
Impedance	50 Ohms
Maximum Frequency	11 GHz
Body Material	Brass
Body Finish	Nickel
Contact Material	Phosphor Bronze
Contact Plating	Gold
Contact Terminati	Solde
Mounting Type	-
Termination Style	PCB - Through Hole
Coupling Mechanism	Threaded
Orientati	Right Angle
Mating Cycles	500
Operating Temperature Range	- 65 C to + 165 C

Preview

Download Datasheet

View All

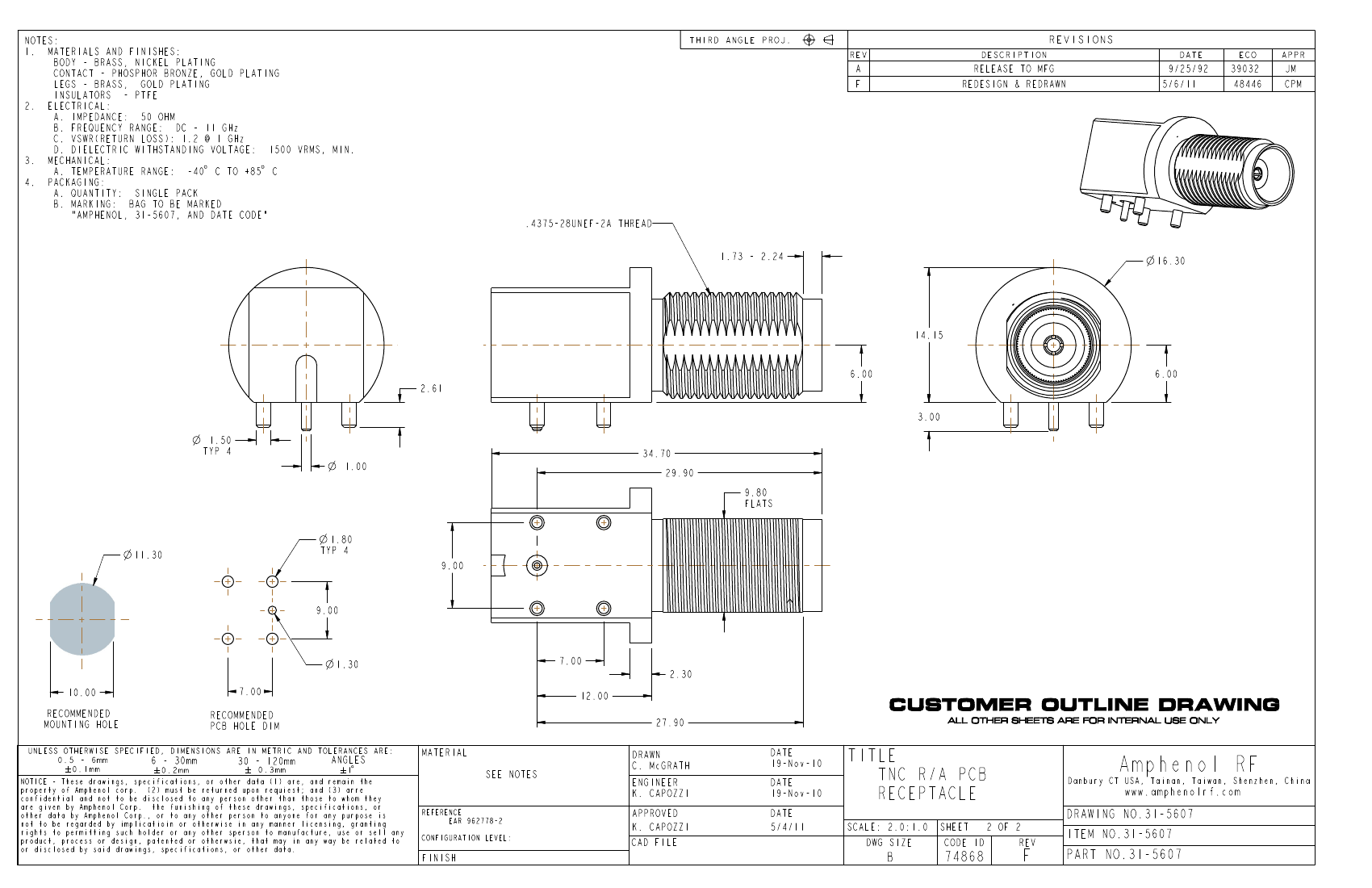

NOTES:

1. MATERIALS AND FINISHES:

BODY - BRASS, NICKEL PLATING

CONTACT - PHOSPHOR BRONZE, GOLD PLATING

LEGS - BRASS, GOLD PLATING

INSULATORS - PTFE

2. ELECTRICAL:

A. IMPEDANCE: 50 OHM

B. FREQUENCY RANGE: DC - 11 GHz

C. VSWR(RETURN LOSS): 1.2 @ 1 GHz

D. DIELECTRIC WITHSTANDING VOLTAGE: 1500 VRMS, MIN.

3. MECHANICAL:

A. TEMPERATURE RANGE: -40 $C TO +85 $C

4. PACKAGING:

A. QUANTITY: SINGLE PACK

B. MARKING: BAG TO BE MARKED

"AMPHENOL, 31-5607, AND DATE CODE"

THIRD ANGLE PROJ.

REV

REVISIONS

RELEASE TO MFG

DESCRIPTION

REDESIGN & REDRAWN

5/6/11

9/25/92

DATE

39032

ECO

APPR

48446

CPM

.4375-28UNEF-2A THREAD

1.73 - 2.24

16.30

14.15

6.00

2.61

3.00

1.50

TYP 4

34.70

29.90

9.80

FLATS

1.80

TYP 4

1.00

11.30

9.00

1.30

10.00

RECOMMENDED

MOUNTING HOLE

7.00

RECOMMENDED

PCB HOLE DIM

MATERIAL

SEE NOTES

REFERENCE

EAR 962778-2

CONFIGURATION LEVEL:

7.00

12.00

2.30

27.90

DRAWN

C. McGRATH

ENGINEER

K. CAPOZZI

APPROVED

K. CAPOZZI

DATE

19-Nov-10

DATE

19-Nov-10

DATE

5/4/11

NOTICE - These drawings, specifications, or other data (1) are, and remain the

property of Amphenol corp. (2) must be returned upon requiest; and (3) arre

confidential and not to be disclosed to any person other than those to whom

they

are given by Amphenol Corp. the funishing of these drawings, specifications,

other data by Amphenol Corp., or to any other person to anyone for any purpose

not to be regarded by implicatioin or otherwise in any manner licensing,

granting

rights to permitting such holder or any other sperson to manufacture, use or

sell any

product, process or design, patented or otherwsie, that may in any way be

related to

or disclosed by said drawings, specifications, or other data.

UNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN METRIC AND TOLERANCES ARE:

0.5 - 6mm

ANGLES

6 - 30mm

30 - 120mm

0.1mm

# 0.3mm

# $

0.2mm

TITLE

TNC R/A PCB

RECEPTACLE

SCALE: 2.0:1.0

DWG SIZE

SHEET

Danbury CT USA, Tainan, Taiwan, Shenzhen, China

Amphenol RF

www.amphenolrf.com

FINISH

CAD FILE

CODE ID

2 OF 2

DRAWING NO. 31-5607

74868

REV

ITEM NO. 31-5607

PART NO. 31-5607
