241A16140X datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 241A16140X

Preview

241A16140X: DescriptionD Subminiature Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size135KB，2 Pages; ManufacturerCONEC; Websitehttp://www.conec.com

Download Datasheet Parametric View All

241A16140X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	241A16140X	-	-	View	Buy Now

241A16140X Overview

D Subminiature Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

241A16140X Parametric

Parameter Name	Attribute value
Maker	CONEC
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	WITH METAL BRACKET AND CLIP
body width	0.509 inch
subject depth	0.48 inch
body length	1.228 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	424VDC V
Filter function	YES
maximum insertion force	3.336 N
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	24
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	2.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Terminal length	0.13 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9
Evacuation force-minimum value	3.1692 N
Base Number Matches	1

Preview

Download Datasheet

View All

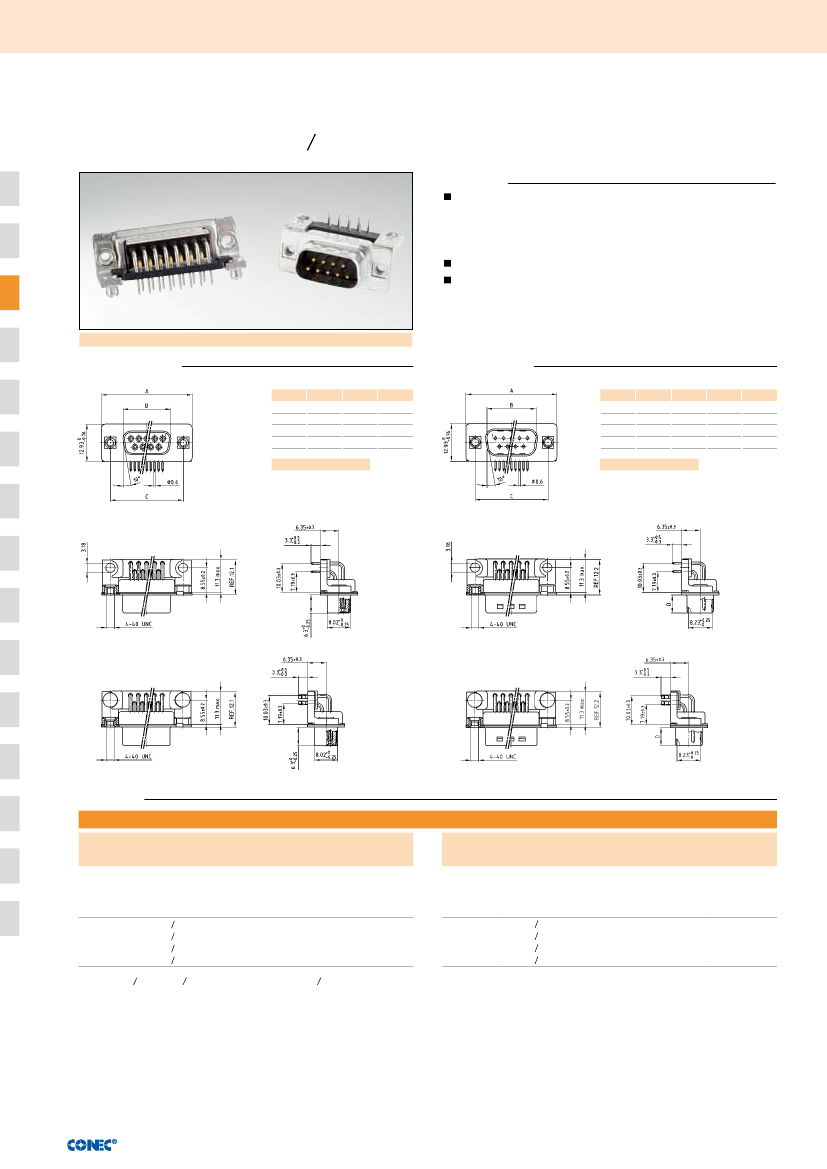

Filt e r D- S UB Co n nec to rs

C-Filter D-SUB Standard

Solder pin – Angled – .318" 7.19 mm – Precision machined contacts – Metal bracket

Description

Mounting styles:

- with mounting bracket and 4-40 UNC threaded insert

- with mounting bracket, PCB clip

and 4-40 UNC threaded insert

Quality class 3 (also available in quality class 1)

Shell: Steel tin plated (brass tin plated on request)

RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784

Socket connector

No. of pos.

09

15

25

37

Plug connector

A

-0.76

31.19

39.52

53.42

69.70

B

-0.25

16.46

24.79

38.50

54.96

C

25.00

33.30

47.04

63.50

+ 0.12

- 0.13

+ 0.15

- 0.10

± 0.13

No. of pos.

09

15

25

37

A

-0.76

31.19

39.52

53.42

69.70

B

+0.25

16.79

25.12

38.84

55.30

C

25.00

33.30

47.04

63.50

+ 0.12

- 0.13

+ 0.15

- 0.10

± 0.13

D

-0.3

6.12

5.99

PCB layout: Kat1kGEA

PCB layout: Kat1kGFA

Mounting style: Threaded insert

Mounting style: PCB clip,

threaded insert

Mounting style: PCB clip,

threaded insert

Order data

Capacitance 180 pF

Socket connector

No. of pos. Mounting style 4-40 UNC

09

15

25

37

09

15

25

37

Threaded insert

PCB clip Threaded insert

Plug connector

Part Number

242 A 17180

242 A 17190

242 A 17200

242 A 17210

242 A 17780

242 A 17790

242 A 17800

242 A 17810

X

No. of pos. Mounting style 4-40 UNC

09

15

25

37

09

15

25

37

Threaded insert

PCB clip Threaded insert

Part Number

241 A 19800

241 A 19810

241 A 19820

241 A 19830

241 A 16180

241 A 16190

241 A 16200

241 A 16210

X

PCB clip .122” 3.1 ± .004” 0.10 mm hole diameter and .063” 1.6 mm circuit board thickness

3| 32
