350713-1

Description
12P UMNL PIN HDR ASSY 94VO
CategoryThe connector    The connector
File Size215KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

350713-1 Online Shopping

Suppliers Part Number Price MOQ In stock
350713-1 - - View Buy Now

350713-1 Overview

12P UMNL PIN HDR ASSY 94VO

350713-1 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerTE Connectivity
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time12 weeks
Is SamacsysN
Other featuresMATE-N-LOK
body width0.8 inch
body length1.05 inch
Body/casing typePLUG
Connector typeCOMBINATION LINE CONNECTOR
Contact arrangementS0P12
Contact to complete cooperationTIN
Contact completed and terminatedTin (Sn)
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Durability50 Cycles
empty shellNO
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
Insulator colorNATURAL
insulator materialNYLON
JESD-609 codee3
MIL complianceNO
Manufacturer's serial number350713
Plug information350735-1
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Rated current (signal)19 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Shell materialPOLYAMIDE
Terminal length0.155 inch
Termination typeSOLDER
Total number of contacts12
UL Flammability Code94V-0
Base Number Matches1

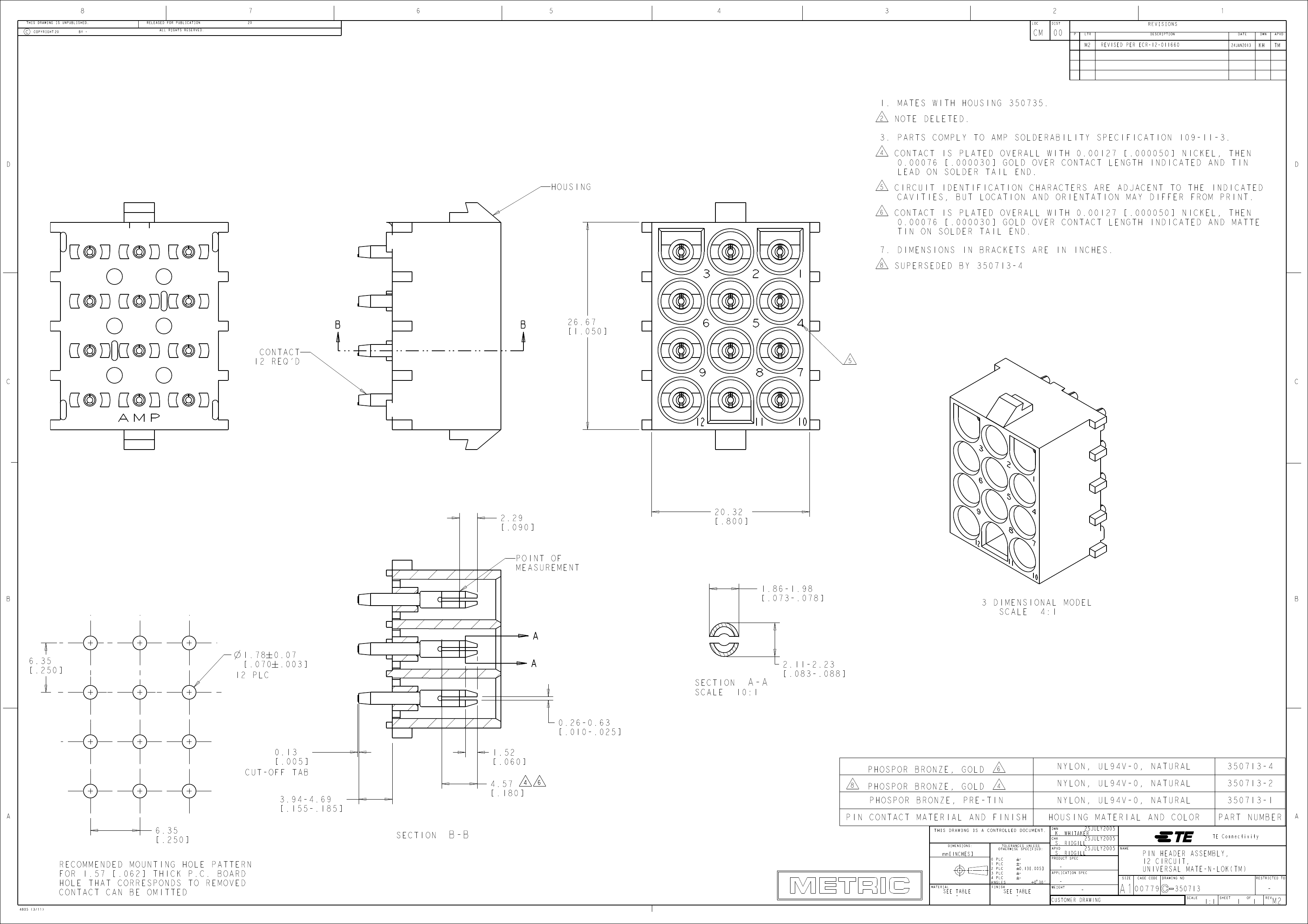

8
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
ALL RIGHTS RESERVED.
7
6
5
4
3
LOC
2
DIST
P
LTR
1
REVISIONS
DESCRIPTION
DATE
DWN
APVD
C
COPYRIGHT
D
D
HOUSING
B
CONTACT
12 REQ'D
C
B
26.67
[ 1.050 ]
C
2.29
[ .090 ]
POINT OF
MEASUREMENT
B
20.32
[ .800 ]
1.86 -1.98
[ .073 -.078 ]
3 DIMENSIONAL MODEL
SCALE
4:1
B
A
6.35
[ .250 ]
1.78 0.07
[ .070 .003 ]
12 PLC
A
SECTION
A-A
SCALE
10:1
0.26 -0.63
[ .010 -.025 ]
2.11 -2.23
[ .083 -.088 ]
0.13
[ .005 ]
CUT-OFF TAB
3.94 -4.69
[ .155 -.185 ]
6.35
[ .250 ]
RECOMMENDED MOUNTING HOLE PATTERN
FOR 1.57 [.062] THICK P.C. BOARD
HOLE THAT CORRESPONDS TO REMOVED
CONTACT CAN BE OMITTED
4805 (3/11)
1.52
[ .060 ]
4.57
[ .180 ]
NYLON, UL94V-0, NATURAL
NYLON, UL94V-0, NATURAL
PHOSPOR BRONZE, PRE-TIN
PIN CONTACT MATERIAL AND FINISH
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIMENSIONS:
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DWN
CHK
APVD
PRODUCT SPEC
NAME
350713 -4
350713 -2
350713 -1
PART NUMBER
TE Connectivity
NYLON, UL94V-0, NATURAL
HOUSING MATERIAL AND COLOR
A
A
SECTION
B-B
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
APPLICATION SPEC
WEIGHT
A1
SIZE
CAGE CODE
DRAWING NO
RESTRICTED TO
SCALE
SHEET
OF
REV
