31-5540-10RFX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 31-5540-10RFX

31-5540-10RFX: DescriptionRF connectors / coaxial connectors bnc R/A pcb black recept; CategoryThe connector; File Size837KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

31-5540-10RFX Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	31-5540-10RFX	-	-	View	Buy Now

31-5540-10RFX Overview

RF connectors / coaxial connectors bnc R/A pcb black recept

31-5540-10RFX Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Connectors / Coaxial Connectors
RoHS	Yes
Produc	PCB Connectors
RF Series	BNC
Gende	Jack
Polarity	Standard
Impedance	50 Ohms
Maximum Frequency	1 GHz
Body Material	Zinc Die Cas
Body Finish	Nickel
Contact Material	Phosphor Bronze
Contact Plating	Gold
Contact Terminati	Solde
Mounting Type	Bulkhead - Rear Mou
Termination Style	PCB - Through Hole
Coupling Mechanism	Bayone
Orientati	Right Angle
Mating Cycles	500
Operating Temperature Range	- 55 C to + 85 C
Factory Pack Quantity	100

Preview

Download Datasheet

View All

NOTES:

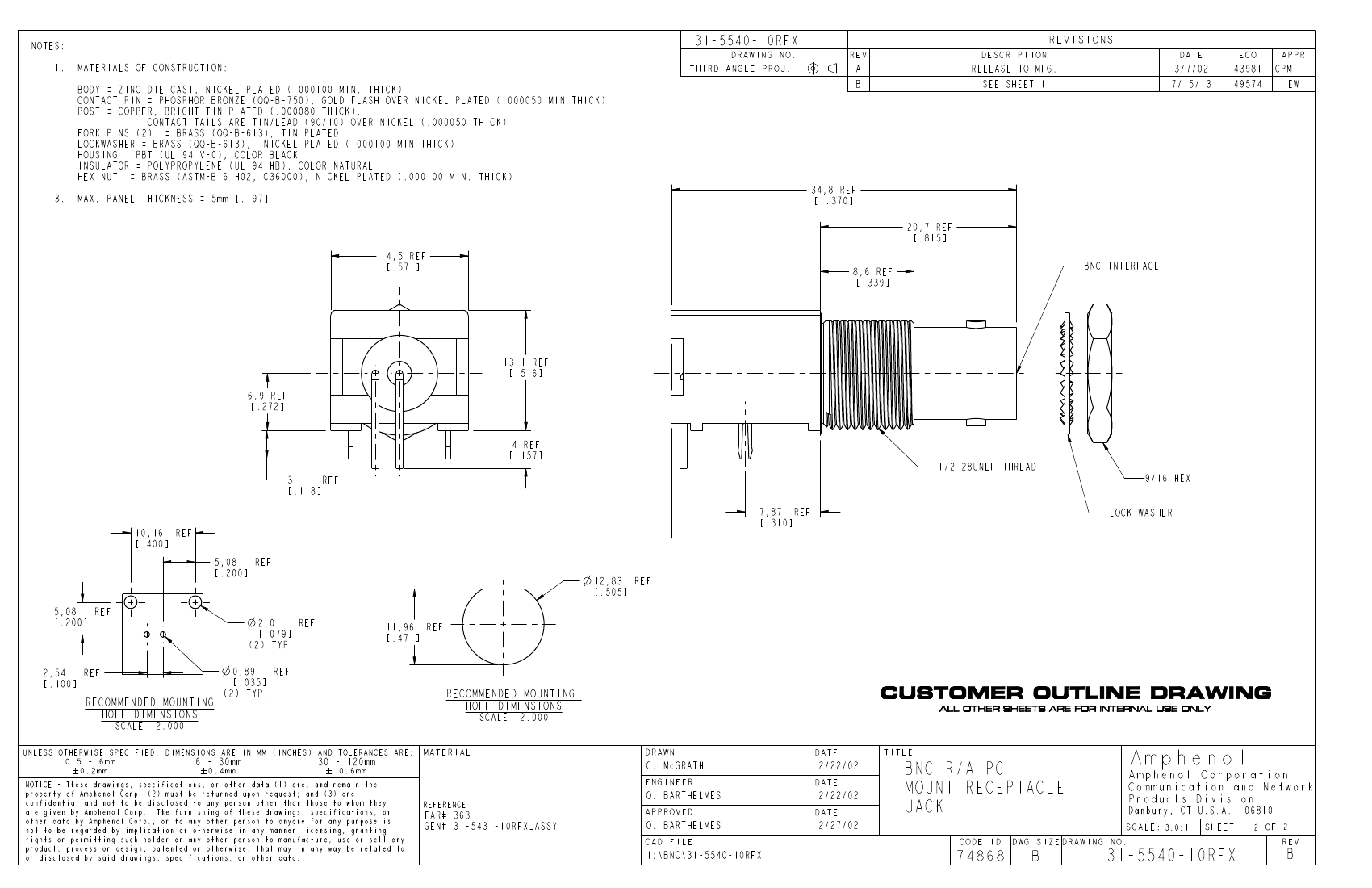

MATERIALS OF CONSTRUCTION:

BODY = ZINC DIE CAST, NICKEL PLATED (.000100 MIN. THICK)

CONTACT PIN = PHOSPHOR BRONZE (QQ-B-750), GOLD FLASH OVER NICKEL PLATED

(.000050 MIN THICK)

POST = COPPER, BRIGHT TIN PLATED (.000080 THICK).

CONTACT TAILS ARE TIN/LEAD (90/10) OVER NICKEL

(.000050 THICK)

FORK PINS (2) = BRASS (QQ-B-613), TIN PLATED

LOCKWASHER = BRASS (QQ-B-613), NICKEL PLATED (.000100 MIN THICK)

HOUSING = PBT (UL 94 V-0), COLOR BLACK

INSULATOR = POLYPROPYLENE (UL 94 HB), COLOR NATURAL

HEX NUT = BRASS (ASTM-B16 H02, C36000), NICKEL PLATED (.000100 MIN.

THICK)

MAX. PANEL THICKNESS = 5mm [.197]

31-5540-10RFX

THIRD ANGLE PROJ.

REVISIONS

REV

DRAWING NO.

RELEASE TO MFG.

SEE SHEET 1

DESCRIPTION

7/15/13

3/7/02

DATE

43981

49574

ECO

CPM

APPR

34,8 REF

[1.370]

20,7 REF

[.815]

14,5 REF

[.571]

8,6 REF

[.339]

BNC INTERFACE

13,1 REF

[.516]

6,9 REF

[.272]

4 REF

[.157]

REF

[.118]

7,87 REF

[.310]

5,08

REF

[.200]

5,08

REF

[.200]

1/2-28UNEF THREAD

9/16 HEX

LOCK WASHER

10,16 REF

[.400]

12,83 REF

[.505 ]

11,96 REF

[.471]

2,01

REF

[.079 ]

(2) TYP

0,89

REF

[.035 ]

(2) TYP.

2,54

REF

[.100]

RECOMMENDED MOUNTING

HOLE DIMENSIONS

SCALE

2.000

RECOMMENDED MOUNTING

HOLE DIMENSIONS

SCALE

2.000

UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN MM (INCHES) AND TOLERANCES ARE:

0.5 - 6mm

6 - 30mm

30 - 120mm

0.2mm

0.4mm

# 0.6mm

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

MATERIAL

DRAWN

C. McGRATH

DATE

2/22/02

TITLE

ENGINEER

REFERENCE

O. BARTHELMES

I:\BNC\ 31-5540-10RFX

2/22/02

2/27/02

EAR# 363

GEN# 31-5431-10RFX_ASSY

APPROVED

CAD FILE

BNC R/A PC

MOUNT RECEPTACLE

JACK

74868

CODE ID

Amphenol Corporation

Communication and Network

Products Division

Danbury, CT U.S.A.

SCALE: 3.0:1

Amphenol

SHEET

06810

2 OF 2

REV

DWG SIZE DRAWING NO.

31-5540-10RFX
