336206-12-0250 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 336206-12-0250

336206-12-0250: DescriptionRF cable assemblies tnc jack-amc RA plug 113mm cable, 250mm; CategoryThe connector; File Size126KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

336206-12-0250 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	336206-12-0250	-	-	View	Buy Now

336206-12-0250 Overview

RF cable assemblies tnc jack-amc RA plug 113mm cable, 250mm

336206-12-0250 Parametric

Parameter Name	Attribute value
Manufacture	Amphenol
Product Category	RF Cable Assemblies
RoHS	Yes
Cable Type	1.13 mm Coax
Impedance	50 Ohms
Length	250 mm
Connector A Body Style	Bulkhead
Connector A Series	TNC
Connector B Body Style	Right Angle
Connector B Series	AMC
Connector A Gende	Jack (Female)
Connector A Polarity	Normal
Connector B Gende	Plug (Male)
Connector B Polarity	Normal

Preview

Download Datasheet

View All

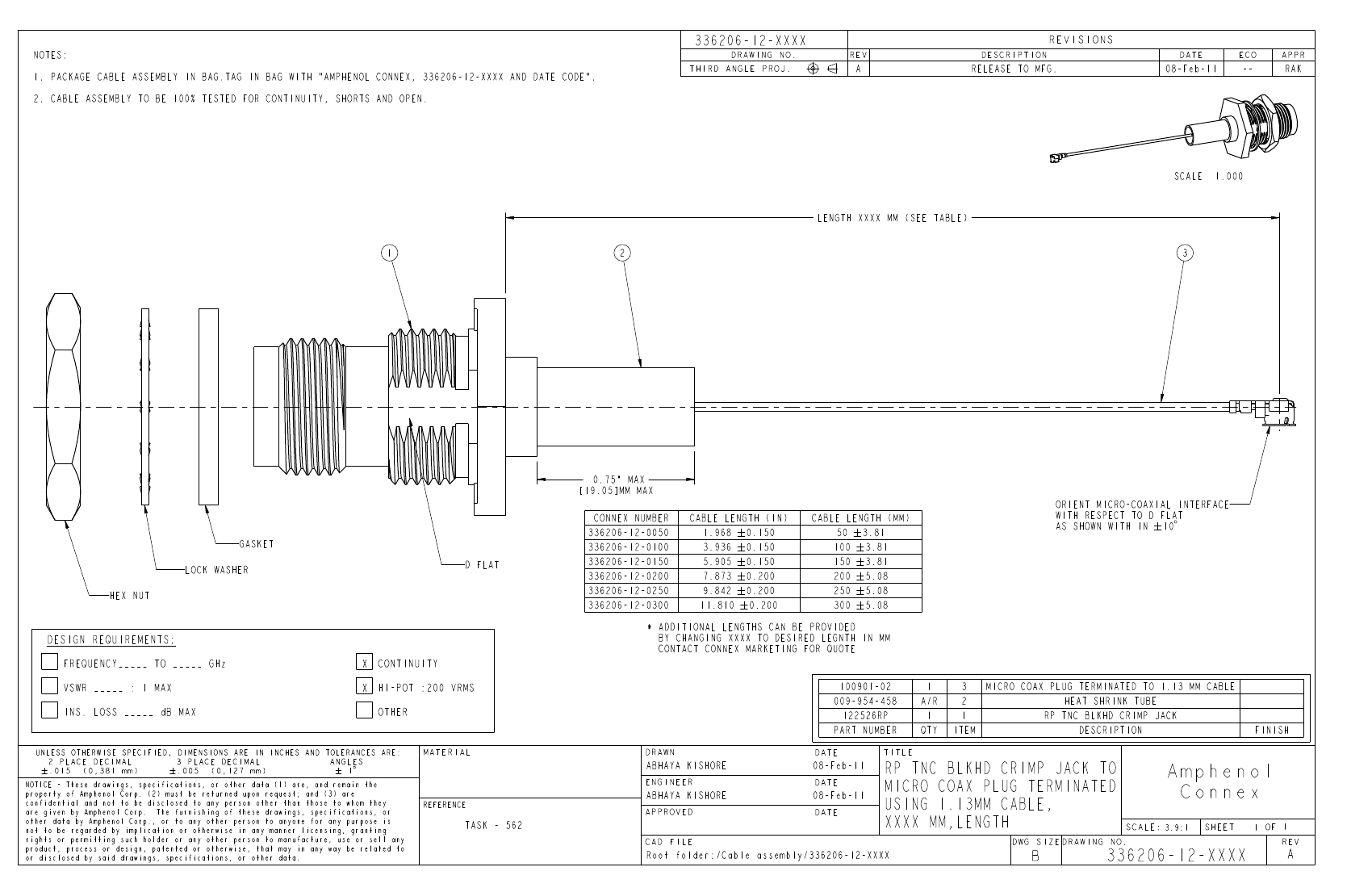

NOTES:

1. PACKAGE CABLE ASSEMBLY IN BAG.TAG IN BAG WITH "AMPHENOL CONNEX,

2. CABLE ASSEMBLY TO BE 100% TESTED FOR CONTINUITY, SHORTS AND OPEN.

336206-12-XXXX AND DATE CODE".

336206-12-XXXX

DRAWING NO.

THIRD ANGLE PROJ.

REVISIONS

REV

RELEASE TO MFG.

DESCRIPTION

08-Feb-11

DATE

ECO

APPR

RAK

SCALE

1.000

LENGTH XXXX MM (SEE TABLE)

0.75" MAX

[19.05]MM MAX

CONNEX NUMBER

CABLE LENGTH (IN)

1.968

3.936

5.905

7.873

11.810

9.842

#0.150

#0.200

CABLE LENGTH (MM)

100

150

200

250

300

#3.81

#5.08

GASKET

LOCK WASHER

HEX NUT

D FLAT

336206-12-0050

336206-12-0100

336206-12-0150

336206-12-0200

336206-12-0250

336206-12-0300

ORIENT MICRO-COAXIAL INTERFACE

WITH RESPECT TO D FLAT

AS SHOWN WITH IN #

10 $

DESIGN REQUIREMENTS:

FREQUENCY_____ TO _____ GHz

VSWR _____ : 1 MAX

INS. LOSS _____ dB MAX

CONTINUITY

HI-POT :200 VRMS

OTHER

* ADDITIONAL LENGTHS CAN BE PROVIDED

BY CHANGING XXXX TO DESIRED LEGNTH IN MM

CONTACT CONNEX MARKETING FOR QUOTE

100901-02

122526RP

ITEM

MICRO COAX PLUG TERMINATED TO 1.13 MM CABLE

RP TNC BLKHD CRIMP JACK

DESCRIPTION

HEAT SHRINK TUBE

009-954-458

PART NUMBER

A/R

QTY

FINISH

UNLESS OTHERWISE SPECIFIED, DIMENSIO NS ARE IN INCHES AND TOLERANCES ARE:

2 PLACE DECIMAL

3 PLACE DECIMAL

ANGLES

#.015

(0,381 mm)

#.005 (0,127 mm)

# 1$

NOTICE - These drawings, specificati

property of Amphenol Corp. (2) must

confidential and not to be disclosed

are given by Amphenol Corp. The fur

other data by Amphenol Corp., or to

not to be regarded by implication or

rights or permitting such holder or

product, process or design, patented

or disclosed by said drawings, speci

ons, or other data (1) are, and rema

be returned upon request; and (3) ar

to any person other than those to w

nishing of these drawings, specifica

any other person to anyone for any p

otherwise in any manner licensing,

any other person to manufacture, use

or otherwise, that may in any way b

fications, or other data.

in the

hom they

tions, or

urpose is

granting

or sell any

e related to

MATERIAL

DRAWN

ABHAYA KISHORE

08-Feb-11

DATE

TITLE

ENGINEER

REFERENCE

APPROVED

CAD FILE

TASK - 562

RP TNC BLKHD CRIMP JACK TO

MICRO COAX PLUG TERMINATED

USING 1.13MM CABLE,

XXXX MM,LENGTH

Amphenol

Connex

SCALE: 3.9:1

SHEET

1 OF 1

REV

Root folder:/Cable assembly/336206-12-XXXX

DWG SIZE DRAWING NO.

336206-12-XXXX

336206-12-0250 Related Products

	336206-12-0250	336206-12-0100	336206-12-0050	336206-12-0150	336206-12-0200	336206-12-0300
Description	RF cable assemblies tnc jack-amc RA plug 113mm cable, 250mm	RF cable assemblies tnc BH JK RP-amc plg 1.13 cbl 100 mm	RF cable assemblies tnc jack-amc RA plug 113mm cable, 50mm	RF cable assemblies tnc jack-amc RA plug 113mm cable, 150mm	RF cable assemblies tnc jack-amc RA plug 113mm cable, 200mm	RF cable assemblies tnc jack-amc RA plug 113mm cable, 300mm
Manufacture	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Product Category	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies	RF Cable Assemblies
RoHS	Yes	Yes	Yes	Yes	Yes	Yes
Cable Type	1.13 mm Coax	1.13 mm Coax	1.13 mm Coax	1.13 mm Coax	1.13 mm Coax	1.13 mm Coax
Impedance	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms	50 Ohms
Length	250 mm	100 mm	50 mm	150 mm	200 mm	300 mm
Connector A Body Style	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead	Bulkhead
Connector A Series	TNC	TNC	TNC	TNC	TNC	TNC
Connector B Body Style	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle	Right Angle
Connector B Series	AMC	AMC	AMC	AMC	AMC	AMC
Connector A Gende	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)	Jack (Female)
Connector A Polarity	Normal	Normal	Normal	Normal	Normal	Normal
Connector B Gende	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)	Plug (Male)
Connector B Polarity	Normal	Normal	Normal	Normal	Normal	Normal
