008272364003346 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 008272364003346

Preview

008272364003346: DescriptionBoard Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Solder/Wire Wrap Terminal, Plug,; CategoryThe connector The connector; File Size658KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric View All

008272364003346 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, Solder/Wire Wrap Terminal, Plug,

008272364003346 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Kyocera
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	STANDARD: DIN 41612
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	GOLD (30)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	8272
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER/WIRE WRAP
Total number of contacts	64
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

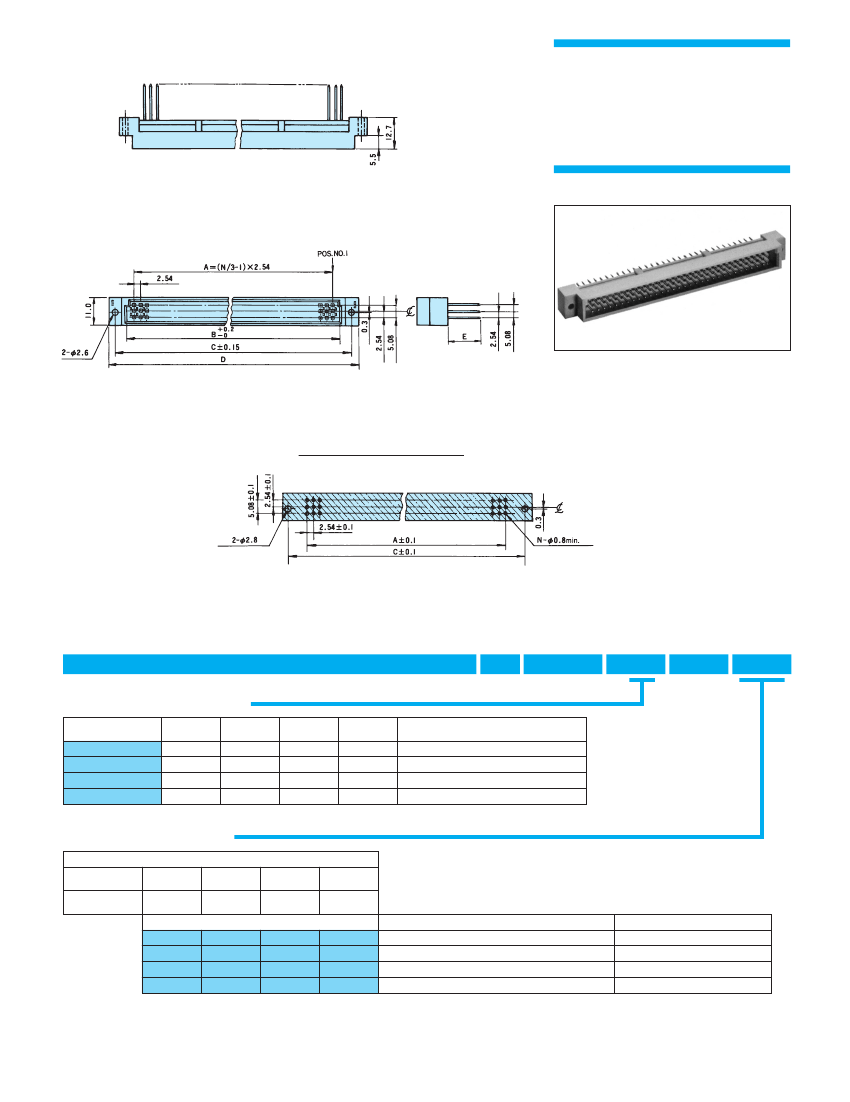

SERIES

8272

ハンダ付/ワイヤーラッピング

拡張DIN-Nタイププラグ3列ストレート

Soldering/Wire wrapping

Extended DIN-N type Vertical 3-row plug

c列 Row

c

b列 Row

b

a列 Row

a

推奨取付寸法

Recommended mounting dimensions

c列 Row

c

b列 Row

b

a列 Row

a

●拡張DIN-Nタイプとは½社がDIN規格41612に準拠して独自に開発した½品です。

●

The extended DIN-N type is a type developed originally by us in conformity with DIN41612

注文コード

/Ordering

code

型番構成/

Part number

00

8272

3XX

003

XXX

極数

/Number

of positions

極数/

Number of positions

32

48

64

96

A

38.10

78.74

B

44.61

85.25

C

53.34

93.98

D

58.54

99.18

備考/Remarks

a、

c列実装/Row

a and c are filled

a、

c列実装/Row

a and c are filled

バリエーション

/Variation

0.76

接触部/

金/Gold

Contacting area

ポス

/

ト部

ハンダ/Solder ハンダ/Solder ハンダ/Solder ハンダ/Solder

Post area

バリエーシンコー

/Variation

code

ョ

ド

テール長さ＝E/Tail

length=E

3.9

343

333

323

313

（適用基板厚2.4以下/Applicable

board thickness = 2.4 or less

）

346

336

326

316

3.9

（適用基板厚2.4以下/Applicable

board thickness = 2.4 or less

）

443

433

423

413

13.0

446

436

426

416

13.0

メッキ

μm

/Plating

(

μ

m)

0.1

0.25

0.5

金/Gold

コンタク

ト実装/Mounting

contacts

全列実装/All

rows are filled

a＋c列実装/Row

a and c are filled

全列実装/All

rows are filled

a＋c列実装/Row

a and c are filled

※鉛フリーめっきは型番最後尾に＋が付きます。詳しくは営業にお問い合わせください。

For the lead-free plated type, “+” is added to the end of each part number. For details, please consult the sales representative.
