Part Number

Search

135111-01-48.00

Description
RF cable assemblies sma blkhd jack to St plug RG-316 48"
CategoryThe connector
File Size33KB,1 Pages
ManufacturerAll Sensors
Environmental Compliance
Download Datasheet Parametric Compare View All

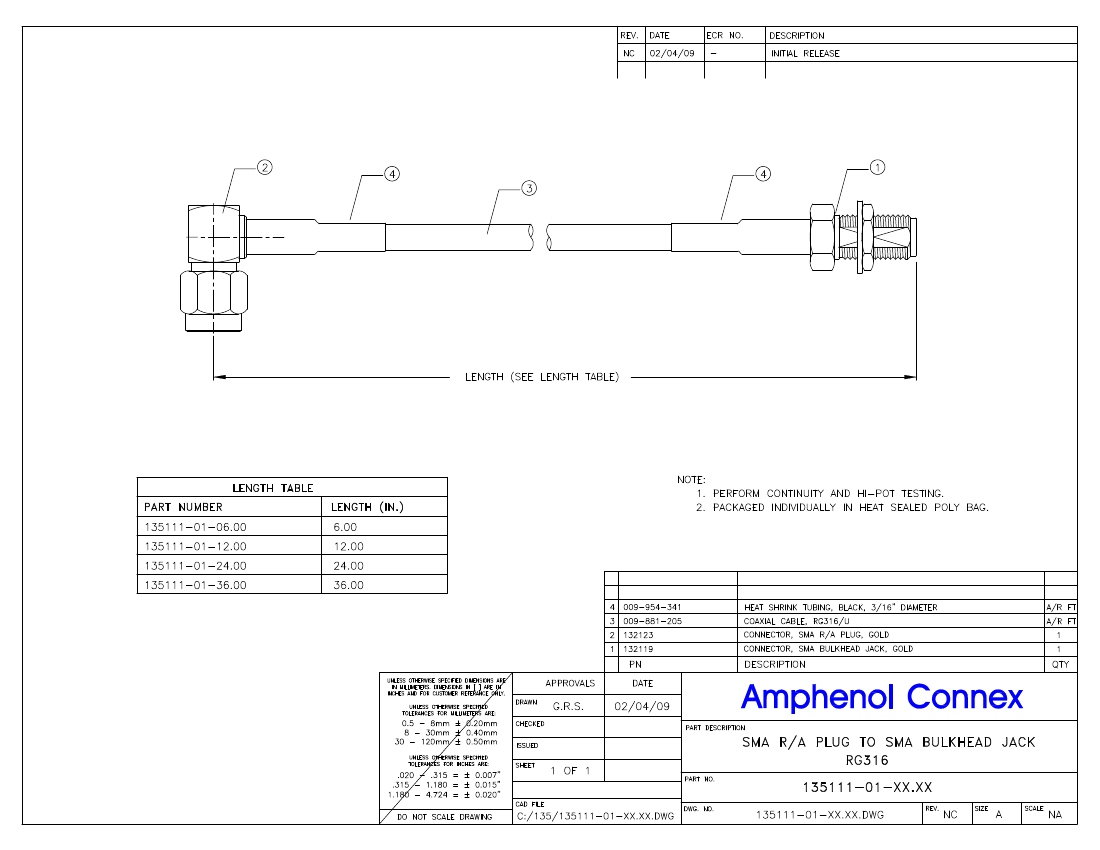

135111-01-48.00 Overview

RF cable assemblies sma blkhd jack to St plug RG-316 48"

135111-01-48.00 Parametric

Parameter NameAttribute value
ManufactureAmphenol
Product CategoryRF Cable Assemblies
RoHSYes
Cable TypeRG-316/U
Frequency RangeDC to 12.4 GHz
Impedance50 Ohms
Length48 i
Connector A Body StyleBulkhead
Connector A SeriesSMA
Connector B Body StyleRight Angle
Connector B SeriesSMA
Connector A GendeJack (Female)
Connector A PolarityNormal
Connector B GendePlug (Male)
Connector B PolarityNormal
PolarityNormal

135111-01-48.00 Related Products

135111-01-48.00 135111-01-24.00 135111-01-36.00 135111-01-12.00 135111-01-06.00
Description RF cable assemblies sma blkhd jack to St plug RG-316 48" RF cable assemblies sma St BH JK to R/A plug RG-316/U 24" RF cable assemblies sma St BH JK to R/A plug RG-316/U 36" RF cable assemblies sma St BH JK to R/A plug RG-316/U 12" RF cable assemblies sma St BH JK to R/A plug RG-316/U 6"
Manufacture Amphenol Amphenol Amphenol Amphenol Amphenol
Product Category RF Cable Assemblies RF Cable Assemblies RF Cable Assemblies RF Cable Assemblies RF Cable Assemblies
RoHS Yes Yes Yes Yes Yes
Cable Type RG-316/U RG-316/U RG-316/U RG-316/U RG-316/U
Frequency Range DC to 12.4 GHz DC to 12.4 GHz DC to 12.4 GHz DC to 12.4 GHz DC to 12.4 GHz
Impedance 50 Ohms 50 Ohms 50 Ohms 50 Ohms 50 Ohms
Length 48 i 24 i 36 i 12 i 6 i
Connector A Body Style Bulkhead Bulkhead Bulkhead Bulkhead Bulkhead
Connector A Series SMA SMA SMA SMA SMA
Connector B Body Style Right Angle Right Angle Right Angle Right Angle Right Angle
Connector B Series SMA SMA SMA SMA SMA
Connector A Gende Jack (Female) Jack (Female) Jack (Female) Jack (Female) Jack (Female)
Connector A Polarity Normal Normal Normal Normal Normal
Connector B Gende Plug (Male) Plug (Male) Plug (Male) Plug (Male) Plug (Male)
Connector B Polarity Normal Normal Normal Normal Normal
