15188 Series
Specifications

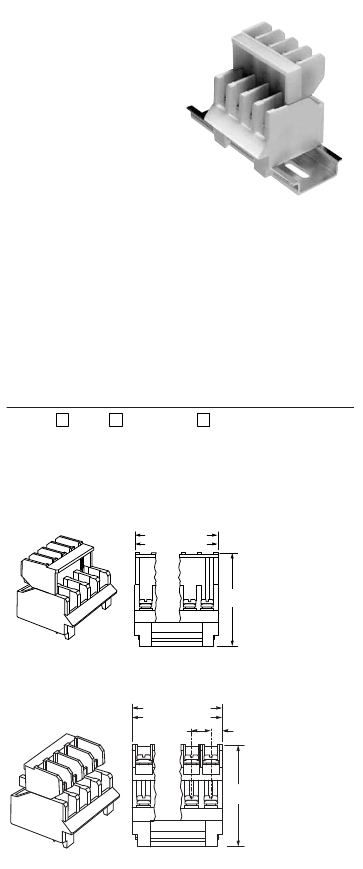

Description:
Disconnect terminal
blocks for 35mm DIN rail mount.
Rating:
30A, 600V*
Center Spacing:
0.375”
(9.52mm)
Wire Range:
#12-16 AGW Cu
Screw Size:
#6-32 zinc-plated philslot
Number of Poles:
3- and 4-pole only
Mounting:
35mm DIN Rail
Optional End Stop NDNAS
Jumpers:
2- through 4-pole available
Materials:
Molded Base: UL rated 94V-2 thermoplastic.
Tin plated copper alloy contacts.
Torque Rating:
12 lb-in
Operating Temperature:
105°C
Agency Information:
UL File E62622, CSA File 47235.
* 30A rating achieved with #10AWG wire crimped to ring terminal; 25A without.
Catalog Number Build-A-Code
Series
15188 –
3 to 4
Blank = In-line
R = Reverse
S = Locking Snap
Poles
Wiring
Options
Dimensions - in (mm)
In-Line Wiring Direction
3 Pole = 1.19 (30.22)
4 Pole = 1.56 (39.62)
1.94
(49.27)
Reverse Wiring Direction
3 Pole = 1.19 (30.22)
4 Pole = 1.56 (39.62)
0.375
(9.52)
0.22
(5.58)
1.94
(49.27)
