0068-1-17-15-32-02-02-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 0068-1-17-15-32-02-02-0

0068-1-17-15-32-02-02-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size64KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

0068-1-17-15-32-02-02-0 Overview

PCB Terminal

0068-1-17-15-32-02-02-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	0068
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

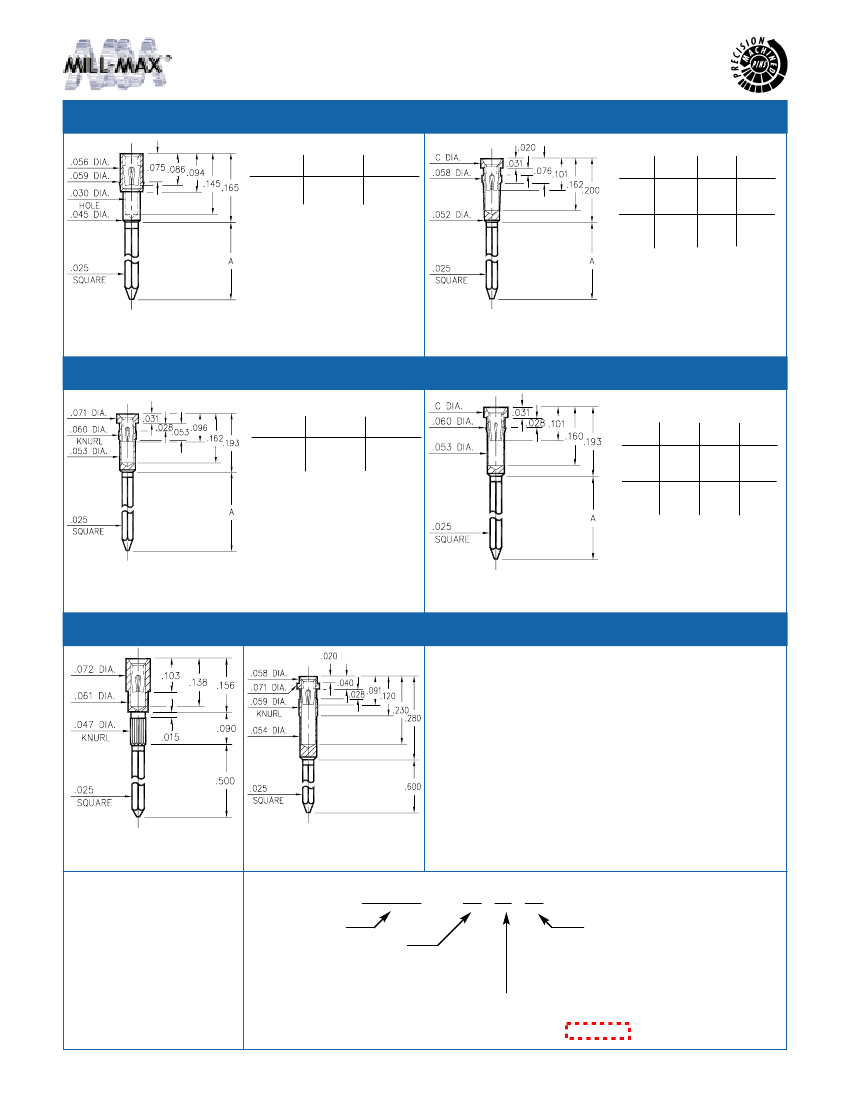

WRAPOST RECEPTACLES

for .015” - .025” diameter pins

1702/1703

Basic Part

Number

# of

Wraps

Length

⇒

0038⇒0040/0066⇒0068

1702-2

1703-3

.370

.510

Basic

Part #

0040-1

0039-2

0038-3

0068-1

0067-2

0066-3

# of

Length

Wraps

.260

.360

.500

.260

.360

.500

Dia.

.072

.062

170X-X-17-XX-30-XX-02-0

Press-fit in .057 mounting hole

00XX-X-17-XX-30-XX-02-0

Press-fit in .055 mounting hole

0086/0088/0089

Basic Part

Number

0089-2

0088-3

0086-4

# of

Wraps

Length

.370

.510

.630

⇒

1030⇒1036

Basic

Part #

1032-1

1031-2

1030-3

1036-1

1035-2

1034-3

# of

Length

Wraps

.260

.360

.510

.260

.360

.510

Dia.

.072

.062

008X-X-17-XX-3X-XX-02-0

Press-fit in .057 mounting hole

103X-X-17-XX-3X-XX-02-0

Press-fit in .057 mounting hole

1045

1040

1045-3-17-XX-30-XX-02-0

Press-fit in .043 mounting hole

1040-3-17-XX-30-XX-02-0

Press-fit in .056 mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - 17 - XX - 3X - XX - 02 - 0

BASIC PART #

SPECIFY SHELL FINISH:

200µ"

TIN/LEAD OVER

NICKEL

10µ"

GOLD OVER

NICKEL

SELECT CONTACT

#30 OR #32

CONTACT (DATA ON PAGE 208)

SPECIFY CONTACT FINISH:

200µ"

TIN/LEAD OVER

NICKEL

10µ"

GOLD OVER

NICKEL

30µ"

GOLD OVER

NICKEL

Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253

162
