Part Number:
Status:
Description:
39517-7317
Active
3.81mm Pitch Eurostyle™ Vertical Plug, with Retention Screws and Standard
Imprinting, Rear Wire Entry, Green Housing, 17 Circuits
Documents:
Drawing (PDF)
Product Specification PS-39500-001 (PDF)
RoHS Certificate of Compliance (PDF)
General
Product Family
Series
Application
Comments
Component Type
Product Name
Type
UPC
Terminal Blocks
39517
N/A
with Standard Imprinting|Rear Wire Entry
Plug
ESE, Eurostyle™Pluggable
Euro Block
822350459853
Series

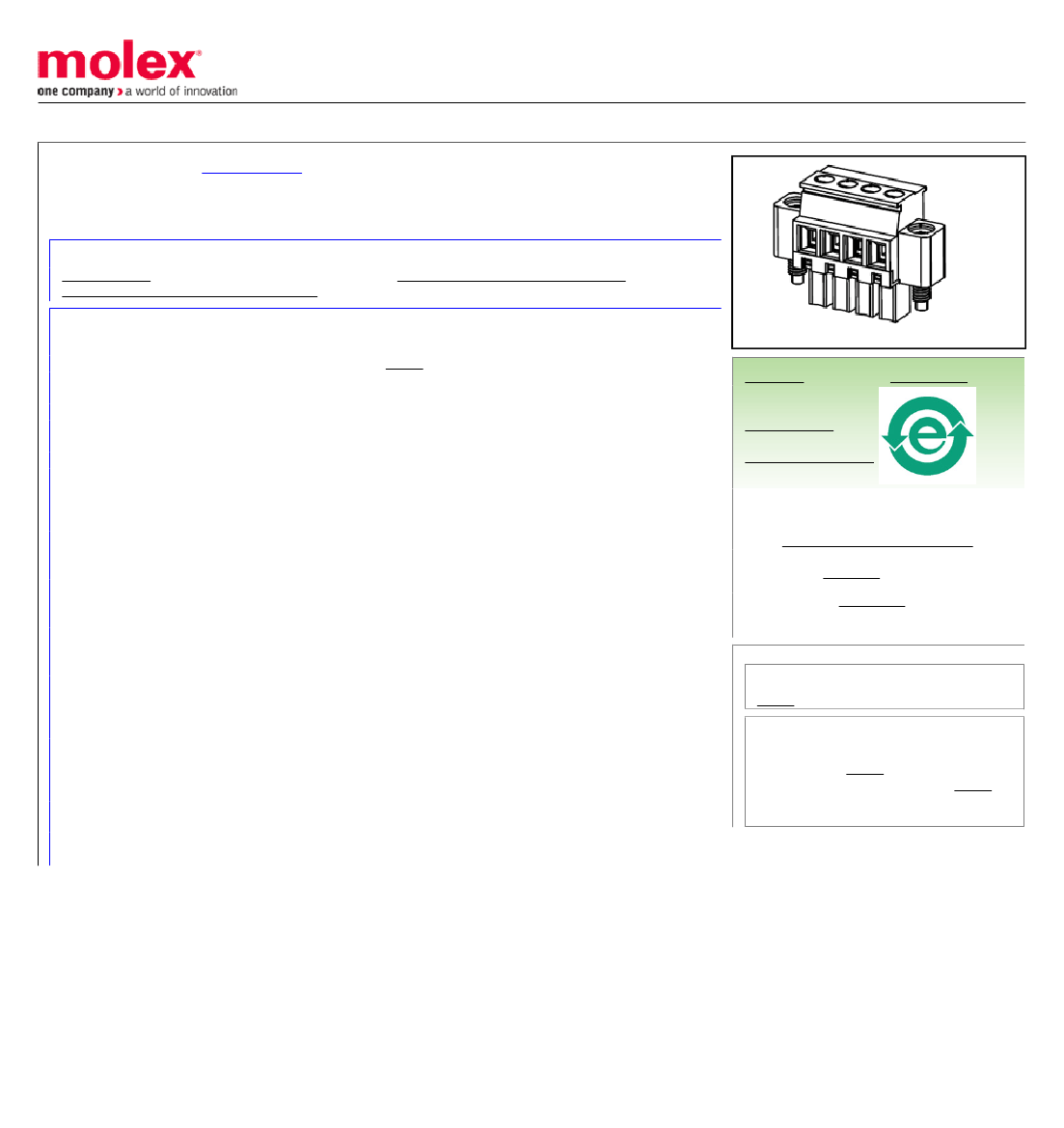

image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Physical
Circuits (Loaded)
Entry Angle
Lock to Mating Part
Number of Rows
Orientation
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
Wire Size AWG
Wire Size mm²
17
Horizontal
Yes
1
Vertical
No
3.81mm
3.81mm
Yes
No
-40°C to +105°C
16, 18, 20, 22, 24, 26, 28, 30
0.05 - 1.31
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
39517Series
Mates With
Most 3.81mm Pitch Industry Standard
PCB Headers, 39515 Vertical PCB Header
with Threaded Retention Inserts, 39516
Horizontal PCB Header with Threaded
Retention Inserts
Electrical
Current - Maximum per Contact
Voltage - Maximum
8A
300V
Material Info
Reference - Drawing Numbers
Product Specification
Sales Drawing
PS-39500-001
SD-39517-002
