PR
E
CI

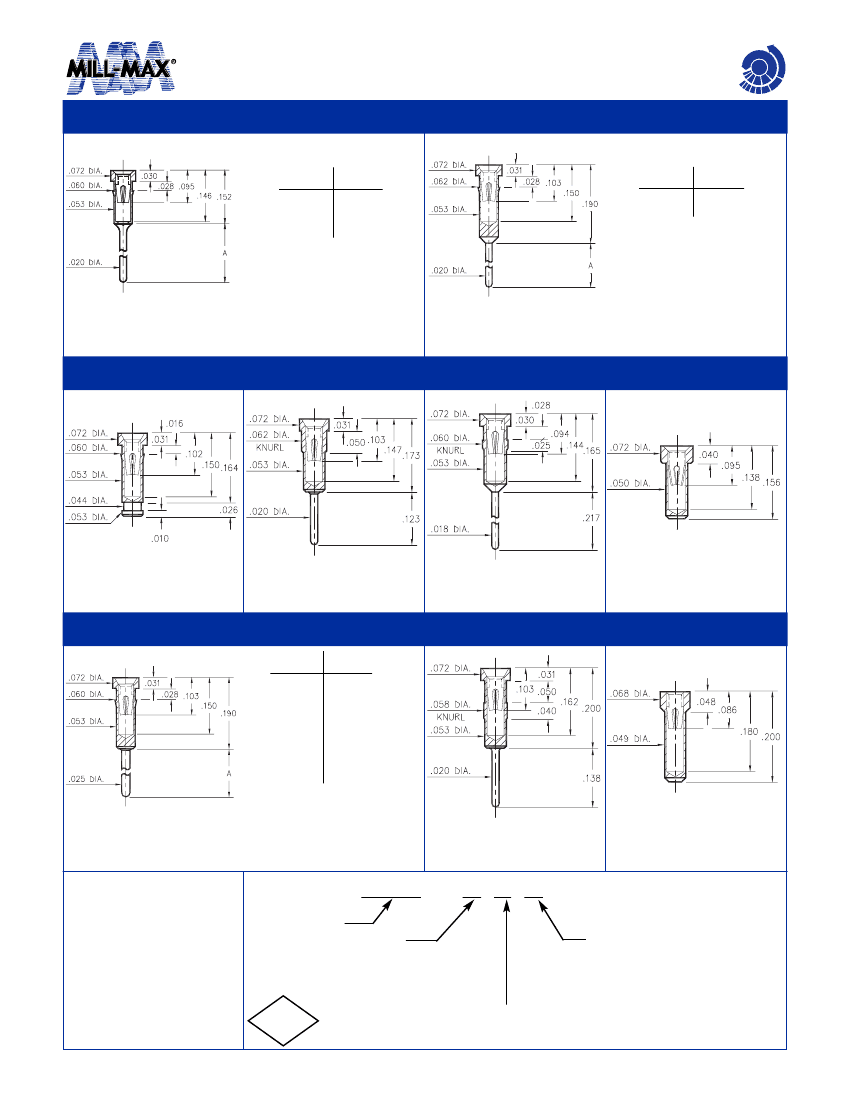

PIN RECEPTACLES
for .015” - .025” diameter pins
M
ON
S
I
CHI
A
PINS
NE
D
1005/1013/8898
Basic Part
Number
Length
A
0145/0146
Basic Part
Number
Length
A
1005-0
1013-0
8898-0
.138
.165
.224
0145-0
0146-0
.300
.410
NOTE: 8898 is not annealed &
not suitable for auto-clinching
XXXX-0-15-XX-3X-XX-04-0
Press-fit in .057 mounting hole
1/4 hard brass shell for auto-clinching
014X-0-15-XX-30-XX-04-0
Press-fit in .059 mounting hole
4378
0556
1103
9234
4378-0-15-XX-30-XX-10-0
Press-fit in .057 mounting hole
0556-0-15-XX-30-XX-04-0
Press-fit in .059 mounting hole
1103-0-15-XX-30-XX-04-0
Press-fit in .057 mounting hole
9234-0-15-XX-30-XX-10-0
Solder mount in .052 min.
mounting hole
0136/37/38/39/41/48/52
Basic Part
Number
Length
A
0447
5660
0136-0
0137-0
0138-0
0139-0
0141-0
0148-0
0152-0
1.215
.560
.210
.635
.700
.455
.410
01XX-0-15-XX-30-XX-04-0
Press-fit in .057 mounting hole
0447-0-15-XX-30-XX-04-0
Press-fit in .056 mounting hole
5660-0-15-XX-30-XX-10-0
Solder mount in .051 min.
mounting hole
SPECIFICATIONS
SHELL MATERIAL:
Brass Alloy 360, 1/2 Hard
CONTACT MATERIAL:
Beryllium Copper Alloy 172, HT
DIMENSION IN INCHES
TOLERANCES ON:
LENGTHS:
±.005
DIAMETERS: ±.002
ANGLES:
± 2°
ORDER CODE: XXXX - X - 15 - XX - 3X - XX - XX - 0
BASIC PART #
SPECIFY SHELL FINISH:
01
200μ” TIN/LEAD OVER NICKEL
80
200μ” TIN OVER NICKEL
15
10μ” GOLD OVER NICKEL
RoHS
SPECIFY CONTACT FINISH:
02
100μ” TIN/LEAD OVER NICKEL
84
100μ” TIN OVER NICKEL
27
30μ” GOLD OVER NICKEL
2002/95/EC
SELECT CONTACT
#30 or #32
CONTACT (DATA ON PAGES 218 & 219)
w w w. m i l l - m a x . c o m
137
516-922-6000
