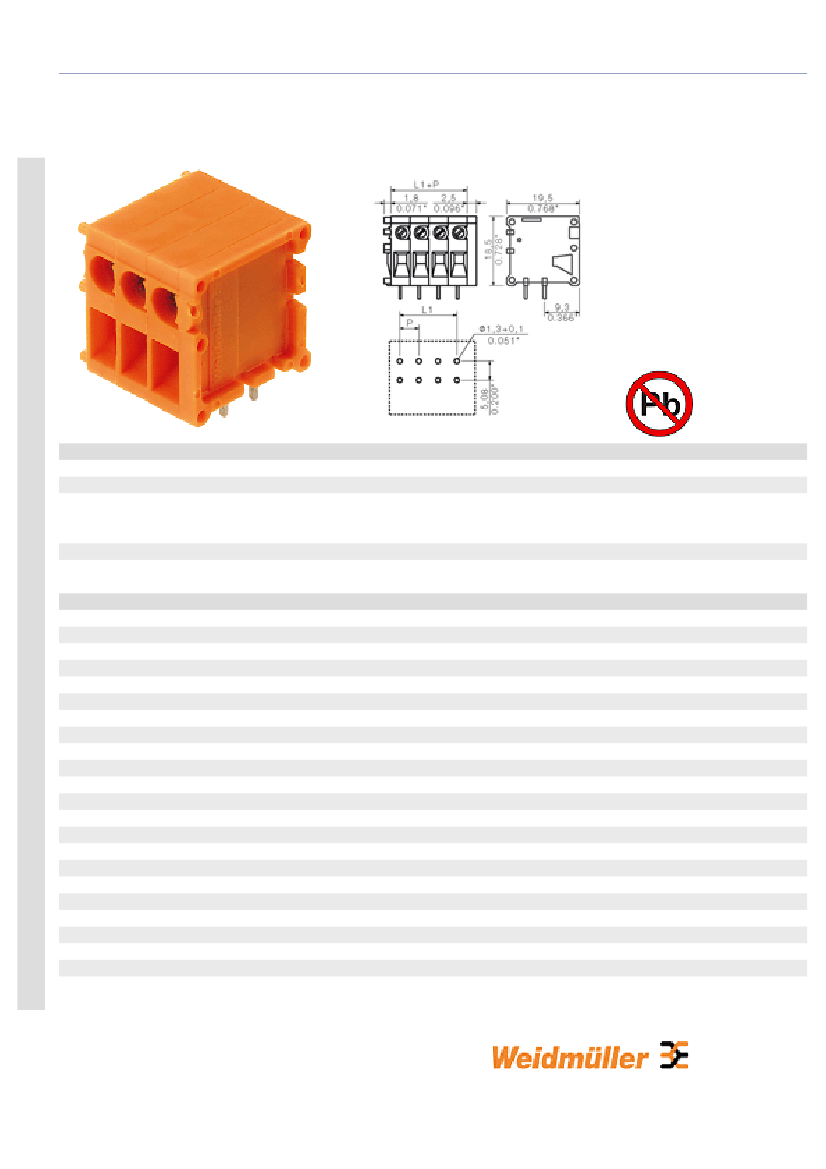

Product catalogue | PCB connection systems | PCB terminals | TOP screw connection | TOP 1.5GS/5.08 | TOP
1.5GS/90-5.08
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Product family
Conductor connection system
Fitted to PCB
Outgoing direction of conductor
Pitch
Pitch in inch
No. of poles
Fitted by customer
No. of rows
Solder pin length
Dia. of fitting hole
Fitting hole tolerance
No. of solder pins per pole
Screwdriver blade
Screwdriver blade standard
Tightening torque, min.
Tightening torque, max.
Clamping screw
Stripping length
L1 in mm
L1 in inch
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
0595360000
TOP1.5GS23/90 5 2STI OR
PCB terminal, TOP connection, Soldered
connection, Clamping range, max.: 2.5 mm²,
Pitch: 5.08 mm, No. of poles: 23, 90°, Box
4032248203727
10 pc(s).
System TOP1.5GS
TOP connection
Soldered connection
90°
5.08 mm
0.2 inch
23
no
1
3.5 mm
1.3 mm
+ 0.1 mm
2
0.6 x 3.5
DIN 5264
0.4 Nm
0.5 Nm
M 2.5
10 mm
111.76 mm
4.4 inch
IP 20
Safe from finger touch
-1-
Product catalogue | PCB connection systems | PCB terminals | TOP screw connection | TOP 1.5GS/5.08 | TOP
1.5GS/90-5.08
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
Contact surface
Storage temperature, min.
Storage temperature, max.
Connectable conductors
Clamping range, min.
Clamping range, max.
AWG, min.
AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
With wire end ferrule, acc. to DIN 46 228/1, min.
With wire end ferrule, acc. to DIN 46 228/1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
w. plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, max. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated current, max. No. pins (Tu=40°C)
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor (field wiring), min.
AWG conductor (field wiring), max.
PA
orange
Similar to RAL 2000
I
V-2
>= 600
CuZn
tinned
-25 °C
55 °C
0.13 mm²
2.5 mm²
26
14
0.5 mm²
2.5 mm²
0.5 mm²
2.5 mm²
0.5 mm²
2.5 mm²
0.5 mm²
2.5 mm²
2.4 mm x 1.5 mm;
24 A
19 A
21
16 A
630 V
320 V
250 V
2.5 kV
2.5 kV
2.5 kV
3 x 1s with 120 A
300 V
10 A
26
14
-2-
Product catalogue | PCB connection systems | PCB terminals | TOP screw connection | TOP 1.5GS/5.08 | TOP
1.5GS/90-5.08
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
AWG conductor, min.
AWG conductor, max.
Approvals
Approvals institutes
300 V
10 A
26
14
Downloads
CAD Library (P-CAD Format - Standard)
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
TOP 1.5GS.LIB
NK
EC001284
NK
NK
NK
Similar products
Order No.
0641960000
0642060000
0642160000
1578820000
0593860000
0593960000
0594060000
0594160000
0642260000
Part designation
TOP1.5GS2/90 5 2STI OR
TOP1.5GS3/90 5 2STI OR
TOP1.5GS/04/90
TOP1.5GS5/90 5 2STI OR
TOP1.5GS6/90 5 2STI OR
TOP1.5GS7/90 5 2STI OR
TOP1.5GS8/90 5 2STI OR
TOP1.5GS9/90 5 2STI OR
TOP1.5GS/10/90
Version
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 2, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 3, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 4, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 5, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 6, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 7, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 8, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 9, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 10, 90°, Box
-3-
Product catalogue | PCB connection systems | PCB terminals | TOP screw connection | TOP 1.5GS/5.08 | TOP
1.5GS/90-5.08
0594260000
0594360000
0594460000
0594560000
0594660000
0642360000
0594760000
1707040000
0594960000
0595060000
0595160000
0595260000
0595460000
TOP1.5GS11/90 5 2STI OR
TOP1.5GS12/90 5 2STI OR
TOP1.5GS13/90 5 2STI OR
TOP1.5GS14/90 5 2STI OR
TOP1.5GS15/90 5 2STI OR
TOP1.5GS16/90 5 2STI OR
TOP1.5GS17/90 5 2STI OR
TOP1.5GS18/90 5 2STI OR
TOP1.5GS19/90 5 2STI OR
TOP1.5GS20/90 5 2STI OR
TOP1.5GS21/90 5 2STI OR
TOP1.5GS22/90 5 2STI OR
TOP1.5GS24/90 5 2STI OR
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 11, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 12, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 13, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 14, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 15, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 16, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 17, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 18, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 19, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 20, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 21, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 22, 90°, Box
PCB terminal, TOP connection, Soldered connection, Clamping
range, max.: 2.5 mm², Pitch: 5.08 mm, No. of poles: 24, 90°, Box
-4-
