0717360011: DescriptionCard Edge Connector, 168 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size30KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

0717360011 Overview

Card Edge Connector, 168 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT

0717360011 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Is Samacsys	N
Other features	POLARIZED
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	71736
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	168
UL Flammability Code	94V-0
Base Number Matches	1

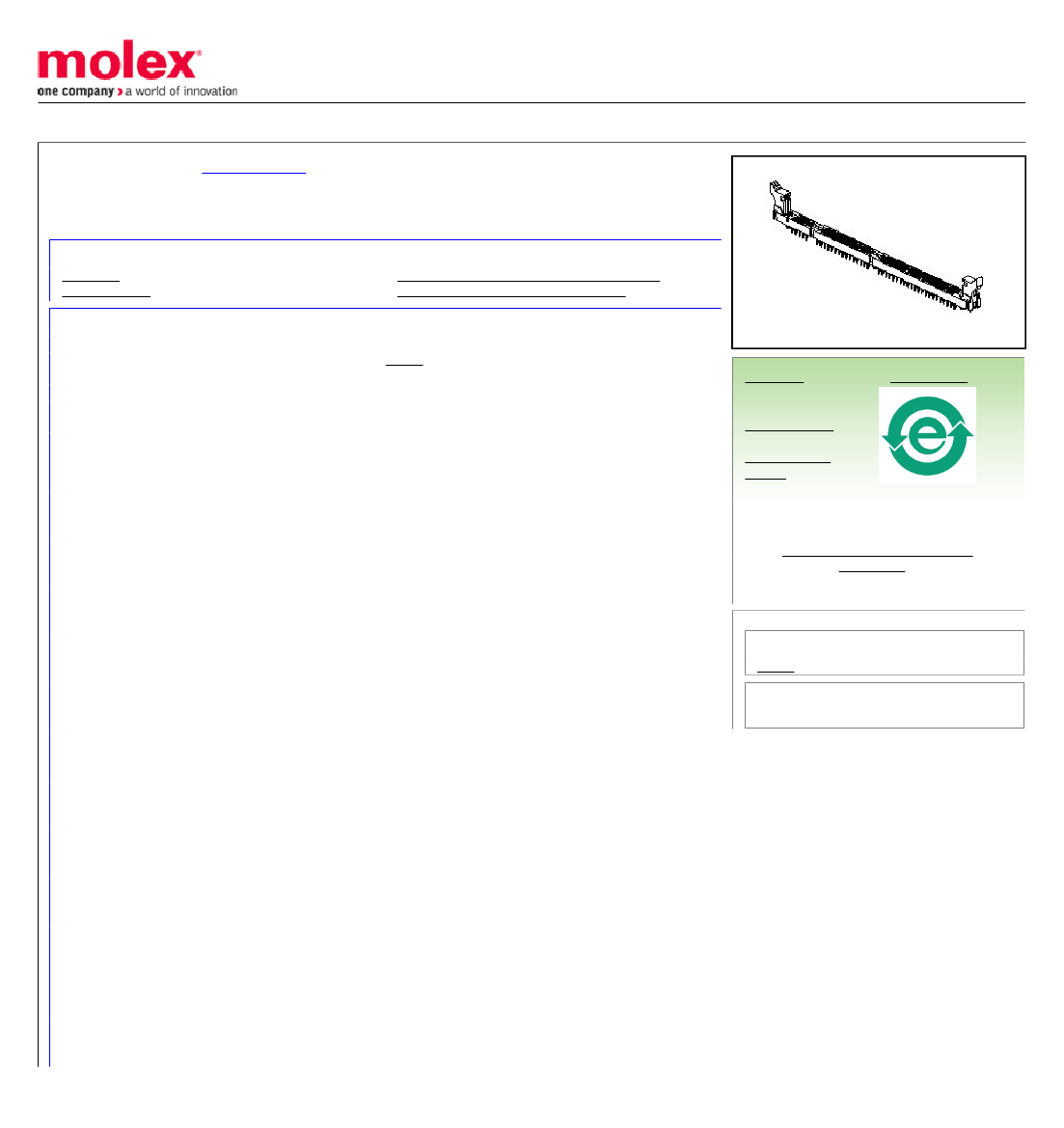

Preview

Download Datasheet

View All

This document was generated on 11/04/2009

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

0717360011

Active

1.27mm (.050") Pitch DIMM DRAM Socket, 8-Byte, Multiple Keys, Forklock, 168

Circuits, Unbuffered 3.3V

Documents:

3D Model

Drawing (PDF)

General

Product Family

Series

Comments

Component Type

JEDEC Outline

Product Name

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Entry Angle

Flammability

Function Key

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

PC Tail Length (in)

PC Tail Length (mm)

PCB Locator

PCB Retention

PCB Thickness Recommended (in)

PCB Thickness Recommended (mm)

Packaging Type

Pitch - Mating Interface (in)

Pitch - Mating Interface (mm)

Pitch - Term. Interface (in)

Pitch - Term. Interface (mm)

Plating min: Mating (µin)

Plating min: Mating (µm)

Plating min: Termination (µin)

Plating min: Termination (µm)

Temperature Range - Operating

Termination Interface: Style

Electrical

CSA

Current - Maximum

Voltage - Maximum

Voltage Key

Product Specification PS-71243-9999 (PDF)

RoHS Certificate of Compliance (PDF)

Memory Module Sockets

71736

Unbuffered 3.3V

Memory Module

MO-161

DIMM

168

Black

Natural

Vertical

94V-0

Offset Right

Yes

Phosphor Bronze

Stainless Steel

Gold

Tin

High Temperature Thermoplastic

0.127 In

3.23 mm

Yes

0.062 In

1.57 mm

Tray

0.050 In

1.27 mm

0.050 In

1.27 mm

0.05

150

3.81

-40°C to +85°C

Through Hole

LR19980

E29179

100V AC (RMS)/DC

Center

Series image - Reference only

EU RoHS

China RoHS

ELV and RoHS

Compliant

REACH SVHC

Contains SVHC: No

Halogen-Free

Status

Not Halogen-Free

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

Search Parts in this Series

71736 Series

Mates With

JEDEC MO-161 modules
