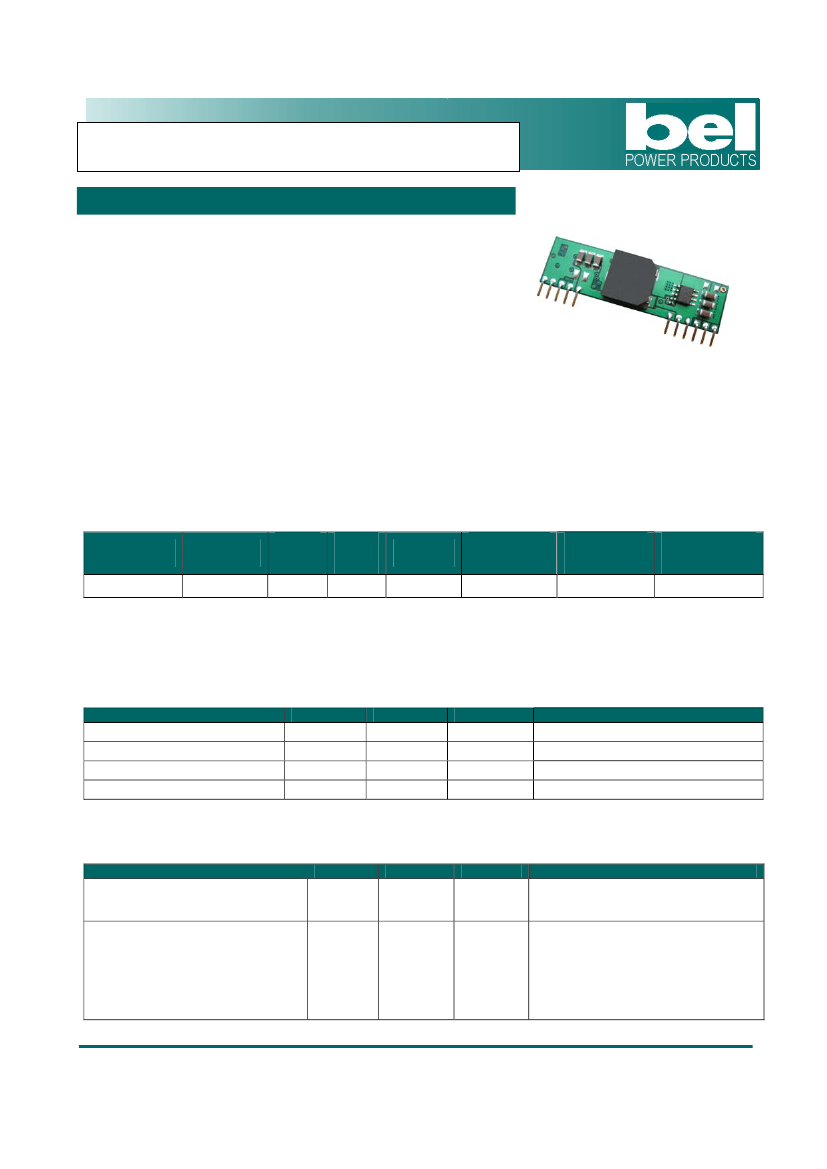

NON-ISOLATED DC/DC CONVERTERS
3.0 Vdc - 5.5 Vdc Input
0.75 Vdc - 3.63 Vdc/6 A Output
xRPB-06F1Ax
•
•
•
•
•
•
•
Non-Isolated
High Efficiency
High Power Density
RoHS Compliant
•
•
•
•
•
•
OCP/SCP
Remote On/Off
Remote Sense
Rev.A
Under Voltage Lockout (UVLO)
Fixed Frequency (300 kHz)
Power Good Output Signal
Can Sink & Source Current
Over Temperature Protection
Wide Trim Range
Active High/Low (Options)
Description
The Bel xRPB-06F1Ax modules are a series of non-isolated high density open frame dc/dc converters that can
deliver up to 6 A of output current with full load efficiency of 94% at 3.3 Vdc output. These modules provide
precisely regulated voltage programmable via external resistor from 0.75 Vdc to 3.63 Vdc over a wide range of
input voltage (Vin=3.0 Vdc - 5.5 Vdc). Standard features include remote On/Off, programmable output voltage,
over current protection, over thermal shutdown and short circuit protection.
Part Selection
Output
Voltage
0.75 V - 3.63 V
Input
Voltage
3.0 V - 5.5 V
Max.
Output
Current
6A
Max.
Output
Power
22 W
Typical
Efficiency
94%
Model
Number
Active High
VRPB-06F1A0
Model
Number
Active Low
VRPB-06F1AL
Model
Number
Active Low
VRPB-06F1AW
1
Notes:
1. “W” indicates special coating.
2. Add “G” suffix at the end of the model number listed above to indicate Tray Packaging. Change the first
letter of the model number from “V” to “0” for horizontal mount package.
3. All part numbers above indicate RoHS 6. Change the second letter "R" to "7" for RoHS 5 part numbers.
Absolute Maximum Ratings
Parameter
Input Voltage (continuous)
Output Enable Terminal Voltage
Ambient Temperature
Storage Temperature
Min
-0.3 V
-0.3 V
-40
°C
-40
°C
Typ
-
-
-
-
Max
5.8 V
5.5 V
85
°C
125
°C
Notes
Note:
All specifications are typical at 25
°C
unless otherwise stated.
Input Specifications
Parameter
Input Voltage
Vo
≤
1.8 V
Vo=2.5-3.3 V
Input Current (full load)
Vo=3.3 V
Vo=2.5 V
Vo=1.8 V
Vo=1.5 V
Vo=1.2 V
Vo=0.75 V
-
-
-
-
-
-
4.21 A
3.26 A
2.43 A
2.07 A
1.69 A
1.14 A
-
-
-
-
-
-
3.0 V
4.5 V
-
-
5.5 V
5.5 V
Min
Typ
Max
Notes
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
3.0 Vdc - 5.5 Vdc Input
0.75 Vdc - 3.63 Vdc/6 A Output
Input Specifications (continued)
Parameter
Input Current (no load)
Vo=3.3 V
Vo=0.75 V
Remote Off Input Current
Input Reflected Ripple Current (pk-pk)
Input Reflected Ripple Current (rms)
I t Inrush Current Transient
Turn-on Voltage Threshold
Turn-off Voltage Threshold
2
Min
-
-
-
-
-
-
-
1.8 V
Typ
100 mA
50 mA
10 mA
120 mA
35 mA
-
2.7 V
2.6 V
Max
-
-
-
-
-
0.04 A s
3.0 V
-
2
Notes
Tested with simulated source
impedance of 1uH, 5 Hz to 20 MHz.
Note:
All specifications are typical at 25
°C
unless otherwise stated.
Output Specifications
Parameter
Output Voltage Set Point
Output Voltage Set Point
Adjustment Range
Load Regulation
Line Regulation
Temperature Regulation
Output Current
Current Limit Threshold
Short Circuit Surge Transient
Ripple and Noise (pk-pk)
Ripple and Noise (rms)
Turn on Time
Overshoot at Turn on
External Load Capacitance
Min ESR
≥
1mhom
Max ESR
≥
10mhom
Transient Response
50% ~ 100% Max Load
Settling Time
100% ~ 50% Max Load
Settling Time
V
O
=0.75 V -
3.63 V
Min
-2%Vo,set
-3%Vo,set
0.7525 V
-
-
-
0A
9A
-
-
-
-
-
0 uF
0 uF
-
-
-
-
150 mV
25 uS
150 mV
25 uS
Typ
-
-
-
0.4%Vo,set
0.3%Vo,set
0.4%Vo, set
-
-
0.32 A s
40 mV
10 mV
6 mS
-
2
Max
2%Vo,set
3%Vo,set
3.63 V
-
-
-
6A
18 A
-
70 mV
30 mV
10 mS
3%Vo
1000 uF
3000 uF
-
-
-
-
Notes
Vin=5 V, 50% full load
Over all operating input voltages,
resistive loads and temperature
conditions
Selected by external resistor or
voltage
Io=Iomin to 50% Iomax
Vin=Vinmin to Vinmax
Tref=Tamin to Tamax
Tested with 0-20 MHz, with
external 10 uF Tantalum
capacitor and 1 uF/10 V TDK
ceramic capacitor at the output.
Test conditions:
di/dt=2.5 A/ uS; Vin=5 V; with
external 10 uF Tantalum
capacitor and 1 uF/10 V TDK
ceramic capacitor at the output.
Note:
All specifications are typical at nominal input (Vin=5 V), full load at 25
°C
unless otherwise stated.
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
3.0 Vdc - 5.5 Vdc Input
0.75 Vdc - 3.63 Vdc/6 A Output
Min
-
-
-
-
-
-
250 kHz
0.7525 V
-
-
Typ
94%
92%
89%
87%
85%
79%
300 kHz
-
-
125
°C
6,929,838 hours
Inches (L
×
W
×
H)
Millimeters (L
×
W
×
H)
Weight
-
2.0 x 0.55 x 0.36
50.80 x 13.97 x 9.14
7.5 g
Max
-
-
-
-
-
-
350 kHz
3.63 V
10%Vo
-
Notes
General Specifications
Parameter
Efficiency (Current Source)
Vo=3.3 V
Vo=2.5 V
Vo=1.8 V
Vo=1.5 V
Vo=1.2 V
Vo=0.75 V
Switching Frequency
Output Voltage Trim Range
Remote Sense Compensation
Over Temperature Shutdown
MTBF
Dimensions
-
Measured at Vin=5 V, full load
Calculated Per Bell Core SR-332 (I
O
=
Nominal; T
a
= 25
°C)
Note:
All specifications are typical at 25
°C
unless otherwise stated.
Control Specifications
Parameter
Remote On/Off
Signal Low (Unit Off)
Signal High (Unit On)
Signal Low (Unit On)
Signal High (Unit Off)
Power Good Levels
High Level
Low Level
Min
-0.2 V
-
-0.2 V
1.5 V
2.1 V
-
Typ
-
-
-
-
-
-
Max
0.3 V
Vin, max
0.3 V
Vin, max
-
1.05 V
Notes
xRPB-06F1A0; Active High; Remote On/Off
pin open, Unit on.
xRPB-06F1AL & xRPB-06F1AW; Active Low;
Remote On/Off pin open, Unit on.
Output Trim Equations
Equation for calculating the trim resistor (in kΩ) given the desired adjusted voltage (Vadj) is shown below. The
Trim resistor should be connected between the Trim pin and Ground.
Vout
R
Trim
=
21.07
−
5.11
V
adj
−
0.7525
Module
Trim
GND
Rtrim
Equation for calculating the trim voltage Vtrim (in V) given the desired adjusted voltage (Vadj) is shown below.
Vtrim
=
0.7
−
0.1698
×
(
V
adj
−
0.7525)
Vout
Module
Trim
Vtrim
GND
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
3.0 Vdc - 5.5 Vdc Input
0.75 Vdc - 3.63 Vdc/6 A Output

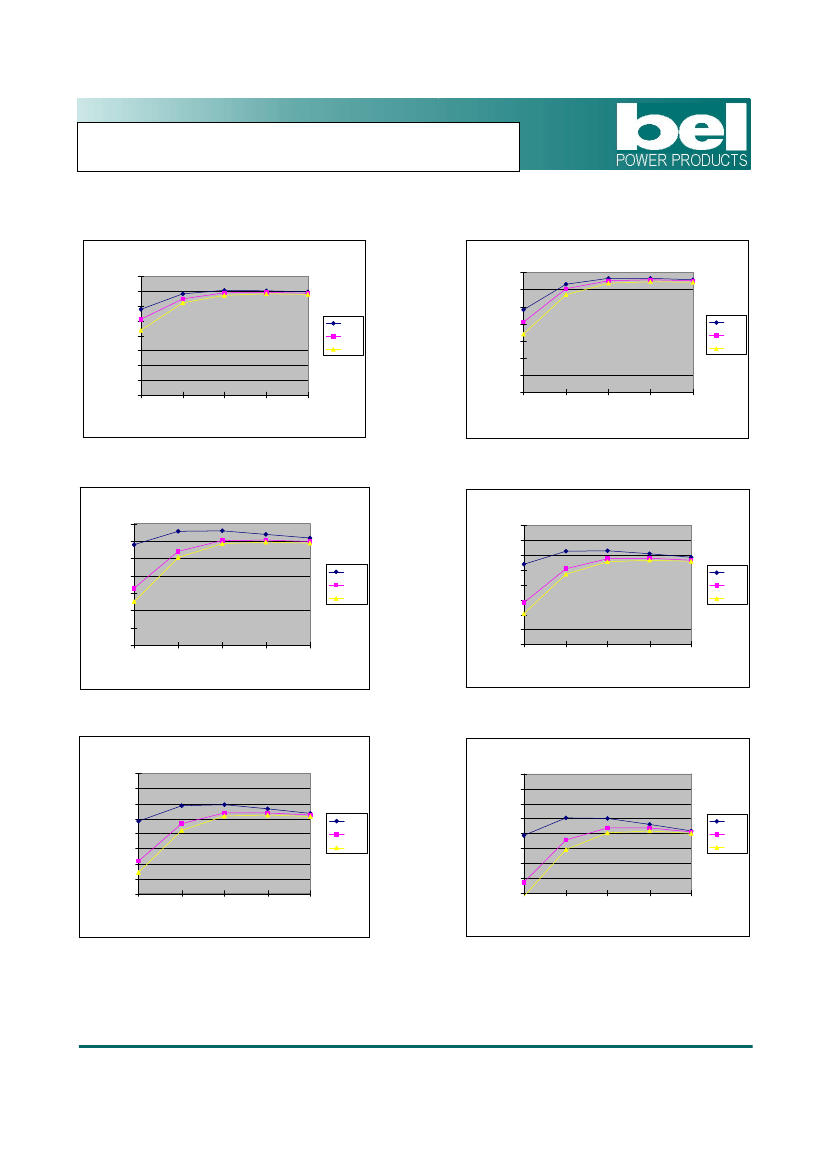

Efficiency Data
2.5V Module
95.0%
90.0%
85.0%
Efficiency
3.3V Module
100.0%
95.0%
90.0%
Efficiency
85.0%
80.0%
75.0%
70.0%
65.0%
60.0%
0.6A
1.5A
3.0A
Output Current
4.5A
6.0A
4.5V
5V
5.5V
80.0%
75.0%
70.0%
65.0%
60.0%
0.6A
1.5A
3.0A
Output Current
4.5A
6.0A
4.5V
5V
5.5V
1.8V Module
95.0%
90.0%
85.0%
Efficiency
Efficiency
100.0%
95.0%
90.0%
85.0%
80.0%
75.0%
70.0%
65.0%
60.0%
1.5V Module
80.0%
75.0%
70.0%
65.0%
60.0%
0.6A
1.5A
3.0A
Output Current
4.5A
6.0A
3V
5V
5.5V
3V
5V
5.5V
0.6A
1.5A
3.0A
Output Current
4.5A
6.0A
1.2V Module
100.0%
95.0%
90.0%
Efficiency
Efficiency
100.0%
95.0%
90.0%
85.0%
80.0%
75.0%
70.0%
65.0%
60.0%
0.6A
0.7525V Module
85.0%
80.0%
75.0%
70.0%
65.0%
60.0%
0.6A
1.5A
3.0A
Output Current
4.5A
6.0A
3V
5V
5.5V
3V
5V
5.5V
1.5A
3.0A
Output Current
4.5A
6.0A
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
NON-ISOLATED DC/DC CONVERTERS
3.0 Vdc - 5.5 Vdc Input
0.75 Vdc - 3.63 Vdc/6 A Output

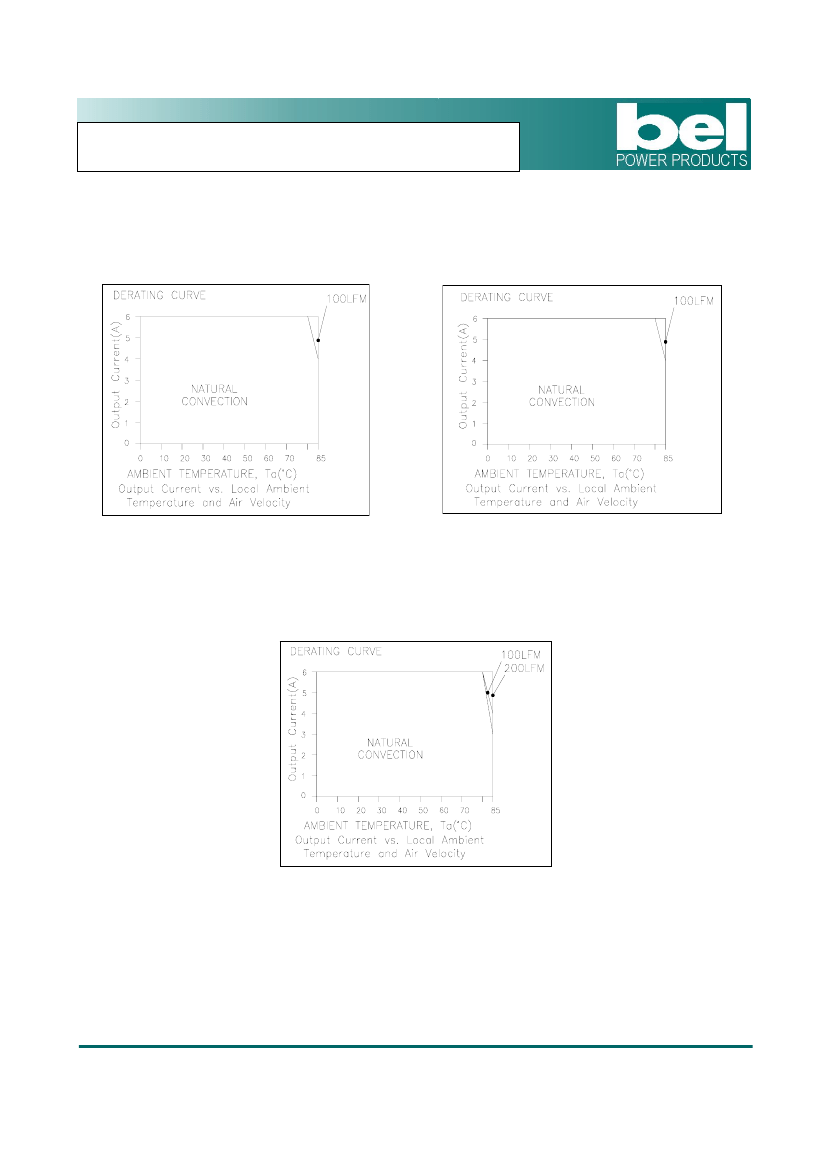

Thermal Derating Curves
Vin=5 V, Vo=0.75 V
Vin=5 V, Vo=1.8 V
Vin=5 V, Vo=3.3 V
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302
•
Tel 201-432-0463
•
Fax 201-432-9542
•
www.belfuse.com
