2110838-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2110838-4

2110838-4: Descriptionterminals signal DL Lk 92 PC kit; CategoryThe connector; File Size291KB，6 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

2110838-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2110838-4	-	-	View	Buy Now

2110838-4 Overview

terminals signal DL Lk 92 PC kit

2110838-4 Parametric

Parameter Name	Attribute value
Manufacture	TE Connectivity
Product Category	Terminals
RoHS	Yes
Produc	Kits
Wire Gauge	22-16
Insulati	Not Insulated
Factory Pack Quantity	1

Preview

Download Datasheet

View All

General Information

Kit Part Number:

Description:

Application:

2110838-4

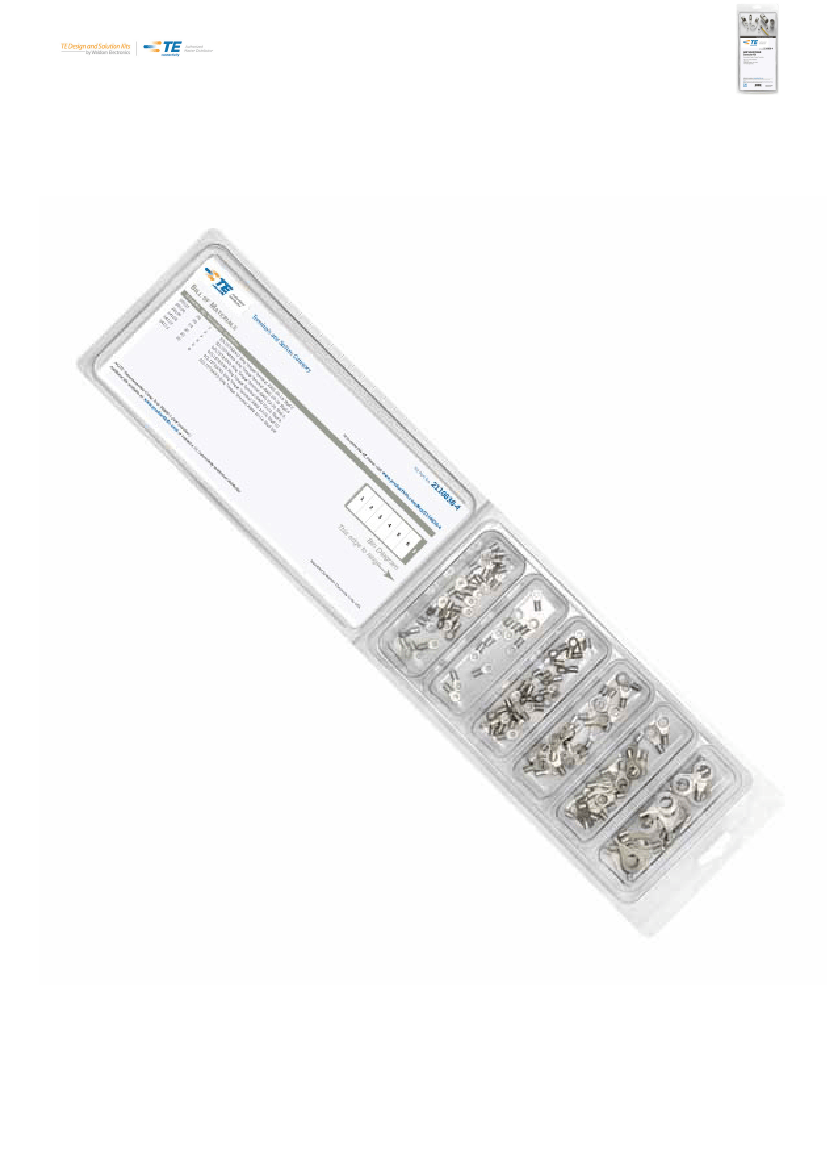

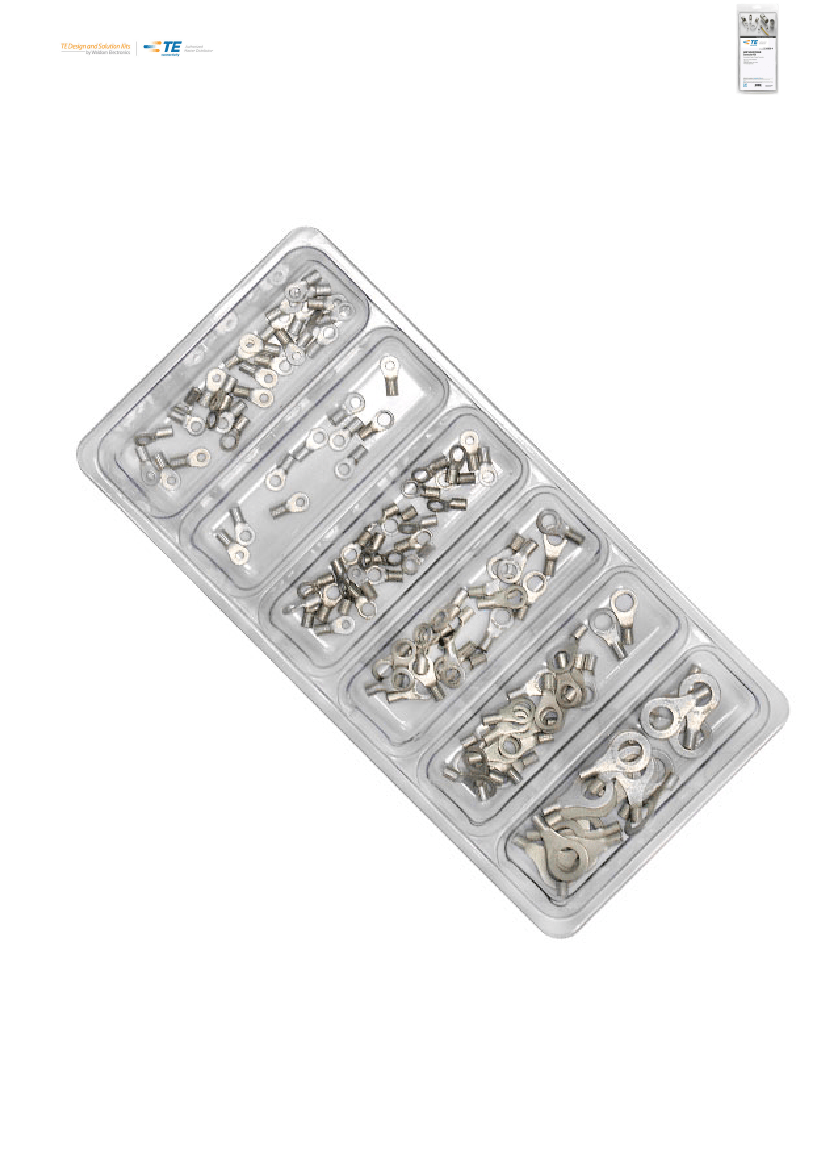

Uninsulated Ring Tongue Terminal Kit

Appliance Industries, Heavy Equipment, Instrumentation and Controls, Motors, Pad and Pole Mount Transformers,

Panel Boxes, Power Supplies, Switchgear, Telecommunications, Transportation

Family:

TE Brand:

Solution:

Product Type:

Number of Pieces:

RoHS:

Specifications

Body and Plating:

Insulation:

Stud/Tab Size:

Temperature Rating:

Terminal Type:

Tool Included:

Wire Gauge (AWG):

Product Highlights

Tin Plated, Copper Body

Non-Insulated

1/4, 2, 4, 6, 8, 10

170 Degrees C (Max)

Ring Tongue

22-16

SOLISTRAND

AMP Products

MRO (Maintenance, Repair and Operation)

Terminals & Splices

120

Yes

SOLISTRAND terminals and splices are especially designed to terminate solid and stranded wire, irregular shaped conductors, and combinations

of these, while still retaining the superior performance characteristics of single purpose terminals and splices. Because TE Connectivity matches

the terminal to the tool, each termination is uniformly perfect making quality control easy and performance consistent. Corrosion resistance,

vibration resistance and tensile strength of these terminals and splices are well within the limits of commercial and military specifications. The

SOLISTRAND line includes terminals, parallel and butt splices, flat rings, spades, hooks, and flanged tongue terminals in sizes from 26 AWG

[0.1mm2] through 600 MCM [304mm2].

Features and Benefits

• Brazed seam for uniform metal strength around the entire barrel area

• Brazed seam also prevents pinched wires

• "W" crimp provides excellent electrical performance and higher tensile strength

• Dimples or serrations inside the wire barrel provide optimum tensile strength and maximum electrical contact area after crimping

• Bell mouth on barrel entrance makes insertion of wires easier

• Product is rated for 170 degrees C maximum

Applications

• Pad and Pole Mount Transformers

• Power Supplies

• Motors

• Switchgear

• Telecommunications

• Appliances

• Panel Boxes

• Heavy Equipment

Page 1 - Retrieved on Dec 05, 2011
