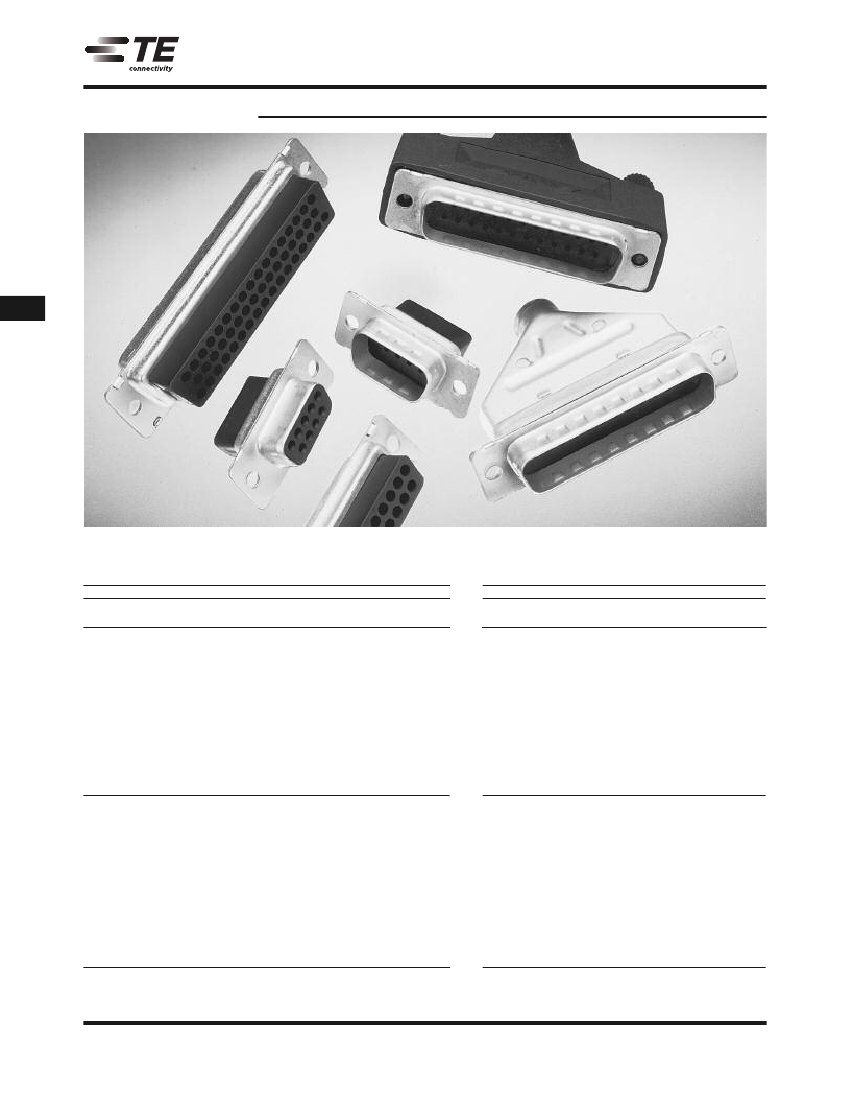

AMPLIMITE Subminiature D Connectors
HDP-20 Crimp Snap-In Contact Connectors
Cable Connectors
Product Selection Guide
Connector
Type
Insert
Material
Shell Type
Material and Finish
Zinc Plated Steel
Without Grounding
Indents
Plug
(pg. 92)
94V-0 Rated
Thermoplastic
Black
Tin Plated Steel
Without Grounding
Indents
Tin Plated Steel
With Grounding Indents
.120
[3.05] Dia. Holes
Clinch Nut,
4-40 Threads
Mounting
Type
Contacts
Termination
Plating
Duplex
(.000030
[0.00076]
Gold and
Tin)
±
Pins
(pgs. 100, 101)
Crimp
Posted
Duplex
(Gold Flash
and Tin)
Select
(.000030
[0.00076]
Gold and
Gold Flash)
Duplex
(.000030
[0.00076]
Gold and
Tin)
±
Receptacle
(pg. 93)
94V-0 Rated
Thermoplastic
Black
Zinc Plated Steel
.120
[3.05] Dia. Holes
Clinch Nuts,
4-40 Threaded
Tin Plated Steel
±
Sockets
(pgs. 100, 101)
Crimp
Posted
Duplex
(Gold Flash
and Tin)
Select
(.000030
[0.00076]
Gold and
Gold Flash)
90
Catalog 82068
Revised 4-12
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Dimensions are in inches and
millimeters unless otherwise
specified.
USA: +1 (800) 522-6752
Canada: +1 (905) 475-6222
Mexico/C. Am.: +52 (0) 55-1106-0800
Latin/S. Am.: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
AMPLIMITE Subminiature D Connectors
HDP-20 Crimp Snap-In Contact Connectors
(Continued)
Product Facts
I
I
Shell sizes offer wide
choice of contact
positions—9, 15, 25, 37
and 50
Lower cost, commercial
version of the military
approved series
Tin or zinc plated shells,
with or without grounding
indents
Crimp snap-in contacts
allows loading of only the
number of contacts being
used
Available with shielding
hardware and shielding
enclosure kits
Machine applied
terminations assure highest
production rates
at lowest applied cost
Intermateable with any size
20 Subminiature D con-
nector dimensionally com-
plying with MIL-C-24308
Recognized under the
Component Program of
Underwriters
Laboratories Inc.,
File No. E28476
R
Section Contents
Plug and Receptacle Connectors . . . . . . . . . . . . . . . . . . . . . 92, 93
Basic Shielding Hardware Kits . . . . . . . . . . . . . . . . . . . . . . . . 94, 95
Shielding Hardware Enclosure Kits . . . . . . . . . . . . . . . . . . . 96, 97
Preassembled Shielded Connector Kits . . . . . . . . . . . . . . . . . . 98
Ferrules for Shielding Hardware Kits . . . . . . . . . . . . . . . . . . . . . . 99
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100, 101
Application Tooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
I
I
I
I
I
I
I
Listed under Underwriters
Laboratories Inc., Standard
1863, Communication
Circuit Accessories,
File No. E81956
R
Cable Connectors
I
I
Numerous cable clamps and
mating hardware options
Low cost, high
performance, precision-
formed crimp contacts
I
Certified by Canadian
Standards
Association,
File No. LR 1088108
(LR 7189-207)
R

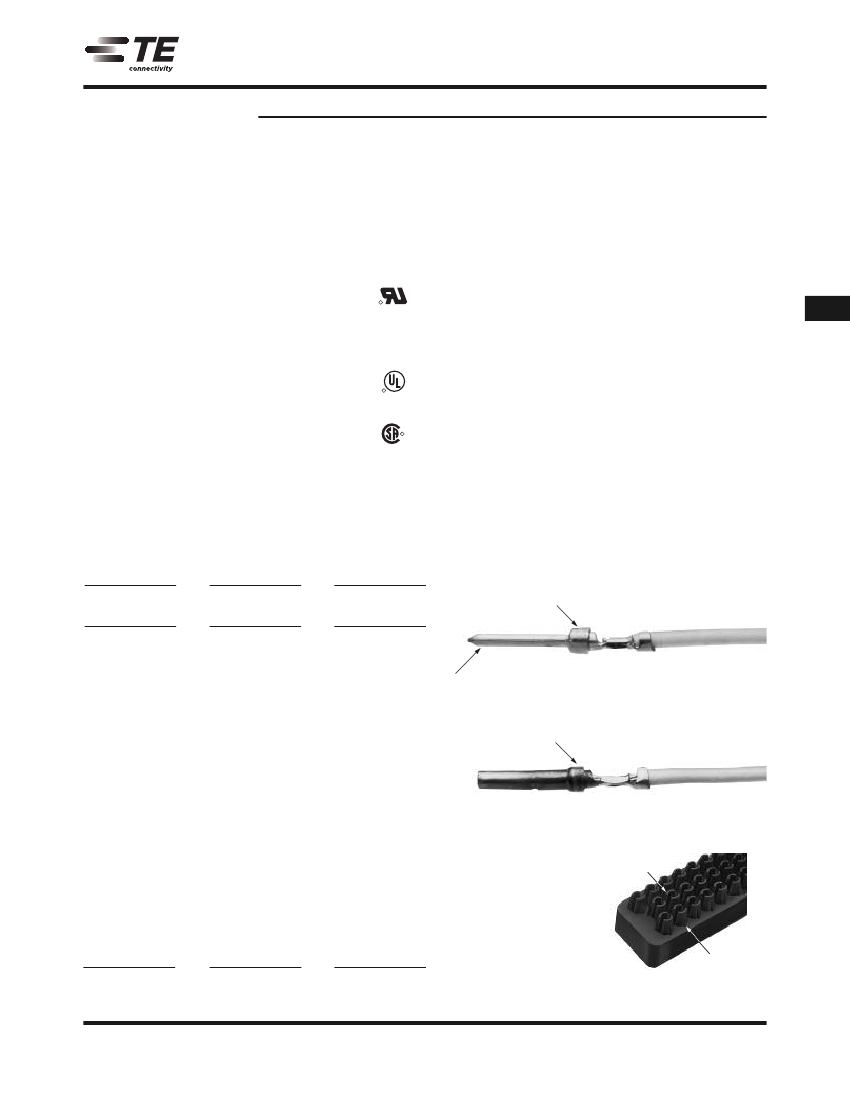

Contact Retention Features
Unshielded
Cable Clamps
Shielded Cable
Clamps and
Shielding Hardware
and Enclosure Kits
Pin
Mounting and
Mating Hardware
Radius lead-in minimizes force
needed to insert contact into housing
One-Piece
Cable Clamp
180°/120°
Quik-Snap
(pg. 134)
Box and Lid
Straight/90° Exit
(pg. 137)
Box and Lid with
Male Screw
Retainers
(pg. 137)
Clam Shell
Straight/45° Exit
(pg. 138)
Clam Shell
Straight/45° Exit
with Male Screw
Retainers
(pg. 138)
Keying Plug
(pg. 155)
Straight Exit
RFI/EMI Shields
for Jacketed
Cable (pgs. 139,
142)
Male Screw
Retainers
(pgs. 146, 147)
Female
Screwlocks
(pg. 148)
Generous lead-in to
minimize “stubbing“
Socket
Radius lead-in minimizes force
needed to insert contact
into housing
±
90° Exit Die Cast
RFI/EMI Shields
for Jacketed Cable
(pg. 142)
Basic Shielding
Hardware Kits
(pgs. 94, 95)
Shielding
Hardware
Enclosure Kits
(pgs. 96, 97)
±
Locking Posts
and Slide
Latches
(pgs. 149, 151)
Spring Latch,
Two-Piece
(pg. 152)
Latching Blocks
(pgs. 153, 154)
Standoff
Bushings
(pg. 155)
Housing Cutaway
Contact bearing surface
is large and symmetrical
Reinforced Ribs
91
Catalog 82068
Revised 4-12
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Dimensions are in inches and
millimeters unless otherwise
specified.
USA: +1 (800) 522-6752
Canada: +1 (905) 475-6222
Mexico/C. Am.: +52 (0) 55-1106-0800
Latin/S. Am.: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
AMPLIMITE Subminiature D Connectors
HDP-20 Crimp Snap-In Contact Connectors
(Continued)

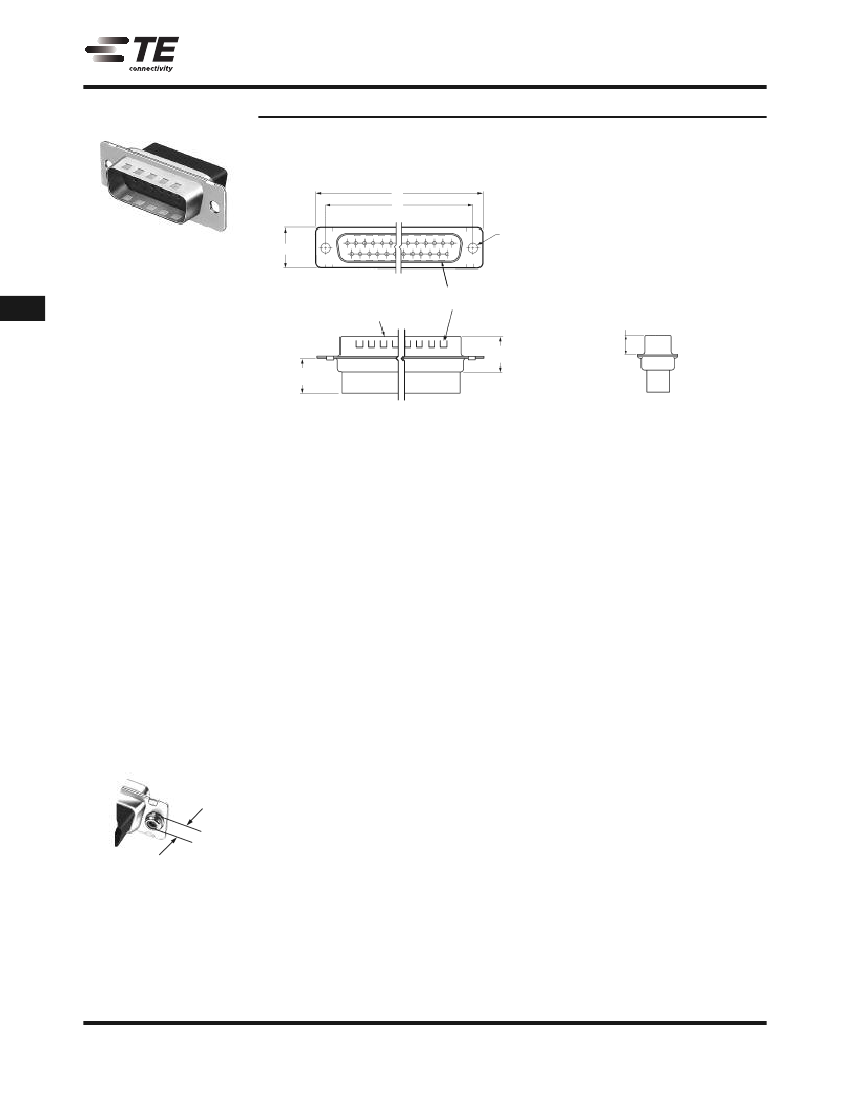

Plug
A
B
.120
[3.05] Dia.
Typ.
2 Holes
C
Material and Finish:
Shell—Steel,
zinc or tin plated
Insert—94V-0
rated thermoplastic, black
Grounding Indents
(See Table)
Mating Face
.230
[5.84]
.420
[10.67] Ref.
.432
[10.97] Max.
Cable Connectors
Mounting Holes:
Standard—.120
[3.05] Dia.
Clinch Nut—4-40
threads with
self-locking feature
Related Product Data:
Contact Arrangements—page
40
Performance Characteristics—
page 41
Contacts—pages
100, 101
Application Tooling—page
102
Mateable Connectors:
HDE—pages
110-123
HDP—pages
90-102
HD-20 Board Mount—
pages 54-71, 78-85, 87-89
Mating/Panel Mounting—page
42
Cable Clamps—pages
132, 133,
135-137, 140, 141, 144, 145
Mating Hardware—pages
146-150,
153, 155
Technical Documents:
Product Specification—108-40005
Application Specifications—
114-10000, 114-40030
.100
Max.
[2.54]
Clinch Nut
(Plug and Receptacle)
Note:
Instruction Sheets for TE Tooling
are packaged with the tooling. For
additional information call the Tooling
Assistance Center:
1-800-722-1111.
92
Catalog 82068
Revised 4-12
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Dimensions are in inches and
millimeters unless otherwise
specified.
USA: +1 (800) 522-6752
Canada: +1 (905) 475-6222
Mexico/C. Am.: +52 (0) 55-1106-0800
Latin/S. Am.: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
AMPLIMITE Subminiature D Connectors
HDP-20 Crimp Snap-In Contact Connectors
(Continued)

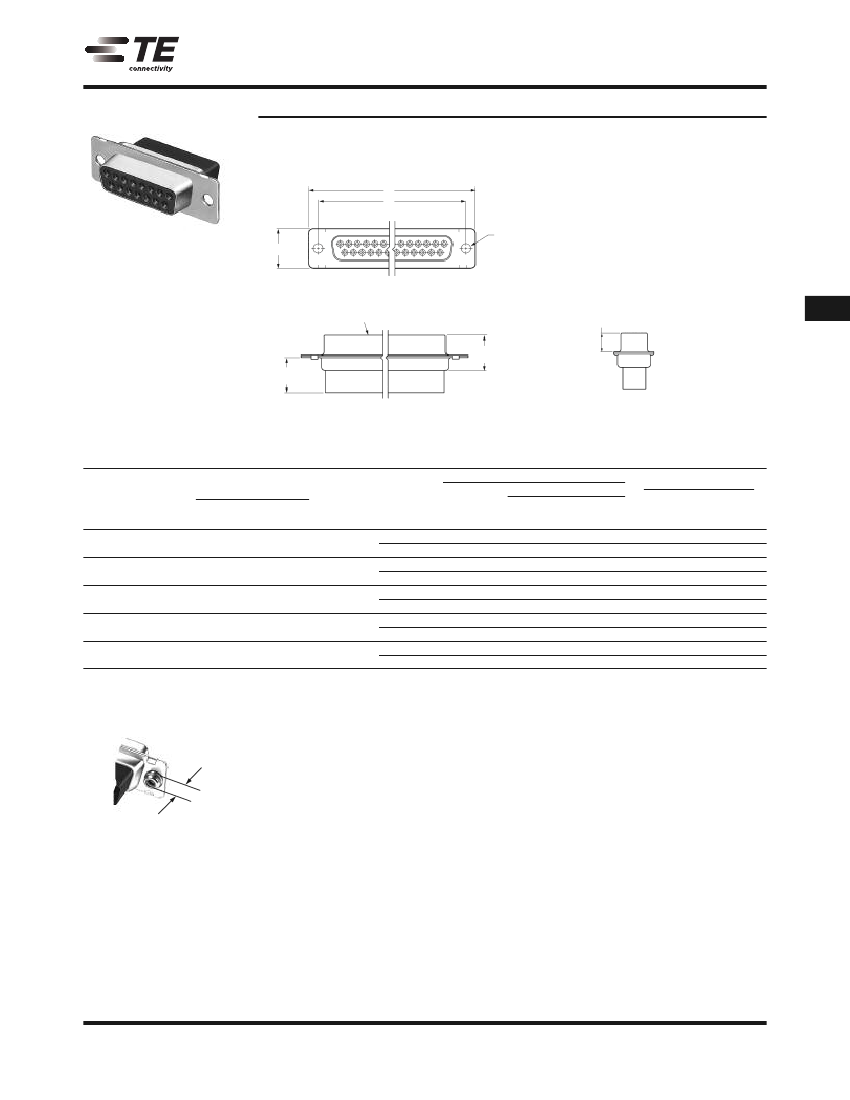

Receptacle
A
B
C
.120
[3.05] Dia.
Typ.
2 Holes
Mating Face
.243
[6.17]
Cable Connectors
.430
Ref.
[10.92]
.432
[7.90] Max.
Shell
Size
No. of
Contact
Positions
Dimensions
A
B
C
1.213
30.81
1.541
39.14
2.088
53.04
2.729
69.32
2.635
66.93
.984
24.99
1.312
33.33
1.852
47.04
2.500
63.50
2.406
61.11
.494
12.55
.494
12.55
.494
12.55
.494
12.55
.605
15.37
Insert
Material
Mounting
Method
Standard
Clinch Nut
Standard
Clinch Nut
Standard
Clinch Nut
Standard
Clinch Nut
Standard
Clinch Nut
1
2
3
4
5
9
15
25
37
50
94V-0
94V-0
*
94V-0
94V-0
94V-0
Plug Part Numbers
Tin Plated Shell
Zinc
Without
With
Plated
Grounding
Grounding
Shell
Indents
Indents
205204-9
205204-8
205204-4
—
1658642-2
1658642-1
205206-9
205206-8
205206-3
—
—
5745908-2
5205208-1
207464-7
207464-2
—
—
5745036-2
205210-8
205210-7
205210-3
—
—
745135-4
1658641-3
1658641-1
1658641-2
—
—
5745883-2
Receptacle Part Nos.
Zinc
Tin
Plated
Plated
Shell
Shell
205203-8
—
205205-7
—
5205207-1
207516-6
205209-7
—
1658640-2
—
205203-3
1658643-1
205205-2
1658644-1
207463-1
207516-5
205209-2
5207661-3
1658640-1
5745884-1
Note:
Plugs accept size 20 DF pin contacts and receptacles accept size 20 DF socket contacts.
.100
Max.
[2.54]
Clinch Nut
(Plug and Receptacle)
Note:
Instruction Sheets for TE Tooling
are packaged with the tooling. For
additional information call the Tooling
Assistance Center:
1-800-722-1111.
Note:
All part numbers are RoHS compliant.
93
Catalog 82068
Revised 4-12
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Dimensions are in inches and
millimeters unless otherwise
specified.
USA: +1 (800) 522-6752
Canada: +1 (905) 475-6222
Mexico/C. Am.: +52 (0) 55-1106-0800
Latin/S. Am.: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
AMPLIMITE Subminiature D Connectors
HDP-20 Basic Shielding Hardware Kits

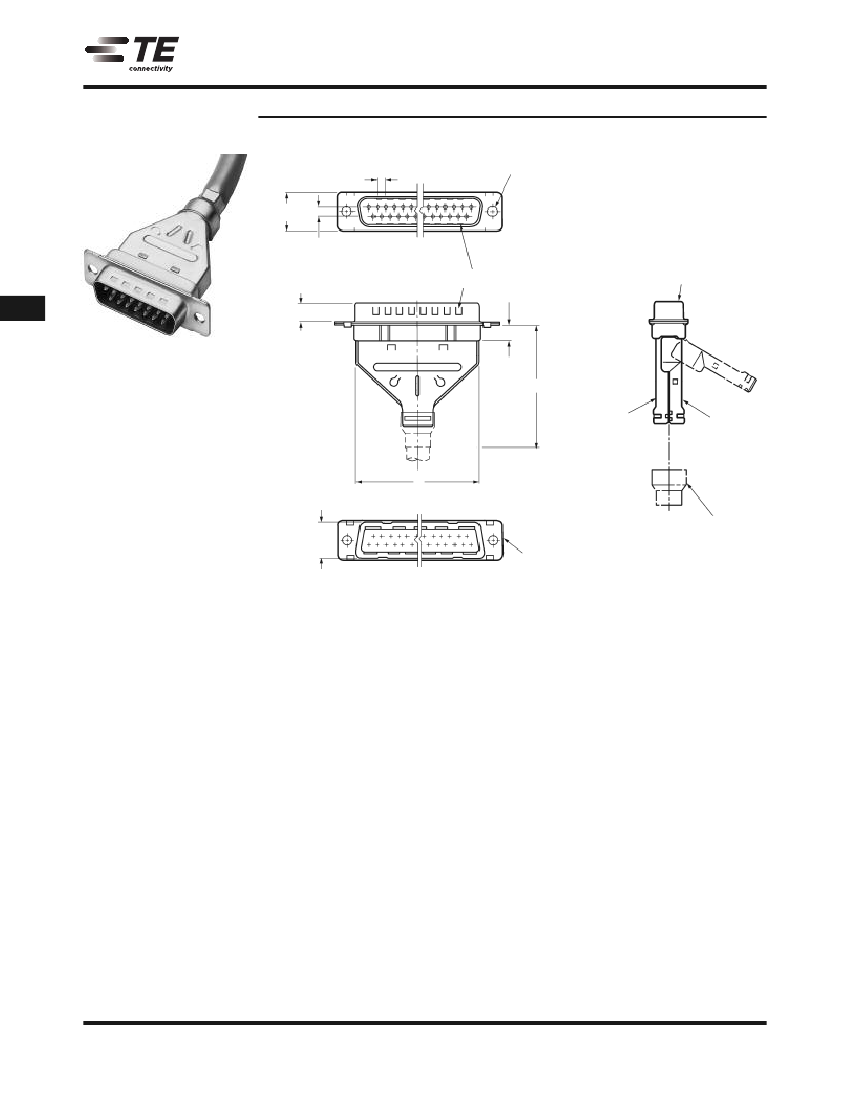

Plug
.109
[2.77] Typ.
.509
[12.93] Max.
.112
[2.84]
Typ.
.230
[5.84]
Grounding
Indents
.195
Max.
[4.95]
Typ.
Plug Connector
.120
Typ.
[3.05] 2 Holes
Cable Connectors
Each kit contains:
I
Connector
I
Inner shield
I
Outer shield
E
Contacts and ferrules must be purchased
separately.
Inside
Shield
Outside
Shield
Material and Finish:
Connector Shells—Steel,
tin plated
Connector Insert—94V-0
rated ther-
moplastic, black
Shield—Steel,
tin plated
D
Ferrule (Must
Be Purchased
Separately)
View of Rear Shell
(With Shields Removed)
.462
[11.73] Max.
Related Product Data:
Contact Arrangements—page
40
Performance Characteristics—
page 41
Contacts—pages
100, 101
Application Tooling—page
102
Mateable Connectors:
HDE—pages
110-123
HDP—pages
90-102
HD-20 Board Mount—
pages 54-71, 78-85, 87-89
Mating/Panel Mounting—page
42
Mating Hardware—pages
146-150,
153, 155
Ferrules—page
99
Technical Documents:
Product Specifications—
108-40005
108-40030
Application Specifications—
114-10000
114-40030
Instruction
Sheet—408-9010
Note:
Instruction Sheets for TE Tooling
are packaged with the tooling. For
additional information call the Tooling
Assistance Center:
1-800-722-1111.
94
Catalog 82068
Revised 4-12
www.te.com
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
Dimensions are in inches and
millimeters unless otherwise
specified.
USA: +1 (800) 522-6752
Canada: +1 (905) 475-6222
Mexico/C. Am.: +52 (0) 55-1106-0800
Latin/S. Am.: +54 (0) 11-4733-2200
Germany: +49 (0) 6251-133-1999
UK: +44 (0) 800-267666
France: +33 (0) 1-3420-8686
Netherlands: +31 (0) 73-6246-999
China: +86 (0) 400-820-6015
京公网安备 11010802033920号
EEWORLD
