50009-1048CLF datasheet, PDF - EEWORLD Datasheet

50009-1048CLF: DescriptionBoard Connector, 48 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size515KB，9 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

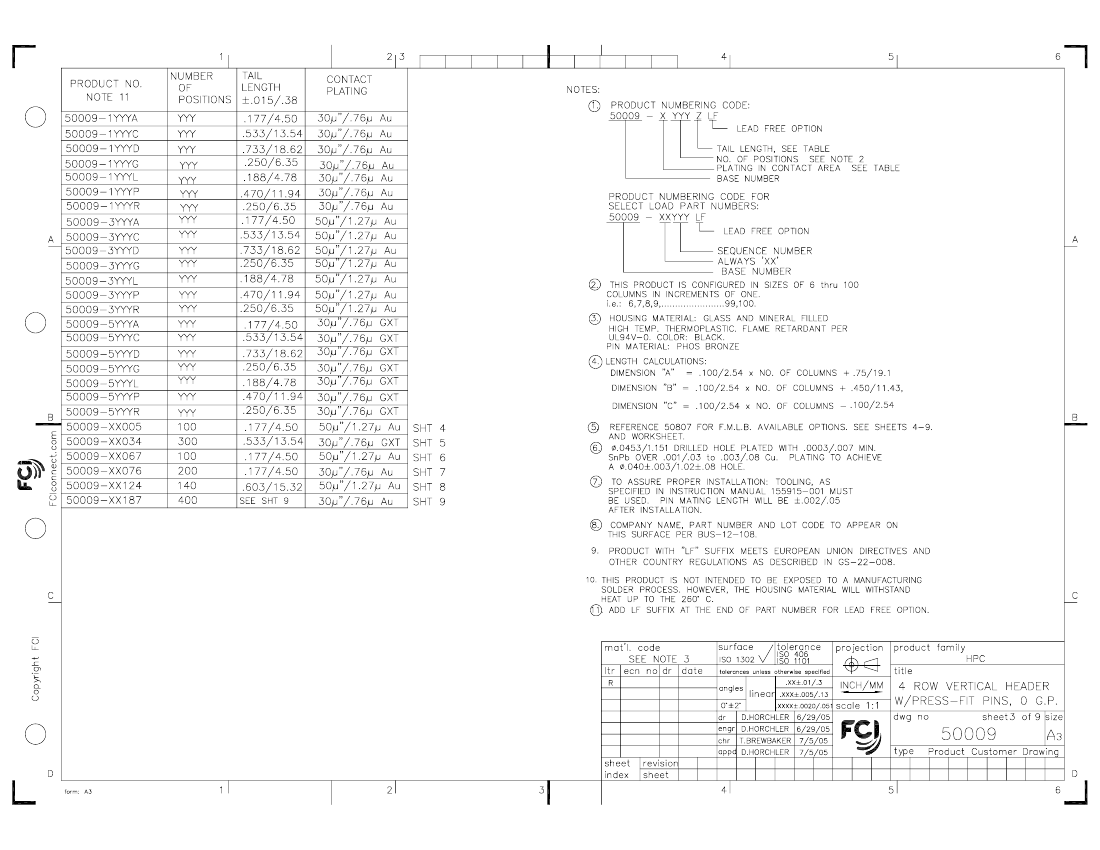

50009-1048CLF Overview

Board Connector, 48 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1729413258
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.85
Board mount options	HOLE .12

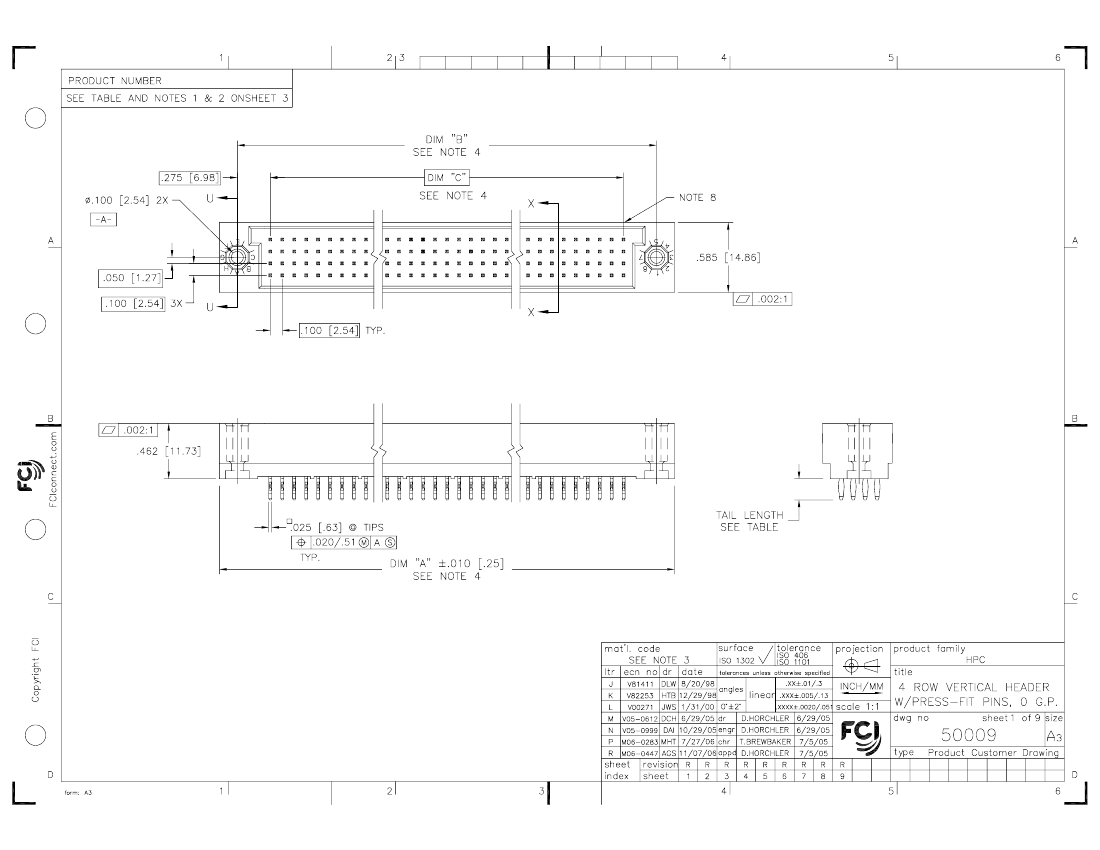

body width	0.585 inch
subject depth	0.462 inch
body length	1.95 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VDC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	0.97 N
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE

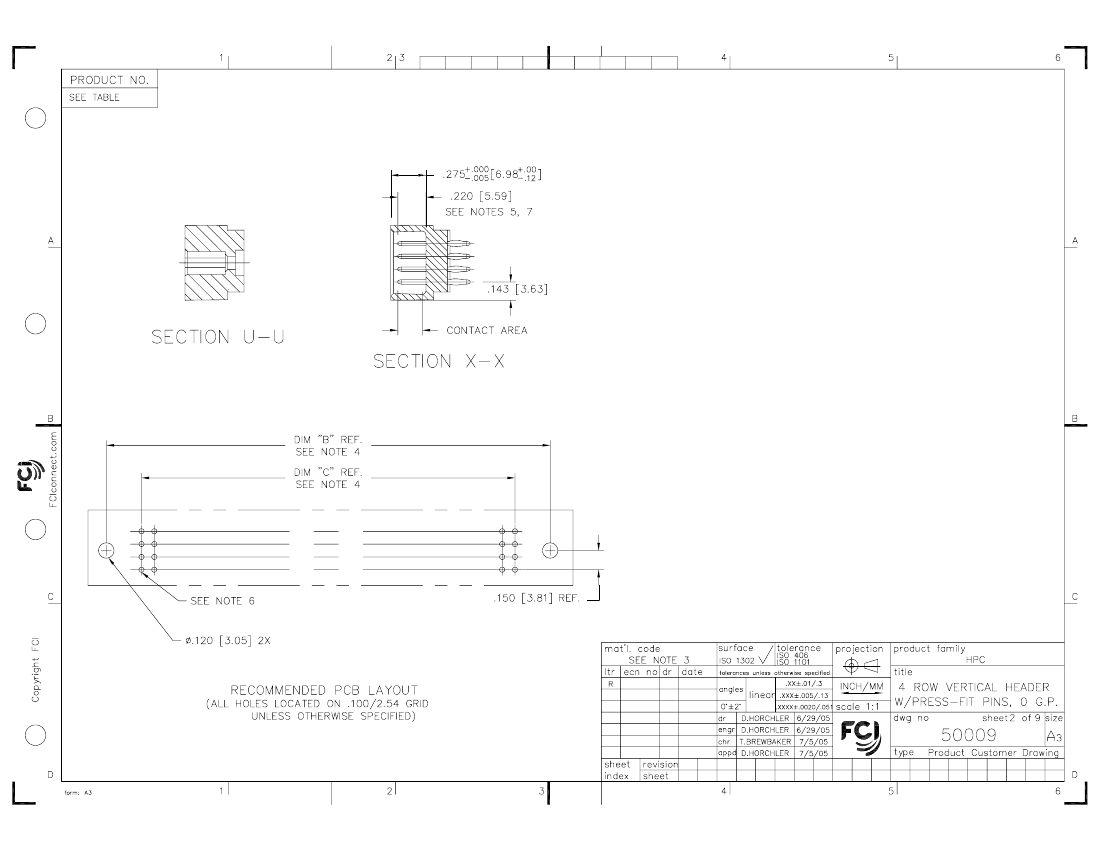

PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
Terminal length	0.533 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT

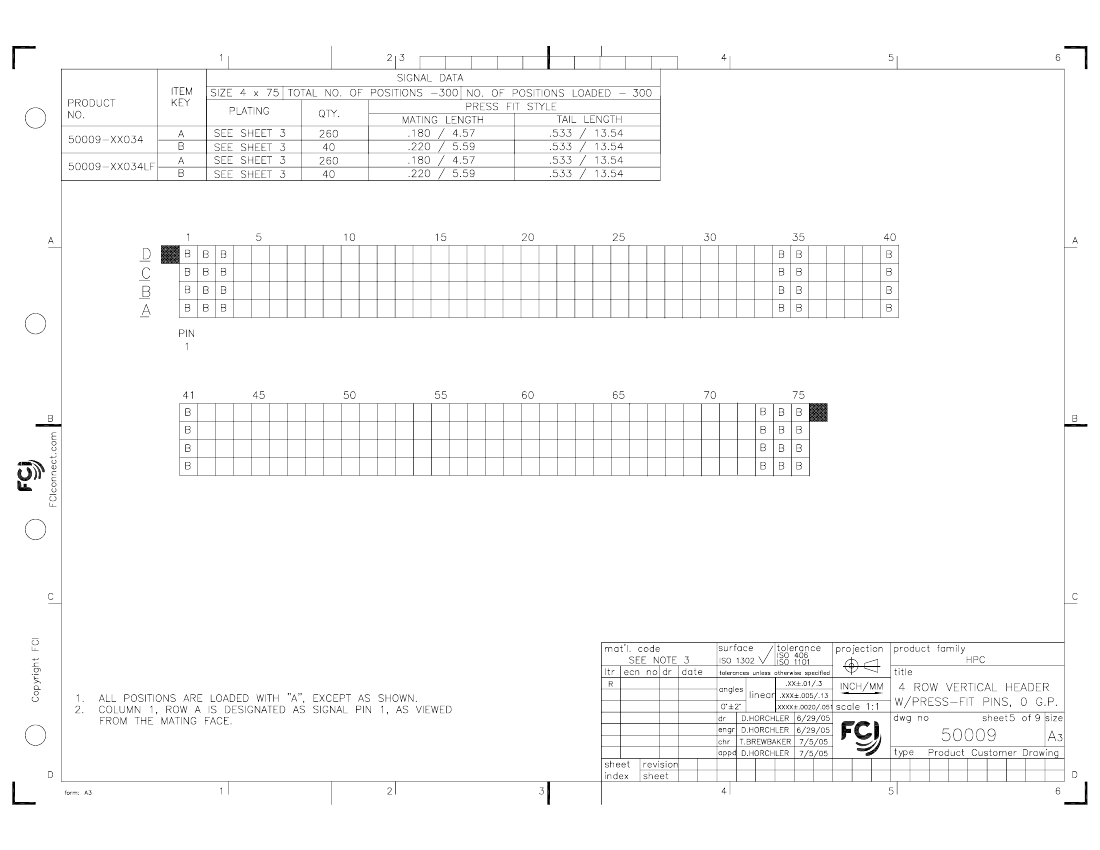

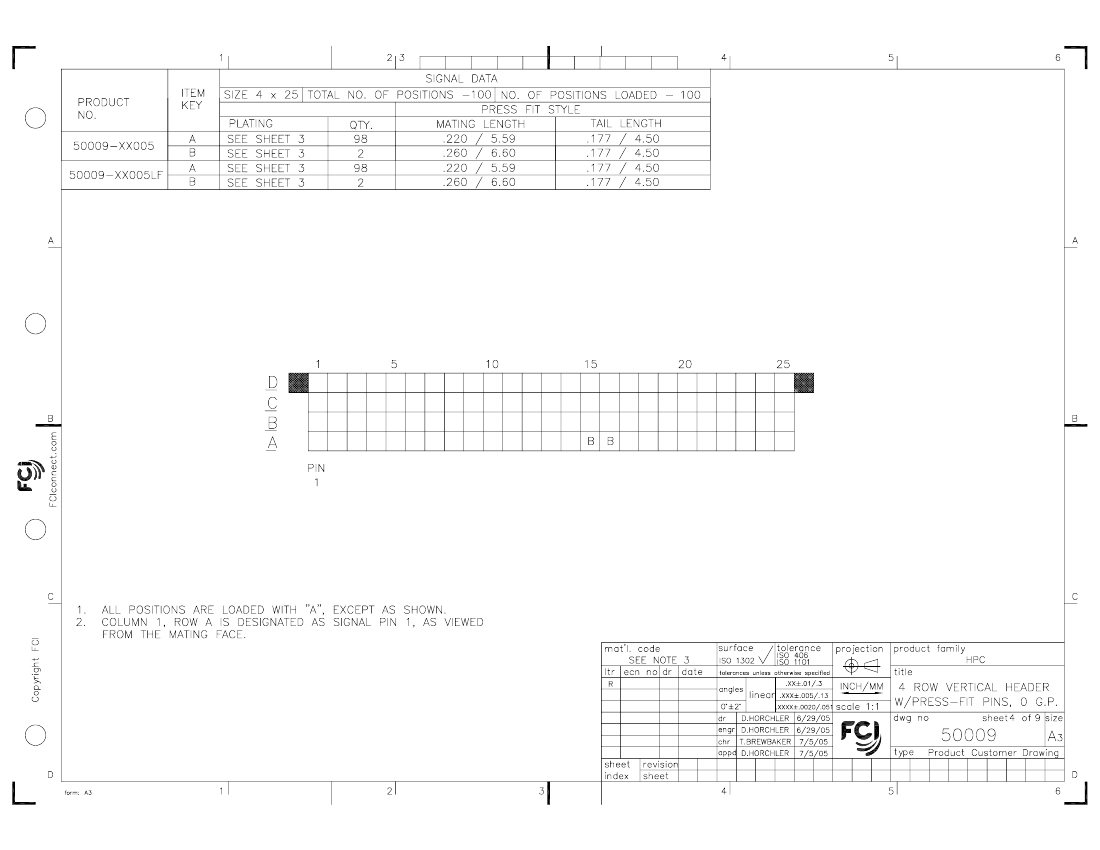

Total number of contacts	48
UL Flammability Code	94V-0
Evacuation force-minimum value	0.18 N

PDM: Rev:R

STATUS:

Released

Printed: May 13, 2011
