51940-121 datasheet, PDF - EEWORLD Datasheet

51940-121: DescriptionBoard Connector, 36 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size316KB，4 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com

Download Datasheet Parametric View All

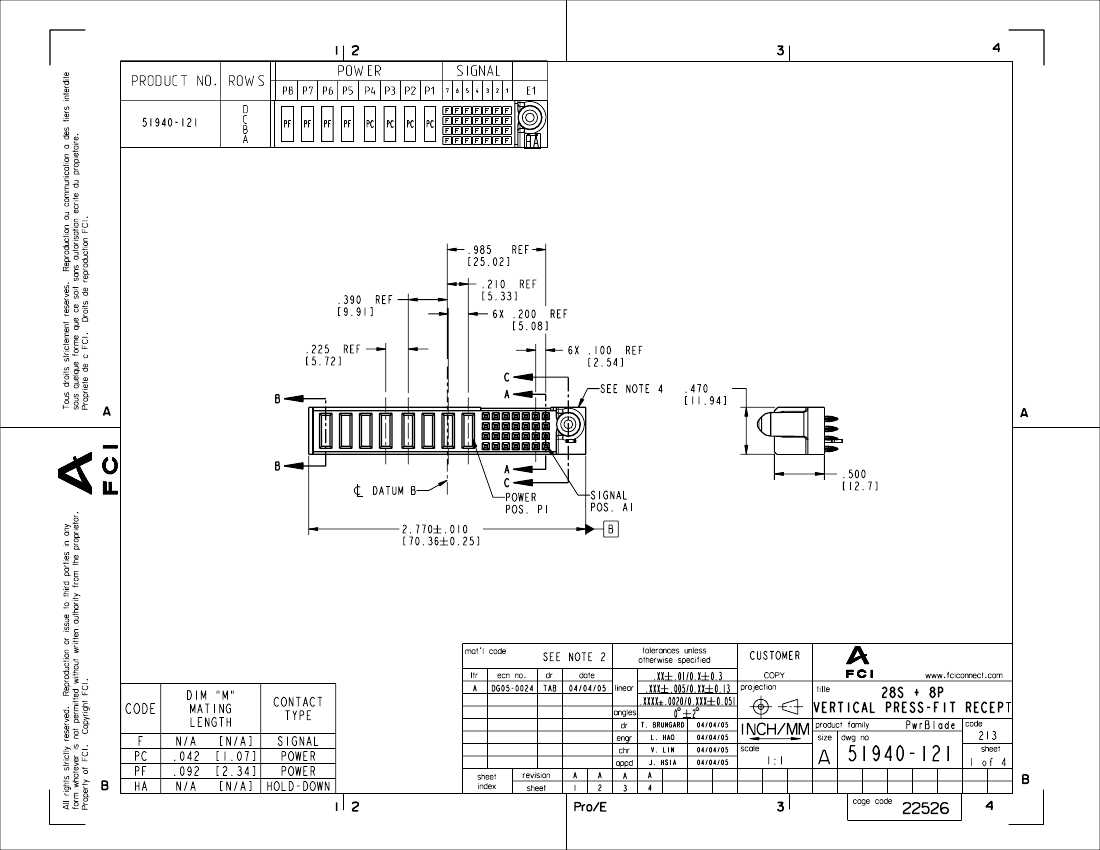

51940-121 Overview

Board Connector, 36 Contact(s), 4 Row(s), Female, Straight, Press Fit Terminal, Locking, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ECLIPTEK
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
body width	0.47 inch
subject depth	0.5 inch
body length	2.77 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact arrangement	S28P8
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	51940
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	36
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N
Base Number Matches	1

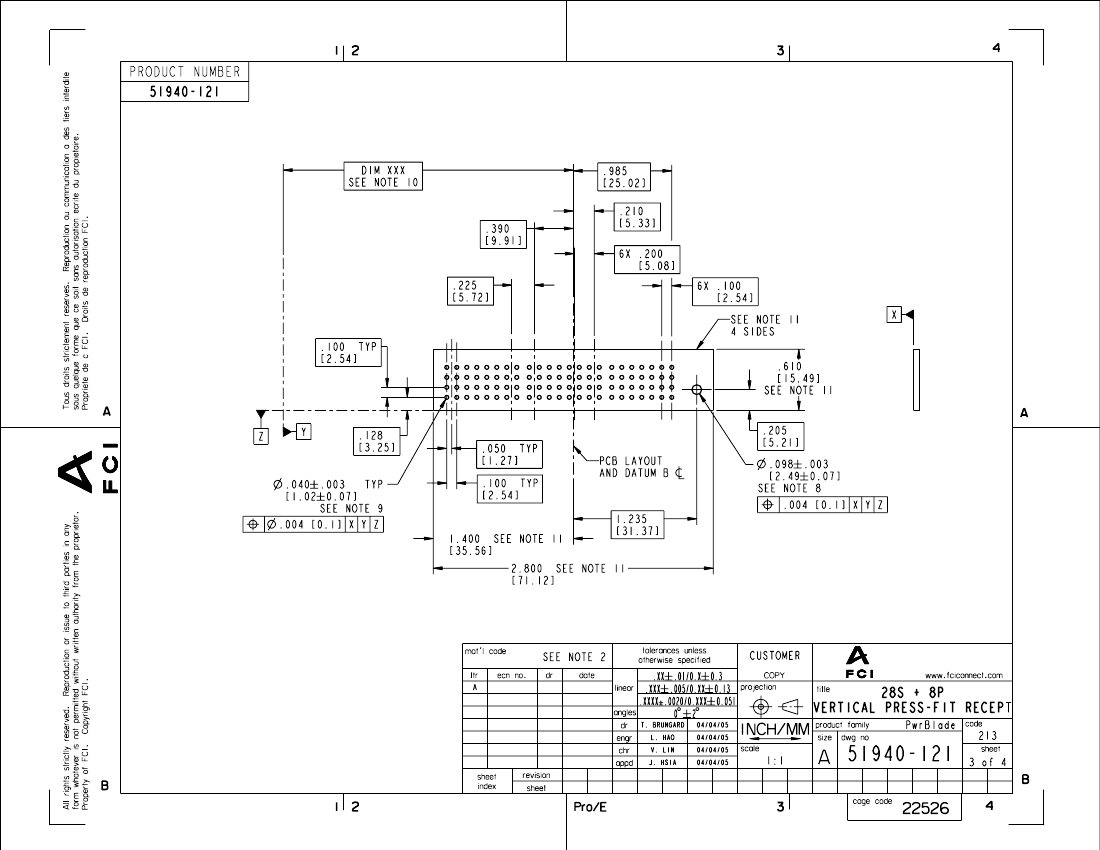

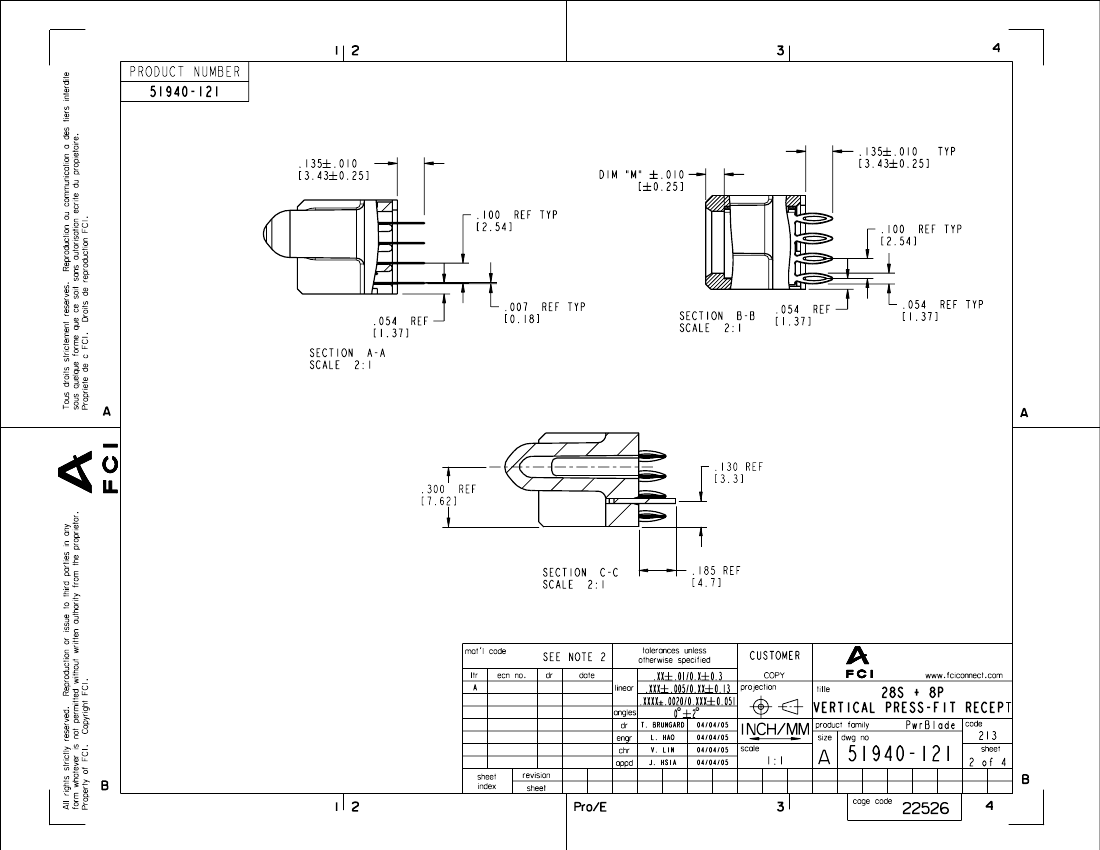

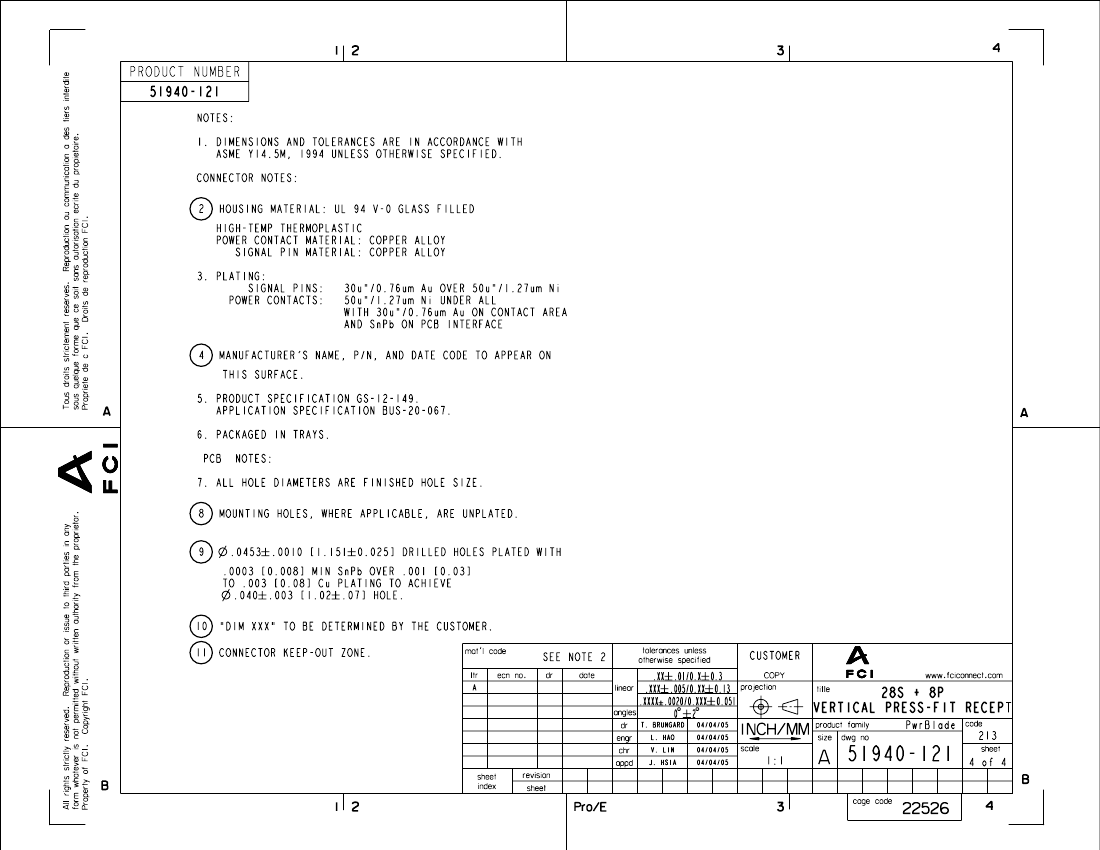

PDM: Rev:A

STATUS:

Released

Printed: Dec 20, 2010
