51940-491 datasheet, PDF - EEWORLD Datasheet

51940-491: DescriptionBoard Connector, 96 Contact(s), 4 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size211KB，4 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com

Download Datasheet Parametric View All

51940-491 Overview

Board Connector, 96 Contact(s), 4 Row(s), Female, Straight, 0.1 inch Pitch, Press Fit Terminal, Locking, Receptacle

Parameter Name	Attribute value
Maker	ECLIPTEK
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
body width	0.47 inch
subject depth	0.5 inch
body length	3.05 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VDC V
Durability	200 Cycles
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51940-491
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	96
Evacuation force-minimum value	.1668 N
Base Number Matches	1

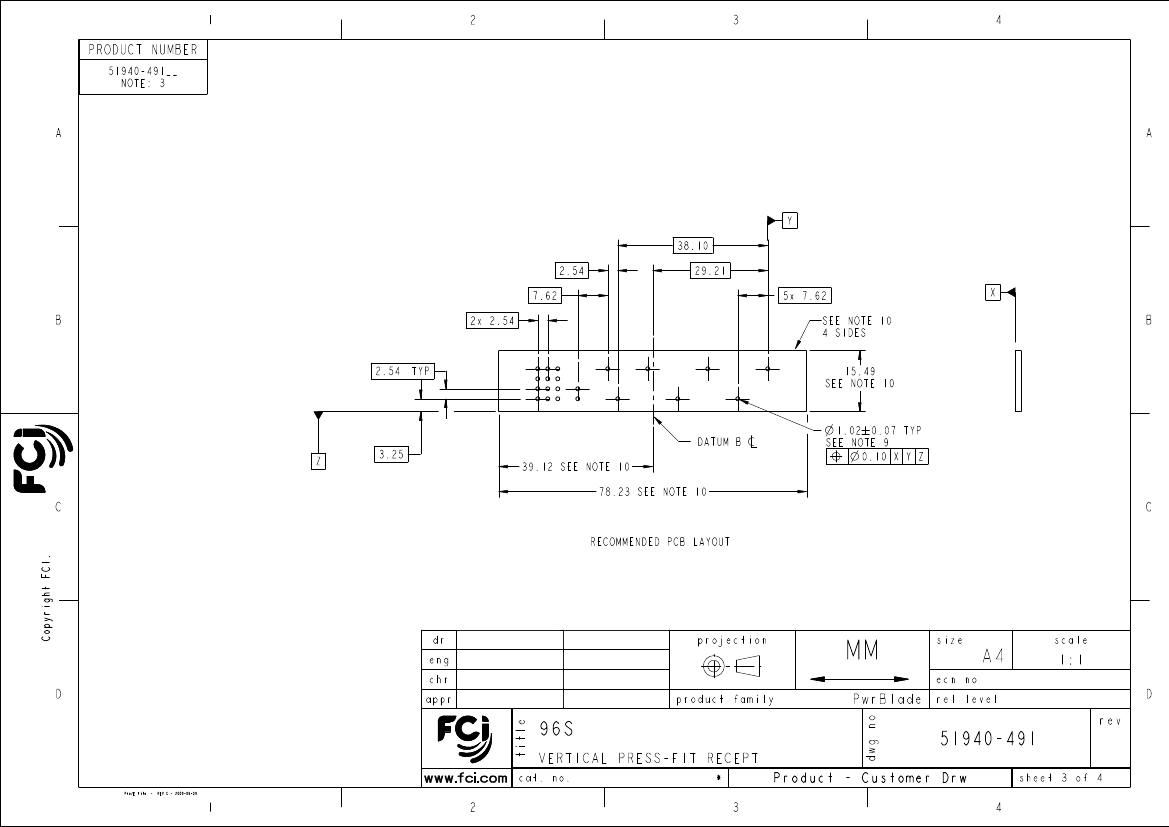

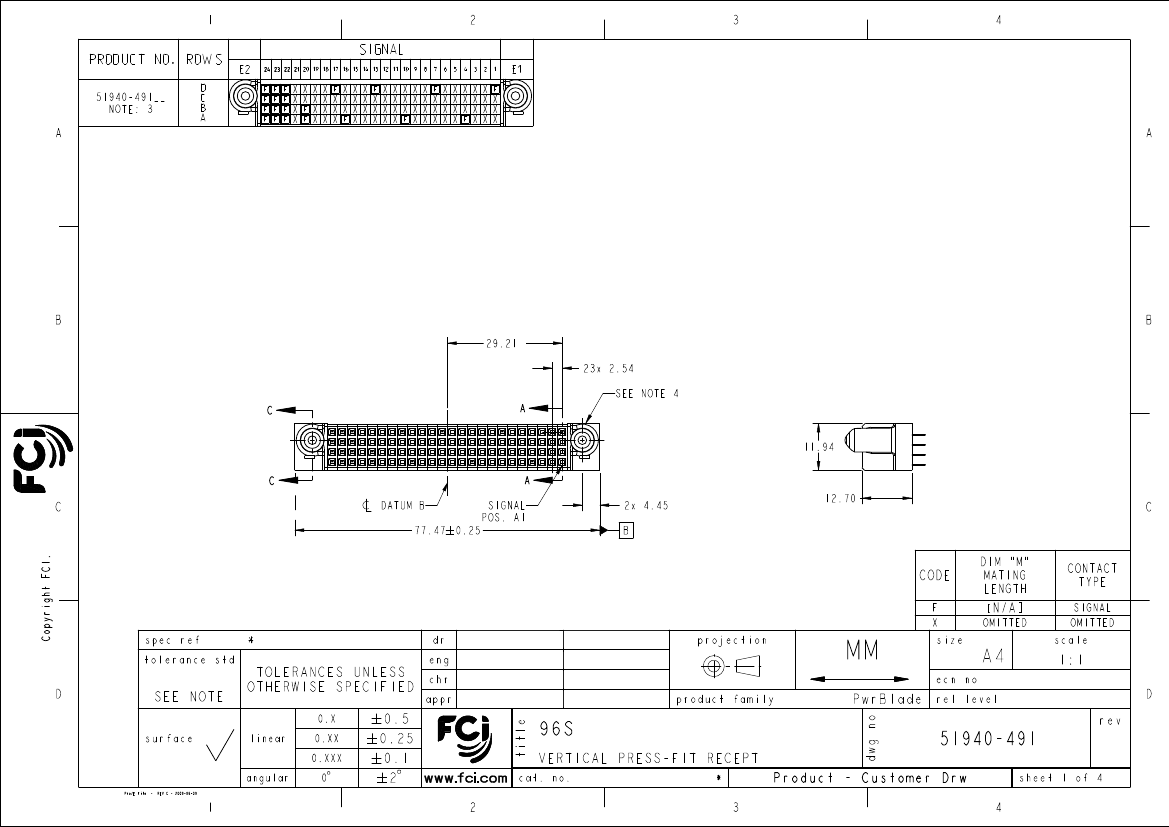

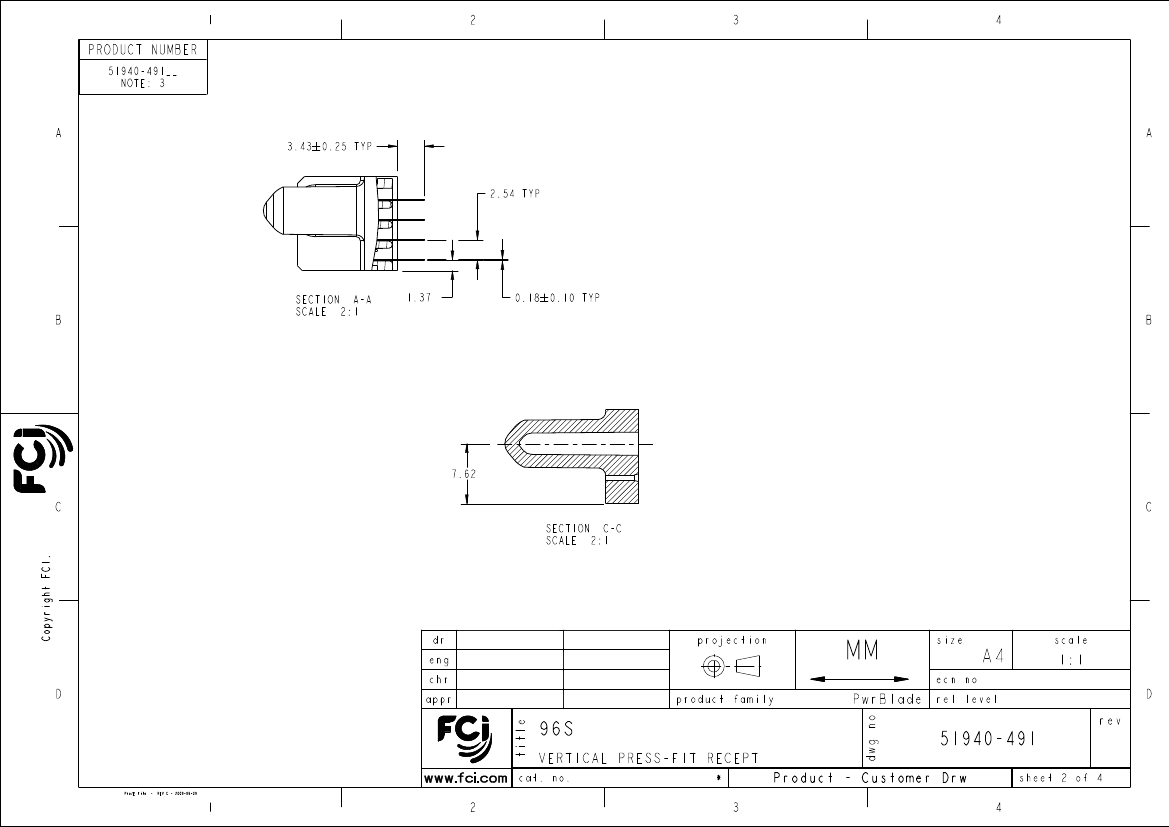

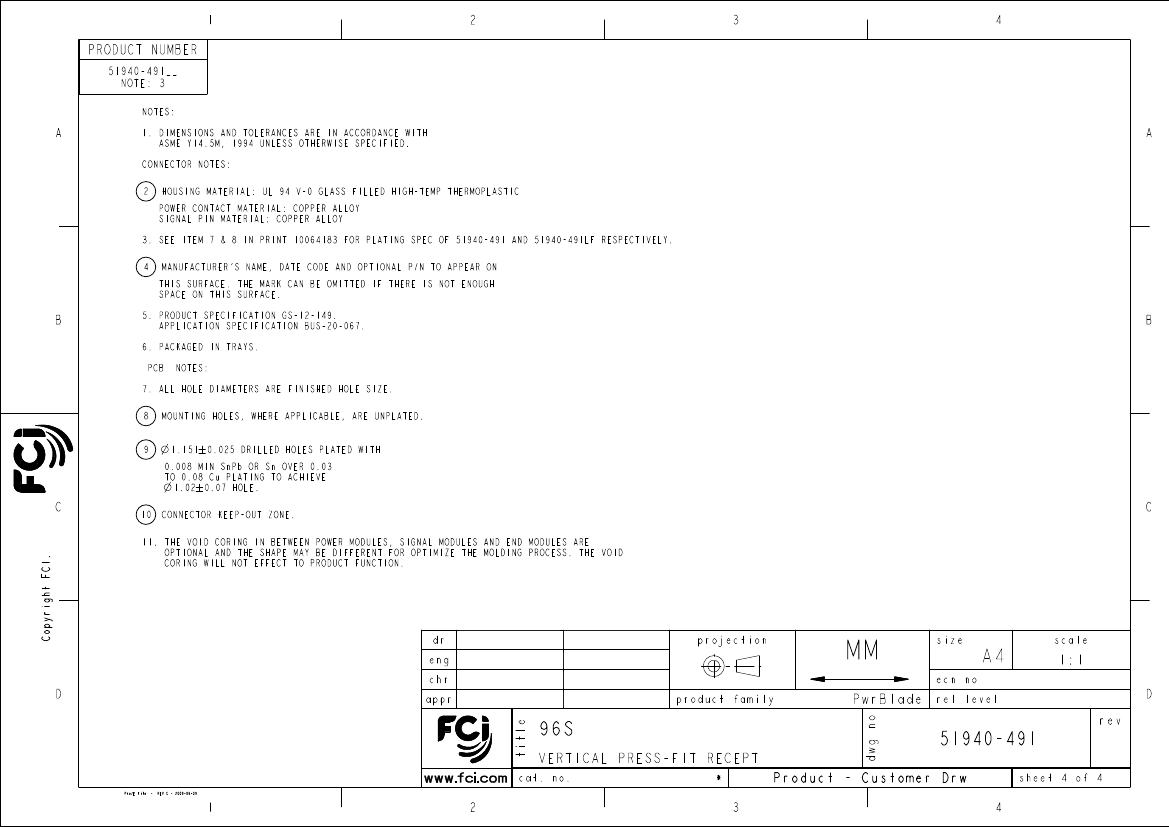

Luo Weller

Pei-Ming Zheng

2013/04/23

2013/05/15

Released

PDS: Rev :A

STATUS:Released

Printed: May 16, 2013
