SG1525AJ/883 datasheet, PDF - EEWORLD Datasheet

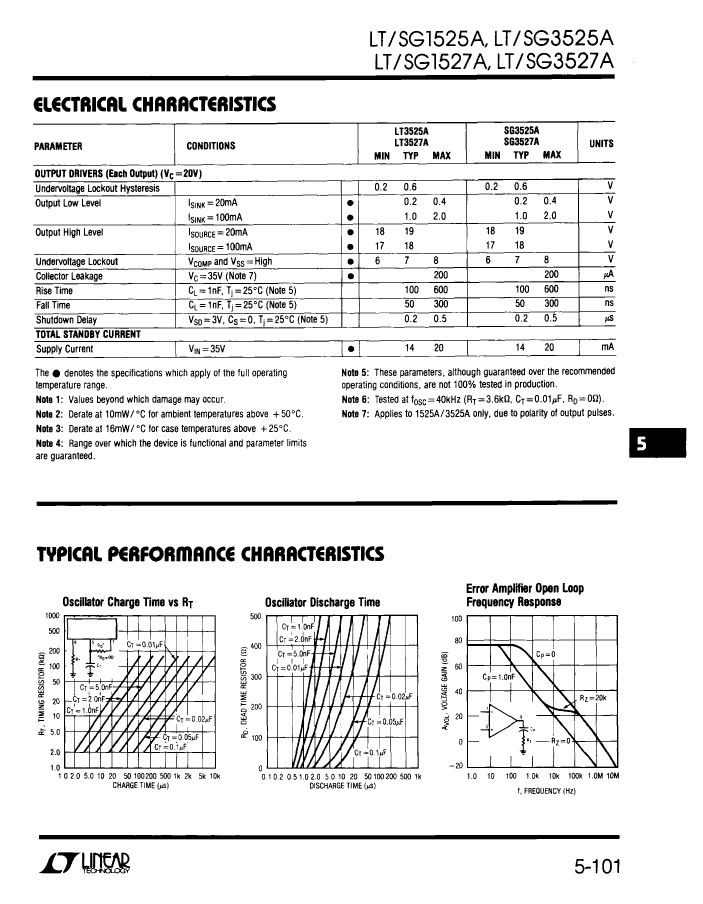

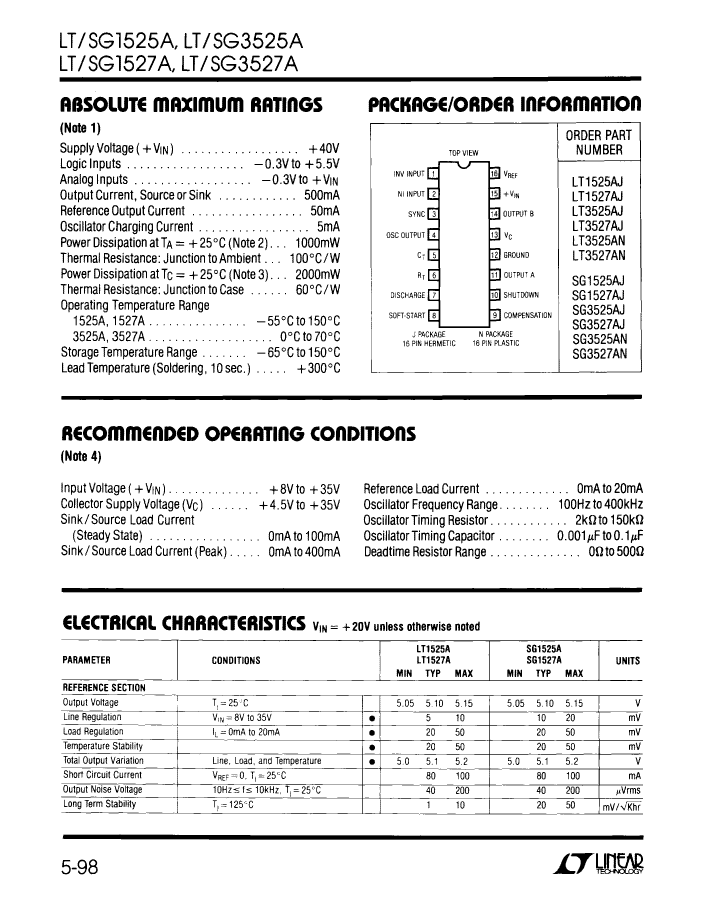

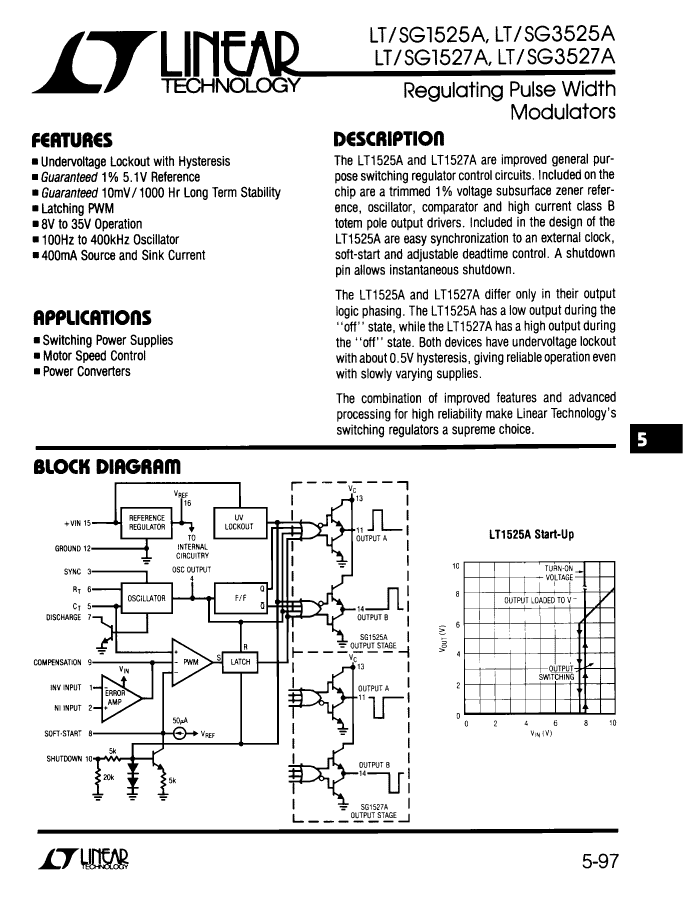

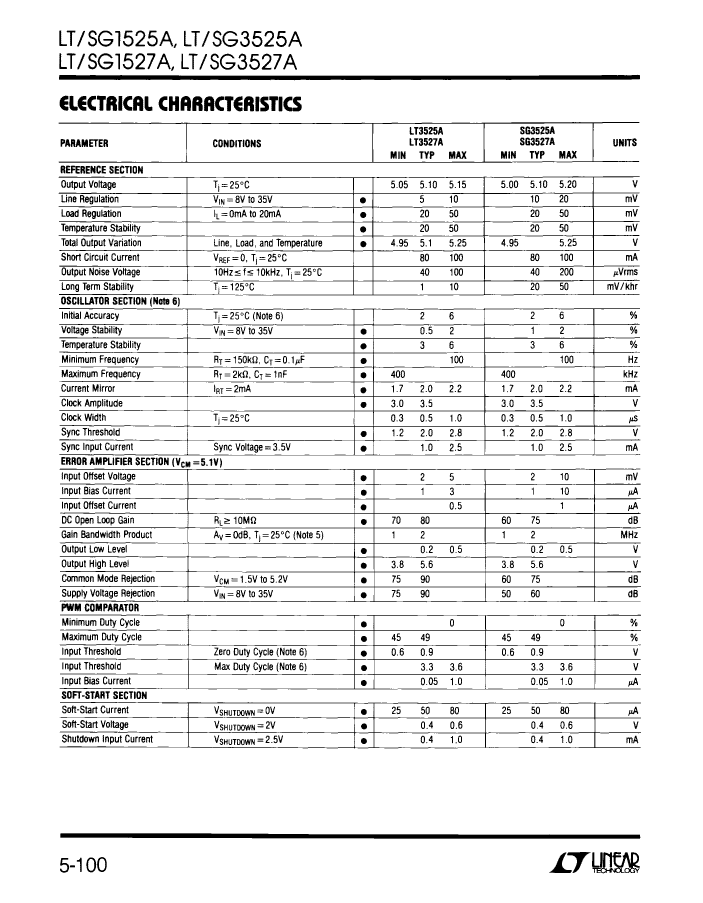

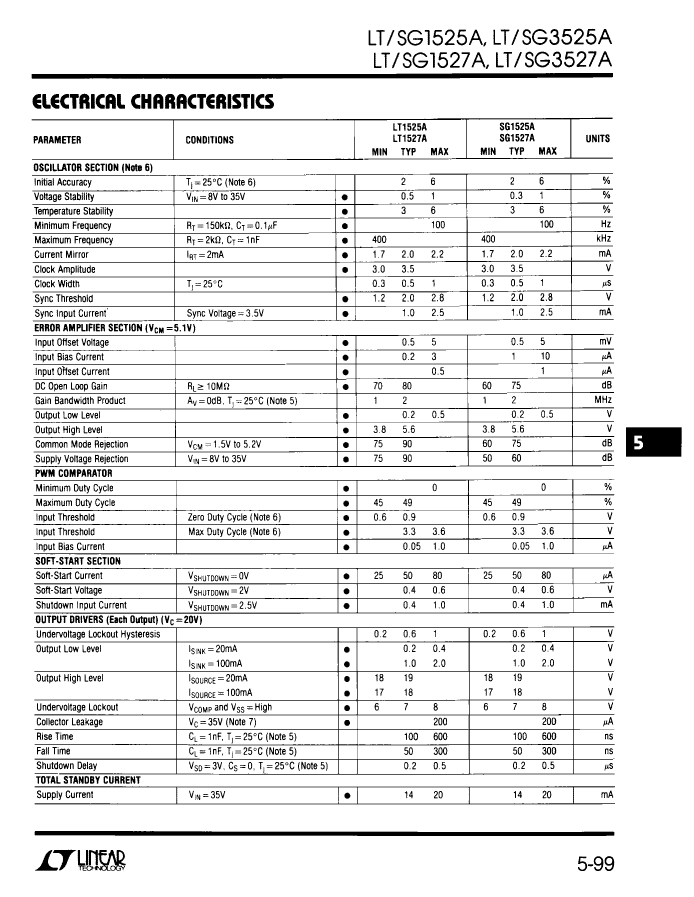

SG1525AJ/883: DescriptionIC 0.5 A SWITCHING CONTROLLER, 400 kHz SWITCHING FREQ-MAX, CDIP16, HERMETIC SEALED, CERDIP-16, Switching Regulator or Controller; CategoryPower/power management The power supply circuit; File Size292KB，8 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric View All

SG1525AJ/883 Overview

IC 0.5 A SWITCHING CONTROLLER, 400 kHz SWITCHING FREQ-MAX, CDIP16, HERMETIC SEALED, CERDIP-16, Switching Regulator or Controller

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	DIP
package instruction	HERMETIC SEALED, CERDIP-16
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Analog Integrated Circuits - Other Types	SWITCHING CONTROLLER
control mode	VOLTAGE-MODE
Control Technology	PULSE WIDTH MODULATION
Maximum input voltage	35 V
Minimum input voltage	8 V
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.05 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	0.5 A
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply current (Isup)	20 mA
surface mount	NO
Switch configuration	PUSH-PULL
Maximum switching frequency	400 kHz
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1
