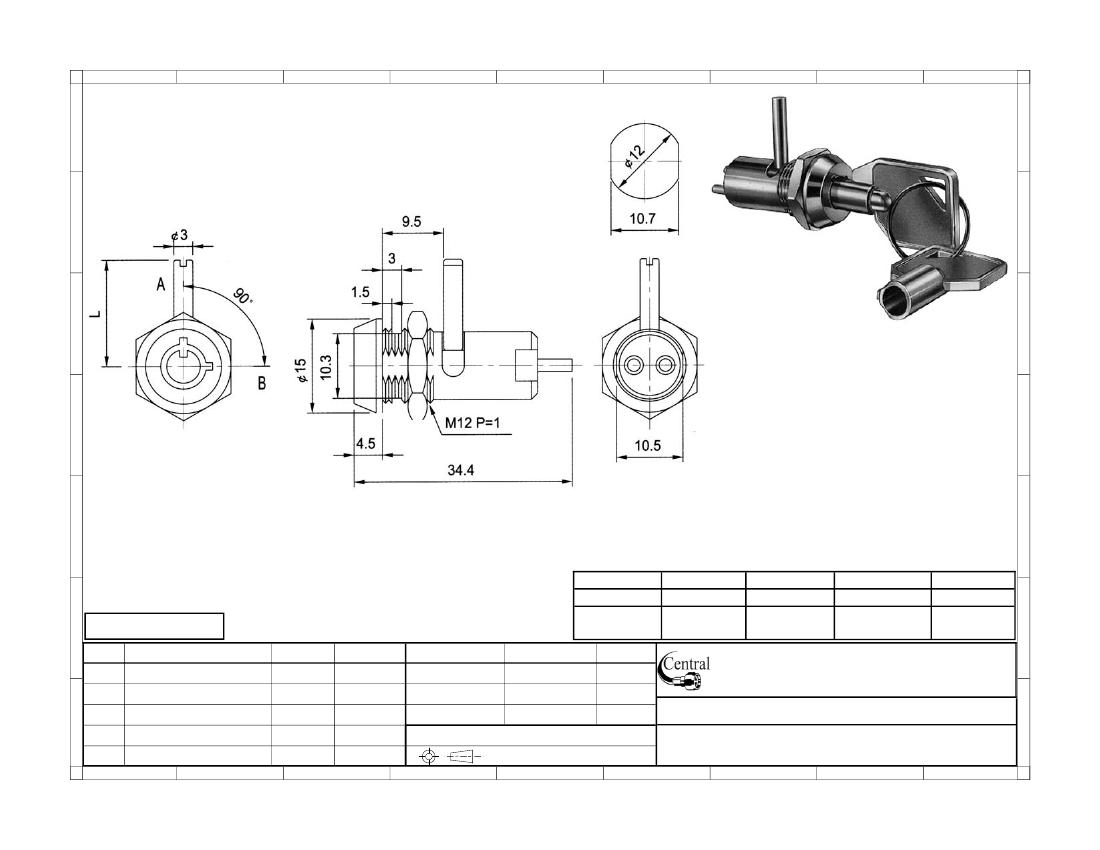

SPECIFICATIONS
•
Zinc alloy die cast housing and brass cylinder
•
Bright chrome plated standard
•
4 pin tumbler mechanism
•
Steel tubular keys, nickel plated, with plastic cover
•
“L” dimension 13mm standard; other dimensions
available upon request
•
Dual function Key Lock Switch
•
Key withdrawals in both positions
•
Silver plated contacts and terminals
•
2 position (off-on) 2 terminals
•
Hex nut or speed clip mounted
•
200 key combinations available
Series
Style
Key Withdrawal Key Combination
Options
SWT
S1096
X
XXX
KEY
Key lock switch 13mm cylinder 1=Off position XXX=001-200
KEY=With key
2=Off and on
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
D
E
F
RoHS compliant
Rev.
Description
F
Date
06/10/05
06/10/05
06/10/05 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
SWT-S1098-X-XXX-KEY
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6
Description: Key lock switch, 13mm diameter
