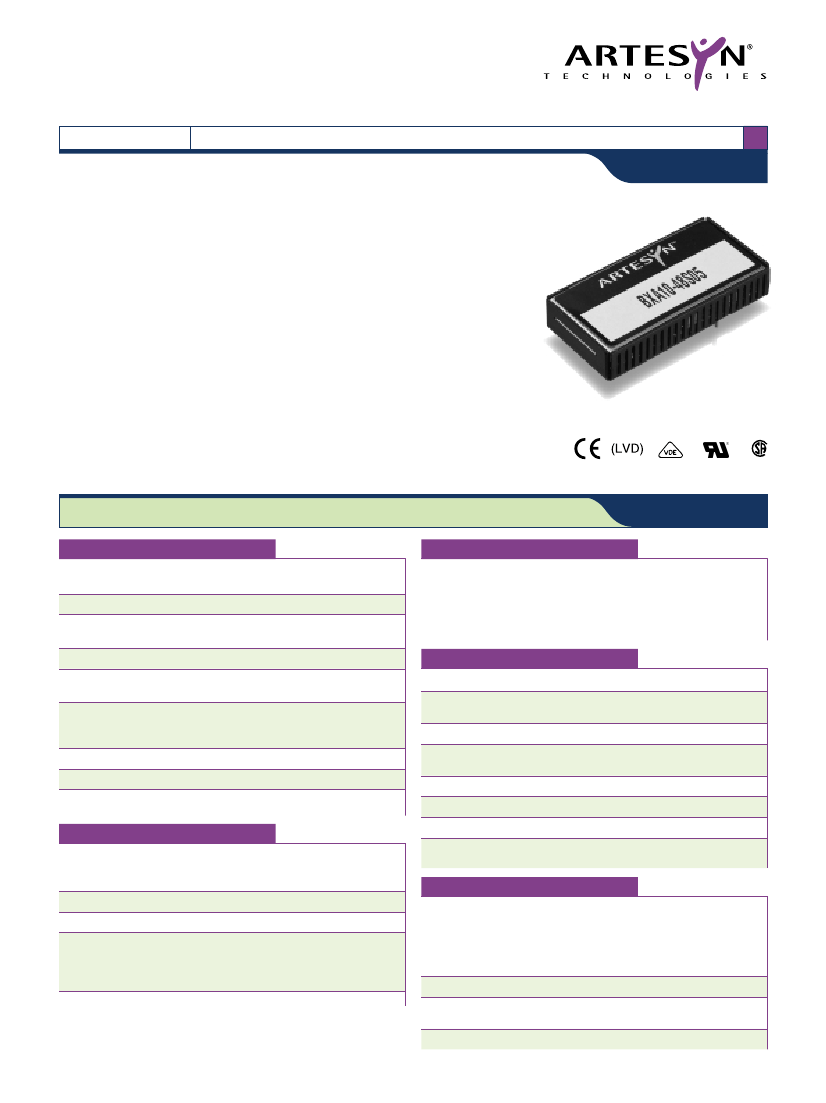

BXA10 Series
DC/DC CONVERTERS
•
•
•
•
•
•
Single and dual output
8-10W Wide Input DC/DC Converters
1
1 x 2 x 0.395 inch package with stand-offs
13.3 Watts/in
3
power density
CISPR22 and EN55022 conducted emission level A
UL, CSA and VDE approvals (48V input only)
Continuous short circuit protection
Optional remote ON/OFF
The BXA10 series of DC/DC converters, comprising 9 different models, is designed for
a wide range of applications including communications, industrial systems and mobile
battery powered systems. Packing up to 10 Watts of power into a 2 x 1 x 0.395 inch
package, with efficiencies as high as 86%, the BXA10 has wide input ranges of 9-18VDC,
18-36VDC, 18-75VDC and 36-75VDC, and is available in single and dual output versions.
Isolation of 1500VDC, approval to EN60950 2nd edition, coupled with reduced conducted
noise for simplified compliance to FCC Part 15 level A and EN55022 level A, make the
BXA10 ideal for telecommunications and distributed power applications. Other features
include overvoltage protection, continuous short circuit protection with automatic recovery
and remote on/off, all of which minimize the need for external circuitry and make the
BXA10 a recommended component in distributed power systems.
2 YEAR WARRANTY
All specifications are typical at nominal input, full load at 25°C unless otherwise stated
SPECIFICATIONS
OUTPUT SPECIFICATIONS
Line regulation
Load regulation
Minimum load
Overshoot
Ripple and noise
(See Note 2)
Transient response
LL to HL, single output
LL to HL, dual output
10% to 100% FL (See Note 4)
24 and 48V models
12V models
At start-up
5Hz to 20MHz
25% load step
±0.2%
±0.2%
±0.5%
EMC CHARACTERISTICS
Conducted emissions
ESD air
ESD contact
Surge
Fast transients
Radiated immunity
Conducted immunity
EN55022, FCC (See Note
EN61000-4-2, level 2
EN61000-4-2, level 3
EN61000-4-5, level 2
EN61000-4-4, level 2
EN61000-4-3, level 3
EN61000-4-6, level 3
8)
Perf.
Perf.
Perf.
Perf.
Perf.
Perf.
Level A
criteria 1
criteria 1
criteria 1
criteria 1
criteria 1
criteria 1
10% full load
No minimum load
10% max.
100mV pk-pk, max.
20mV rms
±2.0% max. dev.,
250µs recovery
to within ±1.0%
±0.02%/°C max.
GENERAL SPECIFICATIONS
Efficiency
Isolation voltage
Switching frequency
Approvals and
standards
Case material
Material flammability
Weight
See table
Input/output
Input or output to case
Fixed
Safety
81% min.
1500VDC
1000VDC
400kHz
VDE0805, EN60950, IEC950
UL1950, CSA C22.2 No. 950
Temperature coefficient
Overvoltage protection
Short circuit protection
INPUT SPECIFICATIONS
Input voltage range
12VDC (See Note 6)
24VDC
48VDC (S12, S15)
Clamp type
Hiccup
See table
Continuous
automatic recovery
Black coated, six-sided metal case
UL94V-0
20g (0.71oz)
MIL-HDBK-217F
Bellcore
519,000 hours
>2 million hours
9 to 18VDC
18 to 36VDC
36 to 75VDC
Pi type
MTBF
ENVIRONMENTAL SPECIFICATIONS
Thermal performance
Operating ambient
-25°C to +71°C
(See derating curve)
Non-operating amb.
-55°C to +125°C
Case
+110°C max.
Derating
See derating curve
Cooling
Free air convection cooled
Non-condensing
Operating
Non operating
5Hz to 500Hz
5% to 95% RH
10,000 feet max.
40,000 feet max.
2.5G rms (approx.)
Input filter
Start up surge current
Remote ON/OFF
ON (See Note 3)
OFF
OFF idle current
Start-up time
Resistive load
1.5A max.
Open collector compatible
High impedance >400kΩ
Low impedance <1.0kΩ
<1.5mA
1.6s, max.
Relative humidity
Altitude
Vibration
File Name: BXA10SD_BTO.PDF Rev: 08 Oct 2002
BXA10 Series
DC/DC CONVERTERS
INPUT
VOLTAGE
9-18VDC
9-18VDC
9-18VDC
18-36VDC
18-36VDC
18-75VDC
36-75VDC
36-75VDC
OUTPUT
VOLTAGE
12.0V
±12.0V
±15.0V
12.0V
15.0V
12.0V
12.0V
15.0V
OUTPUT
CURRENT
0.83A
±0.416A
±0.333A
0.83A
0.67A
0.83A
0.83A
0.67A
INPUT
CURRENT
1.05A
1.05A
1.05A
0.51A
0.51A
0.25A
0.25A
0.25A
(1)
Single and dual output
8-10W Wide Input DC/DC Converters
2
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
TYPICAL
OVP
EFFICIENCY
84%
86%
86%
84%
84%
82%
85%
85%
15VDC
30VDC
36VDC
15VDC
18VDC
15VDC
15VDC
18VDC
REGULATION (Typ.)
LINE
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
±0.2%
LOAD
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
±0.5%
MODEL
NUMBER
(3)
BXA10-12S12
BXA10-12D12
BXA10-12D15
BXA10-24S12
BXA10-24S15
BXA10-48S12W
BXA10-48S12
BXA10-48S15
Notes
1
2
At nominal input and output voltage and maximum load.
Output ripple can be reduced to <50mV with the addition of a 33µF, 25V,
AVX-TPS (or equivalent) tantalum capacitor. Consult factory for further
information.
For units with optional remote ON/OFF, please add the suffix ‘-S’ to the
model number: e.g.
BXA10-48S12-S.
Maximum open pin voltage 14VDC.
Assumes balanced loads on dual output models.
High impedance source/long input power cable may necessitate the
introduction of an input filter.
Typical 9-18VDC model start-up voltage is 9V. Maximum start-up voltage
is 9.5V (>0°C) or 9.7V (<0°C).
It is recommended that an IEC127, 250V, fast blow fuse is used rated at
4A for nominal 12V models; 3A for nominal 24V models and 2A for 48V
models.
To achieve compliance to EN55022-A and FCC part 15 Class A, external
capacitors of the following values are needed:
Model
BXA10-12xxx
BXA10-24xxx
BXA10-48xxx
C1*
10µF film, 25V
10µF film, 50V
10µF film, 100V
C2
0.22µF film
0.22µF film
0.22µF film
C3
0.22µF film
0.22µF film
0.22µF film
PIN CONNECTIONS
PIN NUMBER
1
2
3
4
5
6*
SINGLE OUTPUT
+Vin
– Vin
+ Vout
No Pin
– Vout
Remote ON/OFF
DUAL OUTPUT
+ Vin
– Vin
+ Vout
Common
– Vout
Remote ON/OFF
3
4
5
6
7
8
* Optional remote ON/OFF pin. Add Suffix ‘-S’ to the model number, Note 3.
(C2, C3 voltage rating application dependent)
* Siemens P.N. B32512-J1106-J or equivalent.
www.artesyn.com
File Name: BXA10SD_BTO.PDF Rev: 08 Oct 2002
BXA10 Series
DC/DC CONVERTERS
+ Input
Single and dual output
8-10W Wide Input DC/DC Converters
3
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
DERATING CURVE
Output Power (Watts)
71ºC
C1
100%
Output Power (%)
BXA10
Input Return
C2
C3
110ºC
0ºC 20ºC
40ºC 60ºC 80ºC 100ºC 120º C
0%
-25ºC
Ground Plane
Ambient Temperature (˚C)
Mechanical Notes
A
Recommended PCB hole diameter is 0.052 inches (1.32mm).
B
All pins are in true position within 0.010 inches (0.25mm).
C
Tolerance (inches): .XX = ±0.02
XXX = ±0.005
0.1
(2.5)
0.4
(10.2)
0.4
(10.2)
0.020
(0.5)
0.040 Dia. (1.0)
3
2.0
(50.8)
0.8
(20.4)
4
5
BOTTOM
VIEW
BOTTOM
VIEW
1
2
6
0.6
(15.2)
0.4
(10.2)
0.2
(5.1)
1.00 (25.4)
0.3
(7.6)
0.135
±
0.010
(3.4
±
0.2)
0.395 (10.03)
max.
ALL DIMENSIONS IN INCHES (mm)
International Safety Standard Approvals
VDE0805/EN60950/IEC950 File No. 10401-3336-1094
Licence No. 6298 and 6299
UL1950 File No. E136005
CSA C22.2 No. 950 File No. LR41062C
Data Sheet © Artesyn Technologies® 2002
The information and specifications contained in this data sheet are believed to be correct at time of publication. However, Artesyn Technologies accepts no responsibility for consequences arising
from printing errors or inaccuracies. Specifications are subject to change without notice. No rights under any patent accompany the sale of any such product(s) or information contained herein.
www.artesyn.com
File Name: BXA10SD_BTO.PDF Rev: 08 Oct 2002
