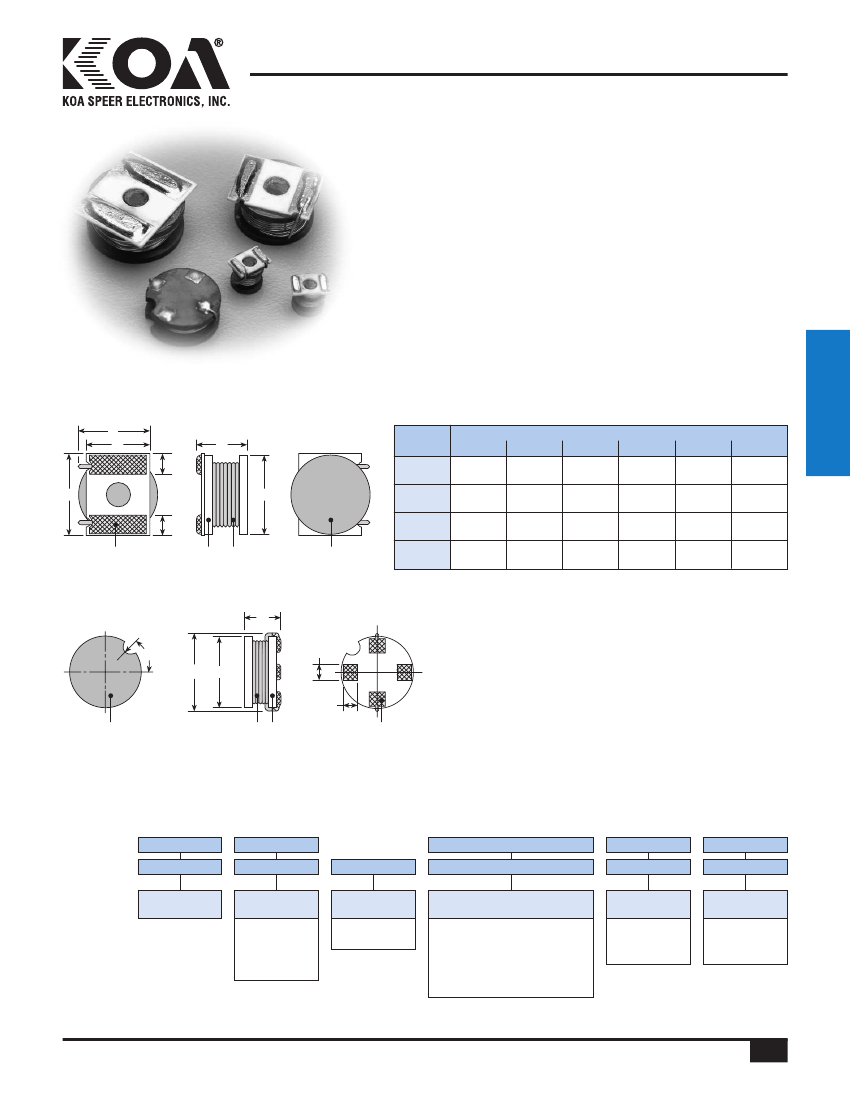

LPC
choke coil inductor
features
•
•
•
•
•
•
Small size allows for high mounting density
Suitable for reflow soldering
Large DC current capacity with low DC resistance
Polarity identification available
E-6 series of values (customs available)
Marking: Black body color with no marking
dimensions and construction
E
D
F
C
F
Electrode
4045, 10065, 12065
B
45°±6°
C
A
F
Ferrite
Core
9040
Magnet Ceramic
Wire
Substrate
Electrode
Ceramic Magnet
Substrate Wire
Ferrite
Core
A
B
Size
4045
9040
10065
12065
A
B
Dimensions
inches
(mm)
C
D
E
.138
(3.5)
––
.354
(9.0)
.433
(11.0)
F
.039±.112
(1.0±0.3)
.071±.008
(1.8±0.2)
.098±.008
(2.5±0.2)
.146±.112
(3.7±0.3)
ø.157±.008 .169±.009 .177±.008 .118±.008
(ø4.0±0.2) (4.3±0.2) (4.5±0.2) (3.0±0.2)
ø.354±
-.004
.193 Max. .402 Max. .079±.008
.
(ø9.0
+0.05
) (4.9 Max.) (10.2 Max.) (2.0±0.2)
-0.1
ø.394±.008 .295 Max. .409±.008 .315±.008
(ø10.0±0.2) (7.5 Max.) (10.4±0.2) (8.0±0.2)
ø.472±.008 .295 Max. .488±.008 .472±.008
(ø12.0±0.2) (7.5 Max.) (12.4±0.2) (10.0±0.2)
+.002
ordering information
Old Part #
New Part #
LPC
LPC
Type
4045
4045
Size
4045
9040
10065
12065
L
Termination
Material
L: SnPb
A: SnAg
TED
TED
Packaging
TED: 10" embossed plastic
(4045 - 1,000 pieces/reel)
(9040 - 500 pieces/reel)
(10065 - 300 pieces/reel)
(12065 - 300 pieces/reel)
101
101
Nominal
Inductance
101: 100µH
221: 220µH
152: 1500µH
K
K
Tolerance
K: ±10%
M:±20%
N: ±30%
For further information
on packaging, please refer
to Appendix A.
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
R
1
D
3/16/04
KOA Speer Electronics, Inc.
• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
.O.
215
inductors
LPC
choke coil inductor
applications and ratings
Part
Designation
LPC4045*TEDR68M
LPC4045*TED1R0M
LPC4045*TED1R5M
LPC4045*TED2R2M
LPC4045*TED3R3M
LPC4045*TED4R7M
LPC4045*TED6R8M
LPC4045*TED100K
LPC4045*TED150K
LPC4045*TED220K
LPC4045*TED330K
LPC4045*TED470K
LPC4045*TED680K
LPC4045*TED101K
LPC4045*TED151K
LPC4045*TED221K
LPC4045*TED331K
LPC4045*TED471K
LPC4045*TED681K
LPC9040*TED100M
LPC9040*TED150K
LPC9040*TED220K
LPC9040*TED330K
LPC9040*TED470K
LPC9040*TED680K
LPC9040*TED101K
LPC9040*TED151K
LPC9040*TED221K
LPC9040*TED331K
LPC9040*TED471K
LPC9040*TED681K
LPC10065*TEDR68M
LPC10065*TED1R0M
LPC10065*TED1R5M
LPC10065*TED2R2M
LPC10065*TED3R3M
LPC10065*TED4R7M
LPC10065*TED6R8M
LPC10065*TED100K
LPC10065*TED150K
LPC10065*TED220K
LPC10065*TED330K
LPC10065*TED470K
LPC10065*TED680K
LPC10065*TED101K
LPC10065*TED151K
LPC10065*TED221K
LPC10065*TED331K
LPC10065*TED471K
LPC10065*TED681K
LPC10065*TED102K
LPC10065*TED152K
LPC10065*TED222K
LPC10065*TED332K
Inductance
(µH)
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
10
15
22
33
47
68
100
150
220
330
470
680
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
1500
2200
3300
Inductance
Tolerance
Quality
Factor
Minimum
(MHz)
Self Resonant
Frequency
Minimum
(MHz)
120.0
90.0
70.0
55.0
45.0
35.0
25.0
23.5
18.5
14.0
12.0
10.5
8.0
6.3
5.2
3.9
3.0
2.7
2.2
25.0
21.0
15.0
13.5
11.5
10.0
8.0
7.0
5.0
3.3
2.8
1.2
75.0
65.0
50.0
40.0
30.0
25.0
20.0
15.0
12.0
9.0
8.0
6.0
5.0
4.0
3.0
2.5
2.0
1.5
1.0
0.95
0.85
0.70
0.55
DC
Resistance
Maximum
(Ω)
0.012
0.015
0.020
0.023
0.044
0.062
0.075
0.10
0.15
0.21
0.41
0.52
0.67
0.92
1.80
2.25
4.27
5.23
6.67
0.07
0.09
0.11
0.14
0.20
0.27
0.41
0.55
0.81
1.86
2.07
2.65
6.0 mΩ
7.0 mΩ
8.0 mΩ
9.0 mΩ
0.012
0.017
0.024
0.036
0.054
0.080
0.120
0.175
0.255
0.380
0.580
0.850
1.30
1.85
2.70
4.00
6.10
9.00
13.5
Allowable
DC Current
Maximum
(Amps)
3.40
3.10
2.80
2.50
1.80
1.45
1.30
1.02
0.84
0.70
0.52
0.46
0.40
0.28
0.25
0.18
0.15
0.14
0.12
1.55
1.40
1.25
1.10
0.99
0.91
0.70
0.60
0.50
0.29
0.22
0.14
9.50
9.00
8.50
7.50
6.80
5.70
4.70
3.90
3.15
2.60
2.30
1.79
1.48
1.22
1.00
0.82
0.67
0.57
0.47
0.38
0.31
0.26
0.21
Measured
Frequency
(Hz)
M: ±20%
20
1000
inductors
K: ±10%
40
M: ±20%
40
30
20
K: ±10%
10
1000
40
M: ±20%
30
20
15
L Meas. Freq.
1 MHz
Q Meas. Freq.
2.52 MHz
K: ±10%
30
100 MHz
* Add termination material character (L, A)
For complete environmental specifications,
please refer to page 217.
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
4/23/04
216
KOA Speer Electronics, Inc.
• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
.O.
LPC
choke coil inductor
applications and ratings
(continued)
Part
Designation
LPC12065*TEDR68N
LPC12065*TED1R0N
LPC12065*TED1R5N
LPC12065*TED2R2N
LPC12065*TED3R3M
LPC12065*TED4R7M
LPC12065*TED6R8M
LPC12065*TED100K
LPC12065*TED150K
LPC12065*TED220K
LPC12065*TED330K
LPC12065*TED470K
LPC12065*TED680K
LPC12065*TED101K
LPC12065*TED151K
LPC12065*TED221K
LPC12065*TED331K
LPC12065*TED471K
LPC12065*TED681K
LPC12065*TED102K
LPC12065*TED152K
LPC12065*TED222K
LPC12065*TED332K
LPC12065*TED472K
LPC12065*TED682K
Inductance
(µH)
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1.0 mH
1.5 mH
2.2 mH
3.3 mH
4.7 mH
6.8 mH
Inductance
Tolerance
Quality
Factor
Minimum
(MHz)
40
Self Resonant
Frequency
Minimum
(MHz)
77.0
60.0
47.0
38.0
30.0
24.0
19.0
15.0
12.0
9.5
7.5
6.2
4.9
4.0
3.2
2.5
2.0
1.6
1.3
1.0
0.83
0.67
0.53
0.43
0.34
DC
Resistance
Maximum
(Ω)
5.0 mΩ
7.0 mΩ
8.0 mΩ
10.0 mΩ
0.012
0.016
0.022
0.031
0.046
0.065
0.093
0.130
0.182
0.260
0.380
0.540
0.790
1.08
1.55
2.21
3.20
4.60
6.60
9.30
13.2
Allowable
DC Current
Maximum
(Amps)
10.0
9.50
9.00
8.00
7.00
6.50
5.40
4.50
3.63
3.00
2.40
2.05
1.70
1.38
1.14
0.94
0.77
0.65
0.53
0.44
0.35
0.29
0.23
0.19
0.16
Measured
Frequency
(Hz)
N: ±30%
M: ±20%
30
2.52 MHz
20
K: ±10%
15
100 KHz
30
* Add termination material character (L, A)
environmental applications
Performance Characteristics
Parameter
High Temperature Exposure
Maximum
∆
L
±5%
+85°C, 500 hours
Test Method
Low Temperature Exposure
±5%
-40°C, 500 hours
Moisture Exposure
±5%
+40°C, 90 - 95% RH, 500 hours
Temperature Cycling
±5%
-40°C (30 minutes)/+85°C (30 minutes), 100 cycles
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
11/01/03
KOA Speer Electronics, Inc.
• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
.O.
217
inductors
Power technology
