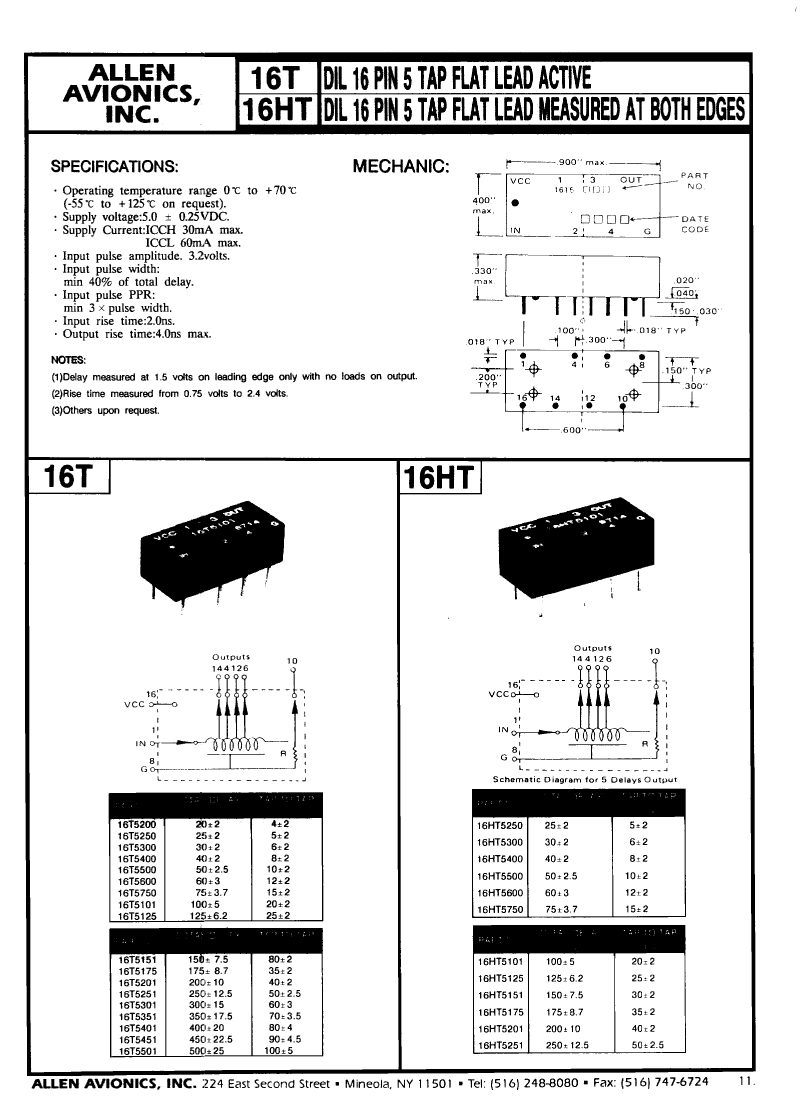

16T5401 datasheet, PDF - EEWORLD Datasheet

16T5401: DescriptionActive Delay Line, 1-Func, 5-Tap, True Output, PDIP8; Categorylogic logic; File Size44KB，1 Pages; ManufacturerAllen Avionics Inc.

Download Datasheet Parametric View All

16T5401 Overview

Active Delay Line, 1-Func, 5-Tap, True Output, PDIP8

Parameter Name	Attribute value
Maker	Allen Avionics Inc.
package instruction	,
Reach Compliance Code	unknown
Is Samacsys	N
JESD-30 code	R-PDIP-T8
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	5
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
programmable delay line	NO
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Total delay nominal (td)	400 ns
Base Number Matches	1
